DJI RS 3 Pro
Product Highlights
- Automated Axis Locks
- Extended Carbon Fiber Axis Arms
- 4.5kg (10lbs) Tested Payload
- LiDAR Focusing
- O3 Pro Transmission
- Dynamic & Versatile Solution

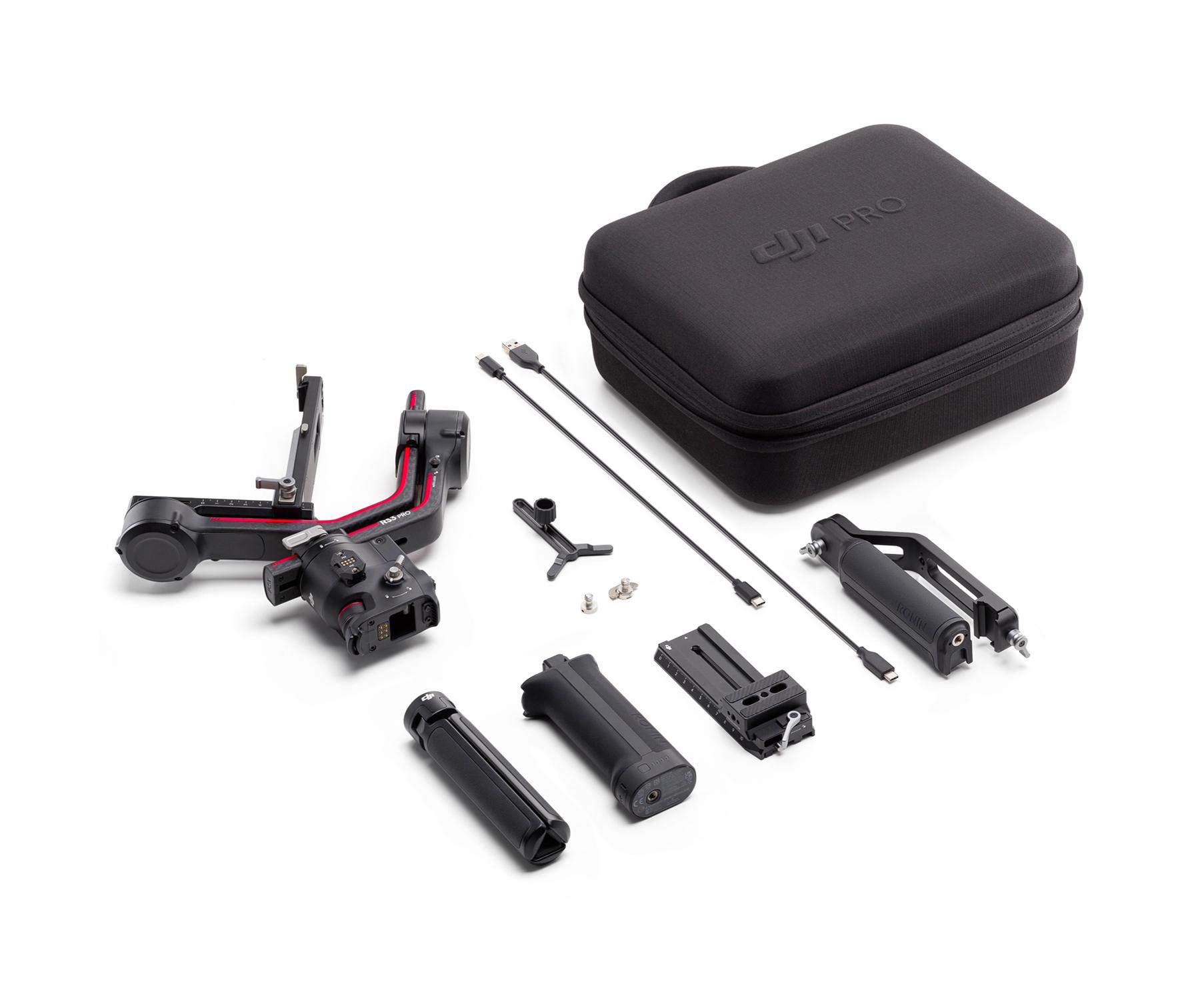

What's in the box?
- 1 x DJI RS 3 Pro
- 1 x Carrying Case
- 1 x BG30 Grip
- 1 x Lens-Fastening Support (Extended)
- 1 x Extended Grip/Tripod (Metal)
- 1 x Quick-Release Plate (Arca-Swiss/Manfrotto)
- 1 x Briefcase Handle
- 1 x Multi-Camera Control Cable (USB-C, 30 cm)
- 1 x Screw Kit
- 1 x USB-C Charging Cable (40 cm)
- Accessory Port
NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
- Battery
Model: BHX711-3000-7.2V
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours [1]
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
- Connection
- Bluetooth 5.0; Charging Port (USB-C)
- Payload
- 4,5 kg
- Control
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°
- Frequency
- 2,400 - 2,484 GHz ; 5,725 - 5,850 GHz
- Bluetooth
- <8 dBm
- Operating Temperature
- -20° to 45° C (-4° to 113° F)
- Dimensions
Weight
Gimbal: Approx. 1,143 g
Grip: Approx. 265 g
Extended Grip/Tripod (Plastic): Approx. 226 g
Upper and Lower Quick-Release Plates: Approx. 107 g
Dimensions
Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 415×218×195 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
- Transmitter Power
2.400-2.484 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)
- Accessory Port
- Cold Shoe
