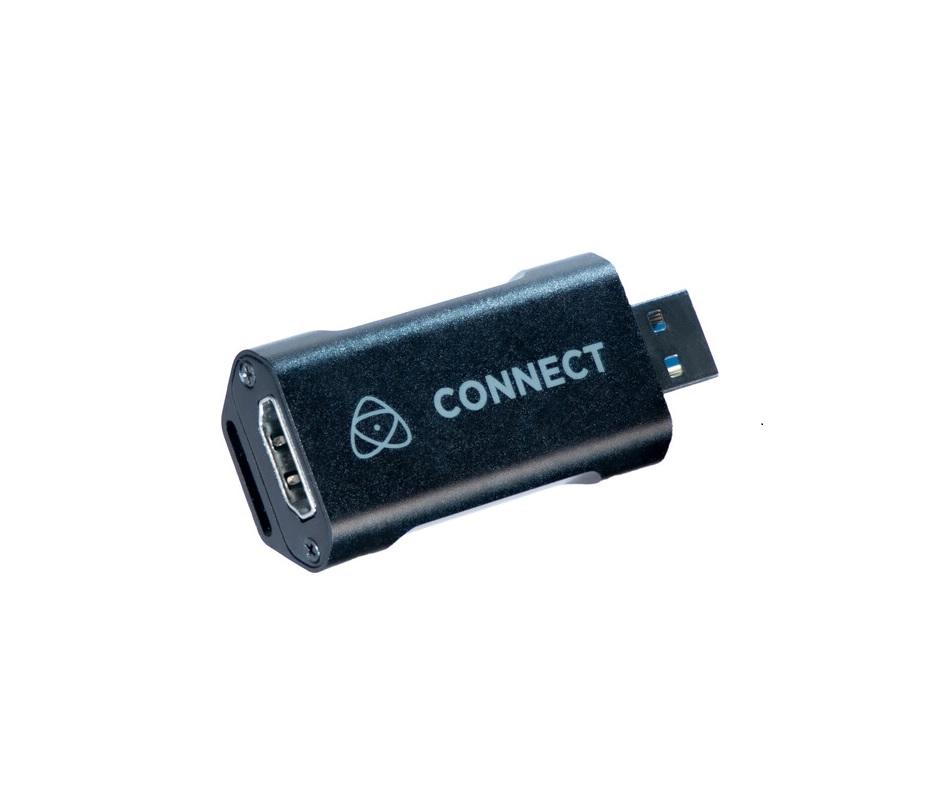

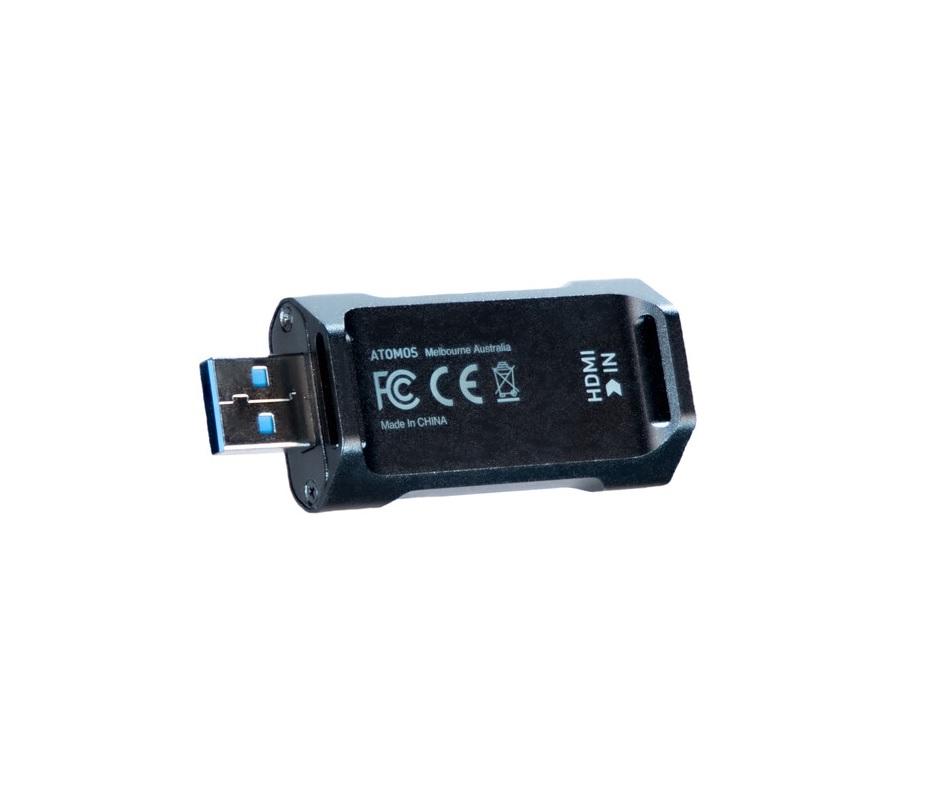

Atomos Connect 4K
Product Highlights
- 4K HDMI to USB Conversion for Streaming
- Up to UHD 4K30 HDMI Input (8/10/12-Bit)
- Up to 1080p60 Output over USB
- Includes USB Type-A to Type-C Connector
- Accepts Switched Feed from Shogun 7
- Converts HDMI Signal to USB UVC Standard
- 2 x Hook-and-Loop Strips Included
- Android, macOS, and Windows Compatible
Regular price: $105.00
Related Products
Connect, Convert, Stream
Atomos Connect, our HDMI to USB converter that allows you to take 4K (up to 30p), HD (up to 60p) or 720p (up to 60p) sources and output the same resolution and frame rate up to a maximum of 1080p60 ready for connection to the USB input on a computer and out to your choice of streaming platform.
Simple operation

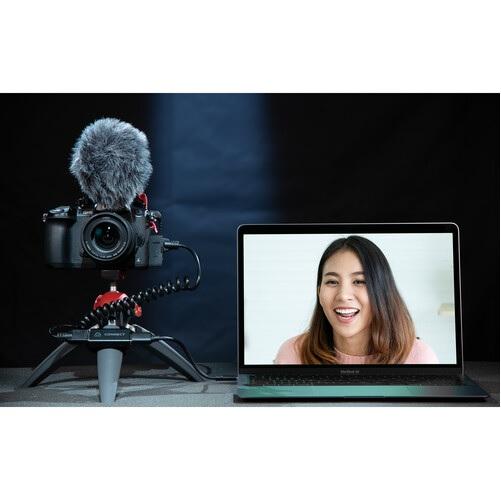

Simply connect the HDMI output of your favorite camera, console or Atomos monitor recorder and you’re ready to go LIVE! The Connect 4K automatically converts your input to the widely supported USB Video Class (UVC) standard.
Universally supported
Supported by any CDN/Social platform that supports UVC:
Skype, MS Teams, Zoom, Twitch, Youtube & many more.
Requirements:
*To successfully connect, your computer requires application including OBS, StreamLabs OBS, Wirecast or X-Split for enhanced streaming.

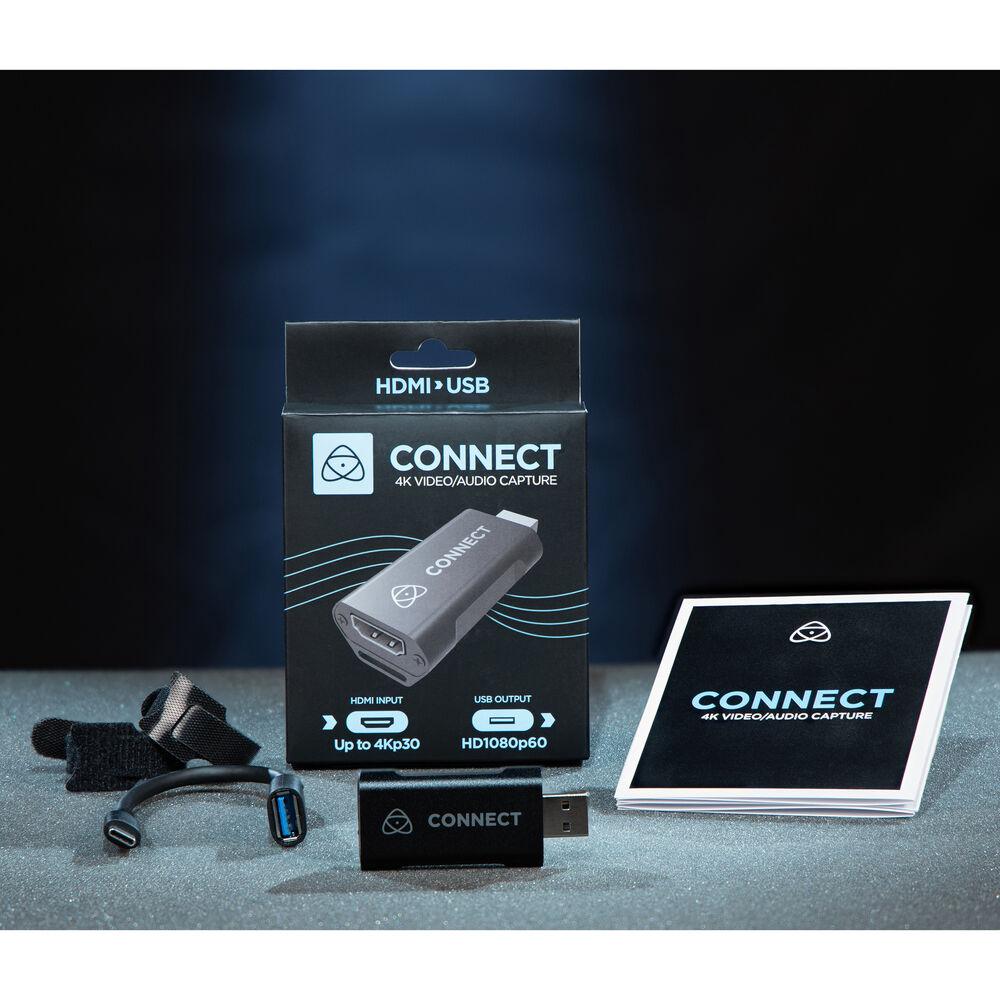

What's in the box?
- 1 x Atomos Connect HDMI to USB Converter
- 1 x User manual
- General
HDMI input
up to 4Kp30
USB output resolution
up to 1080p60 (YUV.JPEG)
Color depth
Supports 8/10/12-bit deep color
HDMI Support
Certified AWG26 HDMI cables up to 15 meters
Software support
Popular acquisition software on Windows, Android & Mac OS
USB support
Conforms to USB Video and UVC standard
Conforms to USB Audio UAC standard (L-PCM format)
Power
No external power required
Maximum working current
0.4A / 5V DC
Operating temperature range
-10 to +55 °CSYSTEM REQUIREMENTS
PC i5-3400 or above
NB i7-3537U 2.0GHZ or above.
Graphics card
PC NVIDIA GT630 or above.
NC NVIDIA GT735M or above
Run memory:
4G RAM
- Dimensions
- 64 x 28 x 13mm
- Weight
0.0214KG
- Warranty
- Limited 1 Year Warranty
