Blackmagic Design ATEM Mini


Product Highlights

  • 4-Channel Live Stream HDMI Switcher
  • Input/Output up to 1080p60 10-Bit 4:2:2
  • 2-Channel Digital Audio Mixer
  • HDMI Output, Ethernet ATEM Control
$410.00 (inc GST)
Regular price: $455.00

This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.

Introducing lowcost, multi camera, live production with advanced broadcast features.

ATEM Mini features 4 HDMI inputs and has an intuitive, easy to use design that makes it possible for anyone to live stream multi camera productions online via services and software such as YouTube Facebook Live or even Skype. Simply connect 4 high quality HDMI inputs that can be used for live switching cameras, computers or even game consoles. You get a built in DVE for exciting picture in picture effects, broadcast quality transitions, upstream keyers for removing blue and green screen background, a downstream keyer for superimposing custom graphics, audio inputs a mixer, and more. To stream, ATEM Mini also has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors Pro model adds live streaming and recording to USB disks. ATEM Mini even has secret broadcast features built in so it can do high end work!

Faster Video ProductionPlus Live Streaming

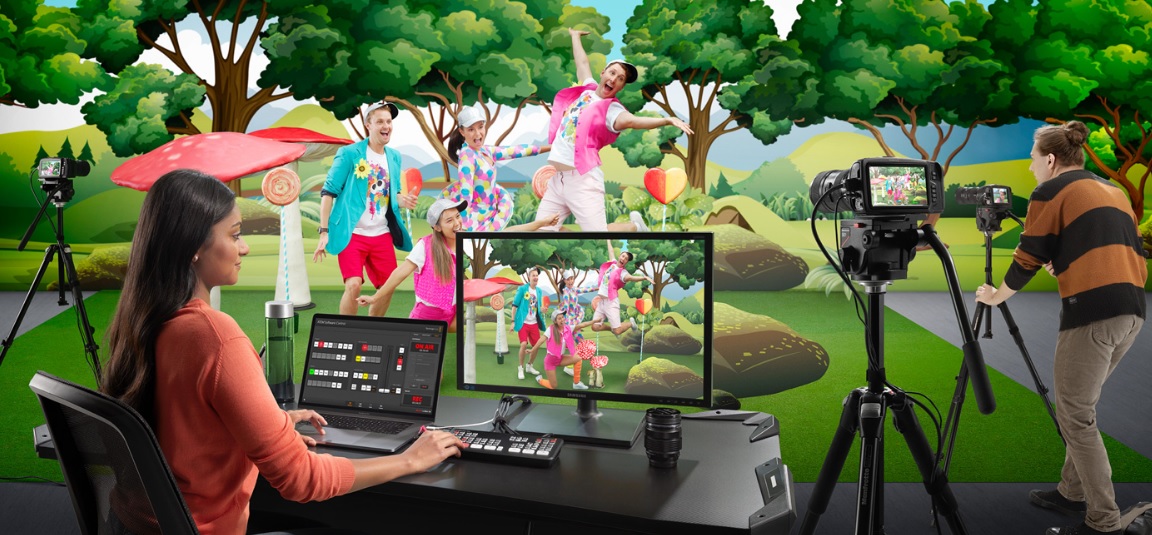

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!


Self Contained Broadcast Quality Switcher


ATEM Mini’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! On the ATEM Mini Pro model you also get buttons for record and streaming control as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.


What's in the box?

  • 1 x Blackmagic Design ATEM Mini
  • 1 x External 12V DC power supply with international socket adapters
  • Connection
  • Total Video Inputs

    Total Outputs

    Total Aux Outputs

    Total Audio Inputs
    2 x 3.5mm stereo mini jack.

    Total Audio Outputs
    None, embedded audio only.

    Timecode Connection

    HDMI Video Inputs
    4 x HDMI type A, 10-bit HD switchable.
    2 channel embedded audio.

    Video Input Re-Sync
    On all 4 HDMI inputs.

    Frame Rate and Format Converters
    On all 4 HDMI inputs.

    HDMI Program Outputs

    Ethernet supports 10/100 BaseT for software control, software updates and direct or network panel connection.

    Computer Interface
    1 x USB Type-C 2.0 for webcam out, software control

  • Standard
  • HD Video Input Standards
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

    HD Video Output Standards
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

    Video Streaming Standards
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

    Ultra HD Video Standards

    Video Sampling
    4:2:2 YUV

    Color Precision

    Color Space
    Rec 709

    HDMI Input Resolutions from Computers
    1280 x 720p 50Hz, 59.94Hz and 60Hz
    1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
    1920 x1080i 50 and 59.94Hz 60Hz

    Colorspace Conversion
    Hardware based real time.

    Audio Mixer
    6 input x 2 channel mixer.
    Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
    Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

  • Product Specifics
  • Upstream Keyers

    Downstream Keyers

    Advanced Chroma Keyers

    Linear/Luma Keyers

    Transition Keyer
    DVE only.

    Total Number of Layers

    Pattern Generators

    Color Generators

    DVE with Borders and Drop Shadow

    Minimum monitor resolution of 1366 x 768

  • Media Player
  • Media Players

    Fill and key for each Media Player

    Media Pool Still Image Capacity
    20 with fill and key
    Media Pool Still Image Format

  • Control
  • Control Panel
    Built in control panel. Software control panel included. Supports optional hardware panel

    Control Panel Connection
    Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis

  • Software
  • Software Updates
    Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

  • Operating Systems
  • Mac 10.14 MojaveMac 10.15 Catalina or laterWindows 10
  • Power Requirements
  • Power Supply 1 x External 12V power supply / Power Usage 18W
  • Environmental Specifications
  • Operating Temperature
    5° C to 40° C (41° - 104° F)

    Storage Temperature
    -10° to 60° C (14° to 140° F)

    Relative Humidity
    0% to 90% non-condensing

  • Warranty
  • 1 Year Limited Manufacturer's Warranty
