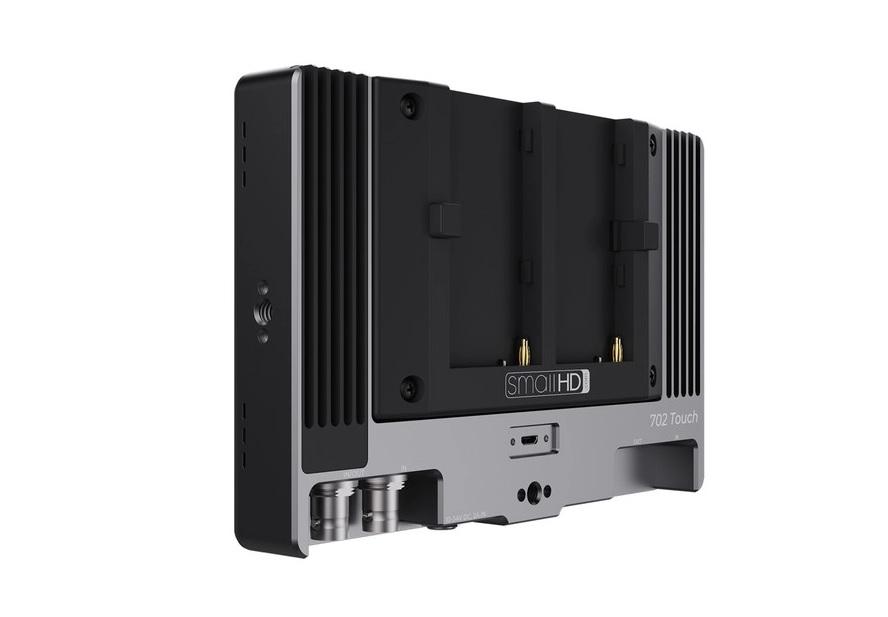

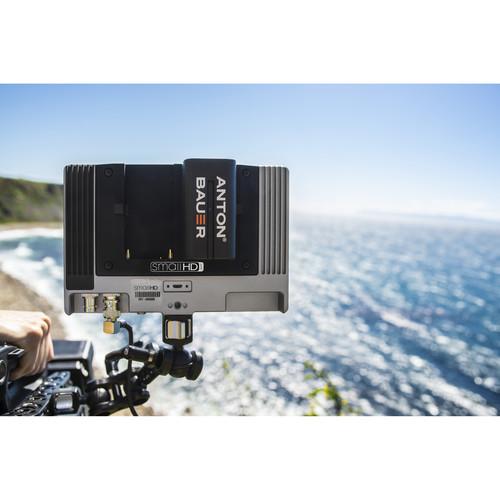

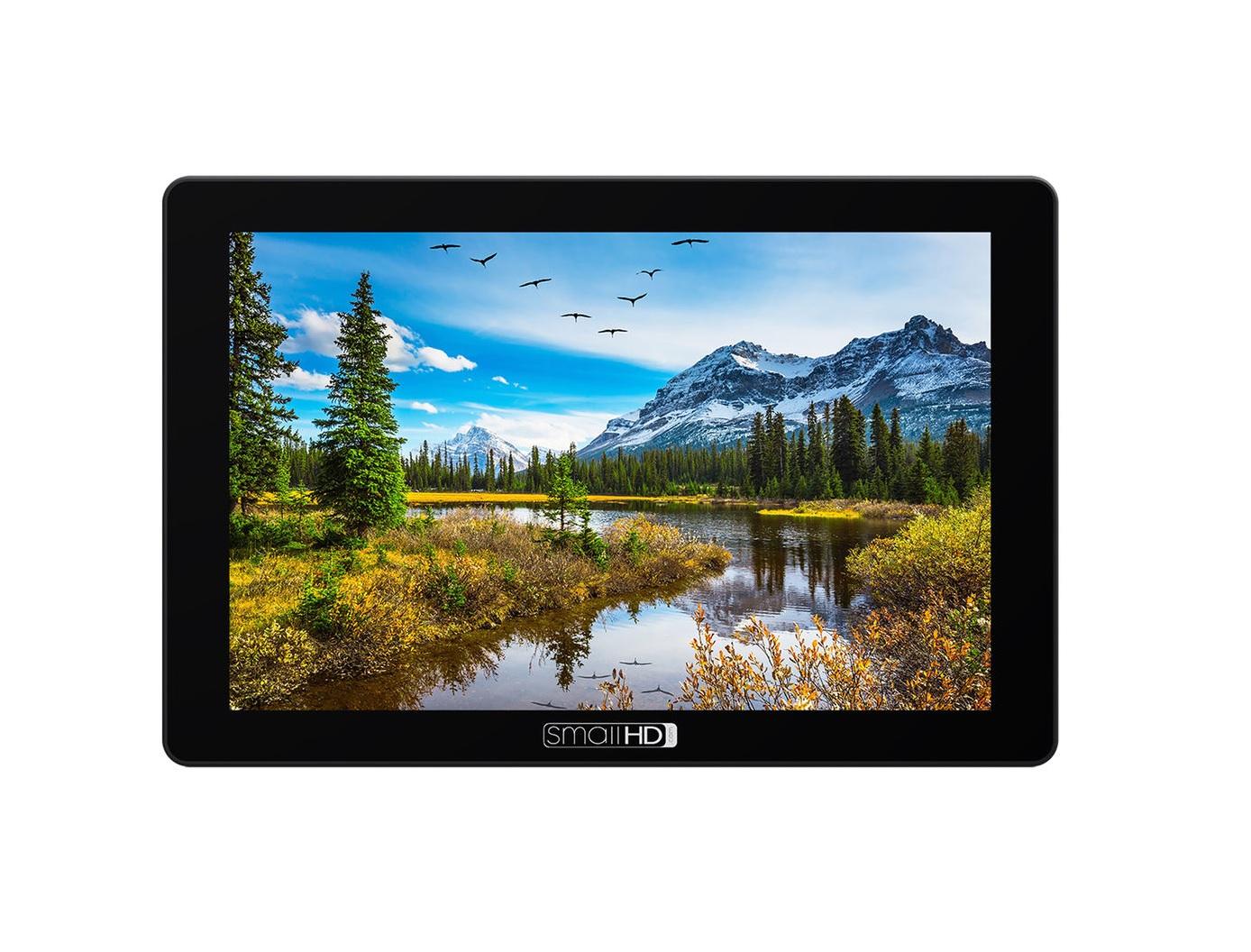

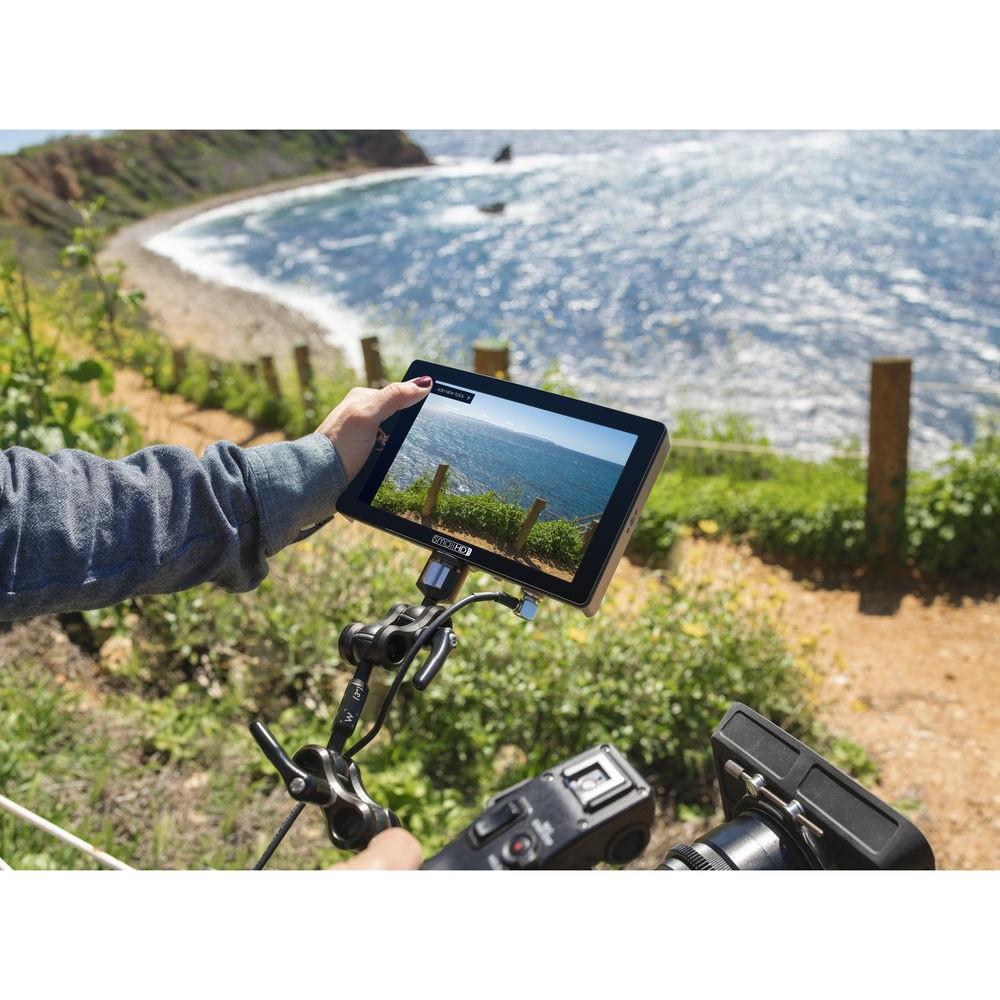

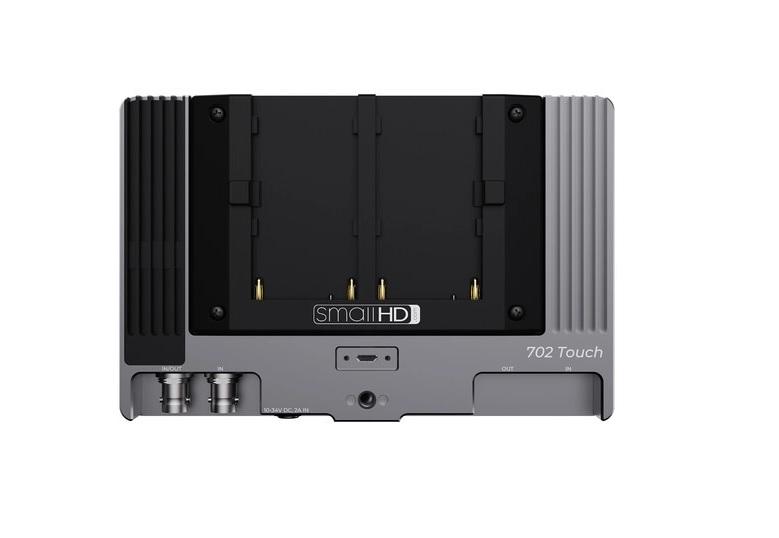

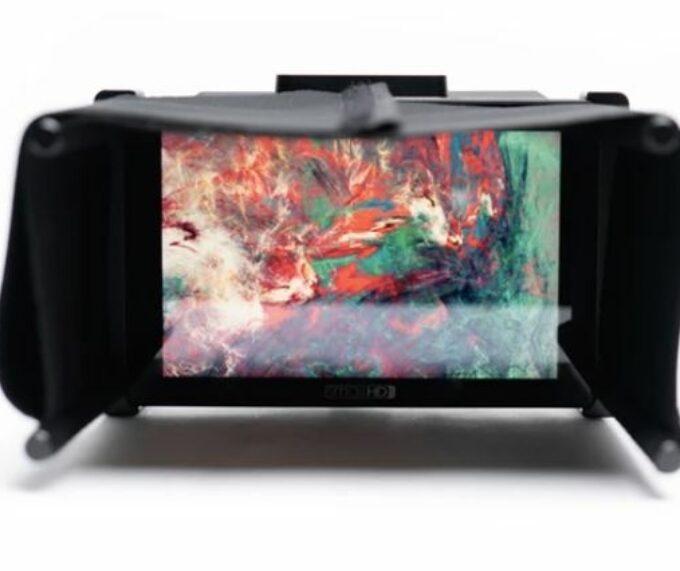

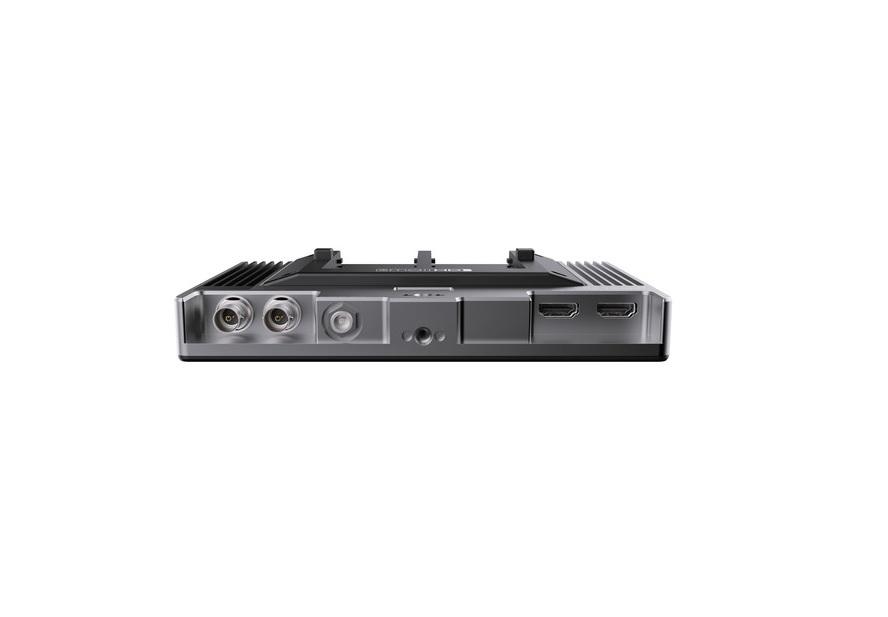

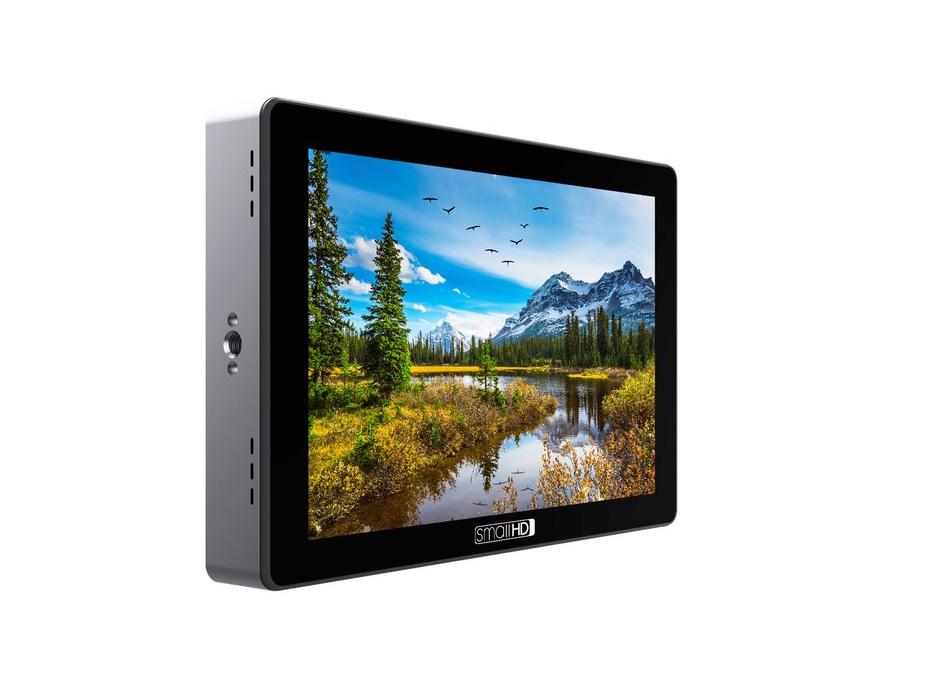

SmallHD 702 Touch 7" On-Camera Monitor

Item Weight (oz)
18.9

Package Weight (oz)
26

Height (in)
4.67

Width (in)
1.32

Length/Depth (in)
7.09

Compliance
FCC, IC, CE, RoHS

Operating Temperature
30F to 100F

Storage Temperature
0F to 120F

Mount Points
Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

Construction
Anodized aluminum chassis

Panel Type
IPS LCD

Diagonal Size
7.02

Resolution
1920x1200

Pixel Density
322

Aspect Ratio
0.6736111111111112

Active Area
5.95 x 3.72

Brightness
1500 Nits

Contrast
1000:1

Gamut
100% DCI-P3 Coverage

Color Depth
10-bit Processing (8-bit panel)

Viewing Angle
160

Backlight Type
LED

Adjustable Backlight
Yes

Brightness
1500 Nits

Color
100% DCI-P3 Coverage

3G-SDI Input Type
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

HDMI
1 input and 1 output: HDMI Type-D Receptacles (full size)

Audio
1x 3.5mm 3-pin Stereo Headphone Jack

Power In
Barrel, 2.0mm ID, 5.5mm OD (center pin positive)

USB
1x USB 2.0 Micro-B receptacle

Primary
Touch Screen

Record Capture
Image Capture Tool

Connector
Barrel, 2.0mm ID, 5.5mm OD (center pin positive)

Voltage
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

Consumption
17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)

Batter Plate Included
L-Series standard (V Mount or Gold Mount optional accessories)

Power Supply
Recommend DC 12~15V at ~2.5 amp or greater

Battery Types
L-Series, V Mount, Gold Mount

Overload Protection
DC input: Reverse polarity

Battery Chemistry
Li-ion

Battery Charging Time
Monitor does not support the charging of batteries

Power Plug-in
Barrel, 2.0mm ID, 5.5mm OD (center pin positive)

Pixel Zoom
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

Frame Guides
Preset Aspect Ratios & Customizable

DSLR Scale
Canon 5DMkii & Canon 7D

Custom Scale
Yes (Underscan Only)

Anamorphic De-Squeeze
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

Image Rotate
Automatic or Manual Control

Image Flip
Automatic or Manual Control

Cross Conversion
Yes: HDMI → SDI & SDI → HDMI

Focus Assist
User Adjustable Color Style and Intensity

Peaking
User Adjustable Intensity

False Color
Rainbow, Arri Style, Custom with up to 10 nodes

Zebra
Dual - User Configurable

Waveform
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Vectorscope
Yes

RGB Parade
Fully User Customizable

Histogram
Luma & RGB Style

Image Capture
Yes

Custom LUTS
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

LUT Downstream
Available on SDI or HDMI Out. Applied on Output Preview Page.

LUT Import
via SD Card or USB Storage Device

Overlay
With Opacity Slider and Blink Setting

Audio Meters
HDMI & SDI up to 8 channel
