Canon EOS R5C Body

SKU: CA CE R5C

Product Highlights

  • Two Cameras in One Body: Photo + Cinema
  • 45MP Stills
$6,599.00 (inc GST)

Quantity

Stunning 8K video and 45MP stills. Ready for anything.

Shoot incredible 8K movies and capture rich, detailed 45MP stills, all from the beautifully compact EOS R5 C; a camera that combines the best of Cinema EOS with all the advantages of the EOS R-series!

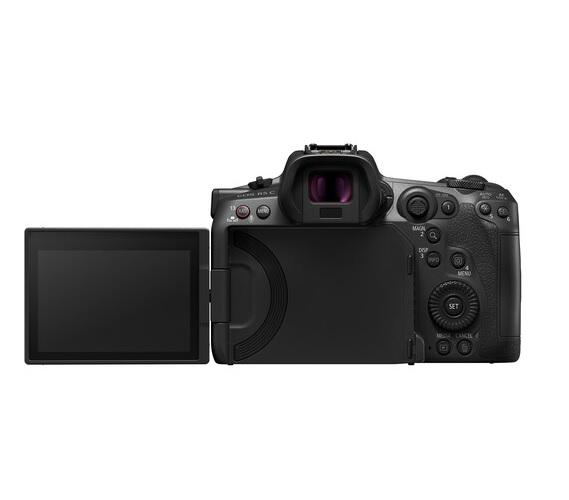

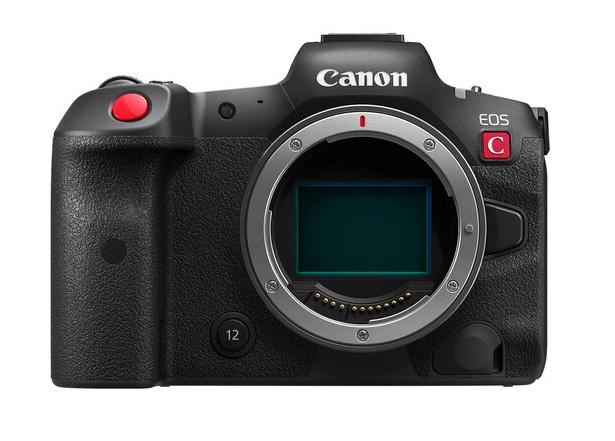

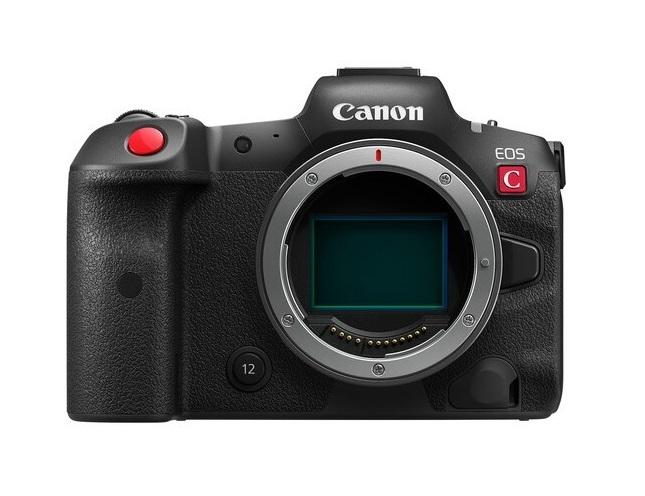

CA CE R5 C DSC 2
CA CE R5 C DSC 1 1
8K VIDEO CAMERA

8K Cinematic Full Frame video

Capture incredible detail with low-noise thanks to a full-frame sensor delivering 8K video recording up to 30fps (or 60fps with an external power supply), oversampled 4K / Full HD content and captivating 4K slow-motion up to 120fps.

HYBRID SHOOTERS

Incredible 45 Megapixel stills

The EOS R5 C provides cutting-edge still image performance with exceptional clarity, low noise and wide dynamic range, with burst speeds up to 20fps and ISO sensitivity as high as 51,200 ISO.

CANON RF MOUNT

Lens flexibility with the RF Mount

Featuring the RF mount, the EOS R5 C is compatible with an extensive range of optics including cutting-edge RF lenses, as well as EF or Cinema Lenses via the EF-EOS R Mount Adapters. Advanced 5-axis Electronic IS helps to achieve smooth and stable professional footage.

REAL-TIME EYE AF

Fast, accurate and reliable focusing

Experience Canon’s ground-breaking Dual Pixel CMOS AF technology, with Eye AF and EOS iTR AF X for precise focus tracking, even when a subject is looking away from the camera. The innovative Dual Pixel Focus Guide even assists operators when focusing manually to achieve pin-sharp footage.

CINEMA RAW LIGHT

Extensive professional recording formats and tools

Choose from a wide range of recording formats including three Cinema RAW Light options as well as XF-AVC and MP4. Capture extended dynamic range with Canon Log 3, PQ and HLG recording, while utilising professional tools such as Waveform Monitor and False Colour.

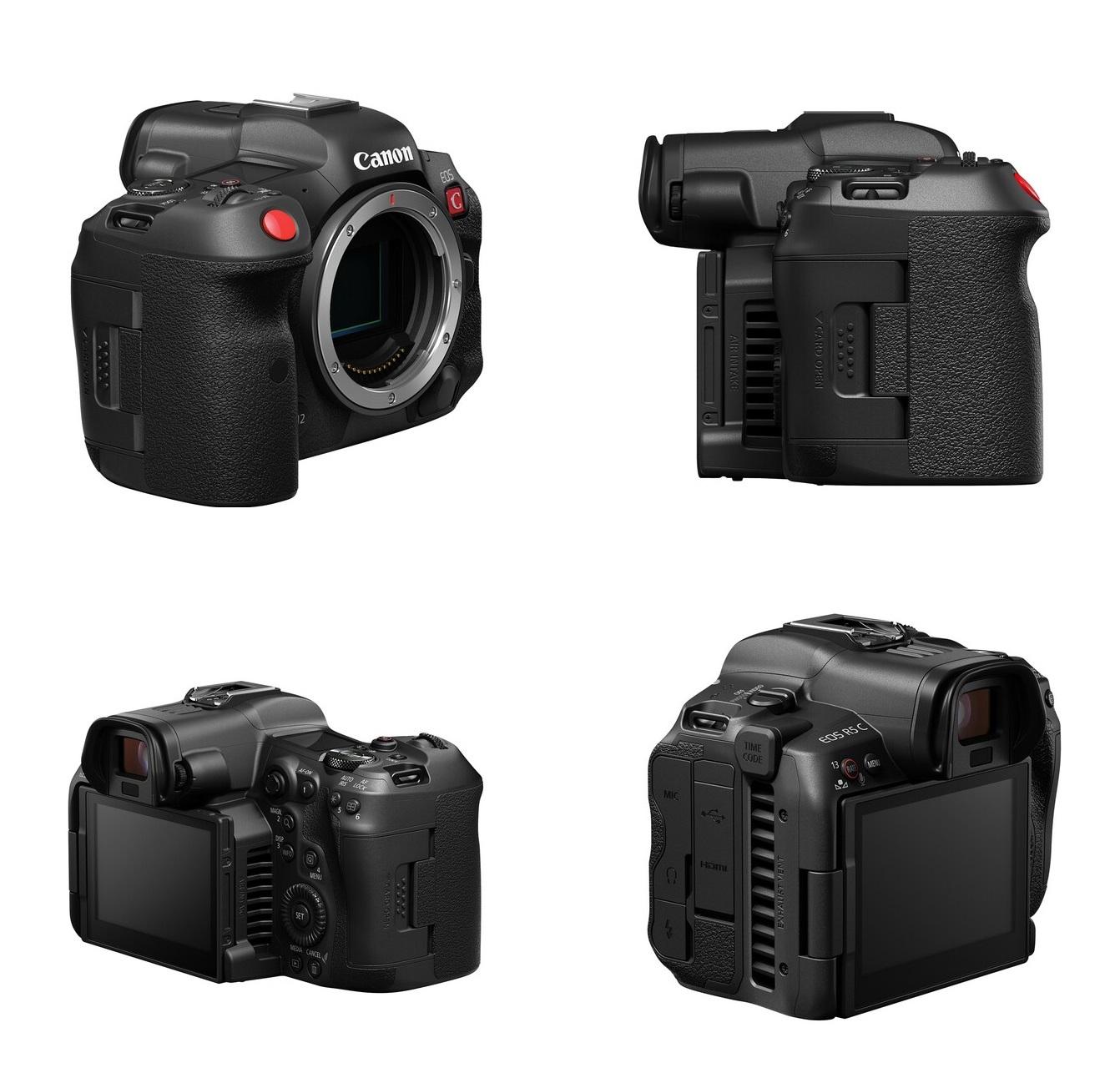

SMALL CINEMA CAMERA

A compact, lightweight design with active cooling

The EOS R5 C is a compact and lightweight Cinema EOS camera, featuring an OLED viewfinder, bright articulating LCD screen and 13 user assignable buttons. A new active cooling fan enables long duration recording, while its tough magnesium alloy body ensures professional durability.

FILMMAKING

Advanced connectivity

Equipped with a multi-function accessory shoe, the EOS R5 C provides options for XLR / stereo mic input, plus dedicated terminals for timecode, 3.5mm mic, headphones, micro-HDMI, flash sync, USB-C, as well as extensive software application support - The EOS R5 C is ready for anything.

CANON 8K CAMERA

The next generation video camera

Stunning 8K video and incredibly detailed 45MP images. Enjoy our sample gallery and see why the EOS R5 C should be at the heart of your next production.

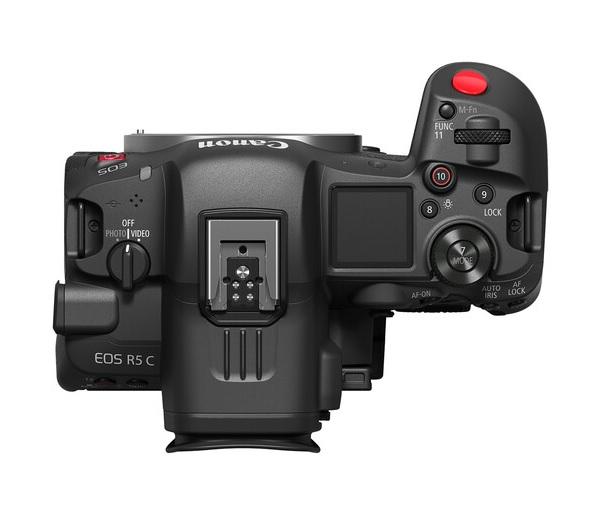

CA CE R5 C DSC 3

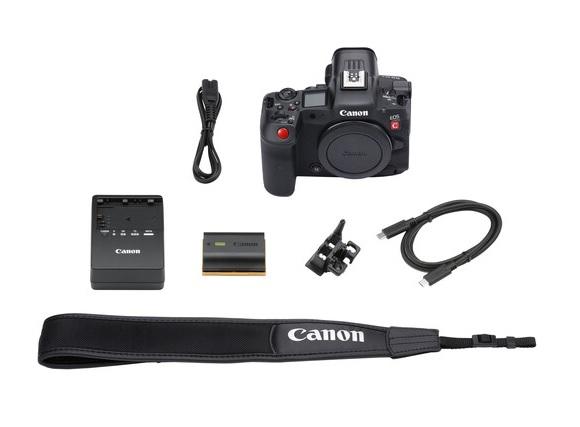

What's in the box?

  • 1 x EOS R5 C
  • 1 x Neck strap
  • 1 x Battery Pack
  • 1 x Battery Charger
  • 1 x User Manual Kit
  • Lens
  • Lens Mount
    Canon RF mount
    Compatible lenses: All RF lenses and EF lenses
    (includes EF-S lenses/EF cinema lenses)

    Lens Magnification Factor
    Full Frame:
    Actual focal length x approx. 1.0

    Super 35mm (Crop):
    5952x3140, 4096x2160 or 2048x1080 resolution: Actual focal length x approx. 1.460
    3840x2160, 1920x1080 or 1270x720 resolution: Actual focal length x approx. 1.534

    Super 16mm (Crop):
    In 2976x1570 or 2048x1080 resolution: Actual focal length x approx. 2.920
    In 1920x1080 or 1270x720 resolution: Actual focal length x approx. 3.069

    Peripheral Illumination Correction
    Yes

    Chromatic Aberration Correction
    Yes

    Distortion Correction
    Yes, RF Mount lenses only

    Diffraction Correction
    Yes

    ND Filter
    No

    Focus Control
    Via lens, Browser Remote, Camera Connect or EOS Utility

    Iris Control (EF Mount Lenses)
    1/2-stop, 1/3-stop or FINE control

    Cooke/I Technology Support
    No

    Anamorphic Lens Support
    Yes, x2.0 / x1.8 / x1.3

    Image Stabilization System
    Yes, 5-axis Electronic IS. Coordinates with supported lenses featuring optical-IS for optimal performance

  • Image Sensor
  • Sensor
    3:2 Full Frame CMOS sensor (36 x 24mm)

    System
    RGB primary colour filter (Bayer array)

    Sensor Modes
    Full Frame (8K) / Super 35mm (Crop) / Super 16mm (Crop)

    Total Pixels
    Approx. 47.10 megapixels

    Effective Pixels
    Video Mode:
    Approx. 35.40 megapixels (8192 x 4320): When resolution is 8192 x 4320, 4096 x 2160, or 2048 x 1080
    Approx. 33.20 megapixels (7680 x 4320): When resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080

    Photo Mode:
    Approx. 45 megapixels (8192 x 5464)

    Effective Sensor Screen Size
    36.0 x 19.0 mm (40.7 mm on the diagonal): When resolution is 8192 x 4320, 4096 x 2160 or 2048 x 1080
    33.8 x 19.0 mm (38.8 mm on the diagonal): When resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080

    Dynamic Range
    Canon Log 3: 1600% / 14 stops (at ISO 800)
    Wide DR: 800% (at ISO 400)

  • Image Processor
  • Type
    DIGIC X

  • Recording
  • Internal Recording Media
    1x CFexpress card (CFexpress 2.0 Type B)
    1x SD card (SD/SDHC/SDXC)
    (SD Card recording available at bitrates up to 650 Mbps)

    Recording Time1
    Cinema RAW Light LT: 8192 x 4320 1070 Mbps: 63 Mins
    Cinema RAW Light ST: 8192 x 4320: 1650 Mbps 41 Mins
    Cinema RAW Light HQ: 5952 x 3140: 1770 Mbps 38 Mins
    XF-AVC / MXF: 4096x2160: 410 Mbps 156 Mins
    MP4 (HEVC): 4096x2160: 225 Mbps 285 Mins
    MP4 (H.264): 4096x2160: 150 Mbps 428 Mins

    Recording Formats
    Video Mode:
    Cinema RAW Light (CRM): 12-bit RAW
    XF-AVC (MXF):4:2:2 10-bit (ALL-I or Long GOP)
    HEVC (MP4): 4:2:2 10-bit / 4:2:0 10-bit
    H.264 (MP4): 4:2:0 8-bit

    Photo Mode:
    RAW / C-RAW / Dual Pixel RAW2 / HEIF3 / JPEG

    Relay Recording
    Yes

    Double Slot (Simultaneous) Recording
    Yes

    Simultaneous Recording in Multiple Formats
    Yes, in Dual Recording Mode
    Options Available: [CRL / XF-AVC / MP4] [All-I / Long GOP] [4:2:2 10-bit / 4:2:0 10-bit / 4:2:0 8-bit] [8K / 4K / 2K / FHD]

    System Frequency / Frame Rates
    59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
    50.00Hz mode (50.00P / 50.00i / 25.00P)
    24.00 Hz mode (24.00P)

    Cinema RAW Light Bit Rate/Bit Depth (PAL)
    12-bit Cinema RAW Light LT:4
    8192 x 4320 / 50P / 2140 Mbps: approx. 31 Mins
    8192 x 4320 / 25P / 1070 Mbps: approx. 63 Mins
    5952 x 3140 / 50P / 1140 Mbps: approx. 59 Mins
    5952 x 3140 / 25P / 556 Mbps: approx. 122 Mins
    2976 x 1570 / 50P / 287 Mbps: approx. 237 Mins
    2976 x 1570 / 25P / 144 Mbps: approx. 474 Mins

    12-bit Cinema RAW Light ST:
    8192 x 4320 / 25P / 1650 Mbps: approx. 41 Mins
    5952 x 3140 / 50P / 1750 Mbps: approx. 39 Mins
    5952 x 3140 / 25P / 871 Mbps: approx. 78 Mins
    2976 x 1570 / 50P / 441 Mbps: approx. 154 Mins
    2976 x 1570 / 25P / 221 Mbps: approx. 308 Mins

    12-bit Cinema RAW Light HQ:
    5952 x 3140 / 25P / 1770 Mbps: approx. 38 Mins
    2976 x 1570 / 50P / 896 Mbps: approx. 76 Mins
    2976 x 1570 / 25P / 448 Mbps: approx. 152 Mins

    XF-AVC Recording Bit Rate / Sampling (PAL)
    4:2:2 10-bit (Intra-frame):5
    4096x2160 or 3840x2160 / 50P / 810 Mbps: approx. 79 Mins
    4096x2160 or 3840x2160 / 25P / 410 Mbps: approx. 156 Mins
    2048x1080 or 1920x1080 / 50P or 50i / 310 Mbps: approx. 207 Mins
    2048x1080 or 1920x1080 / 25P / 160 Mbps: approx. 401 Mins

    4:2:2 10-bit (Long GOP):
    4096x2160 or 3840x2160 / 50P / 260 Mbps: approx. 246 Mins
    4096x2160 or 3840x2160 / 25P / 160 Mbps: approx. 401 Mins
    2048x1080 or 1920x1080 / 50P or 50i / 50 Mbps: approx. 1284 Mins
    2048x1080 or 1920x1080 / 25P / 50 Mbps: approx. 1284 Mins

    MP4 Recording Bit Rate / Sampling (PAL)
    HEVC 4:2:2 10-bit (Long GOP):6
    8192x4320 or 7680x4320 / 25P / 540 Mbps: approx. 118 Mins
    4096x2160 or 3840x2160 / 50P / 225 Mbps: approx. 285 Mins
    4096x2160 or 3840x2160 / 25P / 135 Mbps: approx. 475 Mins
    2048x1080 or 1920x1080 / 50P or 25P / 50 Mbps: approx. 1284 Mins

    HEVC 4:2:0 10-bit (Long GOP):
    8192x4320 or 7680x4320 / 25P / 400 Mbps: approx. 160 Mins
    4096x2160 or 3840x2160 / 50P / 170 Mbps: approx. 377 Mins
    4096x2160 or 3840x2160 / 25P / 100 Mbps: approx. 642 Mins
    2048x1080 or 1920x1080 / 50P or 25P / 35 Mbps: approx. 1834 Mins

    H.264 4:2:0 8-bit (Long GOP):
    4096x2160 or 3840x2160 / 50P or 25P / 150 Mbps: approx. 428 Mins
    2048x1080 or 1920x1080 / 50P or 25P / 35 Mbps: approx. 1834 Mins

    Proxy Recording Bit Rate / Sampling (PAL)
    XF-AVC 4:2:0 8-bit (Long GOP)
    2048 X 1080 or 1920 x 1080 / 50P / 35 Mbps
    2048 X 1080 or 1920 x 1080 / 25P / 24 Mbps

    H.264 MP4 4:2:0 8-bit (Long GOP)
    2048 X 1080 or 1920 x 1080 / 50P or 25P / 9 Mbps

    Slow/Fast Motion
    8K recording up to 30FPS (60FPS with external power)
    4K / FHD recording: up to 120FPS
    Audio recording and auto-focus options available.

    Interval Record
    Yes

    Slow/Fast Motion
    Yes

    Pre Record (Cache Record)
    Yes, 3 seconds (XF-AVC or MP4 recording only)

    Scan Reverse
    Yes

    Photo Recording Size
    3:2 ratio:
    (L, RAW, C-RAW) 8192x5464, (M1) 5808x3872, (S1) 4176x2784, (S2) 2400x1600
    1.6x (crop):
    (L) 5088x3392, (S2) 2400x1600
    4:3 ratio:
    (L) 7280x5464, (M1) 5152x3872, (S1) 3712x2784, (S2) 2112x1600
    16:9 ratio:
    (L) 8192x4608, (M1) 5808x3264, (S1) 4176x2344, (S2) 2400x1344
    1:1 ratio:
    (L) 5456x5456, (M1) 3872x3872, (S1) 2784x2784, (S2) 1600x1600

  • System
  • Display Type
    3.2 inch 3:2 LCD Touch Panel

    Display Resolution
    2.1 million dots

    Display Touch Screen Functions
    Focus point selection, Shooting setting adjust, Start/Stop recording (activated via Menu)

    OSD for Vertical Shooting
    Yes, 90-degree rotation

    Wave Form Monitor
    Yes. LCD, EVF or HDMI

    False Colour Display (Exposure Indication)
    Yes. LCD, EVF or HDMI (Use of viewing LUT will affect false colour display)

    Colour Bars
    SMPTE, EBU and ARIB

    Peaking
    Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)

    Zebra
    Level 1; Level 2; Both
    Output via HDMI: Yes

    Markers
    On/Off selectable: centre, horizontal, grid, aspect, safety zone, rectangular and user marker. Colour selectable, yellow, blue, green, red, black, grey or white.

  • EVF
  • Built-In EVF
    0.5-inch OLED colour EVF, 5.76 million dots

    Optional EVF Accessory
    N/A

  • White Balance Editors
  • Auto
    Yes

    Preset
    Video Mode:
    Daylight (5400K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B

    Photo Mode:
    AWB, Daylight, Shade, Cloudy, Tungsten, Fluorescent, Flash, Kelvin, Custom

    White Balance Shift
    Video Mode:
    -9 to +9 (Daylight and Tungsten only)

    Photo Mode:
    -9 to +9 (Blue/Amber)
    -9 to +9 (Magenta/Green)

  • Black Balance
  • Black Balance Adjustment
    Yes

  • Time Code
  • Count Up System
    Regen, RecRun, Free Run, External, Hold (Drop frame available for some frame rates)

    Start Value Setting
    “00:00:00:00”, Set/Reset selectable

  • Shutter
  • Control Modes
    Video Mode:
    Off; Speed; Angle; Clear Scan; Slow

    Photo Mode:
    Mechanical, Elec. 1st-curtain, Electronic

    Shutter Speed
    Video Mode:
    1 sec to 1/2000 depending on frame rate and Shutter Control Mode, 39 setting options

    Photo Mode:
    30-1/8000 sec (1/2 or 1/3 stop increments)
    Bulb (Total shutter speed range. Available range varies by shooting mode)

    Shutter Angle
    11.25º to 360º depending on frame rate

    Slow Shutter (SLS)
    1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate

    Clear Scan
    24.00 Hz8 to 250.40 Hz

  • Audio
  • Recording Format
    Cinema RAW Light or XF-AVC: Linear PCM (24-bit / 48 kHz, 4 channels) MP4: MPEG-2 AAC LC (16-bit, 48 kHz, 2-channel) / Linear PCM (16-bit, 48 kHz, 4-channel)

  • Power Source
  • Power Supply (Battery)
    LP-E6NH Battery Pack (Supplied) / LP-E6N and LP-E6 (Compatible)

    Power supply (Mains)
    USB-C Power Adapter PD-E1
    DC Coupler DR-E6C
    AC Adapter CA-946

    Power Consumption (Approx.)
    8K RAW 25P (10.5W)
    8K MP4 25P (11.2W)
    4K HEVC 50P (12.9W)
    4K XF-AVC 50P (13.3W)

    Recording Time (Approx.)
    With supplied LP-E6NH battery pack:
    8K RAW 25P: 50 Mins
    8K MP4 25P: 45 Mins
    4K HEVC 50P: 40 Mins
    4K XF-AVC 50P: 35 Mins

  • Input Output
  • Audio In
    1x 3.5mm mic input
    1x Built-in mono microphone
    (XLR input available via TASCAM CA-XLR2d-C accessory)

    Headphone Output
    1x 3.5 mm stereo output

    Video Monitor Output
    No

    HDMI
    1x micro-HDMI (8K RAW output available)7

    USB
    1x USB-C (3.2 Gen1) for power, charging and communication (UVC Video output / Content Transfer Mobile App)

    SDI Output
    No

    Time Code
    1x DIN 1.0/2.3 (Input/Output)

    Genlock
    No

    Sync
    1x Flash Sync

    DC Output
    No

    DC Input
    Yes, via DR-E6C DC Coupler

    Remote Control Terminal
    1x N3-type terminal

    Wireless Control Terminal
    Available via WFT-R10 Accessory

    Lens Terminal
    No

    Ethernet Terminal
    Available via WFT-R10 Accessory

    IP Streaming / FTP
    Yes, available via WFT-R10 Accessory
    Protocol: UDP, RTP and RTP+FEC

    User LUT Input
    Yes, in-built LUTs/View Assist available for LCD/EVF/HDMI Monitoring.
    Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files).

    Video Connector
    No

    Default Function Button Settings
    One-Shot AF
    Magnification
    DISP
    Menu
    Push Auto Iris
    AF lock
    Assignable Button Menu
    Display Panel Info
    Key Lock
    (Unassigned)
    FUNC
    (Unassigned)
    Set White Balance

    User Assignable Buttons
    13 Assignable buttons (numbered) on camera body. In excess of 80 options via the menu

  • Miscellaneous
  • Tally Lamp
    Yes

    Custom Dial
    3x Electronic Dials + Multi-controller

  • Exposure
  • Exposure Metering
    Video Mode:
    Standard, Backlight, Spotlight

    Photo Mode:
    Evaluative, Partial, Spot, Centre Spot, AF-point Linked, Centre weighted average

    Exposure Compensation
    Yes

    Auto Exposure Mode
    Yes (Video mode: Auto Iris / ISO)

    Push Auto Iris
    Yes

    Exposure Lock
    Yes

    Auto Gain Control Setting
    Yes

    ISO Sensitivity
    Video Mode:
    ISO 100 to ISO 25,600 / 102,400* (increments of 1 or 1/3 stop)
    * When the sensitivity is expanded

    Photo Mode:
    ISO 100 to ISO 51,200 / 102,400* (increments of 1 or 1/3 stop)
    * When the sensitivity is expanded

    Auto Focus System
    Video Mode:
    Dual Pixel CMOS AF with Eye AF and EOS iTR AF X

    Photo Mode:
    Dual Pixel CMOS AF II

    AF Frame Sizes
    Large; size equivalent to approx. 20% (vertical) x 25% (horizontal) of the image display range
    Small; size equivalent to approx. 20% (vertical) x 8% (horizontal) of the image display range
    Whole Area; size equivalent to approx. 80% of sensor

    Auto Focus Modes
    One-Shot AF, Continuous AF, Continuous AF: Only Near Focus

    Face Detection AF
    Face Priority, Face Only, Eye AF

    Focus Guide
    For manual focus assist with compatible Canon RF mount, EF mount, Cine Servo Lenses

    Gain Setting
    -6 dB to 42 dB / 54 dB* (Normal or Fine increments)
    * When the sensitivity is expanded

  • Custom Picture
  • Stored Configurations
    Video Mode:
    C1: BT.709 Wide DR (BT.709 Gamut)
    C2: Canon Log 3 (Cinema Gamut)
    C3: PQ (BT.2020 Gamut)
    C4: HLG (BT.2020 Gamut)v
    C5. BT.709 Standard (BT.709 Gamut)
    C6. EOS Standard (BT.709 Gamut)
    C7. EOS Neutral (BT.709 Gamut)
    USER8 to USER20 (Wide DR / BT.709 Gamut)

    Photo Mode:
    Auto / Standard / Portrait / Landscape / Fine Detail / Neutral / Faithful / Monochrome / User Defined (x3)

    Colour Matrix
    CUSTOM PICTURE: Colour Matrix Phase, Gain and RGB adjustment, in tandem with Gamma selection

    Master Pedestal
    -50 to +50

    Master Black
    Adjustable for each channel RGB -50 to +50 plus Master Black -50 to +50

    Black Gamma
    Adjustable Level -50 to +50, Range -20 to +50 and Point -20 to +50

    Low Key Saturation
    Adjustable: -50 to +50

    Knee
    Point -50 to +109, Slope -35 to +50, Saturation -10 to +10

    Sharpness
    Adjustment for Level, H Detail Freq., Coring, HV Detail Balance, Limit, Select, Knee Aperture and Level dependent sharpness

    Noise Reduction
    Off, On - Three Options: Automatic (ON/OFF) / Spatial Filter (1-12) / Frame Correlation (1-3)

    Skin Detail
    Off, Low, Middle, High / Hue, Chroma, Area, Luminance. 32 steps

    Selective Noise Reduction
    Off, Low, Middle, High / Hue, Chroma, Area, Luminance.

    Colour Matrix (User Settings)
    Phase, Gain and RGB adjustment, in tandem with Gamma selection

    White Balance
    AWB, USER setting 01(setting range: 2000K to 15000K/ -20CC to +20CC), daylight, tungsten, settings (A/B)

    Colour Correction
    Area selection / area revision of two areas

    Setup Level
    -50 to +50 On/Off

  • Accessories
  • Supplied
    Battery Pack LP-E6NH
    Battery Charger LC-E6
    Shoulder Strap
    USB-C Cable
    Cable Protector
    AC Cable

    Optional
    Canon Battery Pack LP-E6NH/LP-E6N//LP-E6
    Canon Battery Charger LC-E6
    Canon Battery Grip BG-R10
    Canon DC Coupler DR-E6C
    Canon AC Adapter CA-946
    Canon USB Power Adapter PD-E1
    Canon Wireless File Transmitter WFT-R10
    Canon Interface Cable IFC-100U/IFC-400U
    Canon Shoulder Strap SS-1200
    Canon GPS Receiver GP-E2
    Canon RF lenses, EF lenses, EF cinema lenses,
    and accessories designed for these lenses
    Canon Mount Adapter EF-EOS R
    Canon Control Ring Mount Adapter EF-EOS R
    Canon Drop-In Filter Mount Adapter EF-EOS R
    (w/ drop-in variable ND filter A and circular polarizing filter A)
    Canon Mount Adapter EF-EOS R 0.71x
    Canon Extender RF1.4x
    Canon Extender RF2x
    Canon Remote Controller RC-6
    Canon Wireless Remote Controller BR-E1
    Canon Remote Switch RS-80N3
    Canon Timer Remote Controller TC-80N3
    Canon Directional Stereo Microphone DM-E1 / DM-E1D
    Canon Stereo Microphone DM-E100

    Third Party Accessories
    TASCAM CA-XLR2d-C XLR Adapter

  • Wifi
  • Wi-Fi (Optional Third Party Accessory)
    Video Mode:
    Requires WFT-R10 Accessory
    Supports Browser Remote / Content Transfer Mobile / IP Streaming

    Photo Mode:
    Built-in Wireless LAN (IEEE802.11a/b/g/n/ac) (5Ghz /2.4 GHz), with Bluetooth 5.0 support
    Supports EOS Utility / Camera Connect / image.canon


    GPS Information (Optional Accessory)
    Requires GP-E2 Accessory
    Latitude/Longitude/Elevation, Coordinated Universal Time (UTC)

  • Operating Environment
  • approx. 0 to 40°C, (85% relative humidity) / approx. -5 to 45°C, (60% relative humidity)
  • Dimensions
  • approx. 142 x 101 x 111 mm
  • Size Weight
  • Weight (Body Only)
    appox. 680g

    Weight (Accessories)
    approx. 770g (LP-E6NH, CFexpress Card, SD Card)

  • Footnotes
  • 1 Based on 25P recording on a 512GB card
    2 RAW / C-RAW / Dual Pixel RAW files are 14-bit with Mechanical shutter / Electronic 1st Curtain, 13-bit A/D conversion with H+ mode and 12-bit A/D conversion with Electronic shutter
    3 10-bit HEIF images in PQ HDR mode
    4 Recording time based on 512GB card
    5 Recording time based on 512GB card
    6  Recording time based on 512GB card
    7  ProRes RAW Recording with Atomos Ninja V+ external recorder
    8  The frequency will differ depending on the frame rate setting.

Cathay Rewards Program

Snap up points & privileges with Cathay Rewards card!

Join Today
