Sony FDR-AX43A 4K Handycam® with Exmor R™ CMOS sensor

SKU: FDR-AX43A

Product Highlights

Balanced Optical SteadyShot with 5-axis Intelligent Active mode¹³
4K Ultra HD (3840 x 2160) recording
26.8mm⁷¹⁴ wide-angle ZEISS® Vario-Sonnar T* lens
20x optical zoom with 30x/40x (4K/HD)⁸ Clear Image Zoom
Highlight Movie Maker

$1,539.00 (inc GST)
Regular price: $1,739.00

Free Gift

FREE with Purchase:

Sony SD 64GB Card (SF-E64A/T)
Sony NP-FV50A Rechargeable Battery Pack
Sony Carrying Case (LCS-U21)

Add to Wish List

Built for stability and productivity

Delivering superb solutions for content creators and videographers

With Balanced Optical SteadyShot™ to rival gimbal systems, high-resolution 4K movie recording, and high-quality sound with a unique mic, this Handycam® puts professional production and simple movie sharing within anyone’s grasp.

Extra-steady shooting on the move

Watch Balanced Optical SteadyShot in action

Stable while walking

The unique Balanced Optical SteadyShot stabiliser, with internal gimbal mechanism, is about 13 times more effective than other optical systems³ allowing shake-free shooting while walking⁴.

Stable even while running

The Balanced Optical SteadyShot internal gimbal mechanism and image processing algorithm deliver such stable shooting that you can even shoot steady movies while running.

Stable at full zoom

The stability delivered by the gimbal and algorithm of Balanced Optical SteadyShot allows you to shoot steady movies even at full zoom where camera shake is most visible.

The brilliant true-to-life quality of 4K

The latest-generation lens and image sensor enhance the spectacular detail of 4K resolution⁵, with increased sensitivity for capturing high-quality movies in low light. High-bitrate recording⁶ in XAVC S format clearly captures even fast-moving and complex scenes.

ZEISS® 20x zoom 4K-compatible lens

The ZEISS® Vario-Sonnar T* lens has a widest angle of 26.8 mm⁷, allowing more of a subject to fit in the frame. Capture a wide variety of scenes with the 20x optical zoom (26.8-536.0mm; 16:9 mode), plus 30x (4K)⁸ or 40x (HD) Clear Image Zoom and 250x digital zoom ⁹

Exmor R™ CMOS sensor and BIONZ X™ image processing engine

The Exmor R CMOS sensor enhances image clarity, reduces noise in dark environments, and enables soft background defocusing, while the BIONZ X image processing engine achieves more naturally vivid and lifelike images and faster processing.

See 4K movies in HD on non-4K devices

Super-sampled Full HD Playback on non-4K TV or device

4K movies automatically down-convert to Full HD to play on an HD TV.

Trimming Playback trims movie frame on TV at a touch

Trace a finger on the LCD to trim the frame of a 4K movie playing on TV in Full HD.

Fast Intelligent AF speeds up smartly

The AF algorithm optimises communication between the lens and image processor for extra-fast AF, while a state-of-the-art AF range prediction system helps ensure even moving subjects remain in sharp focus.

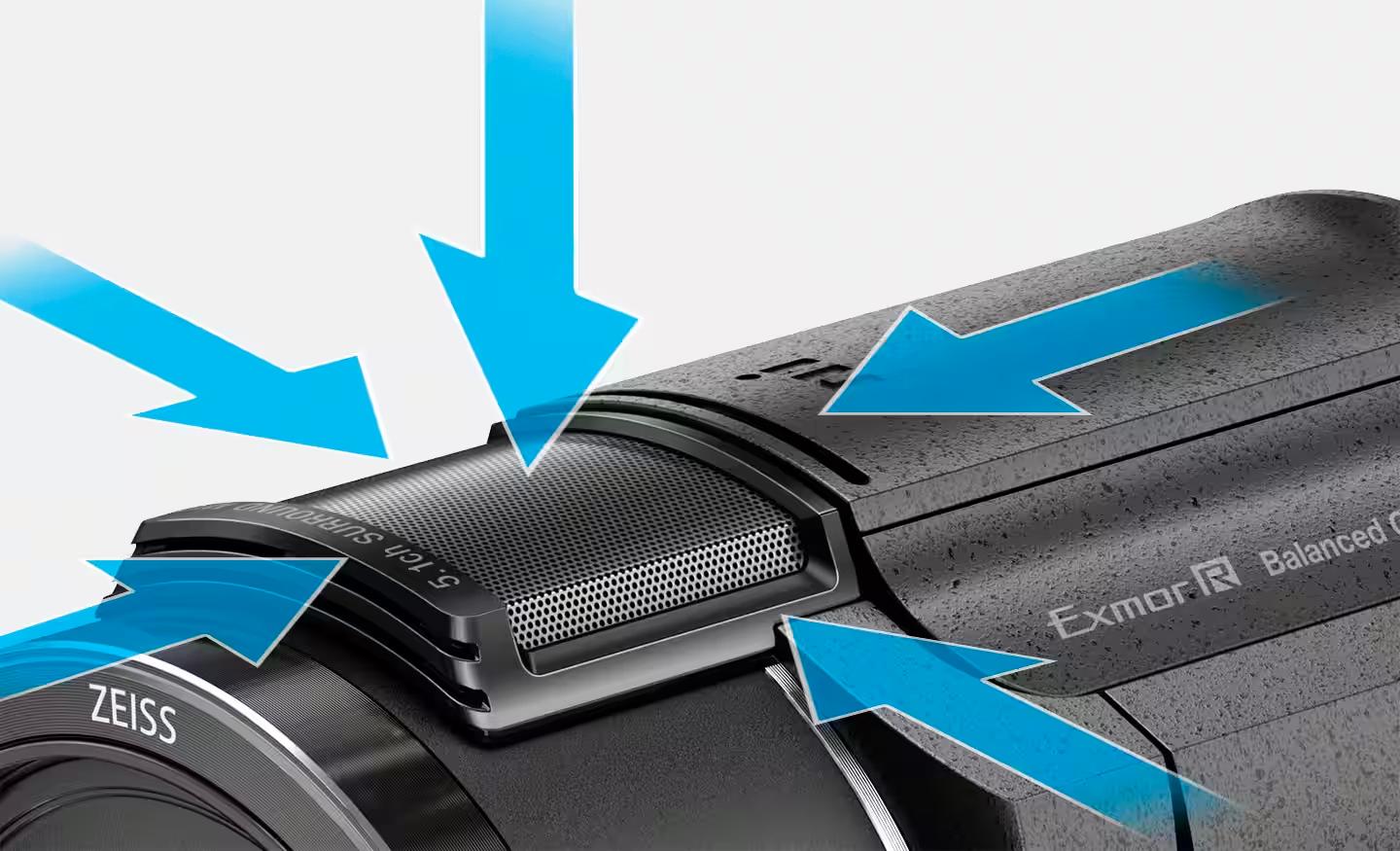

Great sound, less noise

Three mic capsules capture clear sound and reduce noise, enabling high-quality recording of sound with clear stereo separation.

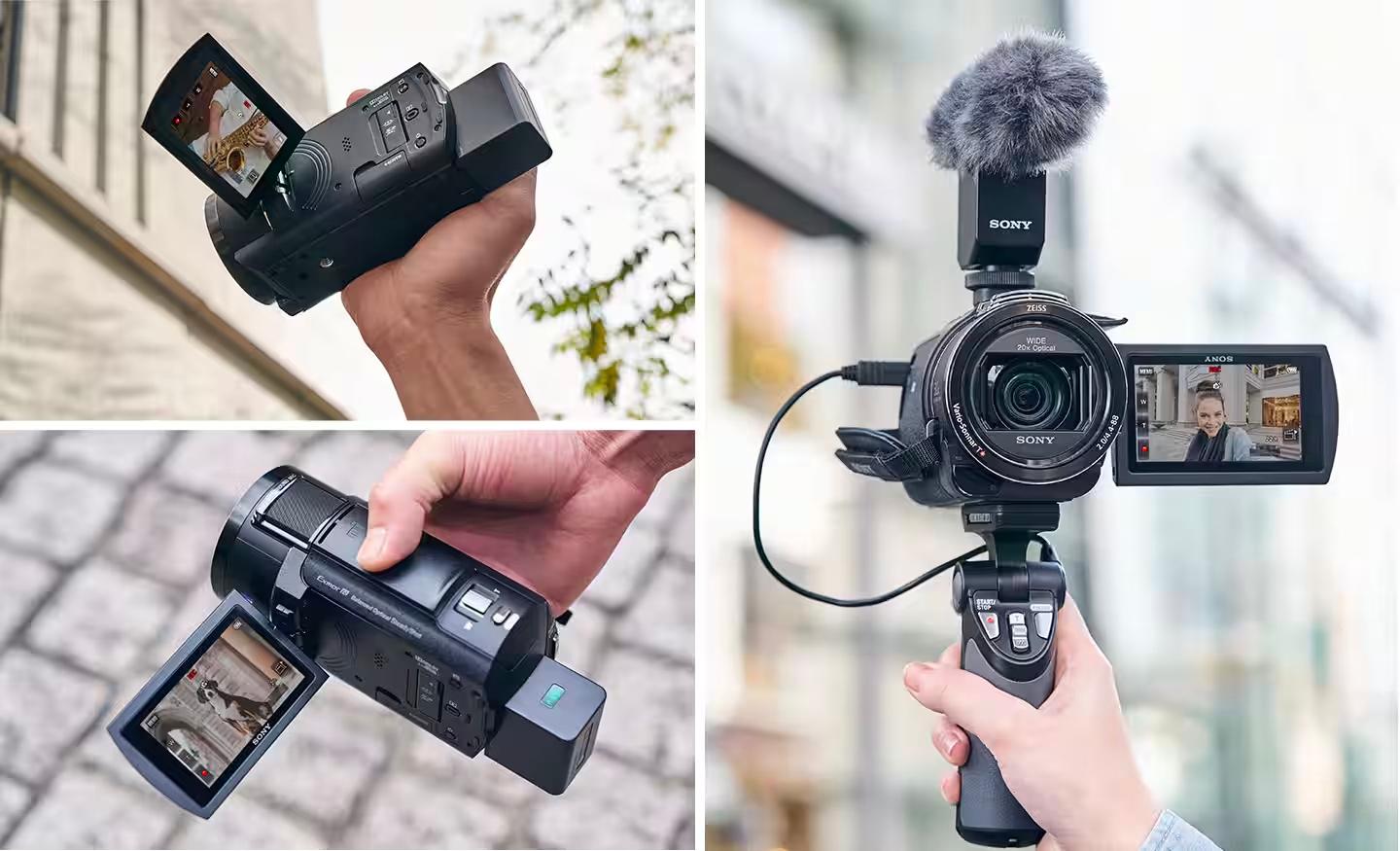

Shoot selfies, high- and low-position at will

Create the perfect vlogging setup with an optional shooting grip or microphone. The tilting LCD and grip make selfies, high- and low-position shots easy.

LCD touch control

With all settings accessible right on the touch screen, operation is fast and simple.

Serious audio connectivity

Headphone and microphone jacks are provided, for premium audio connectivity.

Battery life

The AX43A uses a high-capacity battery to enable recording for long periods. Continuous recording is possible for up to 235 mins¹⁰ with the supplied battery.

One-touch remote and one-touch sharing

Connect NFC-capable Android devices with a simple touch, for remote control, viewing and image transfer using the Imaging Edge Mobile app¹¹. Easy manual pairing for iOS and other devices is also available.

Highlight Movie Maker

Streamline your movie editing with Highlight Movie Maker. Using Dual Video Rec, the FDR-AX43A can simultaneously capture at 4K (3840x2160) or Full HD (1920×1080) for full quality storage, and at HD (1280x720) using an efficient MP4 video format for easy sharing. From the HD version, Highlight Movie Maker can quickly and automatically create HD highlight movies for immediate sharing - complete with video transitions and your choice of background music¹².

Fast frame rates, for slow-motion

With support for high framerate capture, up to 100fps/120fps in Full HD, you can create slow-motion recordings, elevating every movement in startling detail.

See times change with 4K time-lapse movies

With Time-lapse Capture, shoot stills of a scene over a period of time with a chosen interval between shots. The resulting images can be combined in 4K high resolution into a time-lapse movie on a PC, or viewed with a simple variable-speed preview function on the camera.

What's in the box?

1 x Sony AX43A 4K Handycam® with Exmor R™ CMOS sensor
1 x Rechargeable Battery Pack (NP-FV70A)
1 x AC Adaptor
1 x Power Cord
1 x Operating Guide
1 x HDMI (micro) Cable
1 x micro USB Cable²⁸

Sensor

Sensor
1/2.5 type (7.20 mm) back-illuminated Exmor R CMOS Sensor

Number Of Effective Pixels
Video:
- approx. 8.29 Megapixels (16:9)²
Still Image:
- approx. 8.29 Megapixels (16:9) / approx. 6.22 Megapixels (4:3)

Processor

Image Processor
BIONZ X image processor

Lens

Lens Type
ZEISS Vario-Sonnar T*

Filter Diameter
55 mm

Auto

Aperture
F2.0-3.8

Focal Length
f=4.4-88 mm

Equivalent Focal Length 35mm
Video:
- f=1 1/16-21 1/8 inch ², f=26.8-536.0 mm (16:9)
Still Image:
- f=1 1/16-21 1/8 inch (16:9), f=1 5/16-25 7/8 inch (4:3)
- f=26.8-536.0 mm (16:9)
- f=32.8-656.0 mm (4:3)

Minimum Focusing Distance
approx. 1 cm (Wide), approx. 80 cm (Tele), approx. 13/32 inch (Wide), approx. 31 1/2 inch (Tele)

Iris
6 blades (Diaphragm)

Nd Filter
-

Zoom

Optical Zoom
20x

Clear Image Zoom
4K: 30x, HD: 40x³

Digital Zoom
250x⁴

Viewfinder

Viewfinder Type
-

Diopter Adjustment
-

LCD

Screen Type
7.5 cm (3.0 type) Xtra Fine LCD™ display (921 600 dots) Wide (16:9)

Touch Screen
Yes

Brightness Control
Yes (Menu)⁵

Display
Grid Line⁶

Adjustable Angle
Opening Angle: max. 90 deg., Turning Angle: max. 270 deg.

Image Stabilization

Image Stabilization
Balanced Optical SteadyShot w/ Intelligent Active mode (5-axis)⁷

Focus

Focus Type
Contrast AF

Focus Mode
Auto / Manual (Touch Panel)

Focusing
Focus Area: Full range Focus / Spot Focus

Fast Intelligent AF: Yes

Lock-On AF: Lock-on AF⁸

Manual Focus Assist: Peaking Display

Exposure

Exposure Modes
Auto, Flexible Spot (Touch Panel), Manual (Menu)

Metering Mode
Multi-segment / Spot

Exposure Compensation
AE Shift (Touch Panel)

Iris
Auto Iris Control: F2.0-F11 / Manual Iris Control: F2.0-F11

Other Functions
Manual Exposure Assist: Zebra Pattern Display

Low Lux Mode: Yes

Gain Control: Auto

AGC Limit: Yes

Backlight
Compensation: Yes (Auto)

Minimum Illumination
4K: Standard: 9 lux (1/50 Shutter Speed), HD: Standard: 6 lux (1/50 Shutter Speed), 4K: Low Lux 1.8 lux (1/25 Shutter Speed), HD: Low Lux 1.2 lux (1/25 Shutter Speed)

Shutter Speed

Control
Auto Range: 1/6-1/10000

Standard
1/50-1/10000

Iris
Manual Control (Photo Mode): 1/25-1/10000

Manual Shutter: 1/6-1/10000

smooth Slow: 1/215-1/10000

White balance

White Balance Modes
Auto / Onepush / Outdoor / Indoor

White Balance
Shift : Yes

Flash

Flash
METERING SYSTEM: Pre-flash TTL⁹

Flash Compensation
Yes (3 steps)⁹

Flash Modes
Auto / On / OFF⁹

Storage Media

Media Type
XAVC S 4K (100Mbps): SDHC Memory Card (4GB or over, UHS-I U3 or Higher) / SDXC Memory Card (UHS-I U3 or Higher), XAVC S 4K (60Mbps): SDHC Memory Card (4GB or over, Class10 or Higher) / SDXC Memory Card (Class10 or Higher), XAVC S HD: SDHC Memory Card (4GB or over, Class10 or Higher) / SDXC Memory Card (Class10 or Higher), AVCHD, Still: Memory Stick PRO Duo (Mark 2), Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, SD / SDHC / SDXC Memory Card (Class 4 or Higher)

Recording

Recording Format Video
XAVC S format: MPEG4-AVC / H.264,

AVCHD format ver.2.0 compatible: MPEG4-AVC / H.264

MP4: MPEG-4 AVC / H.264

Video Resolution
XAVC S 4K: 3840x2160 / 25p,24p

XAVC S HD: 1920x1080 / 50p,25p,24p

AVCHD: 1920x1080 / 50p(PS),25p(FX,FH),24p(FX,FH),50i(FX,FH), 1440x1080 / 50i(HQ,LP)

MP4: 1280x720 / 25p

Video Recording
VIDEO RECORDING RATE (ABR / VBR):
- XAVC S 4K: approx. 100 Mbps
- XAVC S 4K: approx. 60 Mbps
- XAVC S HD: approx. 50 Mbps
- AVCHD PS: approx. 28 Mbps / FX: approx. 24 Mbps / FH: approx. 17 Mbps / HQ: approx. 9 Mbps / LP: approx. 5 Mbps
- MP4: approx. 3 Mbps¹⁰

Recording Formats
(Still Images): JPEG (DCF Ver.2.0 compatible, Exif Ver.2.3 compatible, MPF Baseline compatible)

Recording Still Images
Still Images format:
- JPEG (DCF Ver.2.0 compatible, Exif Ver.2.3 compatible, MPF Baseline compatible)
Still Size Mode (PHOTO MODE):
- L: 16.6 Megapixels 16:9 (5440x3056), 12.5 Megapixels 4:3 (4080x3056), M: 8.3 Megapixels 16:9, (3840x2160), 6.2 Megapixels 4:3 (2880x2160), S: 2.1 Megapixels 16:9 (1920x1080), 0.3 Megapixels 4:3 (640x480)

Recording Movie
NTSC:
- AVCHD (up to 1,920 x 1,080/60p at 28 Mbps)
- MP4 (up to 1,920 x 1,080/60p at 28 Mbps)
PAL:
- AVCHD: 28M PS (1,920 x 1,080/50p) / 24M FX (1,920 x 1,080/50i) / 17M FH (1,920 x 1,080/50i) / 24M FX (1,920 x 1,080/25p) / 17M FH (1,920 x 1,080/25p
- XAVC S HD: 50p 50M (1,920 x 1,080/50p) / 25p 50M (1,920 x 1,080/25p) / 100p 50M (1,280 x 720/100p)
- MP4: 28M (1,920 x 1,080/50p) / 16M (1,920 x 1,080/25p) / 6M (1,280 x 720/25p)

Interface

Input Output
Multi/Micro USB Terminal 10 , Micro HDMI, Microphone (3.5 mm Stereo minijack), Multi Interface Shoe

Nfc
NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing

Wifi
Yes (IEEE802.11b/g/n (2.4GHz band))

Wireless Connectivity
Eye-Fi, NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing, Wi-Fi

Power

Power Source
DC3.6V (supplied battery) / DC5.0V (supplied AC Adaptor)

Battery
Rechargeable battery pack NP-BX1 (included)

Power Consumption
Camera Mode: Approx. 2.5W with LCD monitor and approx. 2.7W with viewfinder (CIPA standard)

AC Input Power
USB Charge / Power (supplied AC adaptor)

Battery Life
Still Images: Up to 220 shots / 110 min (CIPA)

Others

Smartphone Apps
PlayMemories Camera App

Photography Functions
- Smart Teleconverter (approx. 1.4x / 2x)
- Eye AF / Lock-on AF / Face Detection
- Face Registration
- Smile shutter
- Grid Line
- Quick Navi
- Digital Level Gauge (pitch and roll)
- Exposure Bracketing
- White Balance Bracketing
- DRO Bracketing
- Flash Bracketing
- LPF bracketing
- MF Assist
- Peaking
- Zebra
- Marker Display
- Photographer Name & Copyright
- ISO Auto Minimum Shutter Speed
- PC Remote Control
- Auto Object Framing

Playback
Functions:
- BRAVIA Sync (Control for HDMI)
- Single (with or without shooting information, RGB histogram & highlight/shadow warning)
- 9/25-frame index view
- Enlarged display mode
- Auto Orientation
- Slide Show
- Panorama scrolling
- Auto Review (10sec./5sec./2sec./off)
- Forward
- Rewind (Movie)
- Delete
- Protect
- 4K still image playback
Index Playback:
- 9 / 25 Images

Operating Temperature
Approx. 0°C to 40°C (32F° to 104F°)

Print

Print
Exif Print, PRINT Image Matching (PIM3)

Size & Weight

Dimensions
113.3 (W) x 65.4 (H) x 72.0 mm (D)

Weight
480 g (Body only), 507 g (With battery and Memory Stick PRO Duo) (CIPA COMPLIANT)

Footnotes
¹ Value displayed on the camera and recorded in the Exif.

² At maximum pixel readout.

³ REI (Recommended Exposure Index).

⁴ Speed decreases after some shots are taken.

⁵ You may not be able to shoot images in Burst mode depending on the Shooting mode.

⁶ Self-Timer is available.

⁷ With Adaptor (optional).

⁸ For movies, compatible Memory Stick PRO Duo (Mark2), Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, Memory Stick Micro (Mark2), SD / SDHC / SDXC memory card or microSD / microSDHC / microSDXC card (Class 4 or faster speed is recommended) can be used.

⁹ Supports Micro USB compatible device.
