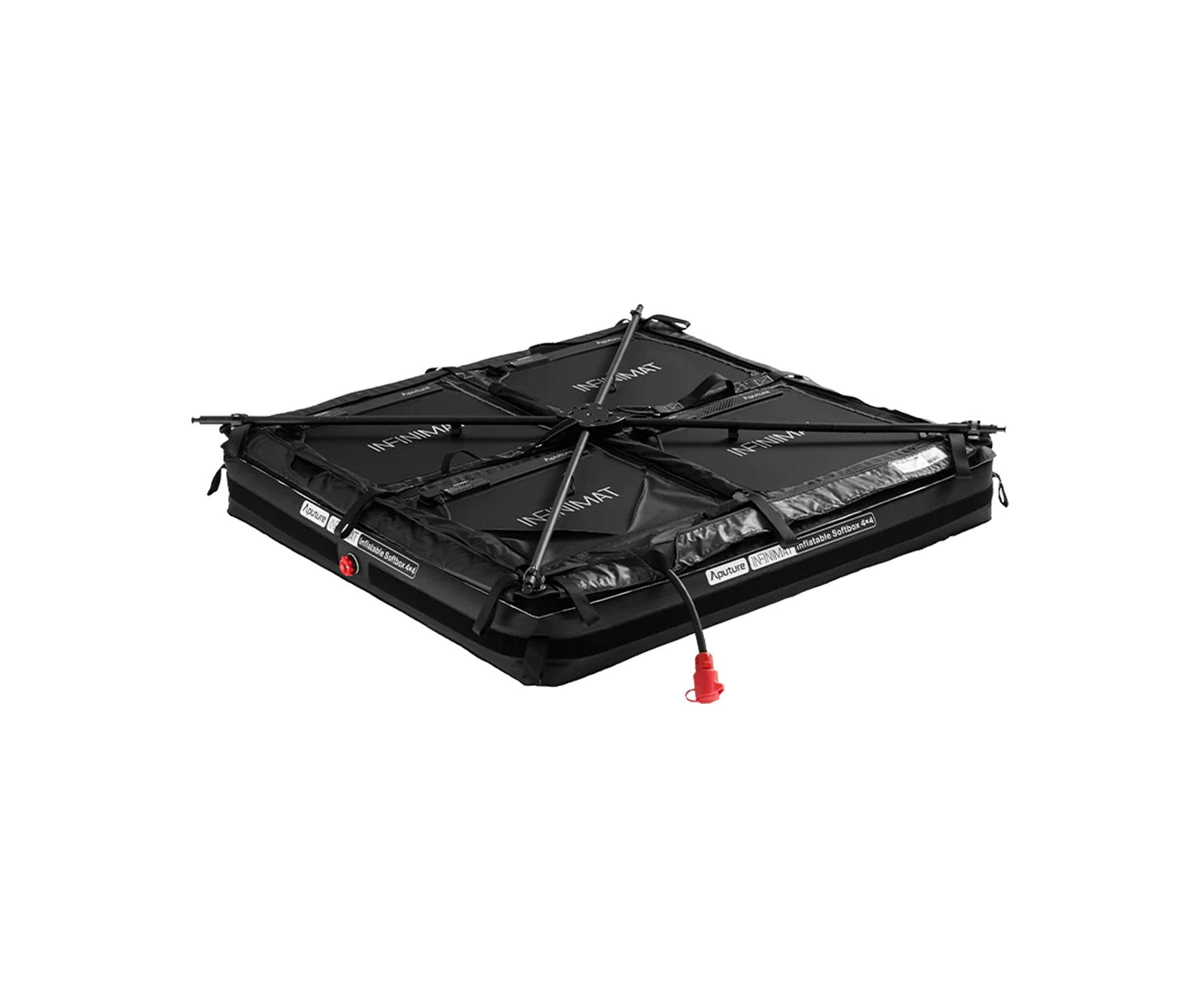

Aputure INFINIMAT 4'x4'
Product Highlights

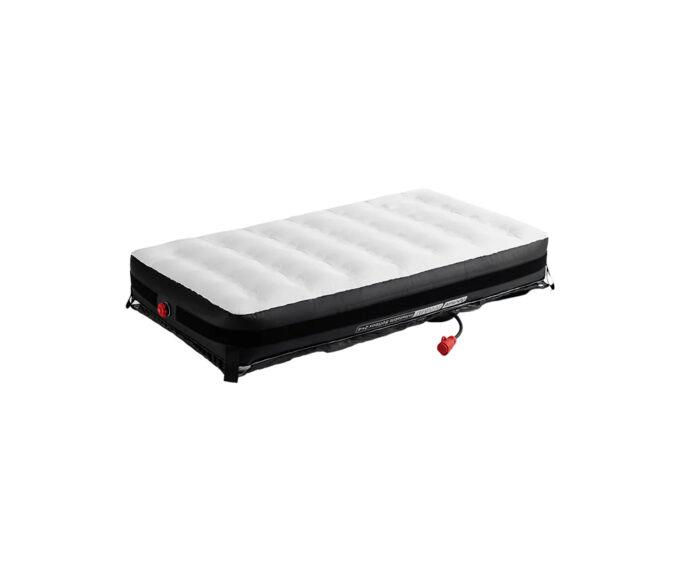

- 4x4ft tunable color mat light with inflatable airbag
- Double the output. Significantly brighter than competitors of the same size, up to double the intensity
- Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with the 400W Control Box, and up to 5 mats with the 1600W box.
- Can be used with or without the airbag, strapped in place, or mounted to its frame. The airbag quickly inflates and takes up less space on set than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.
Double the Output
The INFINIMATs are significantly higher in brightness than competitors of the same size, some double the intensity. The increased output makes the INFINIMATs more useful in a variety of production settings, even daylight.
One Controller, Infinite Options
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with the 400W Control Box, and up to 5 mats with the 1600W box.
Infinite Shapes, Minimal Size

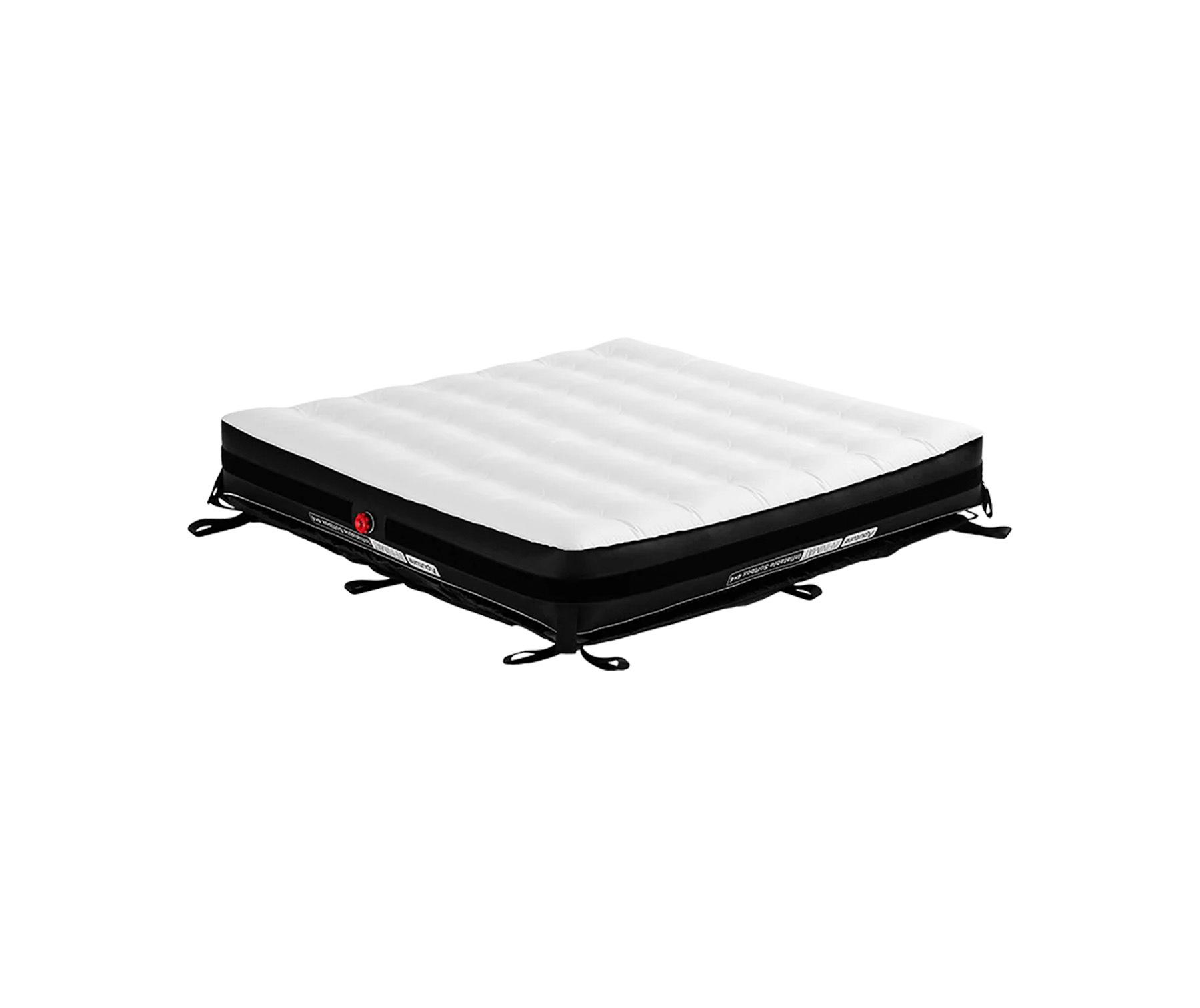

INFINIMATs can be used with or without the airbag, strapped in place or mounted to their frames. The airbags quickly inflate/deflate and the lights take up less space on set compared to traditional diffused setups such as book lights. Even the 20x20 is quicker to set up than a standard overhead rig. When not in use, the INFINIMATs pack down small for storage.

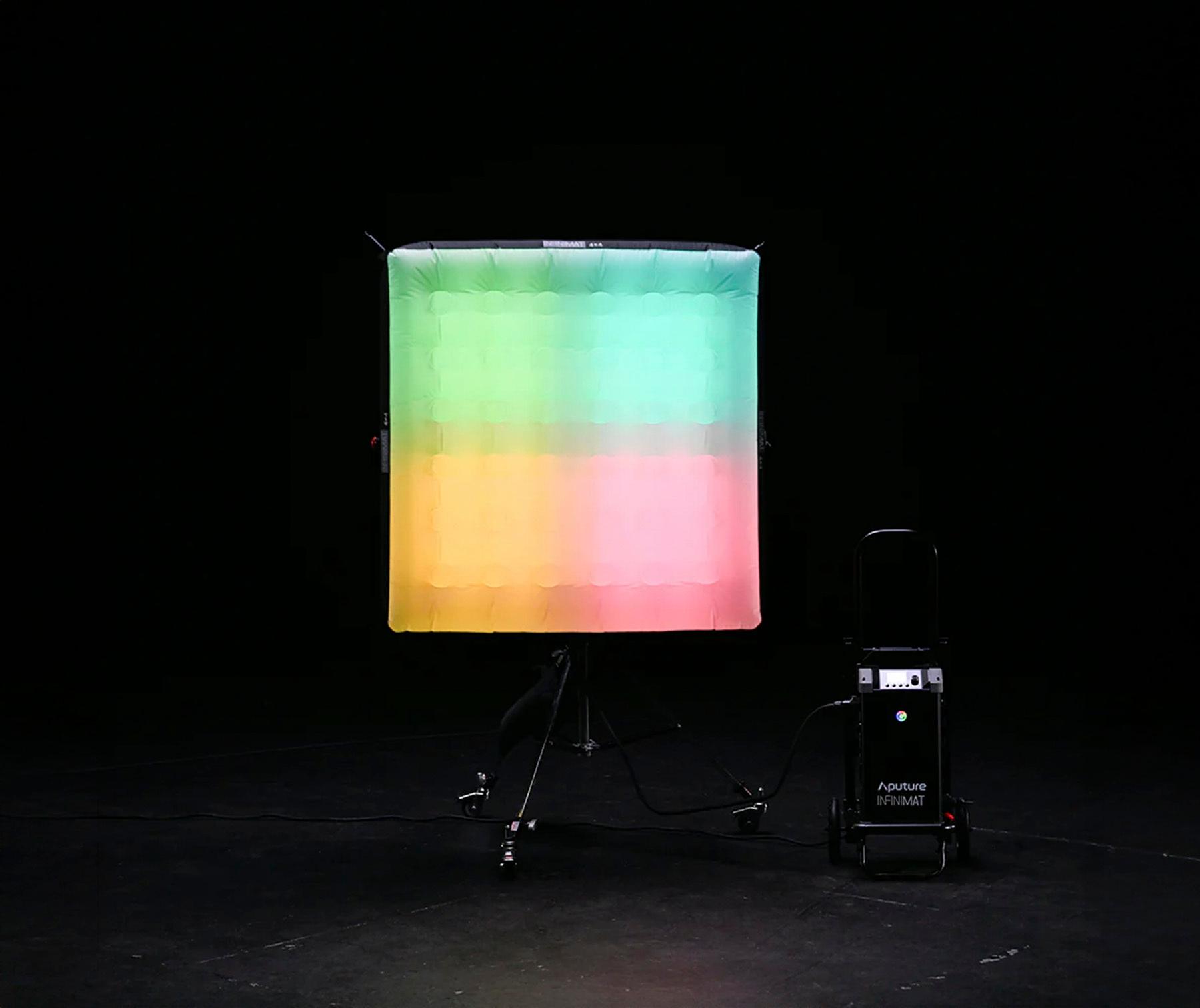

Pixel Control at Scale

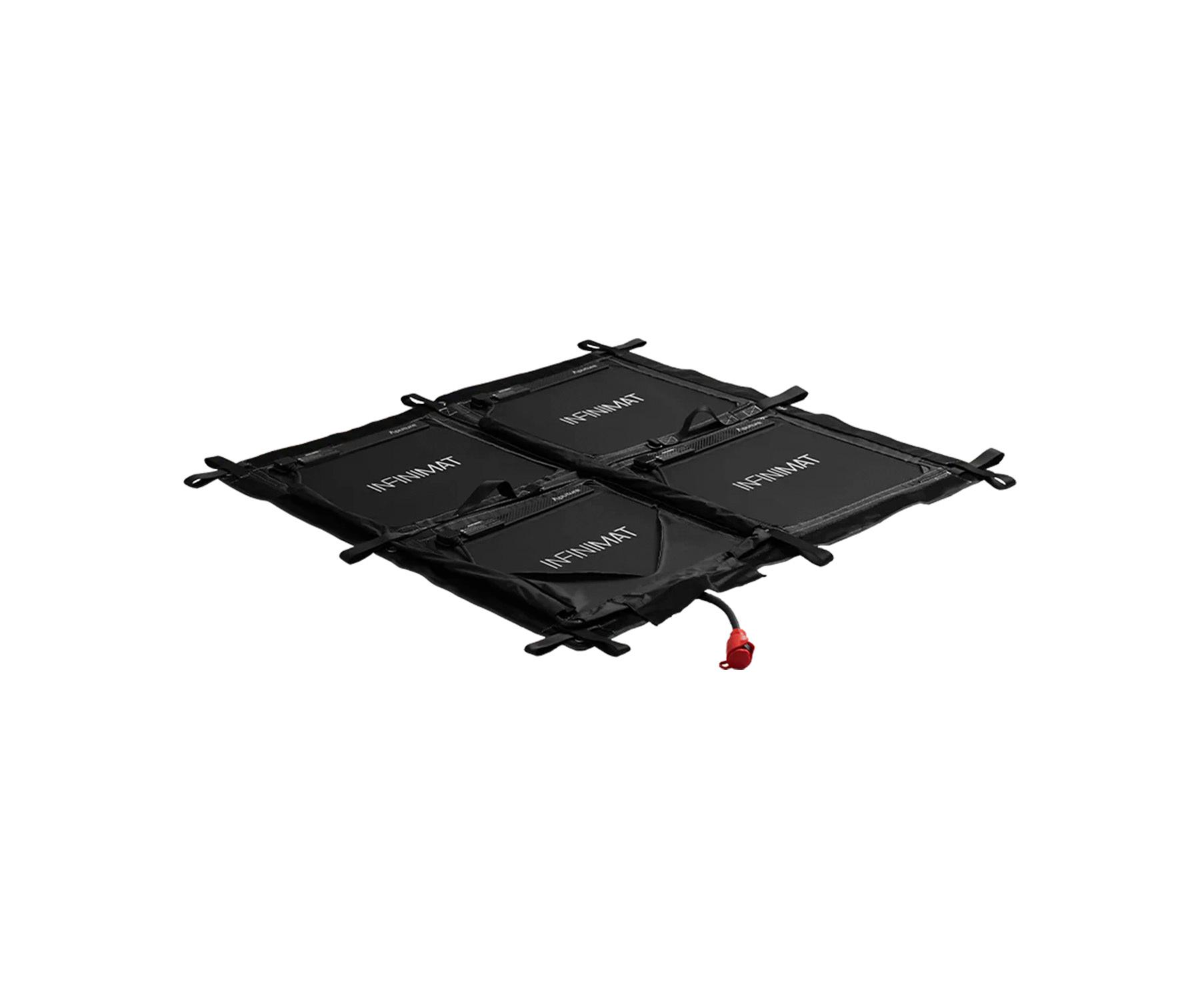

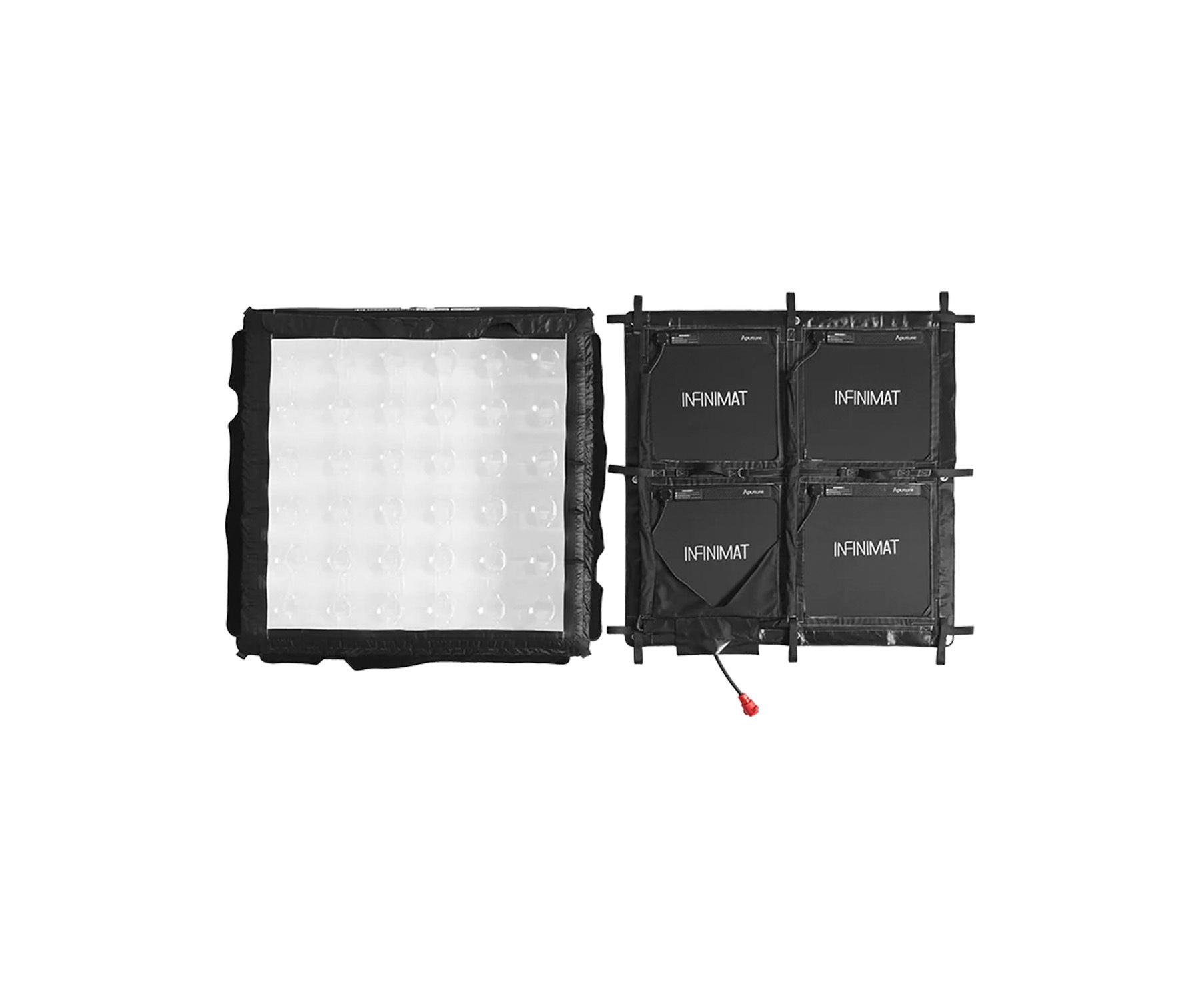

All INFINIMATs are color tunable and are configured in 1x2 or 2x2 pixels. The INFINIMAT pixels can be controlled over DMX systems for active motion effects.
Rental Grade Construction
INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.
Ultra Low Dimming
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.

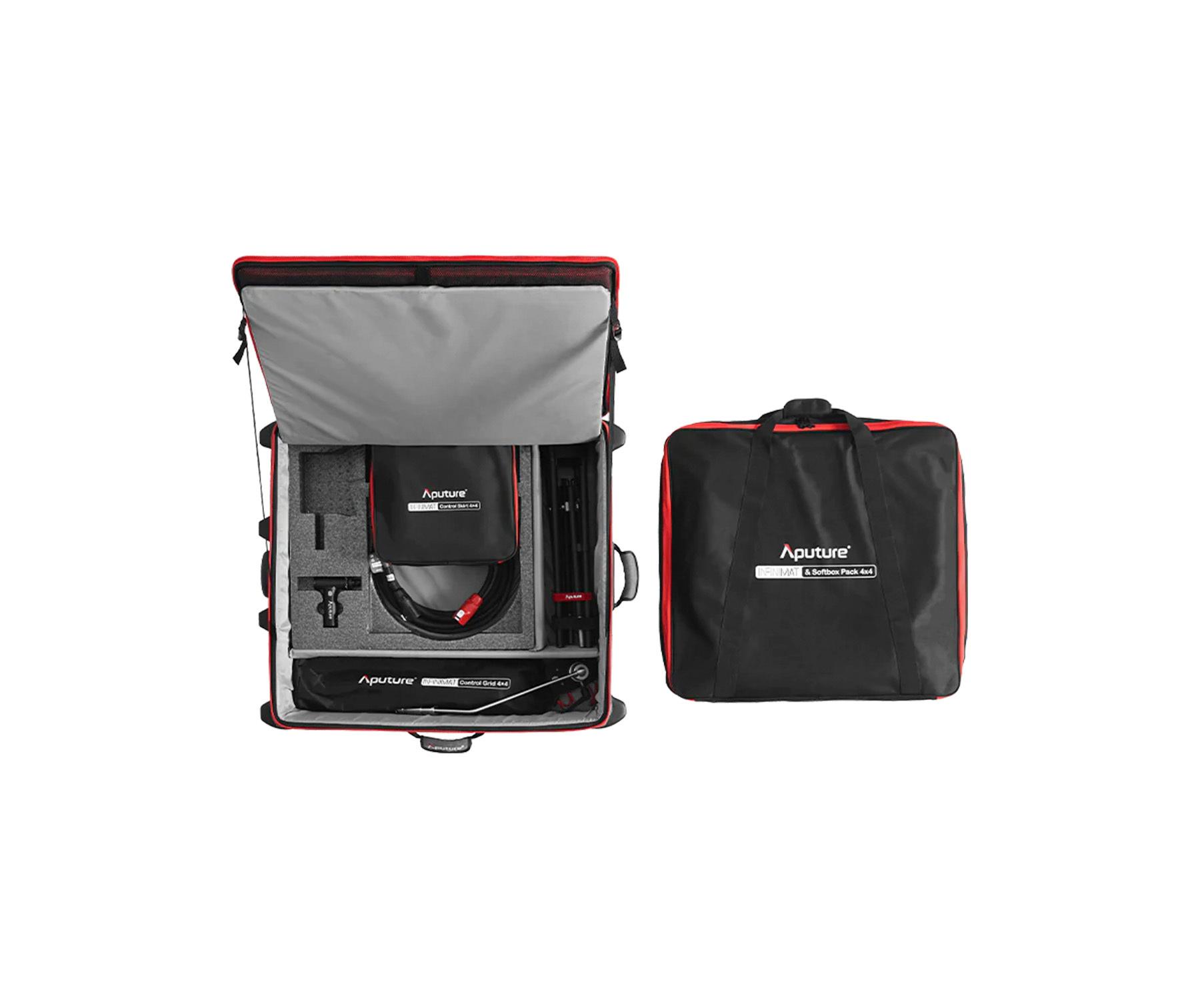

Portable Travel Kits
INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use. On the 4x4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.

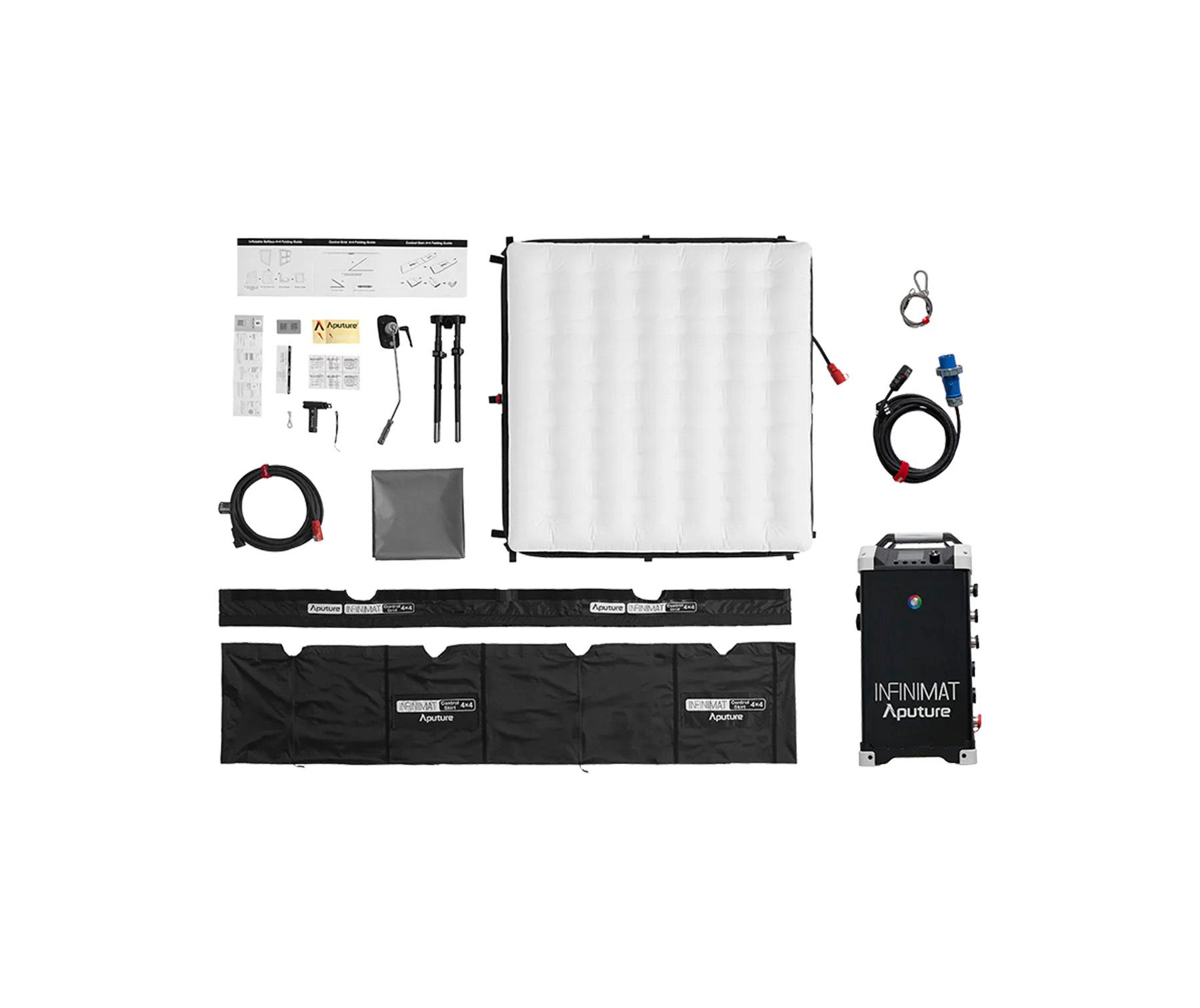

What's in the box?
- 1 x Rolling Case for INFINIMAT & Softbox Pack 4x4
- 1 x Aputure INFINIMAT 4x4
- 1 x Aputure INFINIMAT 7.5m Head Cable (1600W)
- 1 x Aputure INFINIMAT Mounting Bracket 4x4
- 1 x Aputure K-Mount w/ TVMP Spigot Curved Arm
- 1 x Aputure INFINIMAT Inflatable Softbox 4x4
- 1 x Aputure INFINIMAT Light Control Skirt 4x4

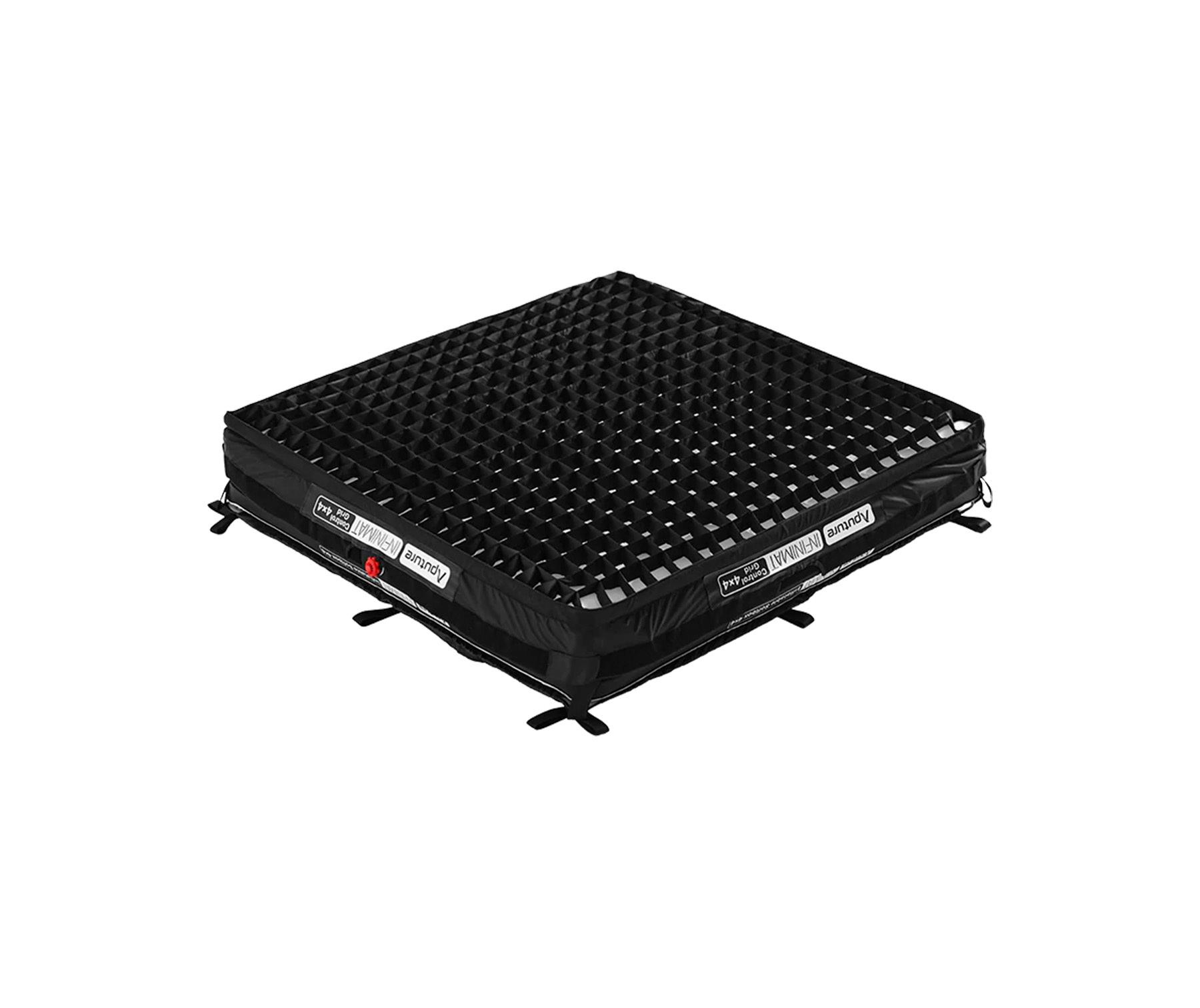

- 1 x Aputure INFINIMAT Light Control Grid 4x4
- 1 x Aputure INFINIMAT Patch Kit
- 1 x Aputure INFINIMAT Air Pump Mini
- 1 x Aputure INFINIMAT Cushion 4x4
- 1 x Rolling Case for Control Box 1600W Pack
- 1 x Aputure INFINIMAT Control Box 1600W
- 1 x AC Cable – 1600W
- 1 x Safety Rope (1.3m)
- Technical Data
CCT
2,000K – 10,000K
CRI
≥96
TLCI
≥97
CQS
≥95
SSI (Tungsten)
84
SSI (D56)
73
TM-30 RF (Average)
92
TM-30 RG (Average)
100
Max Power Consumption
800W
Max Power Output
640W
Weather Resistance Rating
IP65
Pixel Count
4 pixels
Pixel Module
2x2
Softbox Inflation Time (Air Pump Mini)
1 min 50 sec
Softbox Inflation Time (Air Pump Max)
17 sec
Full-Inflation Duration
7 days
Operating Voltage DC1 & DC2
12V-16.8V 22V-33.6V
Operating Voltage AC
100V ~ 264V
Operating Temperature
-20°C ~ 50°C
Storage Temperature
-20°C ~ 85°C
- Control Methods
Control Methods
On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
Firmware Upgradeable
Sidus Link, USB Drive
Wireless Range (Bluetooth & CRMX)
≤100m / ≤328.1ft
- Control Box
Control Box Type
INFINIMAT Control Box 1600W
Control Box Fan Noise Levels High Speed Mode
35.9 dBA
Control Box Fan Noise Levels Medium Speed Mode
35.3 dBA
- Weight
INFINIMAT & Softbox Pack 4x4
39.5kg/87.08lbs
INFINIMAT Control Box 1600w Kit
58.96kh/130lbs
- Dimensions
Infinimat Softbox Pack
91x79.5x39.8cm/35.8x31.3x15.7in
Infinimat Control Box 1600w Kit
66.1x81.3x81.3cm/26x32x32in
