Aputure Sidus One Wireless DMX Transceiver
Product Highlights
- Control any DMX-compatible or Sidus Bluetooth light with this pocket-sized transceiver. Link multiple Sidus One units to control up to four DMX universes.
- Sends DMX and CRMX and can receive DMX, CRMX, Art-Net, and sACN. Alternately, Sidus One can be used as a powerful Sidus Bluetooth Mesh Master Node in Sidus Link.
- Sidus One makes professional lighting control easy. Press one button to link your lights and unlock synchronous cueing. Mount on a stand or clip to your belt with the 18 hour built-in battery. Resist the weather with IP54 resistance.
- Sidus One is small but mighty. Transmit CRMX up to 300m, Sidus Bluetooth up to 180m, and 5GHz Wifi up to 120m.
This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.
Introducing Sidus One, our new Wireless DMX transceiver with built-in Wireless Router.
DMX, CRMX, sACN, Art-Net, Bluetooth Mesh – all the connectivity you need in one small rechargeable box. It connects to any lighting app and is optimized for Sidus Link Pro. Even connect multiple Sidus Ones for up to four universes of control. Complete your Sidus Link Ecosystem.
DMX Multiverse
The Sidus One transceiver is both compact and expandable. Link it to up to three additional Sidus One transceivers, creating four universes to meet more demanding DMX needs for larger jobs or more complex lighting setups.
Every Option in Your Hand
Pick its function. Transmitter, receiver, router. Whether you want to transmit CRMX, DMX, or Bluetooth or receive Art-Net, sACN, Node or Bluetooth, the Sidus One does it all. And with an 18-hour battery life, it will do it all day long.
Simplicity Refined

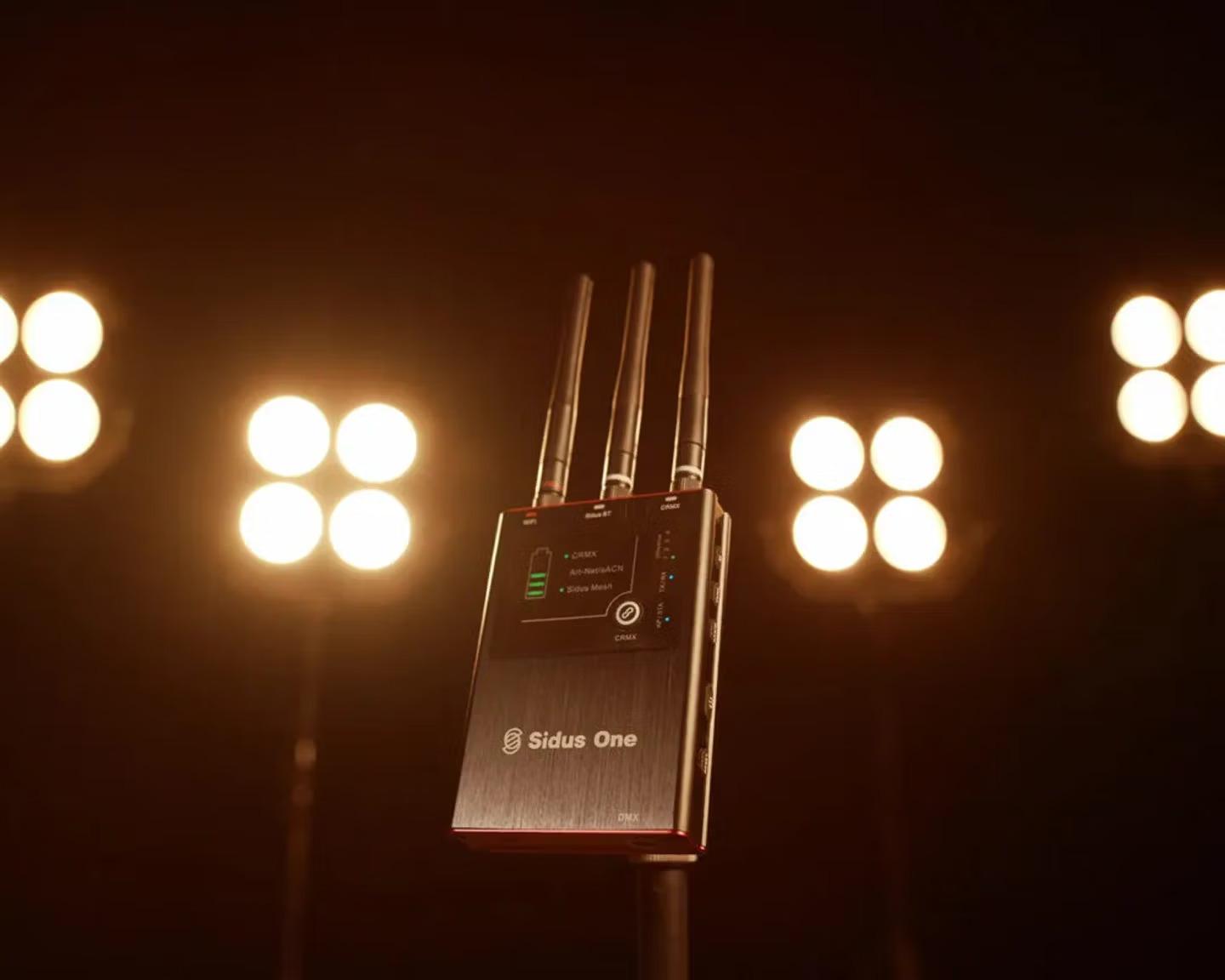

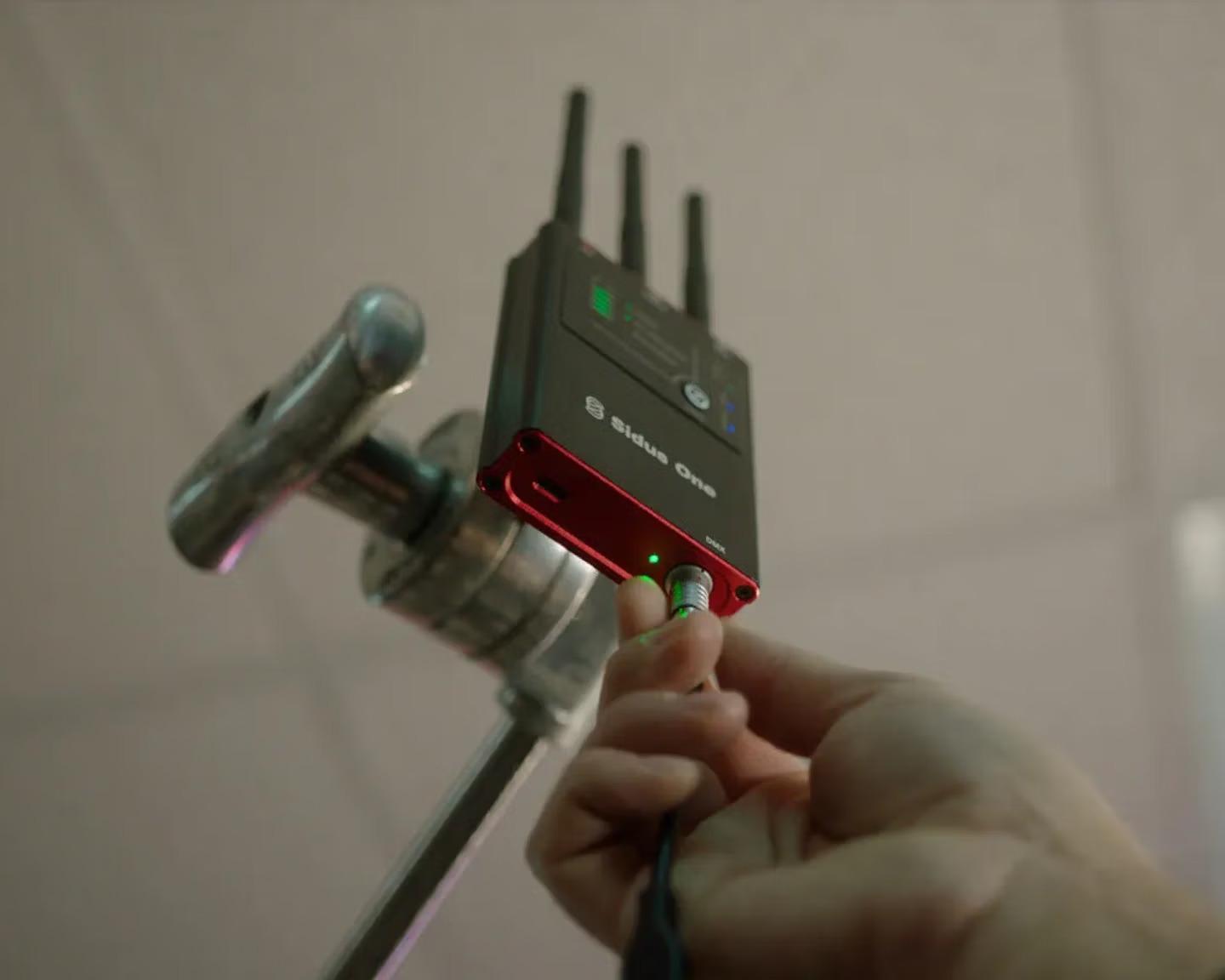

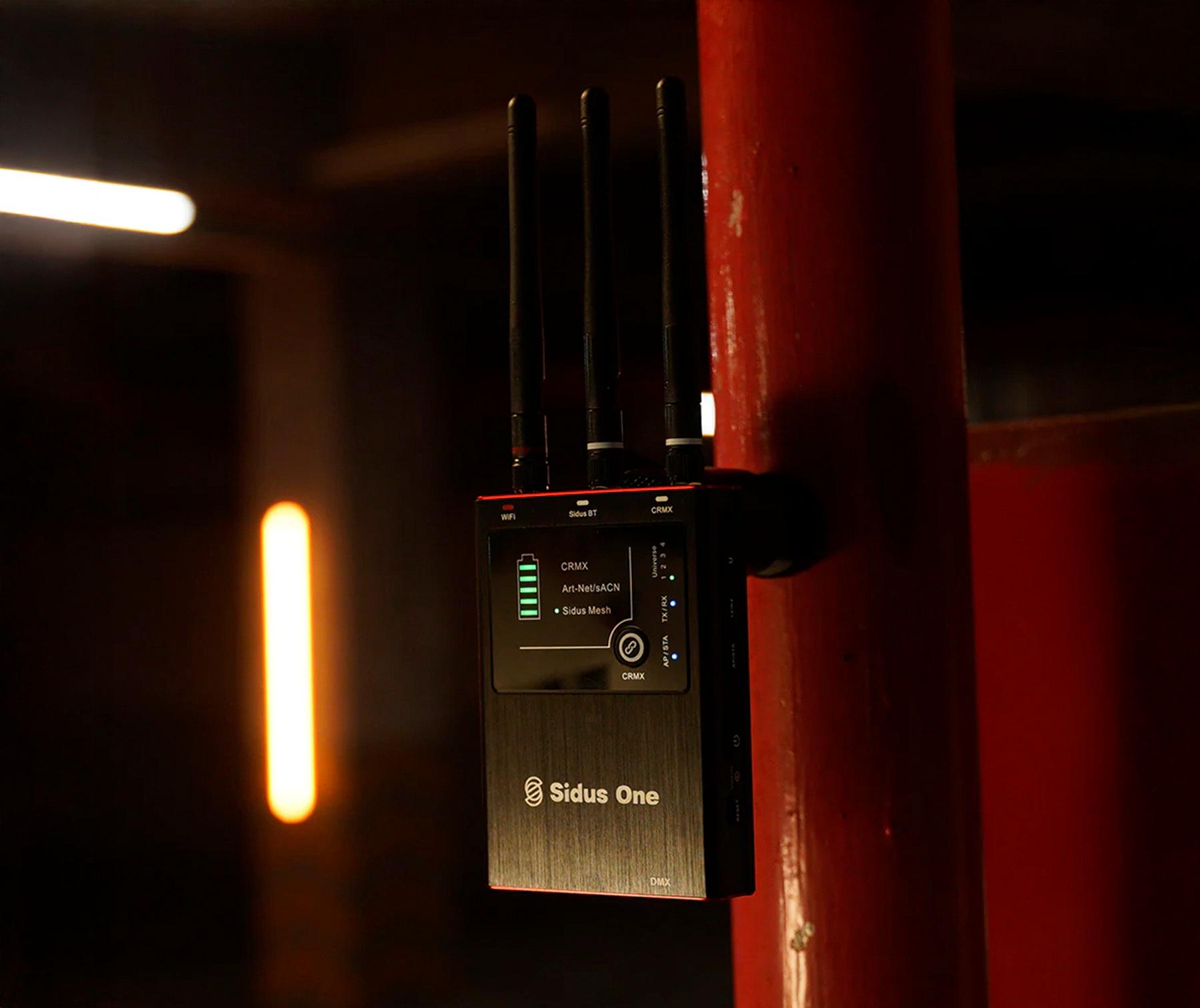

Take it out of the box and turn it on. One button to link with your lights. Mount it on a stand. Clip it to your belt and carry it with you.

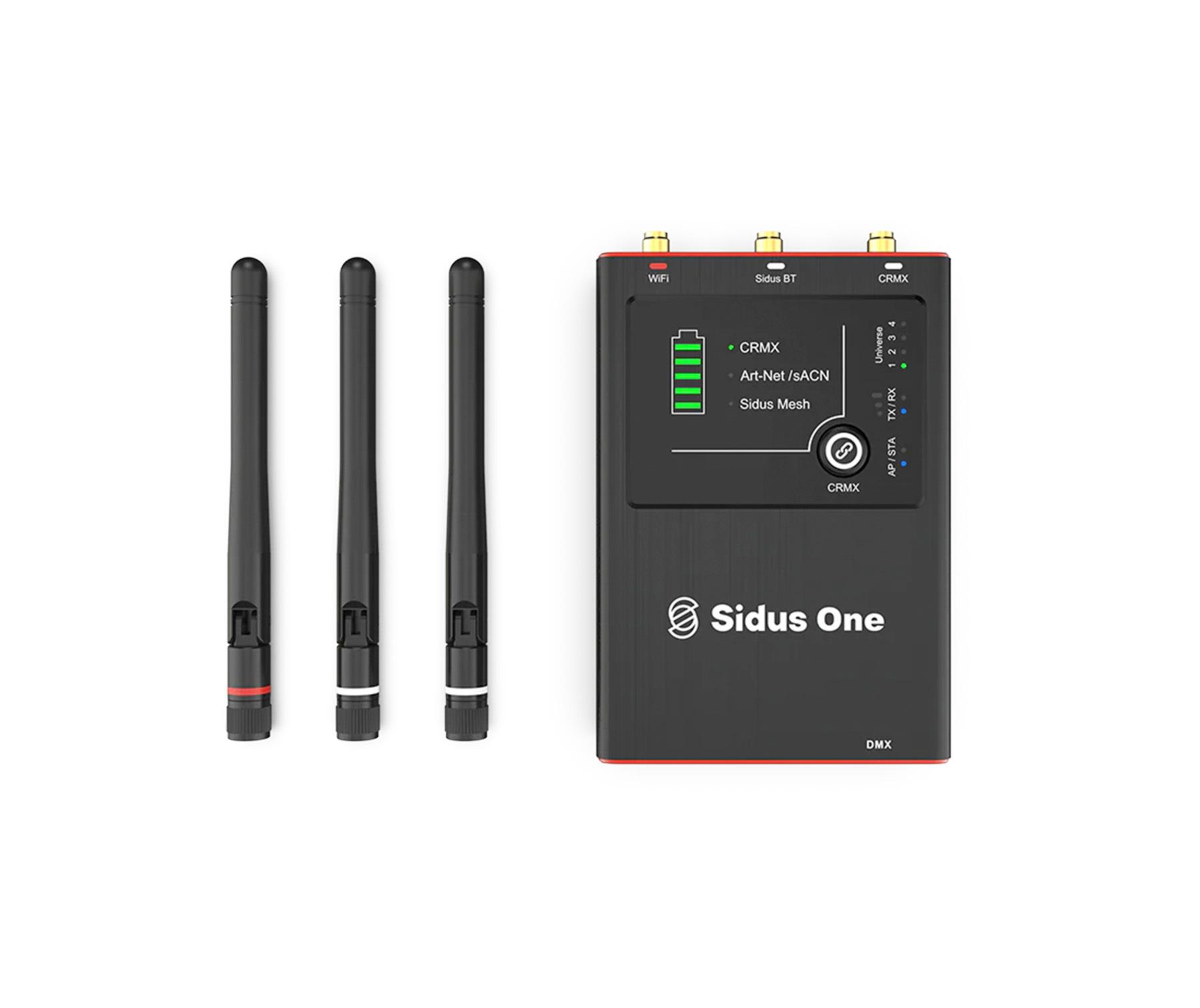

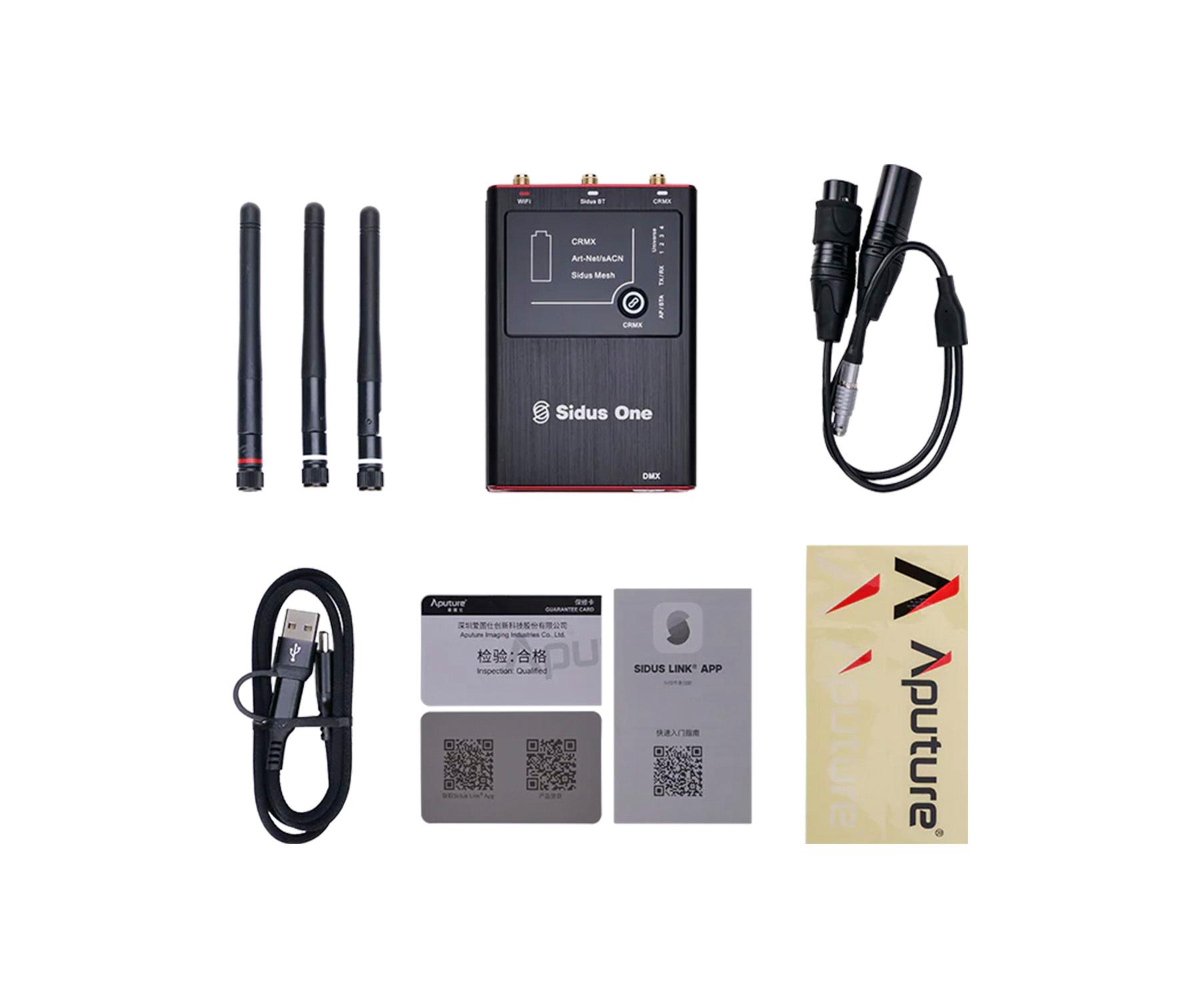

What's in the box?
- 1 x Sidus One
- 1 x Antenna - CRMX
- 1 x Antenna – Sidus BT
- 1 x Antenna – Wi-Fi
- 1 x USB Type-A to USB Type-C Charging Cable (80cm)
- 1 x Sidus One 2-Way Splitter Cable (35cm)
- Technical Data
Connectivity
CRMX, DMX512, RDM, Art-Net via Wifi, sACN via Wifi, Sidus Link Bluetooth. The RDM function is only available in the RX mode.
Universe Support
1 to 4 Universes
Antenna Fitting (Body)
SMA Female
Antenna Fitting (Antennae)
SMA Male
Operating Frequency Wi-Fi
5.8GHz
Operating Frequency CRMX / Sidus BT
2.4GHz
Wireless Range Bluetooth
≤180m / ≤591ft
Wireless Range Wi-Fi
≤120m / ≤394ft
Wireless Range CRMX
≤300m / ≤984 ft
Wi-Fi Modes
AP mode/STA mode
CRMX Mode
TX mode/RX mode. In TX mode, you can transfer DMX512 or Wi-Fi data to CRMX, and in RX mode, you can connect the DMX512 port of Sidus One to the DMX512 port of the fixture, and the Sidus One will act as a receiver to receive CRMX data and send it to the fixture.
Battery Life
18 hours
Lithium Polymer Battery
3.7V 5600mAh
Charging Input
USB Type-C (5V/2A)
Charge Time
3.5h
IP Rating
IP54
Operating Temperature
-20°C to 45°C / -4°F to 113°F
Firmware Upgradeable
Sidus BT, USB-C
Cooling Method
Passive Cooling
- Dimensions
Dimensions (excluding antenna)
11.3 x 7.5 x 2.33cm / 4.45 x 2.95 x 0.92in
- Weight
0.302.kg / 0.67lbs
