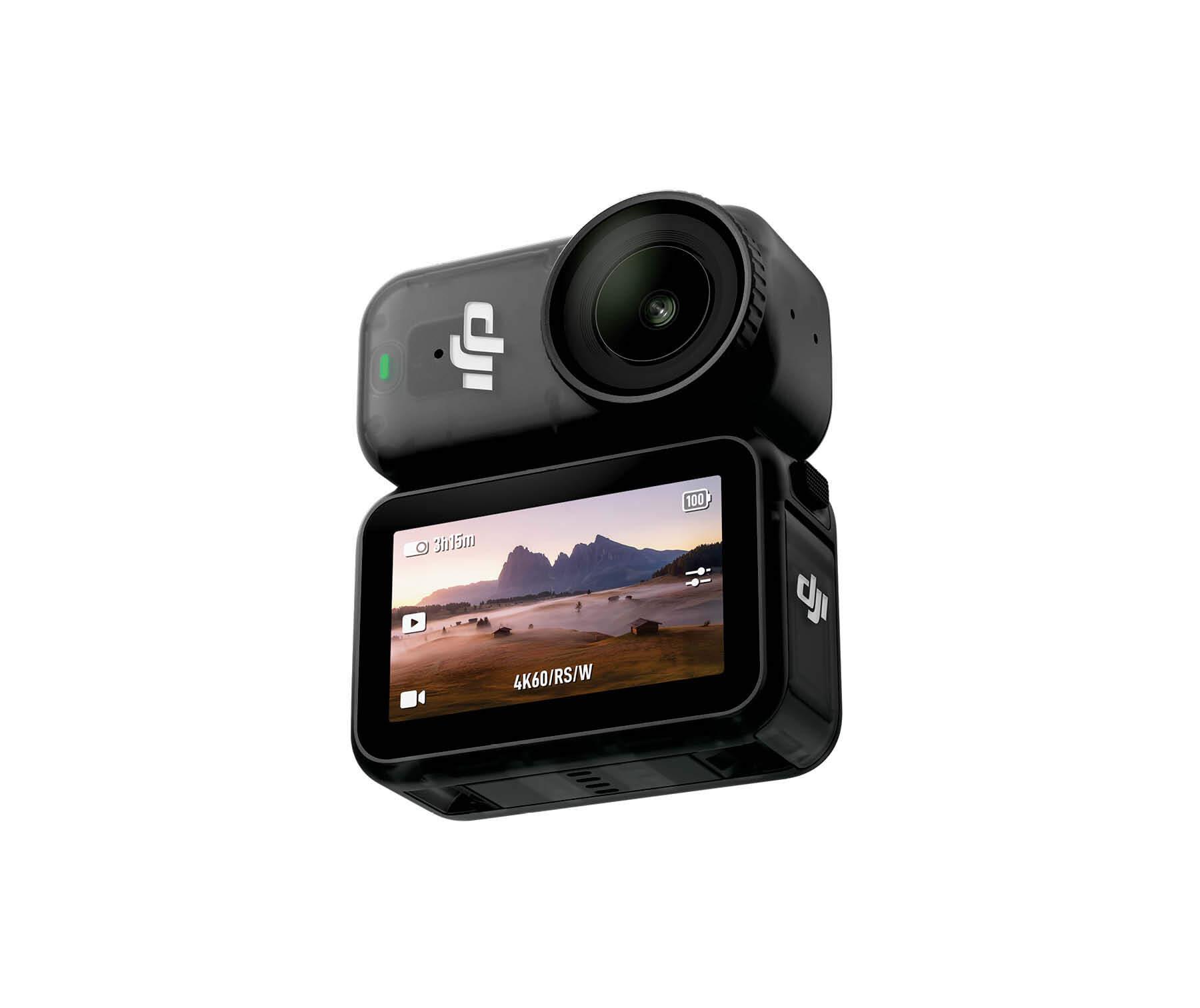

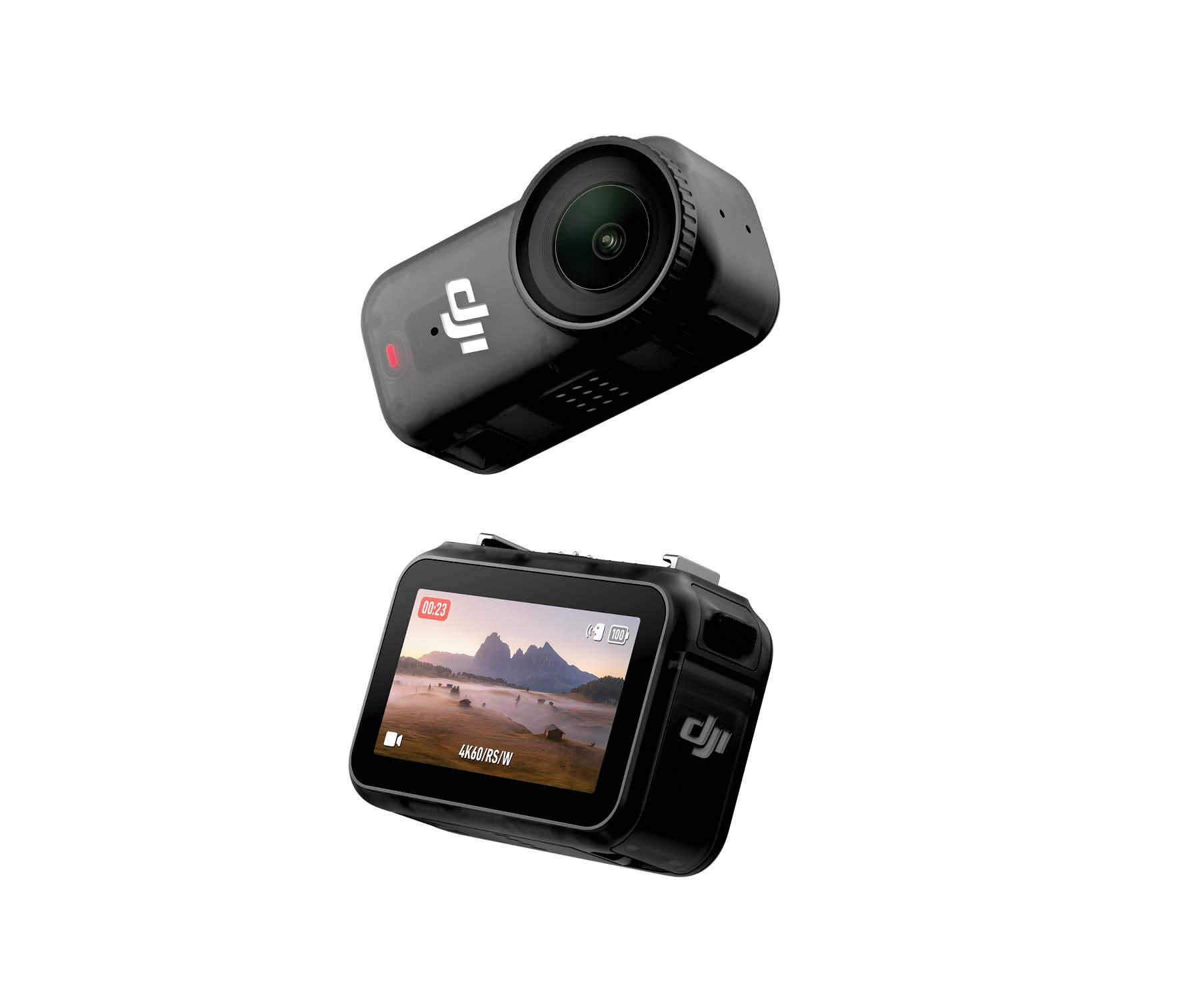

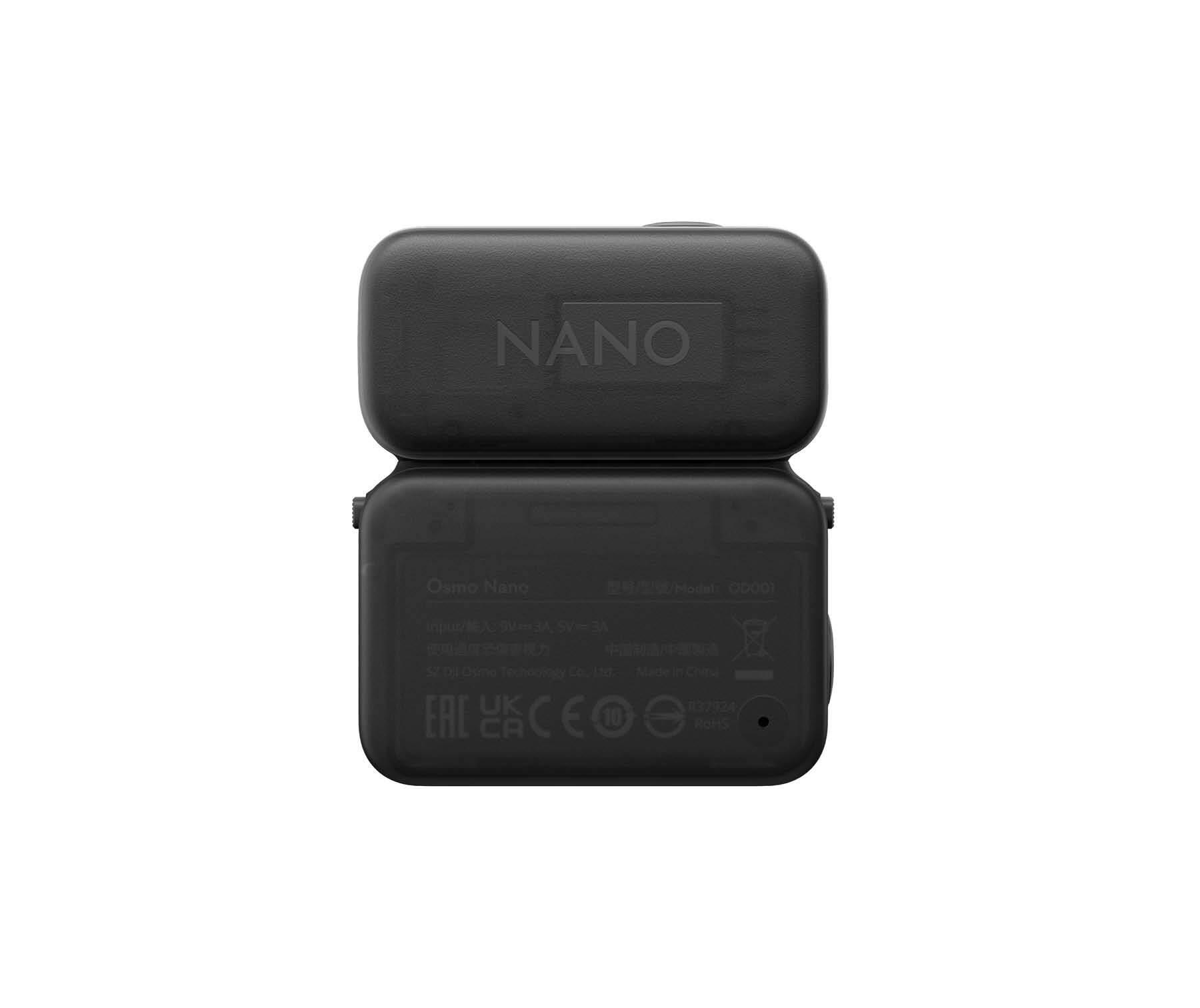

DJI Osmo Nano Standard Combo (128GB)

Dimensions

Camera: 57.3×29.5×28 mm (L×W×H)
Multifunctional Vision Dock: 59.1×42.2×22.3 mm (L×W×H)

Weight

Camera: 52 g
Multifunctional Vision Dock: 72 g

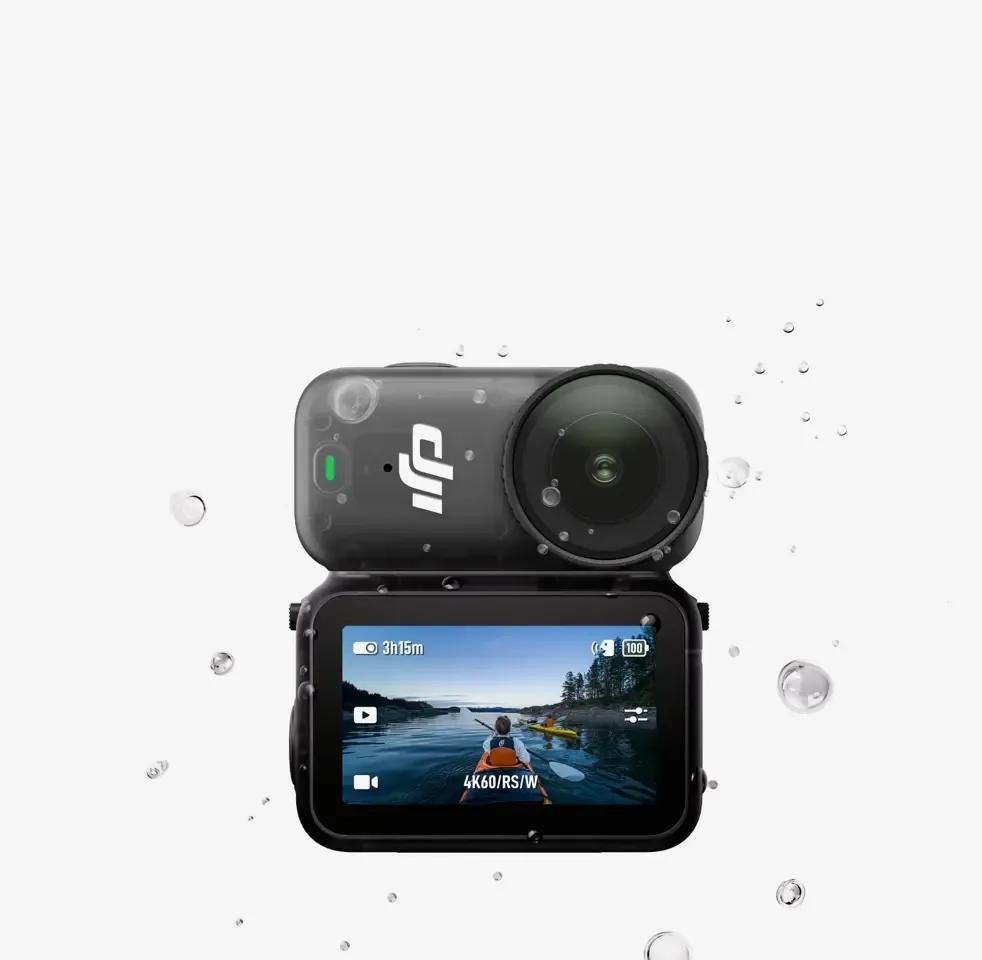

Waterproof

Camera: up to 10 m
Camera + Multifunctional Vision Dock: IPX4 splash resistance

^{Before use, tighten the Glass Lens Cover. It is not recommended to use the camera body only for long-term underwater shooting or in environments with high water impact pressure. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.}

Number of Microphones

2

Touchscreen

Dimensions: 1.96 inches, 326 ppi
Resolution: 314×556
Maximum Brightness (typical): 800 cd/㎡

Supported SD Cards

microSD (up to 1 TB)

Recommended microSD Cards

Lexar SILVER PLUS 64GB U3 A2 V30 microSDXC
Lexar SILVER PLUS 128GB U3 A2 V30 microSDXC
Lexar SILVER PLUS 256GB U3 A2 V30 microSDXC
Lexar SILVER PLUS 512GB U3 A2 V30 microSDXC
Lexar SILVER PLUS 1TB U3 A2 V30 microSDXC
Kingston Canvas Go! Plus 64GB U3 A2 V30 microSDXC
Kingston Canvas Go! Plus 128GB U3 A2 V30 microSDXC
Kingston Canvas Go! Plus 256GB U3 A2 V30 microSDXC
Kingston Canvas Go! Plus 512GB U3 A2 V30 microSDXC
Kingston Canvas Go! Plus 1TB U3 A2 V30 microSDXC

Sensor

1/1.3″ CMOS

Lens

FOV: 143°
Aperture: f/2.8
Focus Range: 0.35 m to ∞

ISO Range

Photo: 100-25600
Video: 100-25600

Electronic Shutter Speed

Photo: 1/8000-30 s
Video: 1/8000 s to the limit of frames per second

Max Photo Resolution

6880 × 5160

Still Photography Modes

Single: Approx. 35 MP
Countdown: Off/0.5/1/2/3/5/10 s
Burst: Up to 30 images/3 s

Video

4K (4:3): 3840 × 2880@24/25/30/48/50fps
4K (16:9): 3840 × 2160@24/25/30/48/50/60fps
2.7K (4:3): 2688 × 2016@24/25/30/48/50/60fps
2.7K (16:9): 2688 × 1512@24/25/30/48/50/60fps
1080p (4:3): 1920 × 1440@24/25/30/48/50/60fps
1080p (16:9): 1920 × 1080@24/25/30/48/50/60fps

Slow Motion

4K: 4x (120fps)
2.7K: 4x (120fps)
1080p: 8x (240fps), 4x (120fps)

Hyperlapse

4K/2.7K/1080p@25/30fps: Auto/×2/×5/×10/×15/×30

Timelapse

4K/2.7K/1080p@25/30fps
Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s, 1/2/5/30/60 min
Duration: 5/10/20/30 min, 1/2/3/5 hours, ∞

Stabilization

EIS:
RockSteady 3.0
HorizonBalancing

^{EIS is not supported in Slow Motion and Timelapse modes. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60fps or below.}

Pre-Rec

Pre-Recording Duration: 5/10/15/30 s, 1/2/5 min

Max Video Bitrate

120 Mbps

Supported File System

exFAT

Photo Format

JPEG/RAW

Video Format

MP4 (HEVC)

Built-in Storage Capacity

64GB Version: 48GB available storage
128GB Version: 107.6GB available storage

^{The storage capacity can be expanded by inserting a microSD card.}

Audio Recording

48 kHz 16-bit; AAC

Type

Camera: Li-ion 1S
Multifunctional Vision Dock: Li-ion 1S

Capacity

Camera: 530 mAh
Multifunctional Vision Dock: 1300 mAh

Energy

Camera: 2.041 Wh
Multifunctional Vision Dock: 5.031 Wh

Voltage

Camera: 3.85 V
Multifunctional Vision Dock: 3.87 V

Operating Temperature

-20° to 45° C (-4° to 113° F)

Charging Temperature

5° to 40° C (41° to 104° F)

Operating Time

Camera: 90 min*
Camera + Multifunctional Vision Dock: 200 min*

^{* Tested at 25° C (77° F) room temperature while recording 1080p/24fps (16:9) video, with RockSteady stabilization enabled, Wi-Fi disabled, and the screen turned off. Actual operating time may vary based on device settings, usage, and environmental factors. Data was collected in a controlled environment and should be taken as reference only.}

Endurance Mode: Continuous recording at 4K/60fps for over 50 minutes**

^{** Measured at 25° C (77° F) room temperature with RockSteady stabilization enabled, Wi-Fi disabled, and the screen turned off.}

Wi-Fi Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Wi-Fi Protocol

Wi-Fi 6.0
802.11 a/b/g/n/ac/ax

Wi-Fi Transmitter Power (EIRP)

2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE)

Bluetooth Operating Frequency

2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)

Camera: < 13 dBm
Multifunctional Vision Dock: < 10 dBm

Bluetooth Protocol

Camera: BLE 5.1
Multifunctional Vision Dock: BLE 5.4

Transmission Distance

Wireless transmission range between the Multifunctional Vision Dock and the camera: 10 m*

^{* Measured in an unobstructed environment free of interference.}
