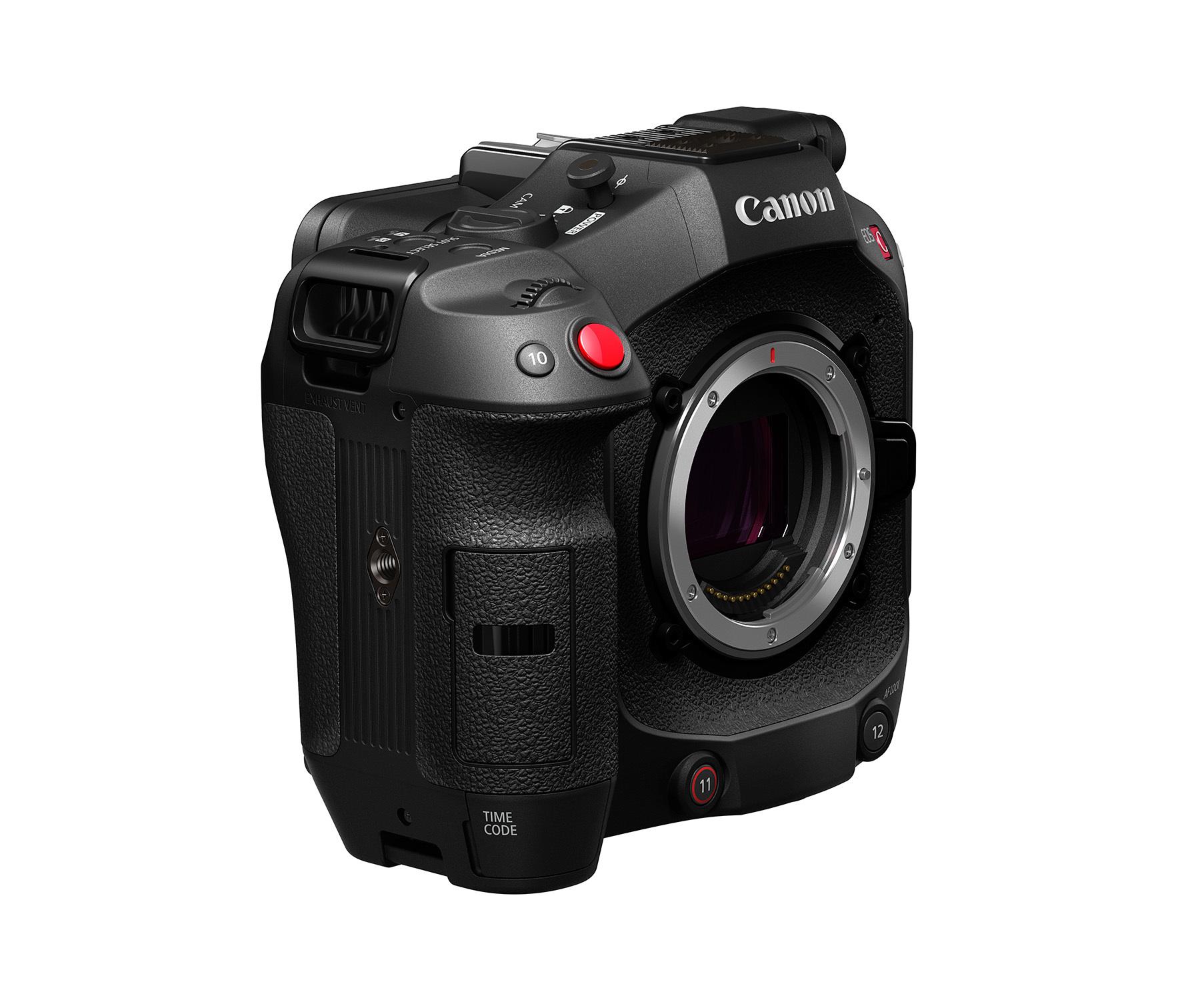

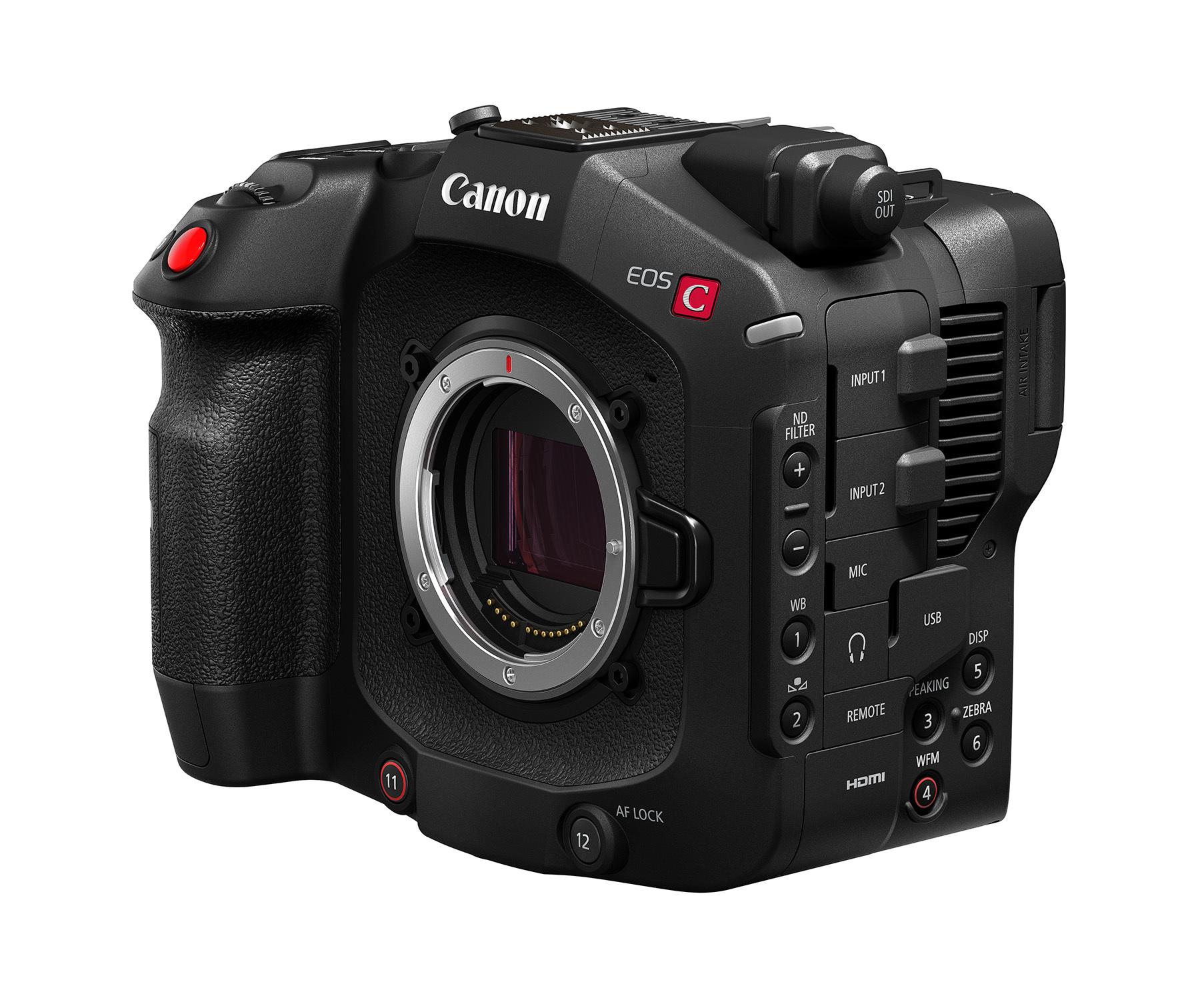

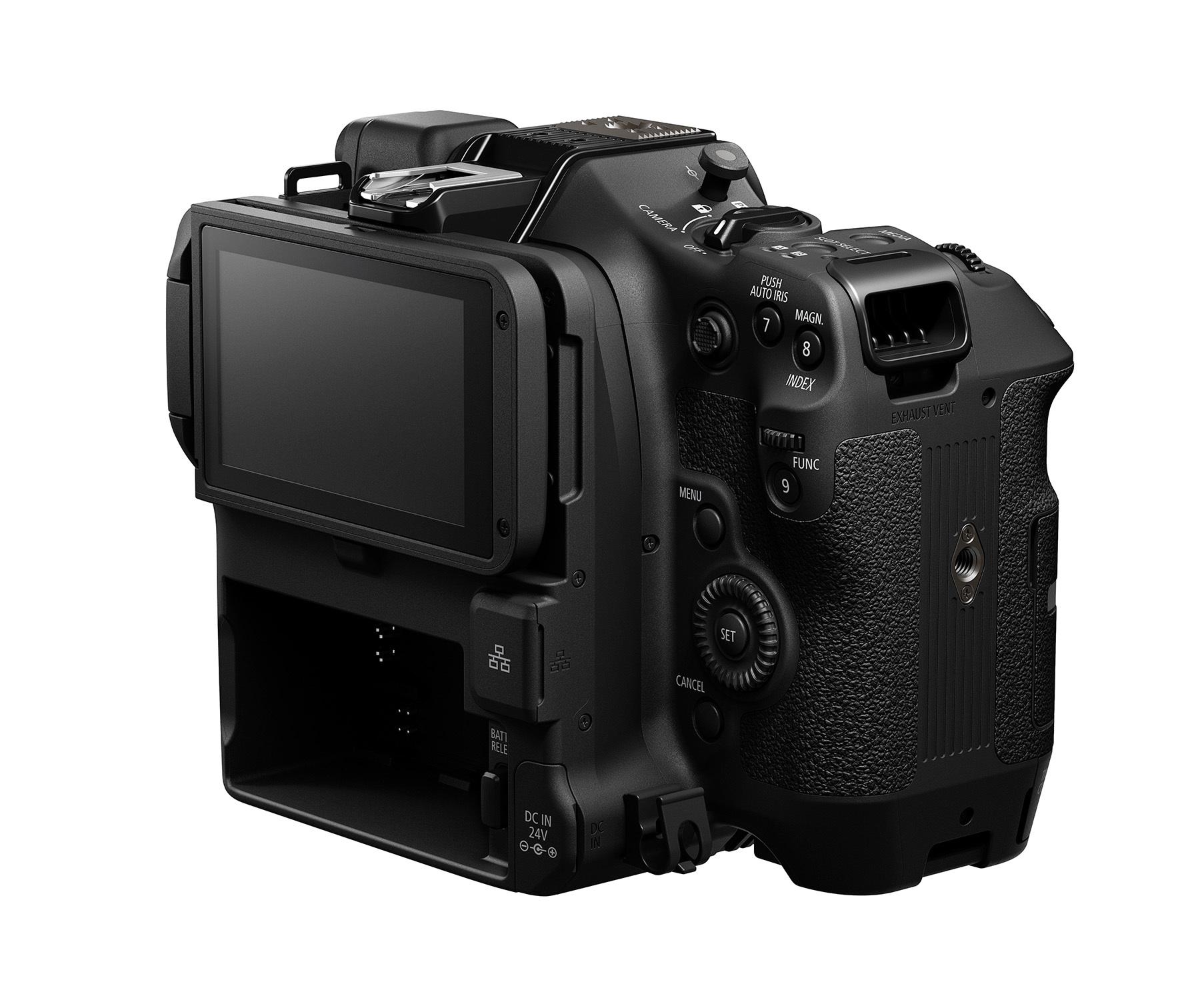

Canon EOS C80 Cinema Camera
Product Highlights
- Highly Portable, Compact & Lightweight with RF mount
- 6K Full-Frame Back-Illuminated Stacked CMOS Sensor
- 6K 30p RAW and 4K 120p Recording
- Wide Variety of Interfaces to Support Virtual Production

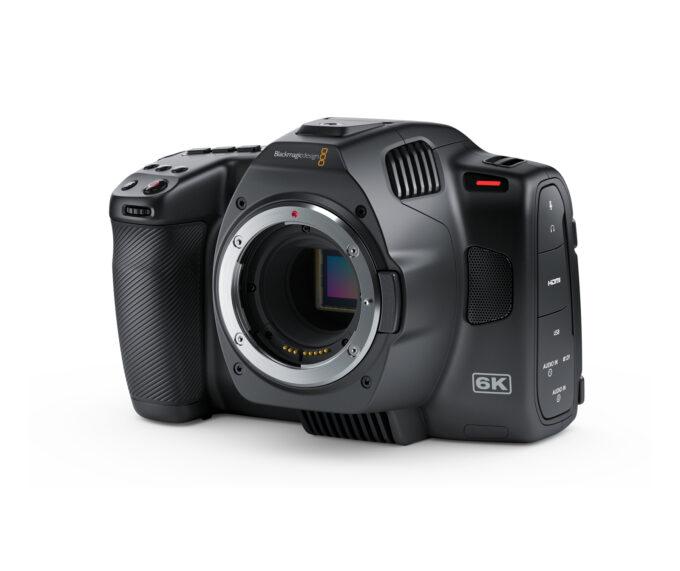

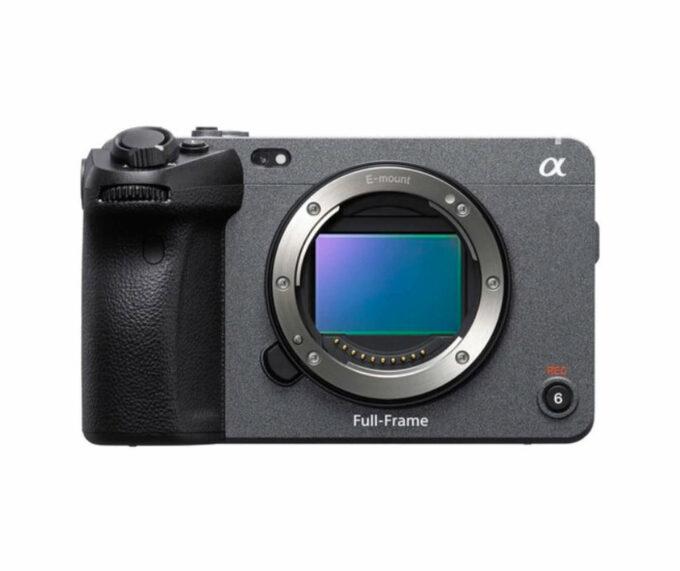

Related Products
Beautiful 6K 30P Movies
The full-frame sensor offers a shallow depth of field and large bokeh for enhanced creative expression. At the same time, faster signal readout minimises rolling shutter distortion during video recording. Coupled with the DIGIC DV 7 processor, it supports high-speed image processing, enabling 6K 30P internal RAW recording and 4K 4:2:2 10-bit recording through 6K oversampling.
6K Back-Illuminated Stacked Full-Frame CMOS Sensor
1. Enhanced 4K image quality with 6K oversampling1
2. Supports Dual Pixel CMOS AF II
3. Low noise & wide dynamic range of 16 stops
4. Automatic base ISO changing with 3 base ISO (800 / 3200 / 12800)2
1 Recording is possible at up to 6K 30P (RAW) and 4K 120P. When 4K 120P is selected in Super 35mm mode, the angle of view is cropped at approx. 6%.
2 With Canon Log 2/3 and RAW recording at HDMI RAW setting

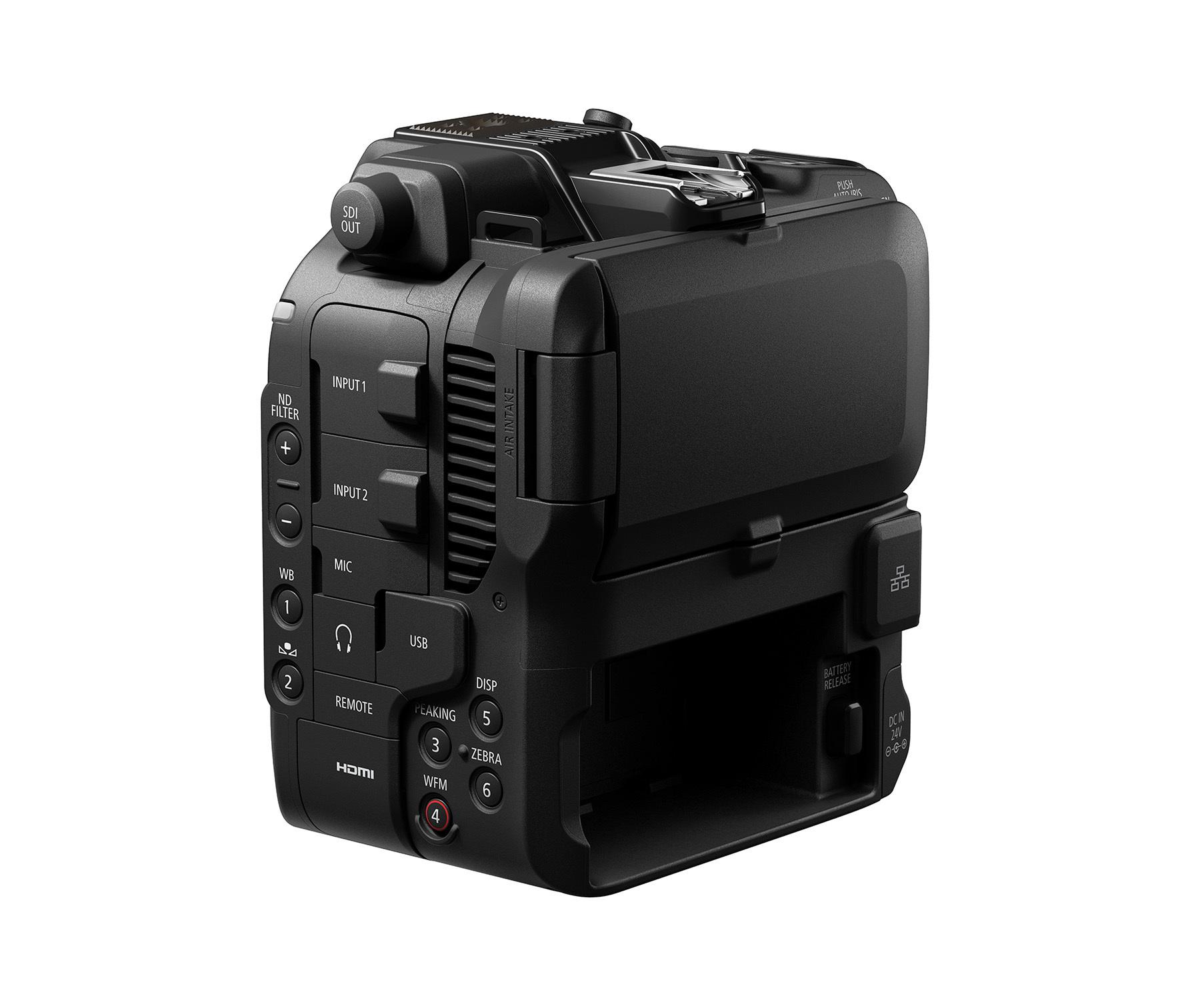

Full Array of Interfaces
A Diverse Array of Interfaces for Professional Excellence
The newly integrated SDI terminal allows for simultaneous output alongside the HDMI terminal, providing seamless connectivity with a variety of external devices. Additionally, with the camera's built-in Wi-Fi and Ethernet terminal, users can effortlessly operate the camera remotely and monitor its status from a smartphone or computer, unlocking new levels of flexibility and control.

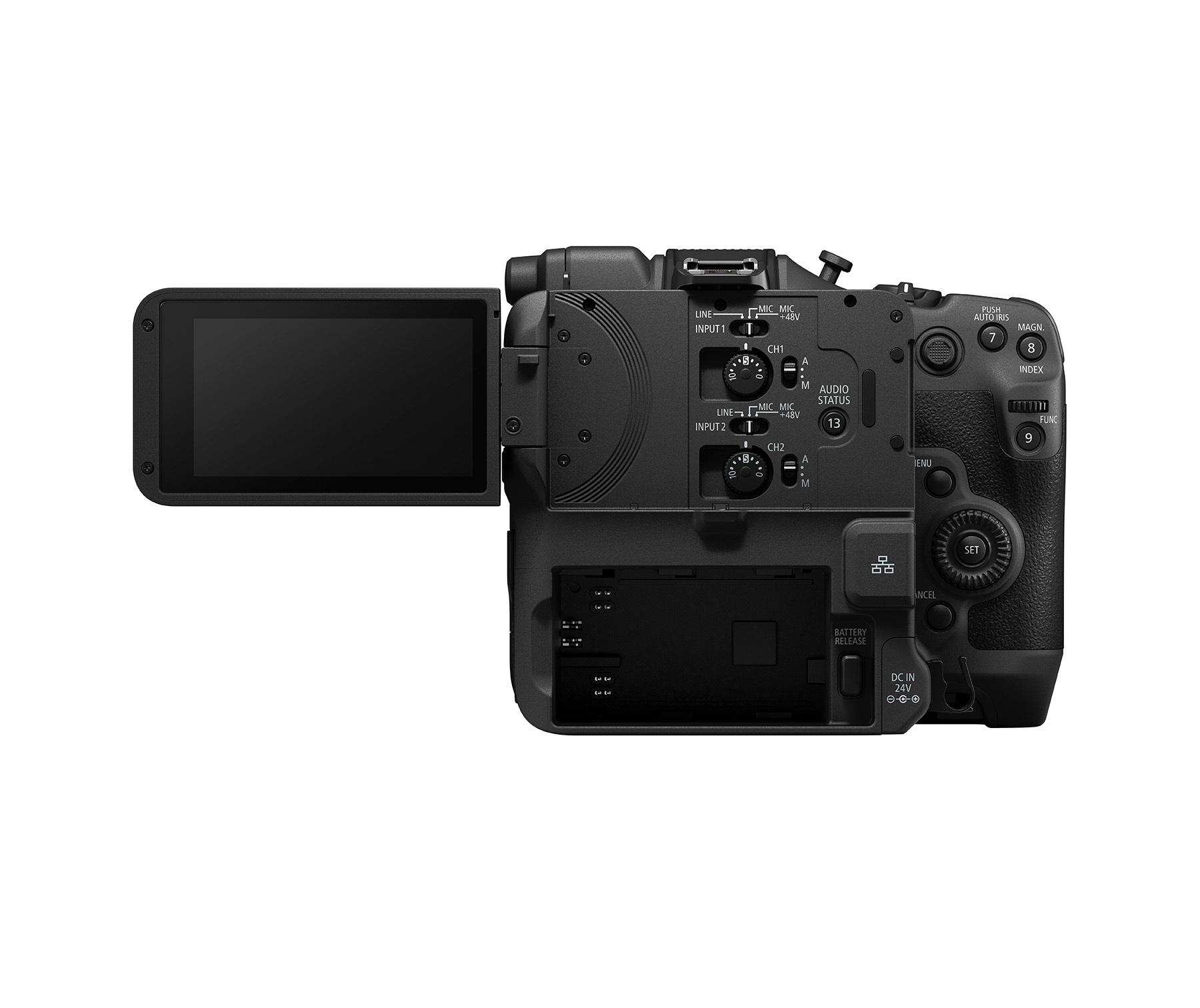

Professional Audio
Two 3-pin Mini XLR Input
Audio Control Dials
Professional microphones can be attached to the EOS C80's two mini XLR terminals with 48-volt phantom power to record high-definition audio. A 3.5mm microphone input is also available for connecting different microphones.
The EOS C80 features dedicated dials on the back of the camera body for precise audio control, allowing for easy and intuitive adjustment of recording levels for channels 1 and 2.
Highly Mobile, Compact & Lightweight Design
The EOS C80's compact and agile body is perfect for capturing dynamic shots, whether handheld, on a gimbal, or in motion. Its integrated grip offers stability and comfort, even for larger hands, ensuring precise control during extended shoots. This design empowers you to focus on your creative vision with confidence, no matter the scenario.
Spectacular 4K Image Quality with 6K Oversampling
Achieve crystal clear high definition 4K video with up to 6k readout oversampling*.
4:2:2 10-bit high-resolution recording is enabled through oversampling of the full-frame 6K sensor during 4K/2K movie recording.
*When using XF-AVC, XF-HEVC S, XF-AVC S recording, full-frame sensor mode, and frame rate of 60P/50P or lower.
Dual Pixel CMOS AF II
High-performance subject detection is made possible by the deep learning-based EOS iTR 1 AF X algorithm, which works in tandem with the incredible speed, accuracy, and field of view of Dual Pixel CMOS AF II. The focusing area is approximately 100% x 100%.
The EOS C80 can now detect human body2 and animal3 through the introduction of EOS iTR AF X.
1 Intelligent tracking and recognition.
2 When eyes, face, or head are hidden during AF tracking, the body is detected and tracking continues.
3 Detection of animals other than dogs or cats is not supported.
High Frame Rates
Get cinematic slow-mo shots of up to 7.5x with the EOS C80's high-quality 4:2:2 10-bit - 2K 180p and 2K/4K 120p*. It also offers continuous autofocus up to 2K/4K 120P, ensuring sharp focus during high-speed action, making it ideal for professionals in dynamic environments.
* When 4K 120P is selected in Super 35mm mode, the angle of view is cropped at approx. 6%.
Three Base ISO
The camera's Auto Selection feature changes between the three base ISO levels depending on the scene, selecting one with a higher S/N ratio while maintaining dynamic range. Users also can manually choose from the three base ISO* levels: ISO 400, ISO 1600 and ISO 6400 .
Using different base ISOs according to scene brightness (ISO sensitivity) helps reduce noise in videography.
*When using C-Log 2/3 & RAW: 800 / 3200 / 12800
Anamorphic Lens Support
When output to an LCD monitor or with MON. / SDI / HDMI, images are cropped to an angle of view of 2.39:1 after desqueezing.
The magnification ratio can be selected from OFF, 2x, 1.8x, or 1.3x in the menu (when shooting at 4K 60/50P, the desqueezing display is at 2K for MON. / SDI / HDMI). Data recorded for metadata can be configured separately from the magnification ratio.
Simultaneous Recording
The EOS C80 comes with dual memory card slots that support UHS-II SD Cards that are 3x faster than UHS-I SD Cards. This enables:
- Double recording
- Simultaneous recording of proxy files
- Simultaneous recording of different formats
- Relay recording
Logs that Expands Visual Expression
Canon Log 2
The Canon Log 2 retains details in medium-to-dark areas with film-like characteristics and provides linear output across a broader range. It enables precise exposure control with minimal colour shifts and preserves detail during post-editing, making it ideal for production environments based on Cineon-Log, such as film production.
Canon Log 3
Well-known for being user-friendly, the Canon Log 3 enables users to create videos with as little as basic tone adjustments through grading. Tightening the dark areas reduces the noise in the dark areas without compromising a broad dynamic range.
Combination IS
The EOS C80's In-body Digital IS and the In-lens Optical IS work together through coordinated control to deliver powerful image stabilisation. This is made possible by the RF mount, which allows high-speed communication between the lens and the camera.
Vertical Shooting UI
Improved Vertical UI Operability*
The camera offers a touch-based menu for recording features and LCD brightness settings, providing the same feel as standard horizontal shooting. This feature is particularly useful for producing videos for smart devices or digital signage. The camera also supports menu settings and LCD brightness adjustments in vertical shooting, providing an easy-to-read layout similar to standard horizontal shooting. Various settings and controls can be operated with touch.
*compared with EOS C70
Communication Support
IP streaming
With the new SRT protocol support, the EOS C80 simplifies live streaming for news programmes and video websites, making it a highly efficient tool for real-time broadcasting.
This feature seamlessly integrates into existing video production and editing workflows at broadcasters and other platforms, significantly enhancing their streaming capabilities.
Virtual Production Support
The EOS C80 with RF mount system supports virtual production, offering high-speed communication for real-time metadata output. This simplifies video composition and provides continuous correction data linked with zoom for seamless integration of camera footage and CG.
Additionally, it includes a plugin for Unreal Engine and Adobe After Effects, enabling easy import of movie file metadata for accurate and efficient compositing in virtual production workflows.
EOS VR System Support
The EOS C80 allows 180° VR shooting with the RF5.2mm F2.8 L DUAL FISHEYE lens. This technique simplifies VR production by recording with a single sensor, eliminating left/right synchronisation and post-shoot stitching.
Canon offers the EOS VR Utility with Adobe Premiere Pro plugin to improve workflow. These tools enable converting, editing, and producing VR content straightforward, ensuring a smooth shooting to production experience.
Multi-Function Shoe
Sporting a next-generation interface with high-speed communication interface, the Multi-Function Shoe supports various types of accessories by using power supply from the camera. The EOS C80 has two Multi-Function Shoe, one on the main body and another on the handle unit.
XLR Microphone Adapter
Directional Stereo Microphone
Off-camera Shoe Cord
What's in the box?
- 1 x Canon EOS C80 Cinema Camera
- 1 x Handle Unit
- 1 x BP-A30N Battery Pack
- 1 x CA-CP300 B Compact Power Adapter
- 1 x CG-A20 Battery Charger
- 1 x Microphone Holder
- 1 x SS-1200 Shoulder Strap
- Image Sensor
Sensor
Full Frame Back-Side Illuminated (BSI) CMOS sensor
Filter
RGB primary color filter (Bayer array)
Sensor Modes
Full Frame / Super 35mm (crop)
Total Pixels
Approx. 26.67 megapixels (6202x4300)
Effective Pixels
Approx. 19.05 megapixels (6008x3170):When 6000x3164 / 4096x2160 / 2048x1080 is selected as the resolution
Approx. 17.86 megapixels (5634x3170): When 3840x2160 / 1920x1080 is selected as the resolutionEffective Sensor Screen SizeFull Frame:
36.0 x 19.0 mm (40.7 mm on the diagonal): When 6000x3164 / 4096x2160 / 2048x1080 is selected as the resolution
33.8 x 19.0 mm (38.7 mm on the diagonal): When 3840x2160 / 1920x1080 is selected as the resolutionDynamic Range
Canon Log 2: 1600% / 16 stops (at ISO 800)
Canon Log 3: 1600% / 14 stops (at ISO 800)
Base ISO: 800 / 3200 / 12800
- Image Processor
DIGIC DV7
- Lens
Lens Mount
Canon RF mount
PL mount support via PL-RF Mount Adapter
EF mount support via EF-EOS R Mount AdapterLens Magnification Factor
Full frame;
6000x3164, 4096x2160 or 2048x1080: Actual focal length x Approx. 1.06
3840x2160 or 1920x1080: Actual focal length x Approx. 1.12
Super 35mm (Crop);
4368x2304, 4096x2160 or 2048x1080: Actual focal length x Approx.1.46
3840x2160 or 1920x1080: Actual focal length x Approx.1.54Digital Lens Correction
Peripheral Illumination Correction
Chromatic Aberration Correction
Diffraction Correction
Distortion Correction (RF lenses only)ND Filter
2, 4 or 6 Stops. Up to 10 stops via built-in ND filter system (in extended mode)
Iris Control (EF Mount Lenses)
1/2-stop, 1/3-stop or FINE control
Auto IrisCooke /i Technology™ Support
Only when equipped with PL-RF Mount Adapter
Anamorphic Lens Support
x2.0 / x1.8 / x1.3
Image Stabilization System
5-Axis Combination IS (Optical and Digital) with supported lenses
Digital 5-Axis IS for non-IS lenses.
- Recording
Internal Recording Media
2x SD Card (SD / SDHC / SDXC)
Recording Time
Cinema RAW Light LT: 6000 x 3164 576 Mbps: approx. 118 Mins
Cinema RAW Light ST: 4368 x 2304 470 Mbps: approx. 145 Mins
XF-AVC: 4096x2160 500 Mbps: approx. 136 Mins
XF-AVC S: 4096x2160 500 Mbps: approx. 136 Mins
XF-HEVC S: 4096x2160 135 Mbps: approx. 505 MinsRecording Formats
Cinema RAW Light (CRM), XF-AVC (MXF), XF-AVC S (MP4), XF-HEVC S (MP4)
Relay Recording
Yes
Double Slot (Simultaneous) Recording
Yes
Simultaneous Recording in Multiple Formats
Yes
System Frequency / Frame Rates
59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
50.00Hz mode (50.00P / 50.00i / 25.00P)
24.00 Hz mode (24.00P)Cinema RAW Light Bit Rate / Bit Depth (PAL)
12-bit Cinema RAW Light LT:
FF / 6000 x 3164 / 25P [576 Mbps]
S35 / 4368 x 2304 / 50P [611 Mbps]
S35 / 4368 x 2304 / 25P [306 Mbps]
12-bit Cinema RAW Light ST:
S35 / 4368 x 2304 / 25P [470 Mbps]XF-AVC Recording Bit Rate / Sampling (PAL / MXF)4:2:2 10-bit (Intra-frame):
4096x2160 or 3840x2160 / 50P [500 Mbps]
4096x2160 or 3840x2160 / 25P [500 / 375 / 250 Mbps]
2048x1080 or 1920x1080 / 50P [250 Mbps]
2048x1080 or 1920x1080 / 50i [125 Mbps]
2048x1080 or 1920x1080 / 25P [125 Mbps]
4:2:2 10-bit (Long GOP):
4096x2160 or 3840x2160 / 50P [250 Mbps]
4096x2160 or 3840x2160 / 25P [150 Mbps]
2048x1080 or 1920x1080 / 50P [50 Mbps]
2048x1080 or 1920x1080 / 50i [50 / 25 Mbps]
2048x1080 or 1920x1080 / 25P [50 Mbps]XF-AVC S Recording Bit Rate / Sampling (PAL / MP4)4:2:2 10-bit (Intra-frame):
4096x2160 or 3840x2160 / 50P [500 Mbps]
4096x2160 or 3840x2160 / 25P [500 / 375 / 250 Mbps]
2048x1080 or 1920x1080 / 50P [250 Mbps]
2048x1080 or 1920x1080 / 25P [125 Mbps]
4:2:2 10-bit (Long GOP):
4096x2160 or 3840x2160 / 50P [250 Mbps]
4096x2160 or 3840x2160 / 25P [150 Mbps]
2048x1080 or 1920x1080 / 50P [50 Mbps]
2048x1080 or 1920x1080 / 25P [50 Mbps]
4:2:0 8-bit (Long GOP):
4096x2160 or 3840x2160 / 50P [150 Mbps]
4096x2160 or 3840x2160 / 25P [100 Mbps]
2048x1080 or 1920x1080 / 50P [35 Mbps]
2048x1080 or 1920x1080 / 25P [35 Mbps]XF-HEVC S Recording Bit Rate / Sampling (PAL / MP4)4:2:2 10-bit (Long GOP):
4096x2160 or 3840x2160 / 50P [225 Mbps]
4096x2160 or 3840x2160 / 25P [135 Mbps]
2048x1080 or 1920x1080 / 50P [50 Mbps]
2048x1080 or 1920x1080 / 25P [50 Mbps]
4:2:0 10-bit (Long GOP):
4096x2160 or 3840x2160 / 50P [150 Mbps]
4096x2160 or 3840x2160 / 25P [100 Mbps]
2048x1080 or 1920x1080 / 50P [35 Mbps]
2048x1080 or 1920x1080 / 25P [35 Mbps]Proxy Recording Bit Rate / Sampling (PAL)4:2:0 8-bit (Long GOP):
2048x1080 or 1920x1080 [35 / 16 / 9 Mbps]
1280 x 720 [6 Mbps]
4:2:0 10-bit (Long GOP):
2048x1080 or 1920x1080 [16 / 9 Mbps]Slow / Fast Motion
6K RAW: up to 30FPS
4K recording: up to 120FPS (Long GOP) / 60FPS (Intra-frame)
2K recording: up to 180FPS (Long GOP) / 120FPS (Intra-frame)Interval Record
Yes
Frame Record
Yes
Pre Record (Cache Record)
3 Seconds
Digital Tele-converter
1.5x, 2x, 2.5x, 3x, Off
Photo Storage Media
SD Card
Photo Recording Size
4096x2160 / 3840x2160 / 2048x1080 / 1920x1080
- System
Display Type
3.5-inch LCD Touch Panel
Display Resolution
approx. 2.76 million dots (1280xRGBx720)
Display Touch Screen Functions
Focus Point Selection
Touch Screen UI for Shooting SettingsOSD for Vertical Shooting
Yes
Wave Form Monitor
Yes (Line / Line + Spot / RGB Parade / YPrPb Parade)
False Colour Display (Exposure Indication)
Yes (6 Colour Index)
Colour Bars
SMPTE / EBU / ARIB
Peaking
Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
Zebra
Level 1; Level 2; Both
Markers
On/Off selectable: centre, horizontal / verstical, grid, aspect, safe area and user marker. Colour selectable
- EVF
No
- Input Output
Audio In
2x Mini XLR 3-pin connector
1x 3.5 mm stereo mini jack
Built-in Stereo microphones on camera bodyHeadphone Output
1x 3.5mm stereo mini jack
Video Monitor Output
No
HDMI
1x HDMI (Type-A) (6K RAW output available)
USB
1x USB-C Data Terminal (USB3.2 Gen1)
SDI Output
1x 12G-SDI Output (BNC)
Time Code
1x BNC Terminal (Input / Output)
Genlock
No
Sync
No
DC Input
1x 24V DC jack
Multi-Accessory Shoe
Yes (via camera body)
Remote Control Terminal
1x 2.5 mm stereo mini jack
Lens Terminal
No
Ethernet Terminal
1x RJ45 Connector (1000BASE-T compatible)
Grip
No
IP Streaming / FTP
IP Streaming via Ethernet / Wi-Fi connection
9 Mbps / 4 Mbps: 1920 x 1080 (59.94p / 59.94i / 50.00p / 50.00i)
UDP / RTP / SRT / RTP+FEC / RTSP+RTPUser LUT Input
Yes, in-built LUTs are available for monitoring.
Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files)Video Connector
No
Tally Signal
Yes, via Wi-Fi or Ethernet using XC Protocol
Return Signal Input
No
Default Function Button Settings
1. WB
2. SET WB
3. PEAKING
4. WFM
5. DISP
6. ZEBRA
7. AUTO IRIS
8. MAGN.
9. FUNC
10. (unassigned)
11. (unassigned)
12. AF LOCK
13. AUDIO STATUSUser Assignable Buttons
13x (Body)
- Miscellaneous
Tally Lamp
Yes, 1x
Custom Dial
Yes, 3x
Software Application Support
Cinema RAW Development
XF Utility
EOS VR Utility
Remote Camera Control Application
RAW Plugin for Avid Media Access
RAW Plugin for Final Cut Pro
XF Plugin for Avid Media Access
EOS VR Plugin for Adobe Premiere Pro
CV Metadata Plugin for Adobe After Effects
Live Link Plugin for Unreal Engine
CV Metadata Extraction Tool
MP4 Join Tool
HEVC Activator
Frame.io Camera to CloudSmartphone Application Support
Canon Multi-Camera Control
Content Transfer Professional
Browser Remote Control
- Exposure
Exposure Metering
Standard / Spotlight / Backlight
Exposure Compensation
AE shift function available. Target value (±8 steps from center)
Auto Exposure Mode
Auto Iris / Auto ISO
Push Auto Iris
Yes
Exposure Lock
No
Auto Gain Control Setting
Yes
ISO Sensitivity
1-Stop Display:
100* / 160** / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200* / 102400*
1/3-Stop Display:
100* / 125* / 160 / 200 / 250 / 320 / 400 / 500 / 640 / 800 / 1000 / 1250 / 1600 / 2000 / 2500 / 3200 / 4000 / 5000 / 6400 / 8000 / 10000 / 12800 / 16000 / 20000 / 25600 / 32000* / 40000* / 51200* / 64000* / 80000* / 102400*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFFAuto Focus System
Dual Pixel CMOS AF II + EOS iTR AF X
AF Frame Sizes
Full: approx. 100% (Vertical) x approx. 100% (Horizontal)
Large Zone (Vertical): Video display range approx. 97% (Vertical) x 25% (Horizontal)
Large Zone (Horizontal): Video display range approx. 43% (Vertical) x 76% (Horizontal)
Zone: Video display range approx. 43% (Vertical) x 25% (Horizontal)
Small Zone: Video display range approx. 15.9% (Vertical) x 11.8% (Horizontal)Auto Focus Modes
Continuous AF / One-Shot AF
Face Detection AF
Yes (Eye / Face / Head / Body)
Animal Detection AF
Yes (Dogs / Cats)
Focus Guide
Yes, with compatible Canon lenses
Gain Setting-6dB*, -3dB*, -2dB**~42dB, 45dB*, 48dB*, 51dB*, 54dB*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFF
- Shutter
Control Modes
Speed / Angle / Clear Scan / Slow Shutter
Shutter Speed
1/1~1/2000 (total of 47 settings)
Shutter Angle
11.25º to 360º depending on frame rate
Slow Shutter (SLS)
1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
Clear Scan
23.97 Hz~1971 Hz depending on sensor mode/frame rate
- Custom Picture
Stored Configurations
C1: Canon 709
C2: Canon Log 2
C3: Canon Log 3
C4: BT.709 Wide DR
C5: BT.709 Standard
C6: PQ
C7: HLG
C8: EOS Standard
C9: EOS Neutral
C10: User10 ~User20HDR-HLG Profile
BT.2100: Corresponds to ITU-R BT.2100
Vivid: Corresponds to Traditional Colour in ITU-R BT.2390Colour Matrix
Neutral: Accurate colour reproduction
Production Camera: Colour reproduction for use in movie production
Video: Colour reproduction with contrast for TV broadcasts.Image Adjustment Parameters
Master Pedestal
Master Black
Black Gamma
Low Key Saturation
Knee
Sharpness
Noise Reduction
Skin Detail
Colour Matrix Tuning
White Balance
Colour Correction
- Streaming, Wi-Fi, & GPS Specifications
Wi-Fi (Optional Third Party Accessory)
In-built (2.4 / 5GHz bands)
Supporting 802.11a/b/g/n/acGPS Information (Optional Accessory)
Only when equipped with GP-E2 GPS Receiver
- White Balance
Auto
Yes
Preset
Daylight (5600K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B
White Balance Shift
-5 CC - +5 CC (Daylight / Tungsten)
-20 CC - +20 CC (Kelvin)
- Timecode
Count Up System
Regen / RecRun / Free Run / External / Frame Count
- Audio Format
RAW / XF-AVC: Linear PCM (24-bit / 48 kHz, 4 channels)
XF-AVC S / XF-HEVC S: Linear PCM (24-bit / 48 kHz, 4 channels) or MPEG2-AAC LC (16 bit 48kHz) 2 channels
- Power Source
Power Supply (Battery)
BP-A30N (Supplied)
BP-A60N / BP-A30 / BP-A60 (Optional)Power supply (Mains)
DC IN 24V Terminal
Power Consumption (Approx.)
RAW LT, 6000x3164, 29.97P (14.5W)
RAW LT, 4368x2304, 59.94P (18.2W)
XF-AVC, 3840x2160, 59.94P (19.6W)
XF-AVC, 2048x1080, 59.94P (17.9W)Recording Time (Approx.)
With supplied BP-A30N battery pack:
RAW LT, 6000x3164, 29.97P: 170 Mins (Full Frame)
RAW LT, 4368x2304, 59.94P: 135 mins (Super35)
XF-AVC, 3840x2160, 59.94P: 125 mins (Full Frame)
XF-AVC, 2048x1080, 59.94P: 140 mins (Super35)
- Physical Specifications
Dimensions (Main Body Only)
approx. 160 x 138 x 116 mm
Weight (Body Only)
approx. 1310g
Weight (Accessories)
Handle Unit: Approx. 155g
BP-A30N Battery Pack: Approx. 243g
CA-CP300 B Compact Power Adapter: Approx. 219g
Battery Charger CG-A20: Approx. 145g
Microphone Holder + 2 screws: Approx. 60gOperating Temperature Range
Approx. 0 to 40°C, (85% relative humidity)
Approx. -5 to 45°C, (60% relative humidity)
