Insta360 ANTIGRAVITY A1 Explorer Bundle

A1 Drone

Drone

• Class

• EU C0 (with Standard Flight Battery)

  EU C1 (with High-Capacity Battery)

• Takeoff Weight

• 249 g (8.78 oz) (with Flight Battery)

  291 g (10.26 oz) (with High-Capacity Flight Battery)

• Dimensions

• Folded: 141.3 × 96.2 × 81.4 mm (5.56 × 3.79 × 3.20 in) (L×W×H)

  Unfolded (propellers extended): 308.6 × 382.3 × 89.2 mm (12.15 × 15.05 × 3.51 in) (L×W×H)

• Maximum Flight Time

• 24 minutes (with Flight Battery)

  39 minutes (with High-Capacity Flight Battery)

  *Tested in a controlled windless environment at 25°C (77°F), 5.2K30fps (video recording disabled), with the drone flying forward at 6 m/s (13.4 mph) at an altitude below 50 m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions.

• Max Flight Distance (per charge)

• 13 km (8.0 mi) (with Flight Battery)

  23 km (14.3 mi) (with High-Capacity Flight Battery)‌‌

  *Tested in a controlled windless environment at 25°C (77°F), 5.2K30fps (video recording disabled), with the drone flying forward at 12 m/s (26.8 mph) at an altitude below 50 m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions.

• Maximum Ascent Speed

• 8 m/s (17.9 mph) (S Mode)

  6 m/s (13.4 mph) (N Mode)

  3 m/s (6.7 mph) (C Mode)

  *Tested in a controlled windless environment at 25°C (77°F) at an altitude below 50 m (164 ft).

• Maximum Descent Speed

• 8 m/s (17.9 mph) (S Mode)

  6 m/s (13.4 mph) (N Mode)

  3 m/s (6.7 mph) (C Mode)

  *Tested in a controlled windless environment at 25°C (77°F) at an altitude below 50 m (164 ft).

• Max Horizontal Speed (at sea level, no wind)

• 16 m/s (35.8 mph) (S Mode)

  12 m/s (26.8 mph) (N Mode)

  3 m/s (6.7 mph) (C Mode)

  *Tested in a controlled windless environment at 25°C (77°F) at an altitude below 50 m (164 ft).

• Maximum Wind Speed Resistance

• 10.7 m/s (24 mph) (Level 5)


• Maximum Takeoff Altitude

• 4,000 m (13,123 ft) (with Flight Battery)

  3,000 m (9,842 ft) (with High-Capacity Flight Battery)

• Global Navigation Satellite System

• GPS + Galileo + Beidou


• Hovering Accuracy Range

• Vertical:

  ±0.1 m (0.33 ft) (with vision positioning) | ±0.5 m (1.64 ft) (with GNSS positioning)

  Horizontal:

  ±0.1 m (0.33 ft) (with vision positioning) | ±0.5 m (1.64 ft) (with GNSS positioning)

• Operating Temperature
• -10°C to 40°C (14°F to 104°F)

• Internal Storage
• 20GB

• Internal File System
• exFAT

• Supported Storage
• microSD (up to 1TB)

• Recommended Memory Cards

• SanDisk

  SanDisk Extreme PRO 64GB V30 U3 A2 microSDXC

  SanDisk Extreme PRO 128GB V30 U3 A2 microSDXC

  SanDisk Extreme PRO 256GB V30 U3 A2 microSDXC

  SanDisk Extreme PRO 512GB V30 U3 A2 microSDXC

  SanDisk Extreme PRO 1TB V30 U3 A2 microSDXC

  Lexar

  Lexar Silver Plus 64GB A2 V30 microSDXC

  Lexar Silver Plus 128GB A2 V30 microSDXC

  Lexar Silver Plus 256GB A2 V30 microSDXC

  Lexar Silver Plus 512GB A2 V30 microSDXC

  Lexar Silver Plus 1TB A2 V30 microSDXC

  Kingston

  Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 512GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 1TB A2 V30 microSDXC

Camera

• Image Sensor
• 1/1.28-inch

• Lens Aperture
• F2.2

• Video Resolution

• 8K: 7680×3840@30/25/24fps

  5.2K: 5248×2624@60/50/30/25/24fps

  4K: 3840×1920@100fps

  4K Slow Motion: 3840x1920@30/25/24fps

• Photo Resolution

• 55 MP (10496×5248)

  14 MP (5248×2624)

• Video Format
• INSV (Exported through Antigravity App or Antigravity Studio)

• Photo Format

• INSP (Exported through Antigravity App or Antigravity Studio)

  DNG

• Video Modes
• Standard Video, Slow Motion

• Photo Modes
• Standard Photo, HDR, Burst, AEB

• Video Encoding Format
• H.264、H.265

• Max Video Bitrate
• 170Mbps

• ISO Range
• 100-6400

• Shutter Speed

• 14MP Photo: 1/8000-1/2s

  55MP Photo: 1/8000-1/20s

Sensing

• Sensing Type
• Forward and downward vision sensors, complemented by bottom infrared sensors.

• Forward

• Measurement Range: 0.5–18 m (1.6–59.1 ft)

  Effective Sensing Speed: Flight Speed ≤ 12 m/s (26.8 mph)

  FOV: Horizontal 93°, Vertical 104°

• Downward

• Measurement Range: 0.3–7.5 m (1.0–24.6 ft)

  Effective Sensing Speed: Flight Speed ≤ 6 m/s (13.4 mph)

  FOV: Front and Back 107°, Left and Right 90°

• Operating Environment

• Forward:

  Surfaces with discernible patterns and adequate lighting (lux > 15)

  Downward:

  Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. cement pavement, stout trees), and adequate lighting (lux > 15)

Video Transmission

• Video Transmission System
• OmniLink 360

• Live View Quality
• 2K@30fps

• Operating Frequency

• 2.400 GHz-2.4835 GHz

  5.150 GHz-5.250 GHz

  5.725 GHz-5.850 GHz

  ^{*5.150 GHz-5.250 GHz and 5.725 GHz-5.850 GHz can be used only in coutries and regions where permitted by local laws and regulations.}

• Transmitter Power (EIRP)

• 2.4 GHz: < 30 dBm (FCC) | < 20 dBm (CE/SRRC/MIC)

  5.1 GHz: < 23 dBm (CE) | < 21 dBm (FCC)

  5.8 GHz: < 30 dBm (FCC/SRRC) | < 14 dBm (CE)

• Max Transmission Distance (open, free of interference)

• 10 km (6.2 mi) (FCC)

  8 km (5.0 mi) (SRRC)

  6 km (3.7 mi) (CE)

  4 km (2.5 mi) (MIC)

  ^{*Tested outdoors at 25°C (77°F) in an open, interference-free environment. Data reflects maximum one-way transmission distance without return-to-home under each standard. Actual performance may vary depending on environment, usage, and firmware.}

• Max Transmission Distance (open, with interference)

• Strong Interference (urban/industrial): approx. 1–4 km (0.6–2.5 mi)

  Medium Interference (suburban): approx. 3–6 km (1.9–3.7 mi)

  Low Interference (seaside/suburb): approx. 5–10 km (3.1–6.2 mi)

  ^{*Tested under FCC standard in open environments with typical interference. Used for reference purposes only.}

• Max Transmission Distance (obstructed, with interference)

• Low Interference/Buildings: approx. 0.1–0.5 km (0.06–0.31 mi)

  Low Interference/Trees: approx. 0.5–2 km (0.31–1.24 mi)

  ^{*Tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Transmission Rate
• 30Mbps

• Average Latency

• Approx. 150 ms

  ^{*Tested in a open, interference-free environment. Actual latency may vary depending on the environmental differences.}

• Antenna
• 4 antennas, 2T2R

Wi-Fi

• Protocol
• 802.11 a/b/g/n/ac

• Operating Frequency

• 2.400–2.4835 GHz

  5.150–5.250 GHz

  5.725–5.850 GHz

  ^{*5.150–5.250 GHz and 5.725–5.850 GHz are only available in select countries and regions in accordance with local regulations.}

• Transmitter Power (EIRP)

• 2.4 GHz: < 20 dBm (CE/SRRC/FCC)

  5.1 GHz: < 20 dBm (FCC/CE/SRRC)

  5.8 GHz: < 20 dBm (FCC/SRRC) | < 14 dBm (CE)

Bluetooth

• Protocol
• Bluetooth 5.0

• Operating Frequency
• 2.400 GHz-2.4835 GHz

• Transmitter Power (EIRP)
• <10 dBm

Flight Battery

• Weight

• < 67.5 g (2.38 oz) (Flight Battery)

  < 108.6 g (3.83 oz) (High-Capacity Flight Battery)

• Capacity

• 2360mAh (with Standard Flight Battery)

  4345mAh (with High-Capacity Battery)

• Energy

• 16.9Wh (with Standard Flight Battery)

  31.1Wh (with High-Capacity Battery)

• Nominal Voltage

• 7.16V (with Standard Flight Battery)

  7.16V (with High-Capacity Battery)

• Charging Limit Voltage

• 8.6V (with Standard Flight Battery)

  8.6V (with High-Capacity Battery

• Battery Type
• Li-ion 2S

• Charging Temperature
• 5°C to 45°C

• Charging Time

• Flight Battery: Approx. 45 mins (Hub) | Approx. 58 mins (Drone)

  High-Capacity Flight Battery: Approx. 60 mins (Hub) | Approx. 103 mins (Drone)

  ^{*Charging times are measured in a controlled environment at 25°C (77°F).}

Charger

• Recommended Charger
• Antigravity 65W GaN Fast Charger

Charging Hub

• Weight
• 118.5 g (4.18 oz)

• USB-C Input

• PPS: 5–10V 5A

  PD: 5V 3A, 9V 5A, 12V 5A, 15V 4A

• Output

• PD 3.0: 30W

  15V 2A, 12V 2.5A, 9V 3A, 5V 3A

• Compatibility

• Antigravity A1 Flight Battery

  Antigravity A1 High-Capacity Flight Battery

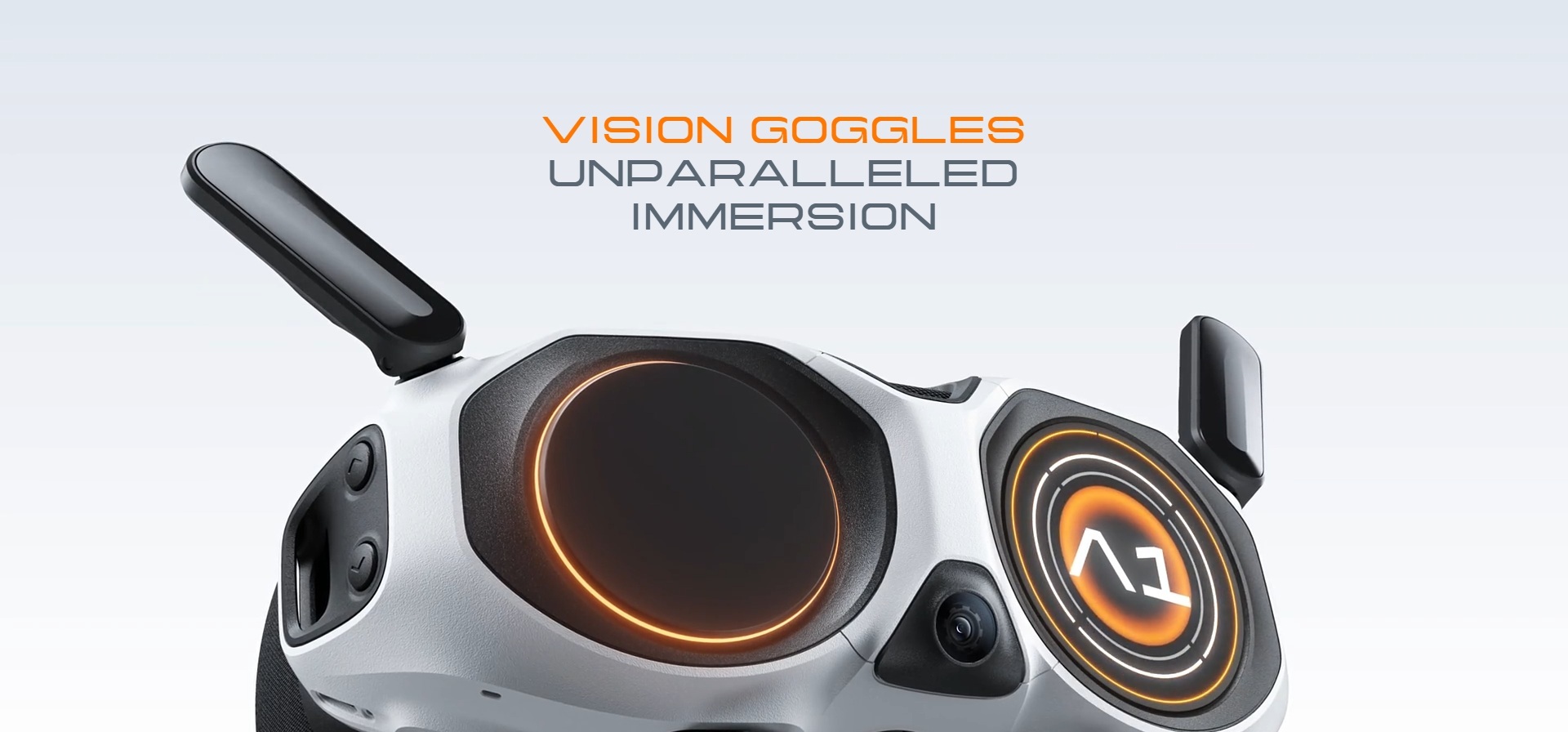

Vision Goggles

Goggles

• Weight

• 340.4 g (12.0 oz) (spacer, mask and band included)

  ^{*Battery features modular design.}

• Dimensions (L×W×H）

• Antenna Folded: 174×106×92 mm (6.85 × 4.17 × 3.62 in) (L×W×H）

  Antenna Unfolded: 200×106×115 mm (7.87 × 4.17 × 4.53 in) (L×W×H）

• Internal Screen Size (single screen)
• 1.03-inch Micro-OLED with TÜV Rheinland Low Blue Light Certification

• Internal Display Resolution (single screen)
• 2560x2560

• Refresh Rate
• 72Hz

• Optical Engine
• Pancake Optical Display System

• 59-72 mm (2.32–2.83 in)

• -5.0 D to +2.0 D

  ^{*Vision Goggles natively support vision correction from +2.0D to -5.0D. With the optional -3.0D corrective lenses, the range extends from +2.0D to -8.0D.}

• FOV (single screen)

• DFOV:90°

  HFOV/VFOV:65°

• Recording Format Video
• INSV

• Video Recording Resolution
• 1600×1600

• Screen Recording Frame Rate
• 30fps

• Supported Video and Audio Playback Formats
• MP4, MOV, JPG, PNG, INSP, INSV

• Real View FOV
• DFOV: 115° | HFOV: 93° | VFOV: 93°

• Real View Resolution
• 1088×1088

• Real View Frame Rate
• 50fps

• Operating Temperature
• -10˚C to 40˚C (14°F to 104°F)

• Power Input
• Supports only Vision goggles dedicated battery; requires USB-C to DC cable.

• Internal Storage
• Approx.30GB

• Internal File System
• exFAT

• Supported Storage
• microSD (up to 1TB)

• Recommended Memory Cards

• SanDisk

  SanDisk Extreme PRO 64GB V30 U3 A2 microSDXC

  SanDisk Extreme PRO 128GB V30 U3 A2 microSDXC

  SanDisk Extreme PRO 256GB V30 U3 A2 microSDXC

  SanDisk Extreme PRO 512GB V30 U3 A2 microsDXC

  SanDisk Extreme PRO 1TB V30 U3 A2 microSDXC

  Lexar

  Lexar Silver Plus 64GB A2 V30 microSDXC

  Lexar Silver Plus 128GB A2 V30 microSDXC

  Lexar Silver Plus 256GB A2 V30 microSDXC

  Lexar Silver Plus 512GB A2 V30 microSDXC

  Lexar Silver Plus 1TB A2 V30 microSDXC

  Kingston

  Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 512GB A2 V30 microSDXC

  Kingston CANVAS GO! Plus 1TB A2 V30 microSDXC

Vision Goggles Battery

• Weight
• 175 g (6.17 oz)

• Max Runtime

• Approx. 2.5 hours

  ^{*Measured with an ambient temperature of 25°C (77°F), connected to the drone and controller, video transmission set to automatic, internal screen brightness set to default and always-on, outer screen brightness set to default, light ring on, WiFi & Bluetooth on, screen recording on.}

• Nominal Voltage
• 7.3V

• Capacity
• 4,500mAh

• Energy
• 32.85Wh

• Charging Port/Charging Power
• USB-C (5V 3A; 9V 3A; 12V 2A)

• Charging Temperature

• 5°C to 45°C (41°F to 113°F)

  (Stop charging when the temperature exceeds 55°C (131°F))

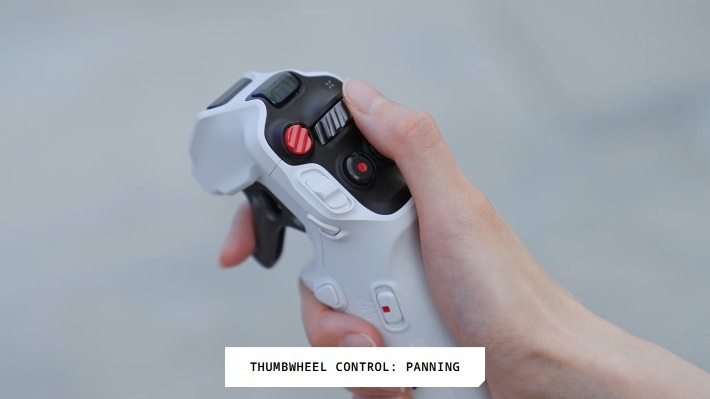

Grip Motion Controller

Controller

• Dimensions
• 143 × 45 × 72.5 mm (5.63 × 1.77 × 2.85 in) (L×W×H)

• Weight
• 124.3 ± 0.3 g (4.38 ± 0.01 oz)

• Operating Frequency
• 2.4000-2.4835 GHz

• Transmitter Power (EIRP)
• < 10 dBm

• Max Transmission Distance (open, free of interference)

• < 10 m (32.8 ft)

  ^{*Tested outdoors in an open, interference-free environment, representing the maximum communication distance between the Grip Controller and the Vision Goggles under typical working conditions.}

• Operating Temperature
• -10°C to 40°C (14°F to 104°F)

Battery

• Operating Time

• Approx. 4 hours

  ^{*Measured with an ambient temperature of 25°C (77°F); the Grip Controller, when connected to the Vision Goggles, can last up to 4 hours under typical working conditions.}

• Charging Temperature

• 5°C to 45°C (41°F to 113°F)

  ^{*Charging stops automatically if temperature exceeds 55°C (131°F).}

• Charging Time
• < 2.5 hours

• Nominal Voltage
• 3.6V

• Capacity
• 2300mAh
