Aputure amaran F22X 2'x2' Bi-Color LED Fabric Light

SKU: APU AM F22X

Product Highlights

  • 200W Output 2’x2’ Bi-Color Flexible LED Mat
  • 240W Max Power Draw
  • 6,960+ lux @ 1 meter (5600K)
  • Tunable CCT from 2,500K to 7,500K
  • CRI: 95+, TLCI: 98+, CQS: 96+
  • SSI (Tungsten): 81+, SSI (D56): 72+
  • Stepless Dimming from 0 to 100%
  • Ultra-Lightweight LED Mat: 0.80kg / 1.76lbs
  • Sidus Link App Control
$889.00 (inc GST)
Free Gift

Year End Sale 2022 (25 Nov - 31 Dec 2022)
Free Aputure Accent B7C Bulb

Quantity

  • 200W Output 2’x2’ Bi-Color Flexible LED Mat

  • 240W Max Power Draw

  • 6,960+ lux @ 1 meter (5600K)

  • Tunable CCT from 2,500K to 7,500K

  • CRI: 95+, TLCI: 98+, CQS: 96+

  • SSI (Tungsten): 81+, SSI (D56): 72+

  • Stepless Dimming from 0 to 100%

  • Ultra-Lightweight LED Mat: 0.80kg / 1.76lbs

  • Sidus Link App Control

  • DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter Cable

  • 9 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe,

  • Explosion, Faulty Bulb, Pulsing

  • Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment

  • Easy Mounting AC Power Supply with Included Battery Bracket

  • Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)

  • V-Mount & Gold Mount Versions Available*

  • Soft Carrying Case Included

  • Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F

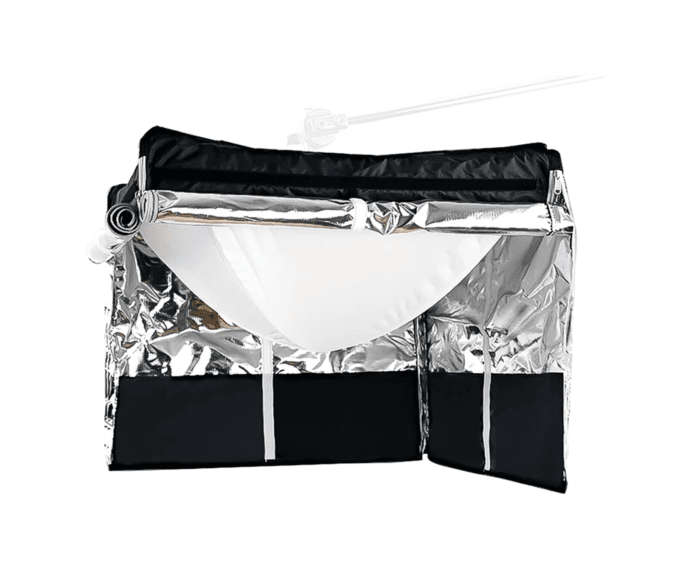

  • • Lantern Accessory with Light Control Skirt (Sold Separately).

What's in the box?

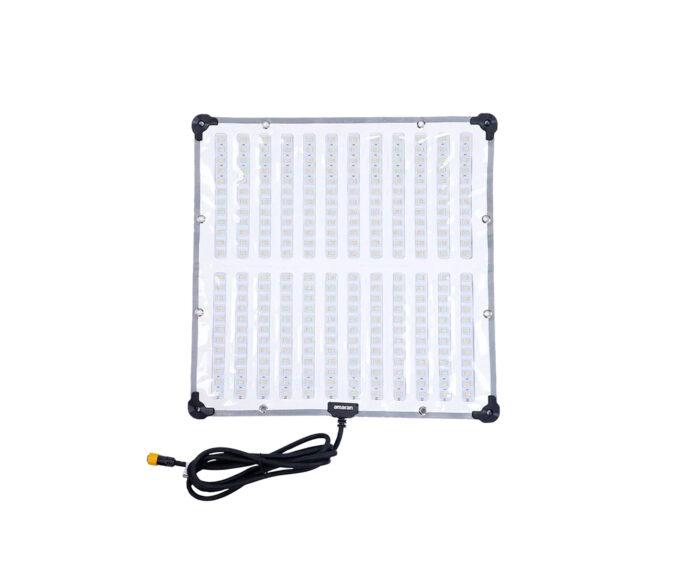

  • 1 x amaran F22x Bi-Color 2x2 LED Flex Mat
  • 1 x amaran F22x Control Box
  • 1 x amaran F22x Head Cable Extension (3m)
  • 1 x amaran F22 Support Bracket
  • 1 x amaran Flex Light Right Angle Baby Pin Adapter
  • 1 x amaran Flex Light Straight Baby Pin Adapter
  • 1 x Tilting Stand Mount
  • 1 x amaran F22 Soft Box Frame
  • 1 x amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
  • 1 x amaran F22 Diffusion Cloth 2 (2.5 Stop)
  • 1 x amaran F22 Light Control Grid
  • 1 x AC Power Supply
  • 1 x AC Power Cable
  • 1 x amaran Flex Light Carrying Case
  • CCT
  • 2500K~7500K
  • CRI
  • ≥95
  • TLCI
  • ≥98
  • CQS
  • ≥96
  • TM-30 RF (Average)
  • 94
  • TM-30 RG (Average)
  • 104
  • SSI (Tungsten)
  • ≥81
  • SSI (D56)
  • ≥72
  • Beam Angle
  • 180°
  • Max Output Power
  • ≤200W
  • Maximum Power Consumption
  • ≤240W
  • Operating Current
  • 5A
  • AC Input Power
  • 48V DC
  • Battery Power
  • 12-28.8V DC
  • Compatible Battery
  • 16.8V, 26V, 28.8V full power output
  • Dc Input Power
  • (3m) DC Self-locking
  • Power Input
  • Self-locking IEC C13 AC Power Cable (4m)
  • Operating Temperature
  • -10°C ~ 40°C / -4°F ~ 113°F
  • Control Methods
  • On-board, Sidus Link App, DMX
  • Connectivity
  • Bluetooth 5.0 (Sidus Mesh)
  • Wireless Operating Range (Bluetooth)
  • ≥80m / 262.5ft
  • Display
  • OLED
  • Cooling Method
  • Natural Dissipation
  • Mounting
  • 1/4-20in * 3, Tilting Support Column
  • Led
  • 50,000 Hours
  • Dimensions
  • Fixture

    60 x 60 x 0.5cm / 23.6 x 23.6 x .2in

    Aperture

    52 x 51cm / 20.4 x 20in

    Control Box

    19*15*7cm / 7.4*5.9*2.7in

    Carrying Case

    66*35*10.5cm / 25.9*13.7*4.1in

  • Weight
  • Fixture

    0.8kg / 1.76lbs

    Control Box

    1.2kg / 2.6lbs

    Power Supply

    0.7kg / 1.5lbs

    Mounting Bracket

    0.66kg / 1.4lbs
