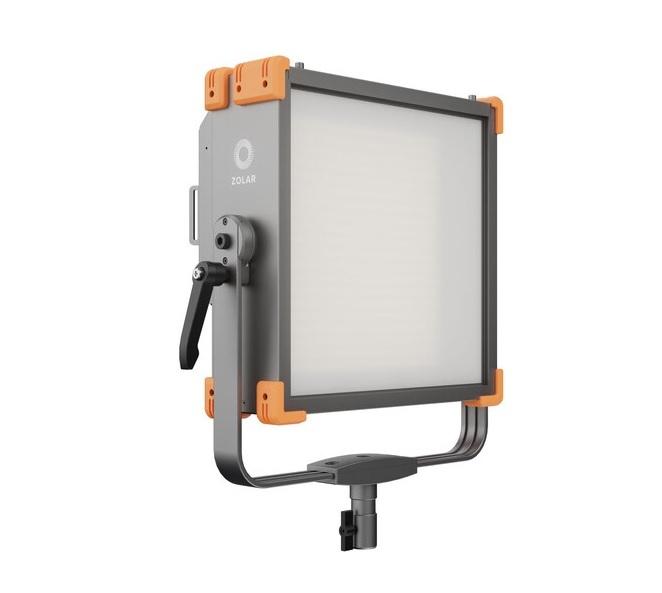

Zolar Toliman 30S Bi-Color LED Light Panel

SKU: ZO T03201

Product Highlights

  • CRI: Ra ≥ 97 (R9 & R12 up to 95), TLCI ≥ 98;
  • Spectral Similarity Index SSI up to 90;
  • Low power consumption high output: Input ≤ 120W, Output ≥ 4,680 lx at 1m / 3.28ft;
  • Revolutionary 25o optical design lens array to boost illuminance.
  • ZOLAR Stylist precision directional super light transmissible panel: control beam angle, light diffusion, no color shift;
  • Multi Light Sync - ZolarLink (wireless), rapid auto sync grouping;
  • Supports Art-Net 4 & sACN (through wireless connection)
  • Built in video effects for different scene applications
  • Bluetooth + WiFi mixed control: Remote Controller, mobile app (iOS & Android)
$773.00 (inc GST)

Quantity

ZOLARTM professional LED lighting system is developed by Shenzhen ImagineVision Technology Limited, the same successful team that created Z CAM Cinema Cameras. ZOLARTM products are developed with profound color science knowledge, leading image processing algorithms, as well as camera lens and sensor calibration expertise. Delivering high fidelity color reproduction and excellent color rendition with performances very close to natural daylight.

Our in-house developed Self Adaptive Spectral Nonlinear Dynamic Illuminance Calibration System eliminates the inconsistent LED performance issues. In addition, our revolutionary solution allows a mixture of ZOLARTM light series to be used simultaneously without any visible color deviation (color matching mode will be added to other ZOLARTM series).

ZOLARTM Toliman is a Bi-color LED light panel series targeting professional video productions. Its excellent soft light performance and high fidelity color reproduction has set a new benchmark for the industry. Designed with dual full spectrum LEDs to deliver continuous light spectrum across full CCT range with exceptionally high CRI & TLCI scores, particularly in R9, R12, R13 & R15. No compromise.

Spectral Similarity Index (SSI) is developed by The Academy of Motion Picture Arts and Sciences to evaluate the fidelity of color reproduction particularly for LED light, from a single chip CMOS digital camera point of view. It quantitatively compares the spectrum of the test light with that of a desired reference light source, expressing the similarity as a single number on a scale up to 100. High values indicate a high likelihood of high fidelity color reproduction by most cameras. SSI of ZOLARTM Toliman is close to or exceeds 90, across full CCT range (3,200K~5,600K), a leading standard in the industry.

Higher score implies higher fidelity color reproduction, particularly the skin tone. This is exactly why these scores exist.

What's in the box?

  • 1 x ZOLAR Toliman 30S Main Unit
  • 1 x Yoke Mount
  • 1 x Remote Controller
  • 1 x AC DC Power Adapter
  • 1 x ZOLAR Stylist W 32x32
  • 1 x AC Power Cable
  • 1 x Remote Connector Cable
  • 1 x Quick User Guide
  • Model
  • 30S
  • LED Type
  • Bi-color, Full Spectrum
  • White Light
  • 3,200K to 5,600K continuously variable correlated color temperature
  • Light Diffusion System
  • 25° lens array + ZOLAR Stylist
  • Color Rendition
  • CRI: Ra ≥ 97 (R9 & R12 up to 95), TLCI ≥ 98
  • Spectral Similarity Index
  • SSI up to 90
  • Light Aperture
  • 250mm x 250mm (9.84" x 9.84")
  • Dimming
  • 0 ~ 100 % continuous (Main Unit Controller 0.1% precision), different dimming curves, smooth dimming down to zero without color shift.

  • Color Temperature Tolerance
  • +/- 100 K (nominal)
  • Tilt Angle
  • ± 360°
  • Handling
  • Aluminium Yoke, Tilt Lock Clamping Lever, Pole Operation for pan & tilt
  • Mounting
  • 16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo Pin) / 28 mm Spigot (Junior Pin)
  • Multi Light Sync
  • ZolarLink™ - Multi Light Sync Protocol, up to 16 groups with 60 slave units maximum per group (wireless).
  • Control
  • Main Unit Controller
  • Remote Controller
  • Remote Controller, cable length 5m (16.4 ft)
  • Wireless Control
  • WiFi, Bluetooth, ZOLAR Mobile App, Art-Net 4 & sACN protocol
  • Dc Input Power
  • 36V, 4.16A DC
  • Power Input
  • Male 3-Pin XLR - 15A (Pin 1: Negative / Pin 2: Positive)

  • Battery Input
  • V-Mount, 12.8~16.8V
  • Power Consumption
  • 140 W maximum
  • Cooling System
  • Low Noise Fan mode (Auto, High, Mid, Low)
  • Ambient Temperature Operation
  • -20ºC ~ +45° C (-4ºF ~ +113°F)

  • Estimated LED Lifetime
  • 50,000 hours (L70)
  • Estimated Color Shift Over Lifetime (CCT)
  • +/- 5%

  • Weight
  • Weight (Main Unit) 4.36 kg / 9.61 lb (Main Unit + ZOLAR Stylist W)

    Weight (Main Unit) 5.22 kg / 11.51 lb (Main Unit + ZOLAR Stylist W + Yoke)

    Weight (Full Package) 9 kg / 19.84 lb (Main Unit + ZOLAR Stylist W + Yoke + AC DC Power Adapter + Remote Controller + Packing Materials)

  • Dimensions
  • Measurements (HxWxL) 475 x 420 x 157 mm / 18.70 x 16.54 x 6.18 inch (Main Unit + Yoke)

    Measurements (HxWxL) 580 x 535 x 245 mm / 22.84 x 21.06 x 9.65 inch (Full Package)
