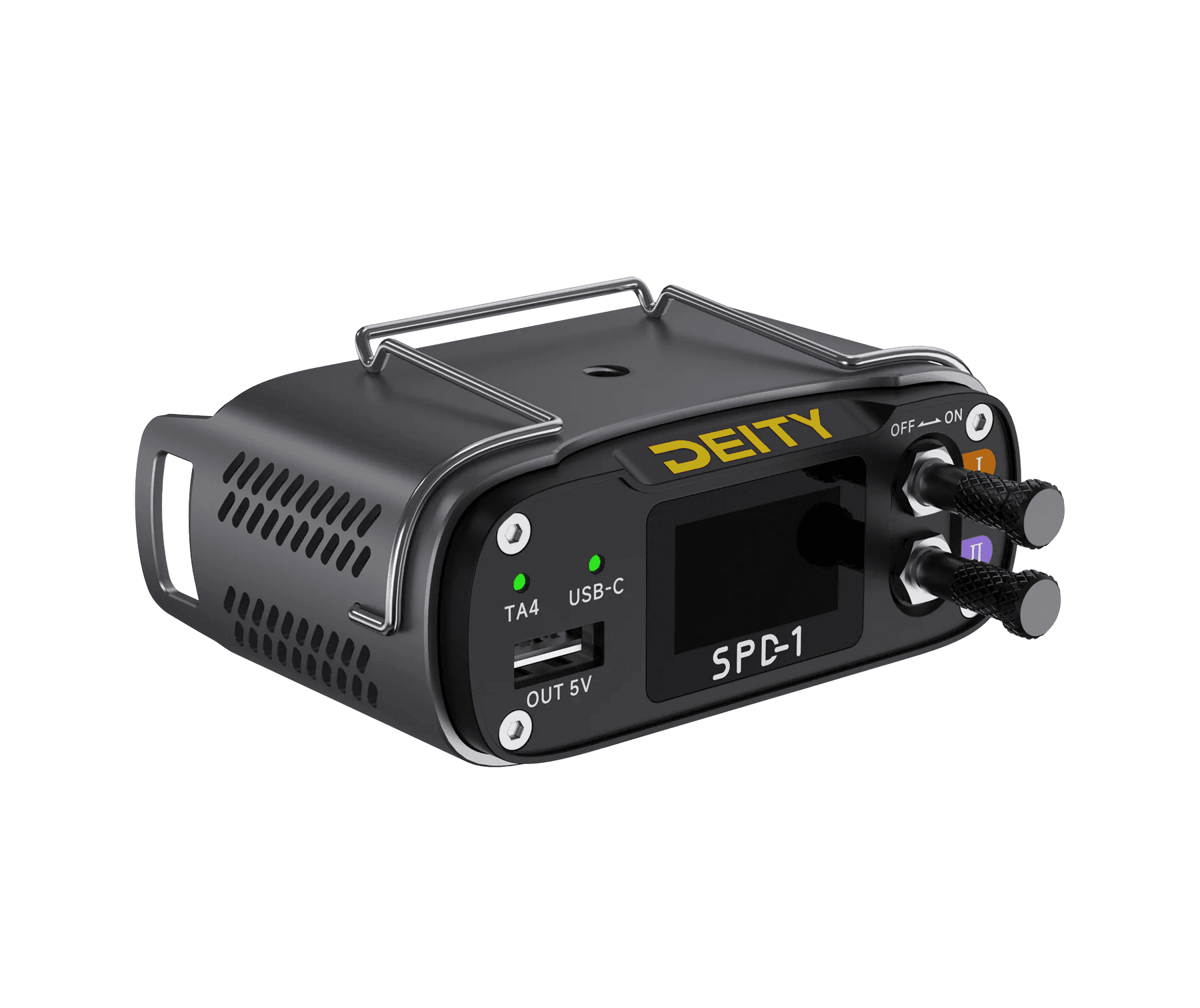

Deity SPD-1 Smart Power Distribution Box

ALL SPD-1 FEATURES

SMART BATTERY TELEMETRY DISPLAY

The device displays battery telemetry data to keep track of your power usage. Monitoring power on set is crucial to keeping production running smoothly. With the SPD-1, you can easily keep track of your power usage, ensuring you never run out of power at the wrong time.

The SPD-1’s 1.1” color screen provides you with all the information you need, like total power consumption, battery temperatures, voltage, battery life, and battery cycle count.

OVER-VOLTAGE PROTECTION

Outputs will automatically cut off if a battery over 18V has been plugged into the SPD-1. This protects your sound bag from damage caused by voltage spikes and malfunctioning batteries.

DUAL POWER CIRCUITRY

Featuring six unregulated 4-Pin Push Power outputs (that are Hirose compatible), you can power multiple devices simultaneously. The six outputs are divided across two power circuit groups so you can toggle auxiliary devices on/off without needing to power down your primary devices. And the operating range of 12V-18V ensures that it will work with a wide range of devices.

LOADS OF MOUNTING OPTIONS

The SPD-1 also features dual 1/4” threaded mounts, allowing you to mount the device in any position securely. The reversible mounting clip makes it easy to change the device’s orientation as needed.

LOCKING SWITCHES

Locking toggle switches make turning your devices on and off easy and safe, and help prevent accidental power-downs.

WIDE COMPATIBILITY

The SPD-1 is compatible with the following*:
Lectrosonics SREXT SR Mounting Kit, DSR4EXT, DCR822
MiPro MR-90SC
Sony UWP-D
Sound Devices 633, 664, 688
Sound Devices A10-RX A-TA3 Adapter, A10-RX A-XLR
Sound Devices A10-RX A-TA3 Adapter, A10-RX A-XLR
Sound Devices MX-HIROSE DC Input Sled
Wisycom MCR54 End Plate
Zaxcom Deva 24
Zaxcom Nova, Nova 2
Zoom F4
Zoom F8, F8n, F8n Po

And Many More Devices...

MULTIPLE BATTERY TYPES SUPPORTED

The SPD-1 supports both smart and non-smart batteries with its triple DC inputs and hot-swappable functionality. When using a non-smart 14.4v or USB-C battery, the SPD-1 will display incoming voltage. The screen on the SPD-1 adapts its displayed data to the type of power you supply.

The SPD-1 is compatible with batteries from:
Audio Roo

COMPATIBLE BATTERY CUPS

The following battery cups are compatible with the SPD-1:

Audio Root eTA4f
COGA Sound BPS TA4
Deity SPD-T4BATT
Sound Devices XL-SmartCup
Sound Guy Solutions TA4D-SmartCup

TA4 Input Pinout
Pin 1 – Ground
Pin 2 – Data
Pin 3 – Clock
Pin 4 – Voltage

KNOW THE FULL STORY ABOUT YOUR POWER
