Aputure amaran Peak Battery Grip
Product Highlights
- amaran Ace E-Lock
- 170W Max Output / 140W Max Input
- IP54 Protection Rating
- 86.4 Wh
This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.
Related Products
amaran Peak
Power Your Activity, Anywhere

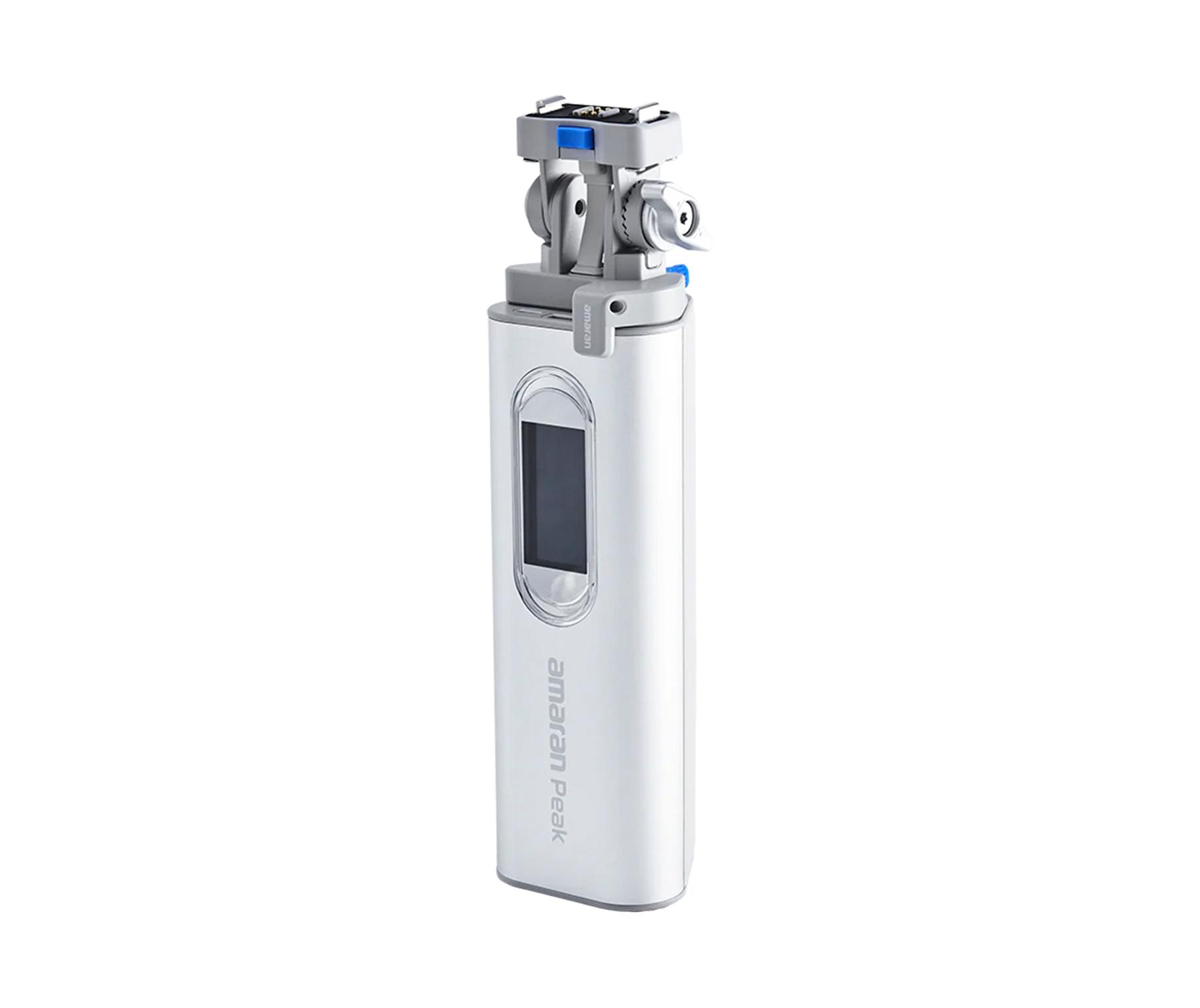

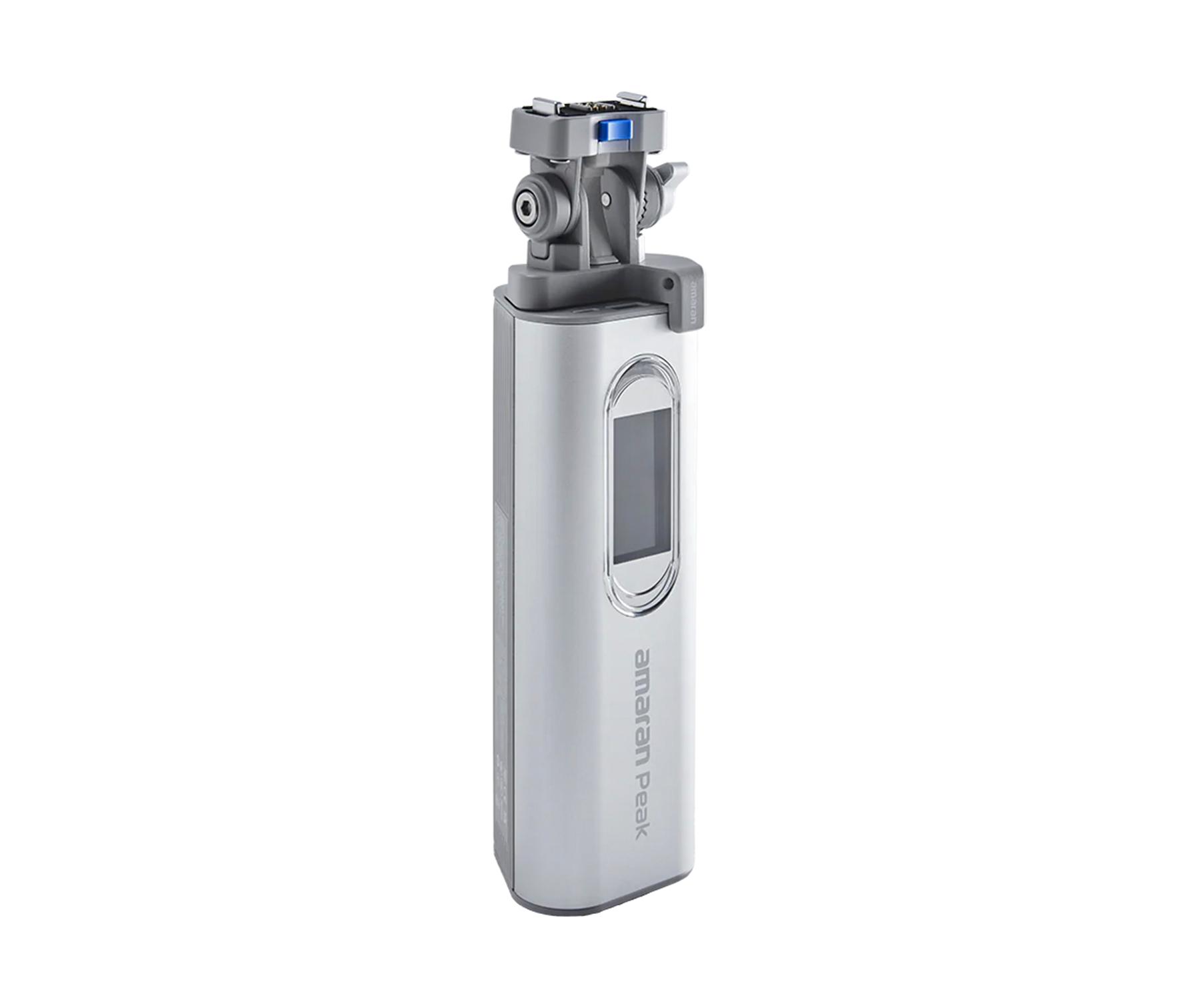

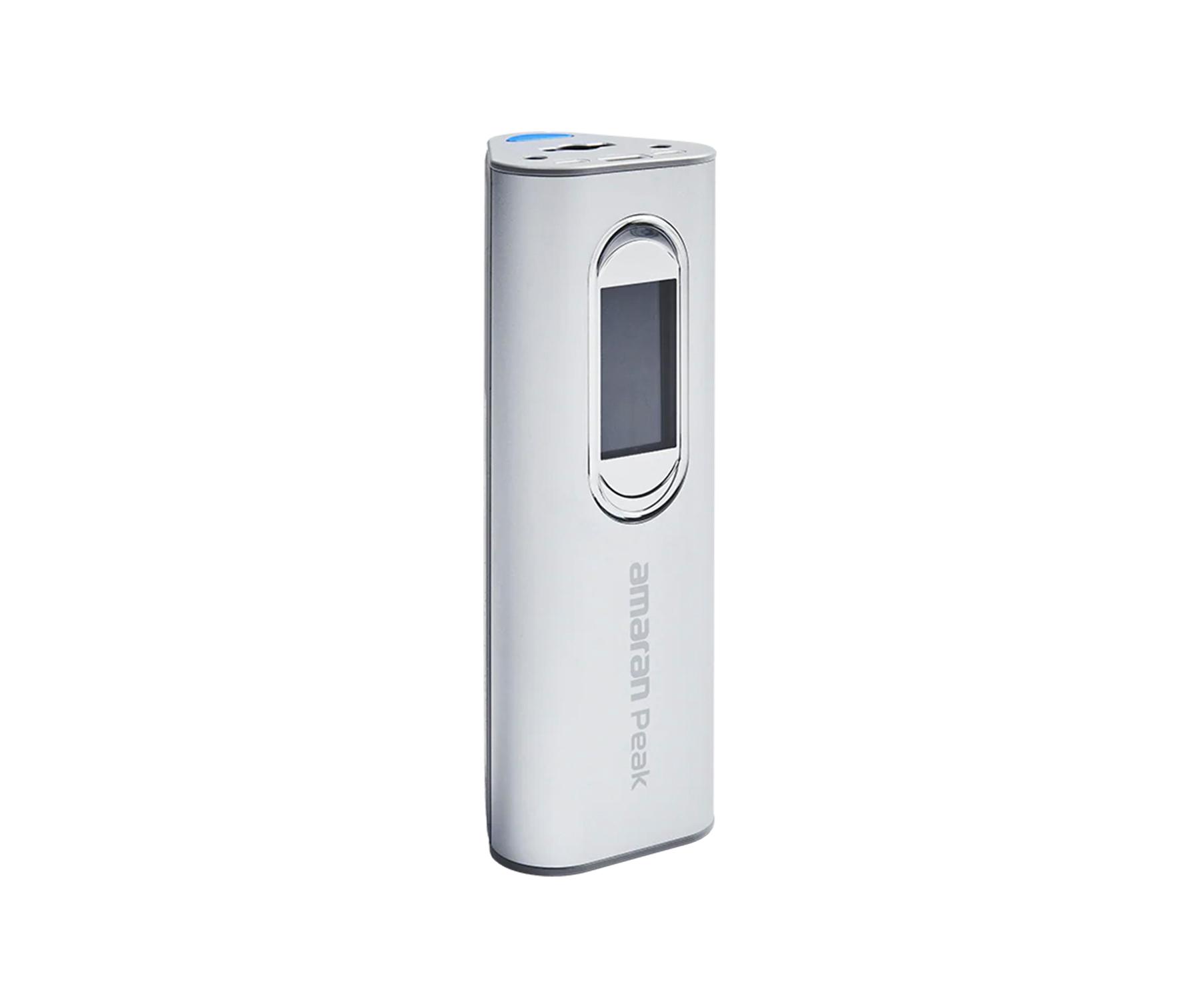

The amaran Peak is a 86.4Wh battery system for on-the-go creators — delivering up to 170W of output to power your entire setup. With cable-free operation via the Ace E-Lock, 140W USB-C PD fast charging, and versatile mounting options, it’s built to keep you powered – anywhere, anytime.

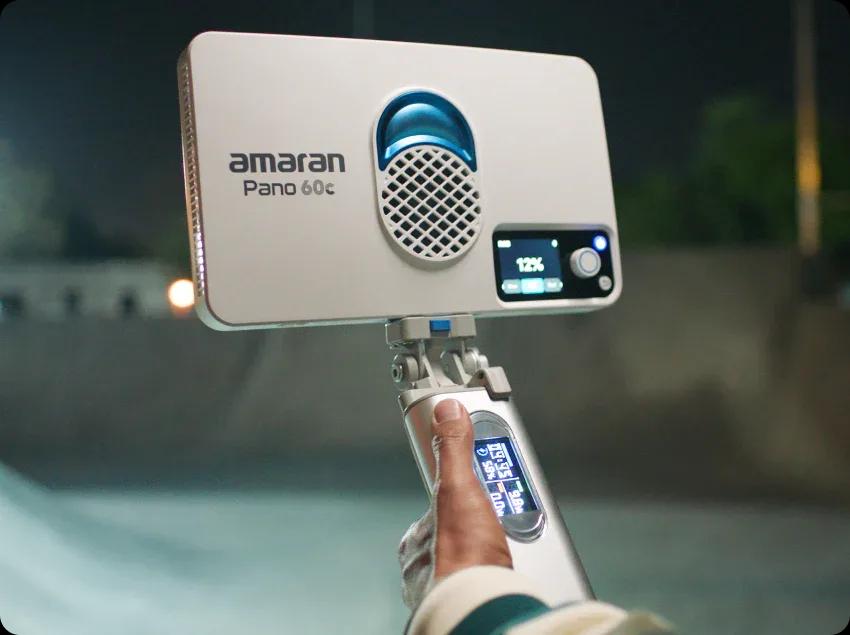

CABLE-FREE POWER WITH ACE E-LOCK

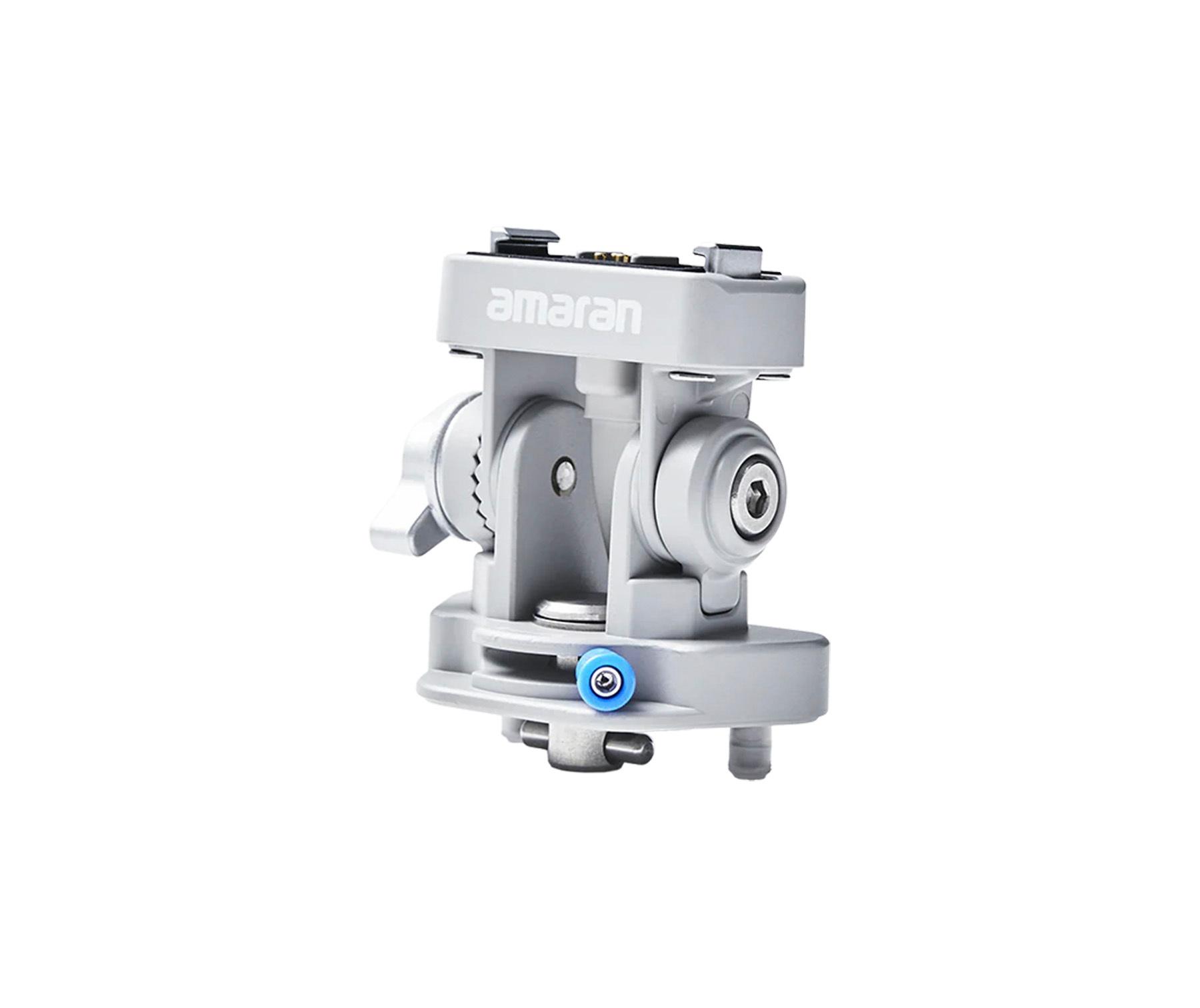

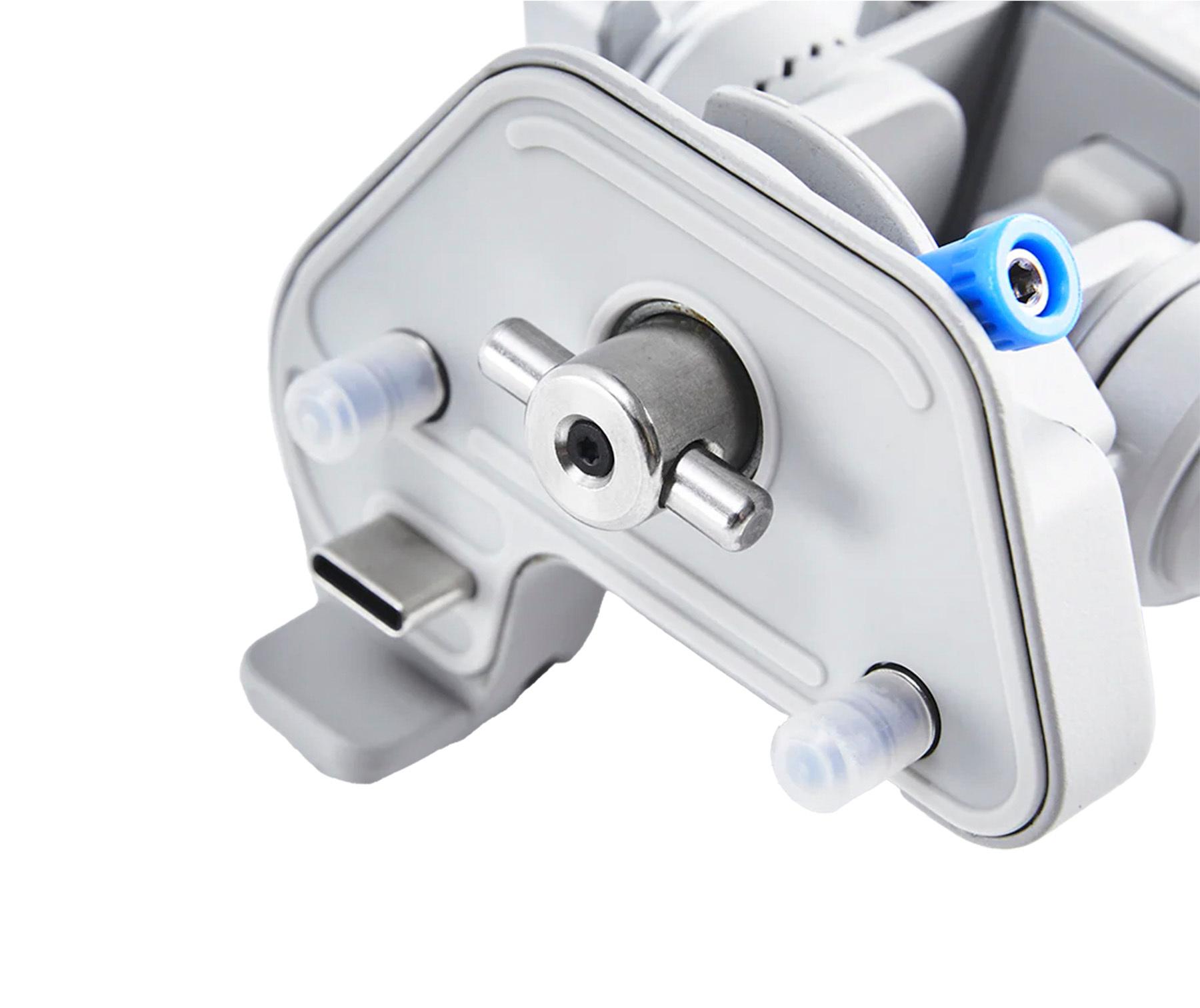

Power your lights without cables. The amaran Peak delivers direct power to amaran Ace E-Lock compatible lights – like the amaran Pano 60c & 120c – with the included E-Lock Expansion Module. Perfect for handheld or mounted setups, or clamped to your gear.
ONE SYSTEM FOR ALL YOUR GEAR

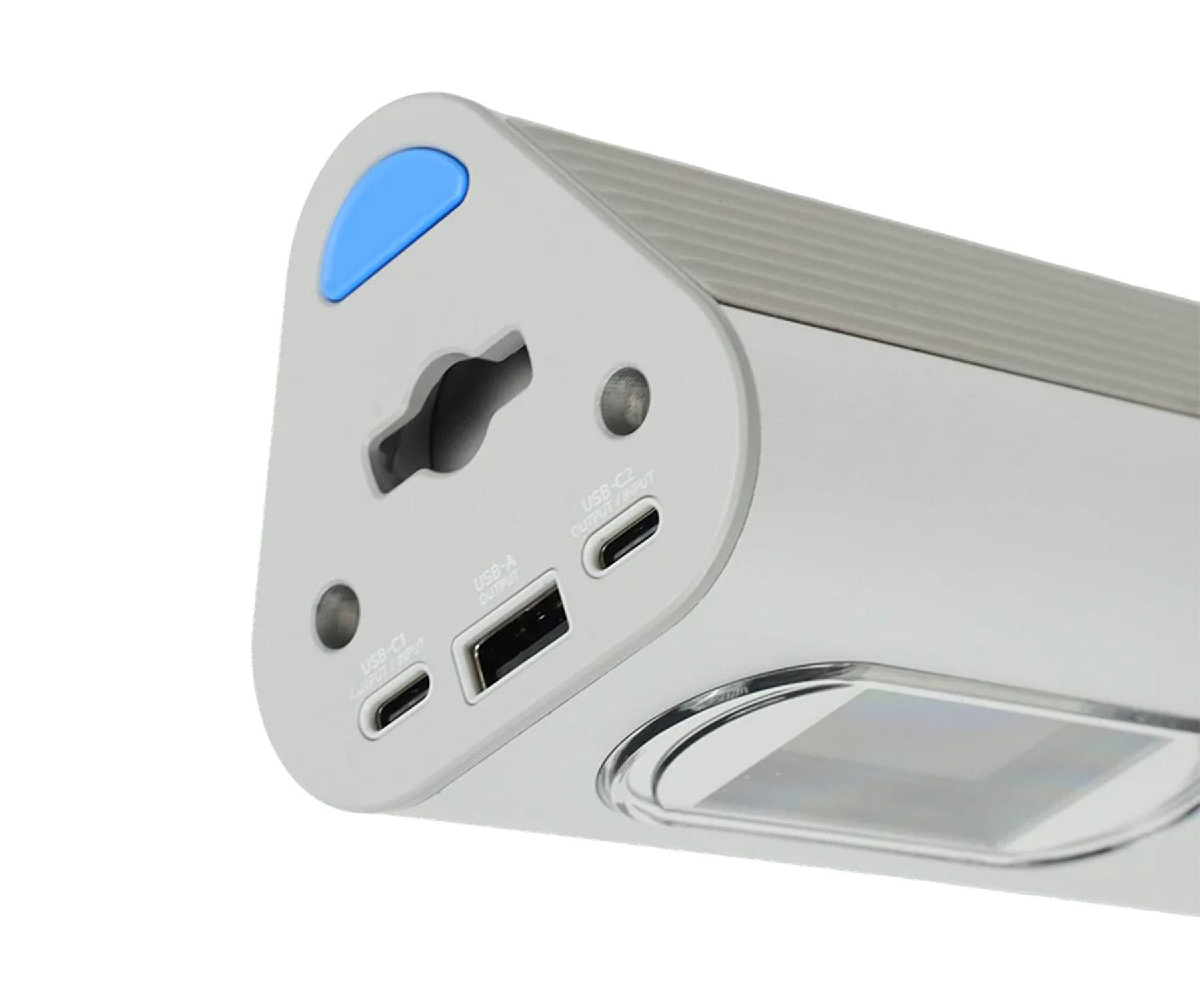

Ditch bulky NP-F and V-Mount setups. With an 86.4Wh battery capacity that delivers up to 170W of output and 3 USB ports, the amaran Peak powers lights, cameras, and more – all from one compact battery.

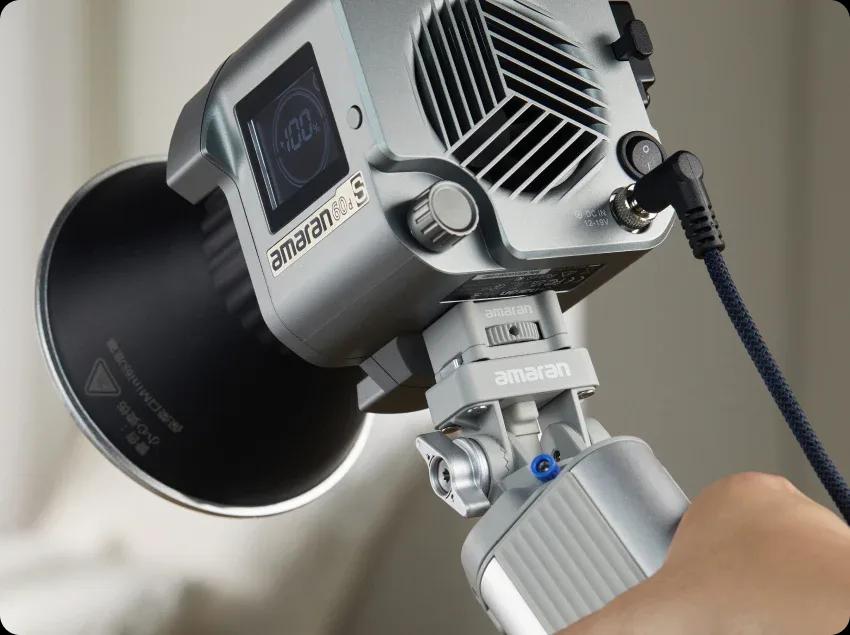

MORE WAYS TO POWER AND MOUNT YOUR LIGHTS
Go beyond the Ace E-Lock. With the optional E-Lock Adapter and USB-C to DC Cable, the amaran Peak powers lights like the amaran COB 60d/x S and lets you mount them directly – handheld or on a stand.

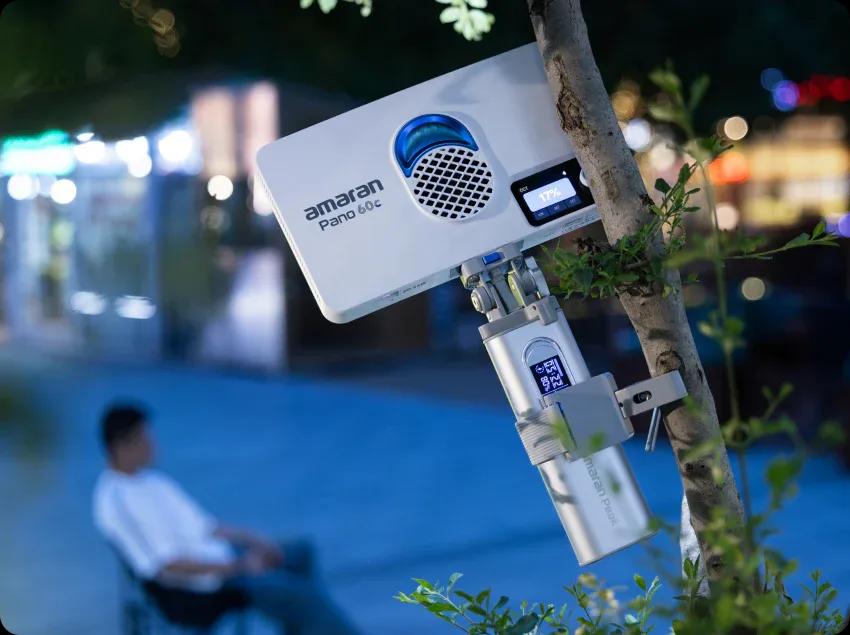

MOUNT ANYWHERE. CREATE EVERYWHERE.

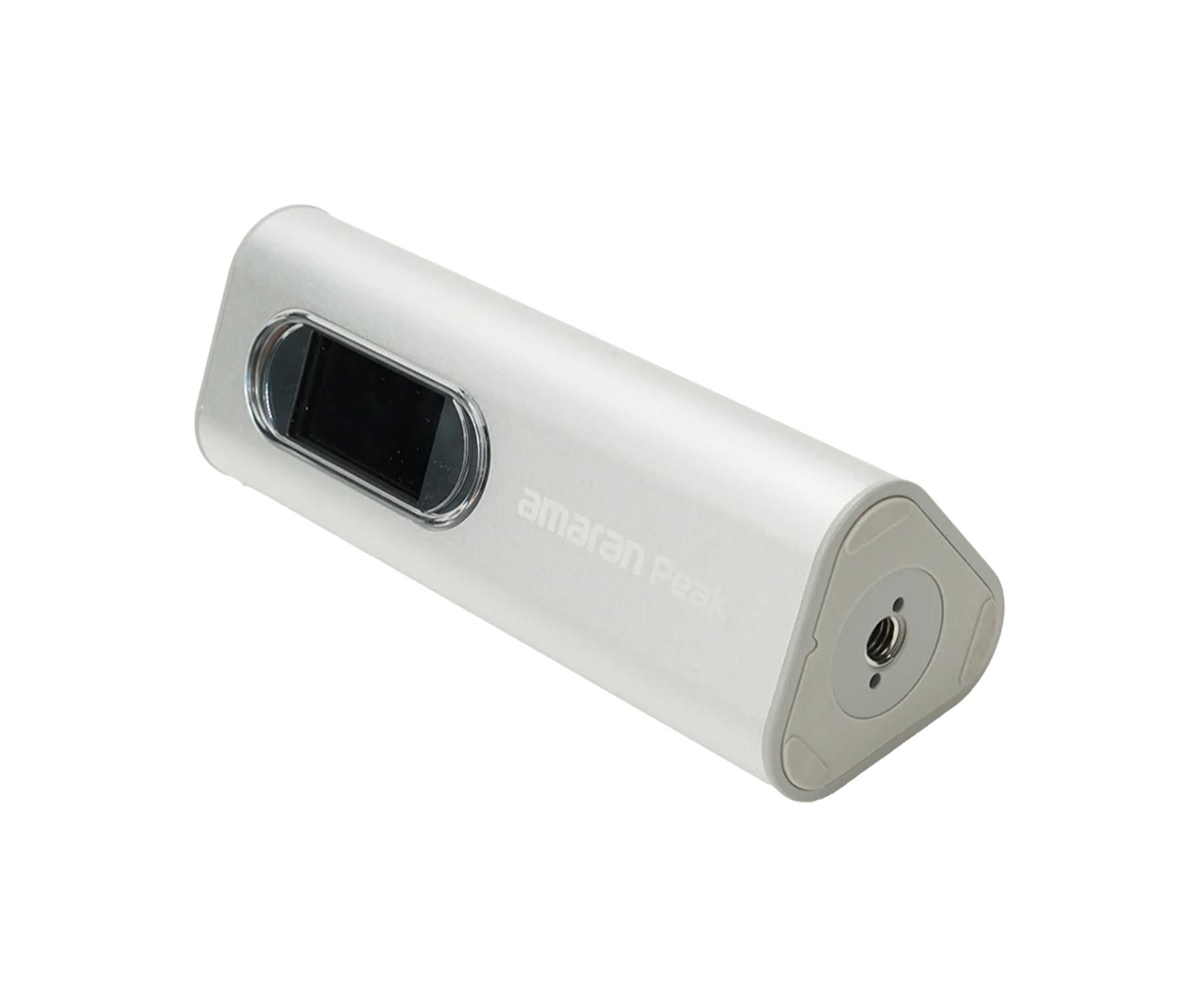

With built-in 3/8-16in and 1/4-20in mounting points and an optional Light Stand Clamp, the amaran Peak mounts directly onto light stands, tripods, or just about anywhere you shoot.

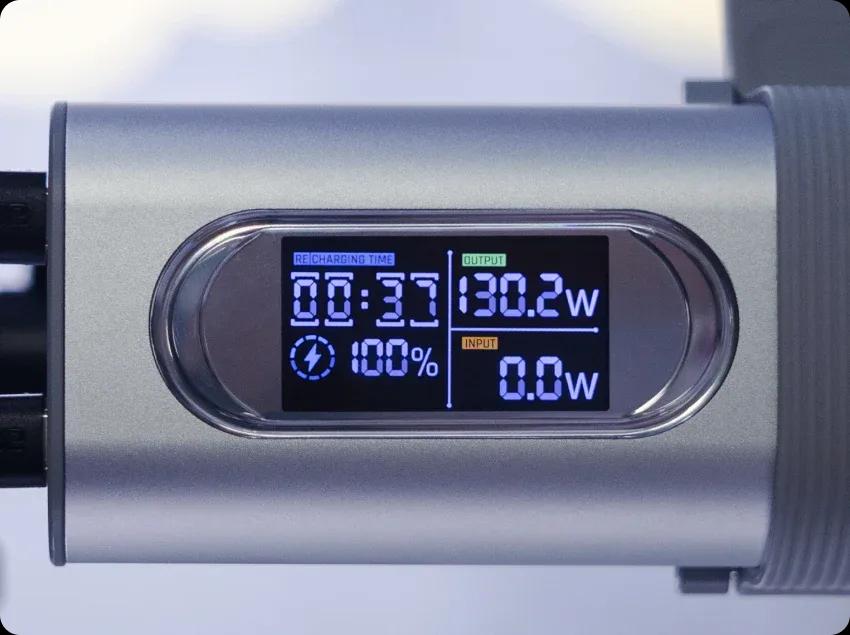

REAL-TIME SMART DISPLAY

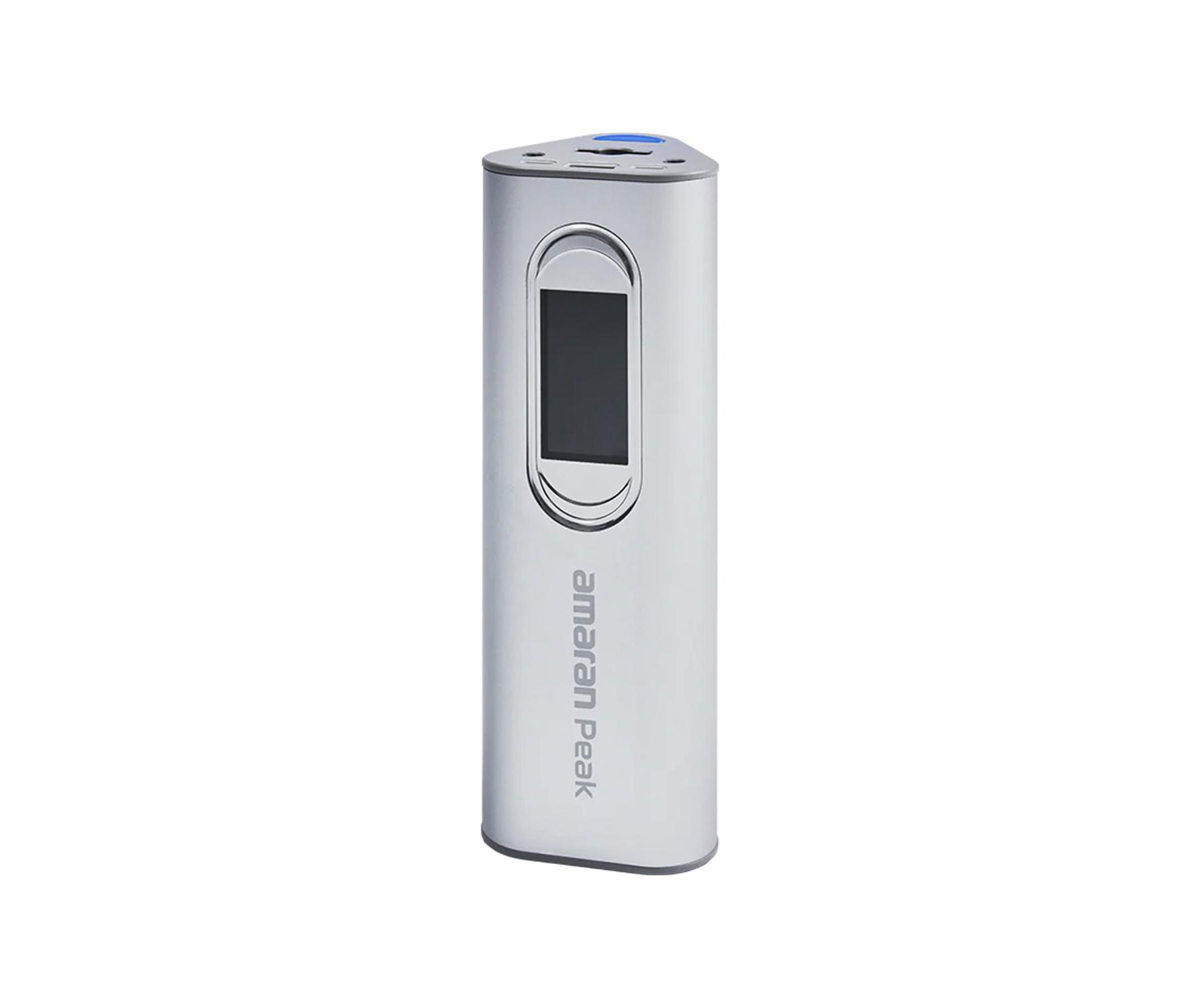

Stay informed with a full-color smart display showing battery status, power flow, and alerts – so you can charge or create with confidence, wherever you are.
FAST-CHARGING
Get back to full power in 1 hour with USB-C PD fast charging up to 140W.

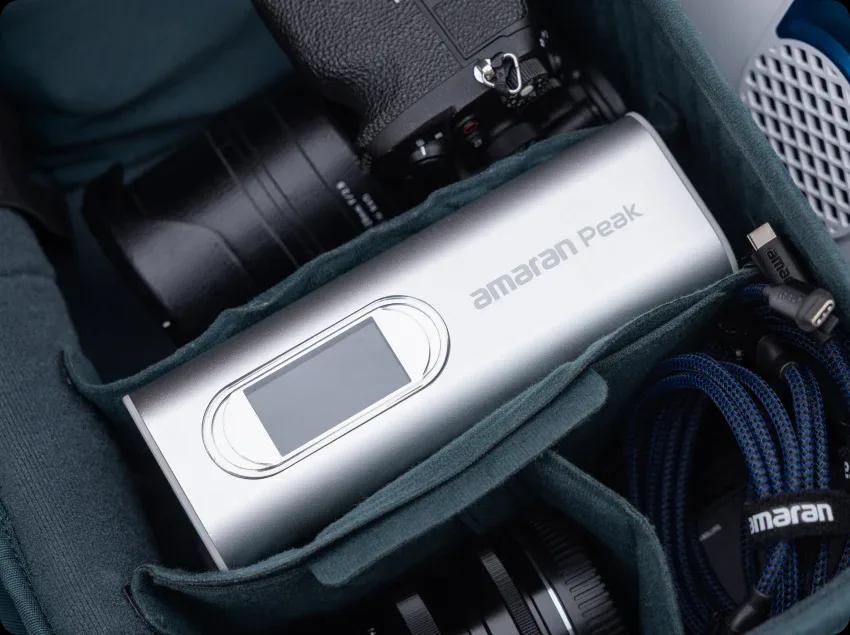

AIRLINE SAFE. TRAVEL READY.
Take powerful, pro-grade battery performance on any flight – no paperwork required.
IP54 RATED WEATHER RESISTANCE
IP54-rated for dust and splash resistance – ready for any shoot, rain or shine.

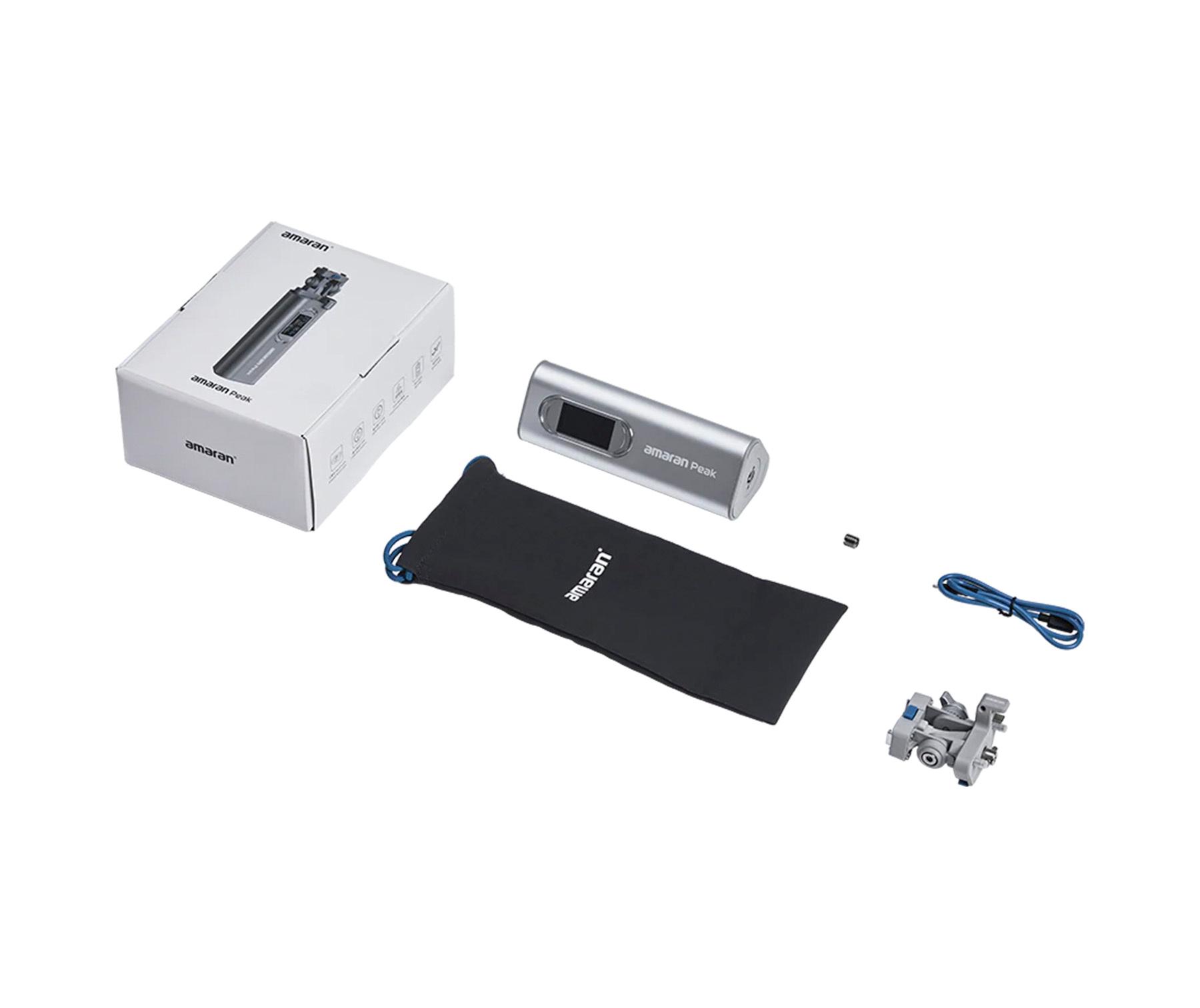

What's in the box?
- 1 x amaran Peak

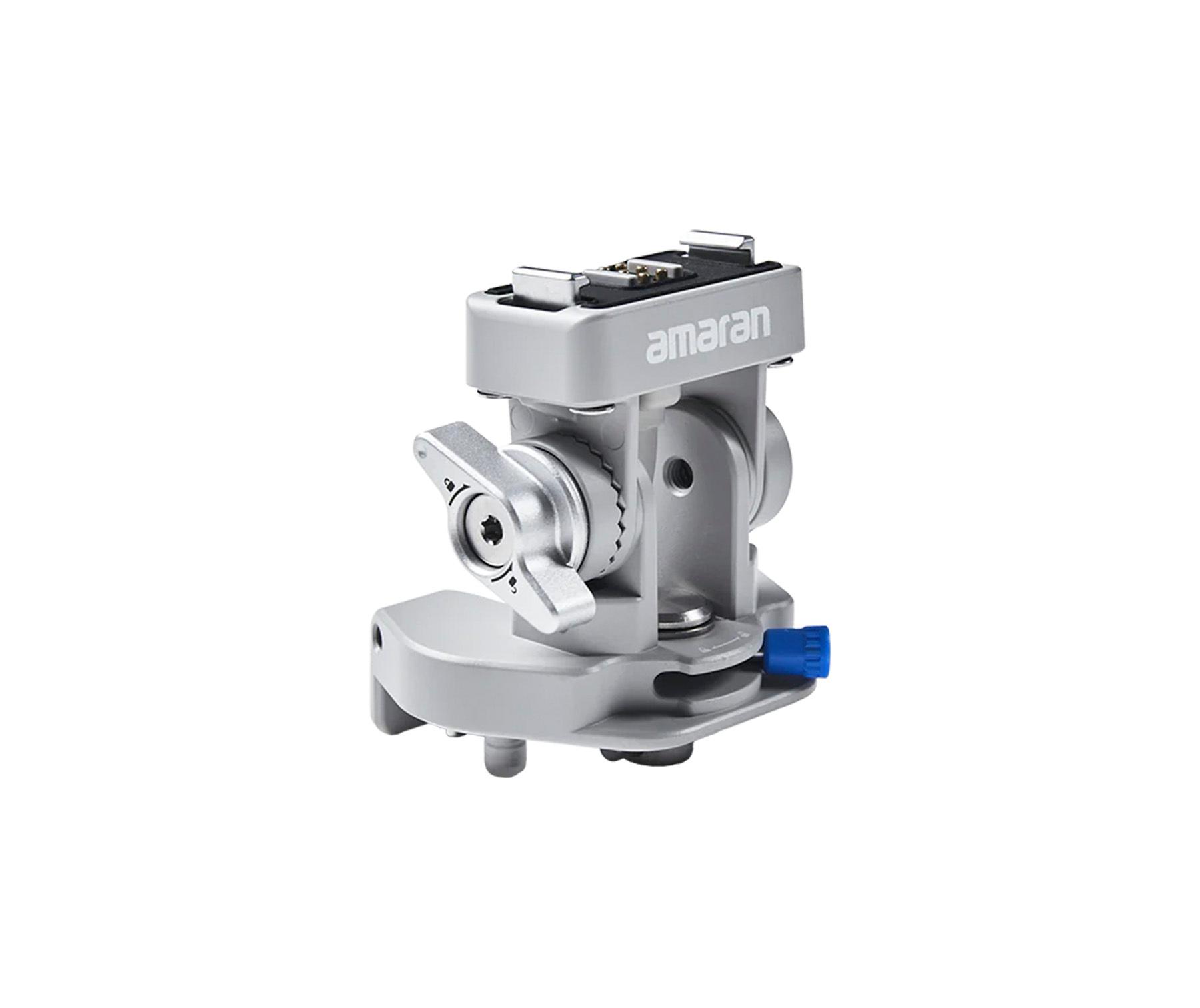

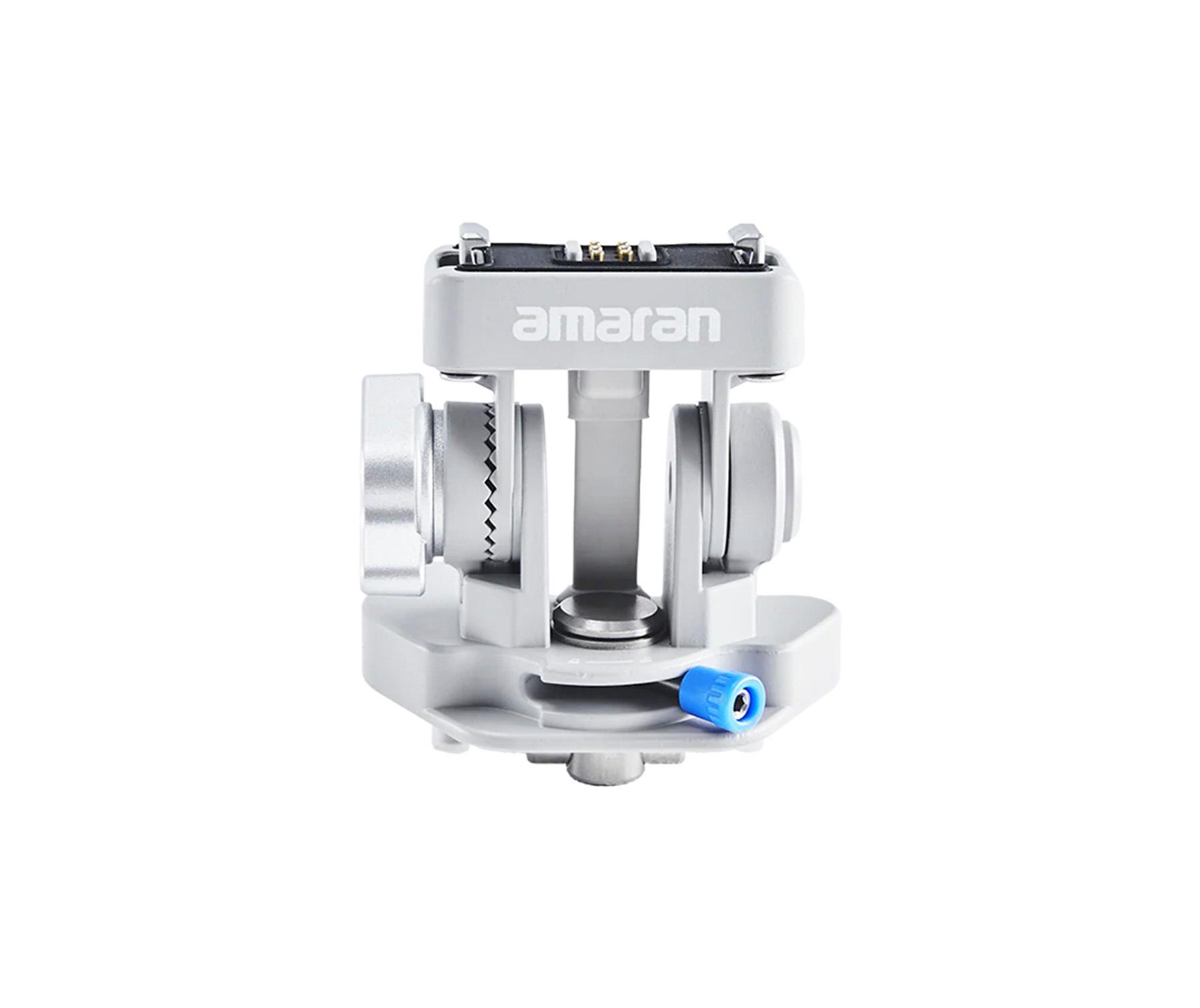

- 1 x amaran Ace E-Lock Expansion Module
- 1 x amaran USB-C Charging Cable (50cm)
- 1 x 1/4-20in to 3/8-16in Screw Adapter
- 1 x Drawstring Pouch
- Output
USB-C1
5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)
USB-C2
5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)
USB-A
5V⎓3A, 9V⎓3A, 12V⎓5A (30W Max)
USB-C1 + USB-C2
100W + 65W (165W)
USB-C1 + USB-A
140W + 30W (170W)
USB-C2 + USB-A
140W + 30W (170W)
USB-C1 + USB-C2 + USB-A
65W + 65W + 18W
- Input
USB-C1
5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A
USB-C2
5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A
- Technical Data
Battery Capacity (Max)
86.4Wh / 24,000mAh
Battery Capacity (Min)
82.08Wh / 22,800mAh
Ports
2x USB-C, 1x USB-A, 1x amaran Ace E-Lock
Max Total Output
170W
USB-C Max Power Input
140W
Rated Capacity
13,200mAh (5V⎓3A)
Supported Protocols
PD, QC
Charge Time (65W)
75 Mins.
Charge Time (140W)
60 Mins.
Operating Temperature
-10°C - 40°C / 14°F - 104°F
Storage Temperature
-20ºC - 80ºC / -4ºF - 176ºF
Screen Type
TFT
Control Method
Button
Cooling Method
Passive Cooling
Noise Level
0dBA
Cycle Life
800+ Cycles (80% Capacity)
Conversion Efficiency
≥78%
- Dimensions
amaran Peak Only
17.6 x 6.4 x6.1cm / 6.93 x 2.52 x 2.40in
Ace E-Lock Module
6.92 x 6.10 x 5.02cm / 2.72 x 2.40 x 1.98in
USB-C Cable Length
50cm / 19.69in
- Weight
amaran Peak Only
791.0g / 1.74lbs
Ace E-Lock Module
243.0g / 0.54lbs
