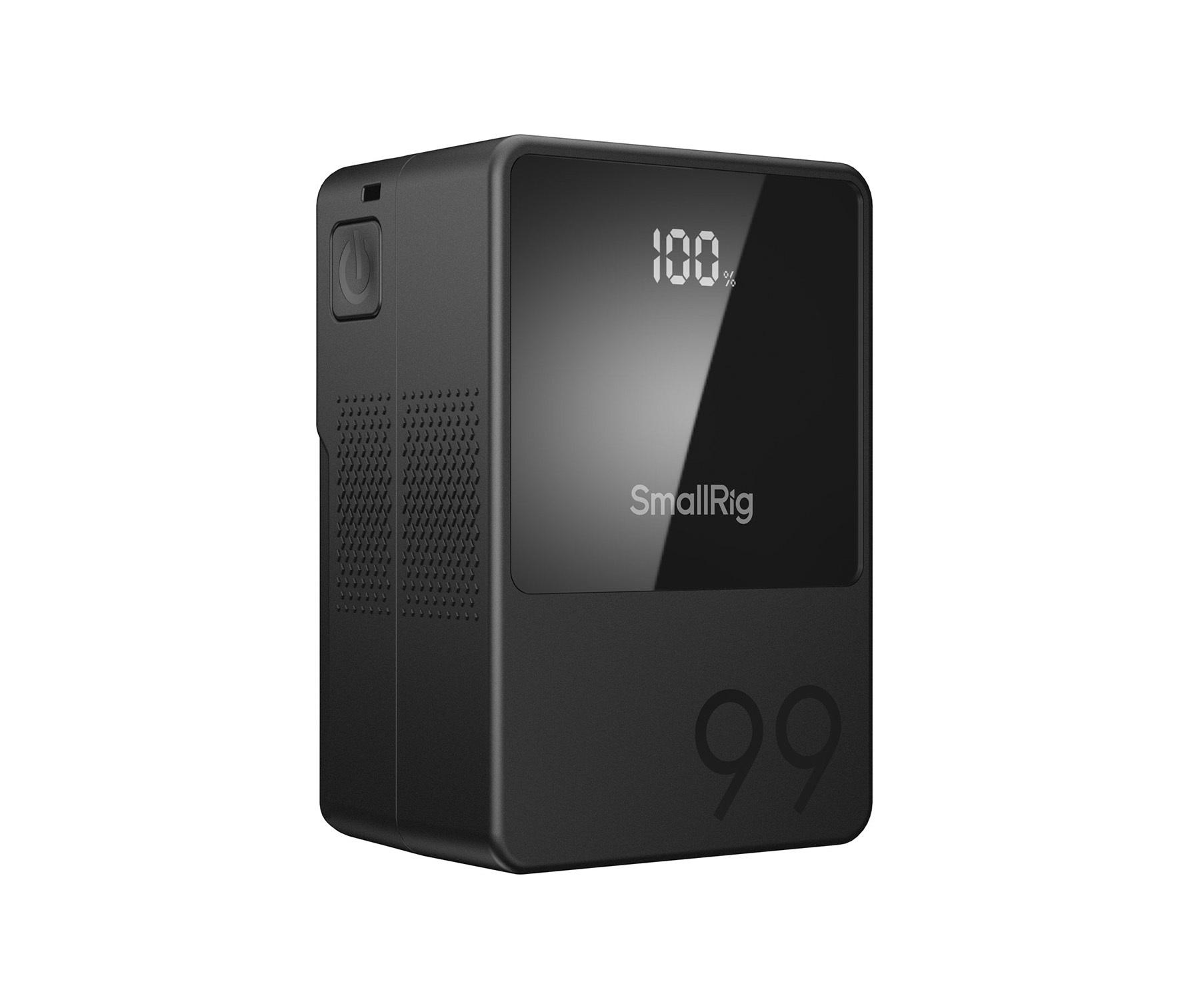

SmallRig 3580B VB99 mini V Mount Battery

Mini V Mount Battery System

Mobile Fast Charging

Empowering Your Endless Creativity

Intelligent BMS Chip

3500mAh High-Capacity

Per Lithium Battery

OLED Digital Display

Multi-Interface

Compact Size

Intelligent Chip for High-Power Fast Charging

The BMS intelligent control chip adopts a customized system and supports multi-protocol fast-charging*. Supports high-power USB-C bi-directional PD fast-charging up to 45W (VB50 mini V Mount Battery) / 65W (VB99 mini V Mount Battery & VB155 mini V Mount Battery)

*Supports PD/QC/SCP/PPS/APPLE-2.4A and other quick charge protocols

3500mAh Per Battery

High-Capacity Battery for Outstanding Performance

Features built-in 3500mAh high-capacity per lithium battery pack*, provides high-rate charge &discharge, excellent cycle performance, and powerful output while adding less weight to the camera setup.

*The product has passed CE/ROHS/FCC/UKCA/ISED/RCM/MSDS/UN38.3/IEC62133/UL2054/UL62368 and other safety certifications

Charge iPhone 13 Pro Max

VB50 About 2.7 times

VB99 About 5.5 times

VB155 About 8.2 times

Charge iPad Pro 11"

(2021 Version)

VB50 About 1.5 times

VB99 About 3.1 times

VB155 About 4.6 times

Charge MacBook Pro 14"

(2021 Version)VB50 About 0.6 times

VB99 About 1.3 times

VB155 About 1.9 times

Charge Canon EOS R5 C

(When shooting 8K 30P video)

VB50 About 3.5 hours

VB99 About 7.4 hours

VB155 About 10.9 hours

Charge SmallRig RC 120

Point-Source Video Lights

(At full power and 100% brightness)

VB155 About 48 minutes

*Data Source: SmallRig Electrical Lab

*VB50 mini V-Mount Battery / VB99 mini V-Mount Battery are portable when flying

Reliable Protection for Safe Droduction

① Features MJ1 power cell, making the cycle charging and discharging more stable

② Adopts BMS intelligent control system for adaptive boost & buck /current adjustment

③ Made of PC heat-resistant and fireproof material, providing safe protection while charging

*This product has been insured by PICC PROPERTY AND CASUALTY COMPANY LIMITED for product liability

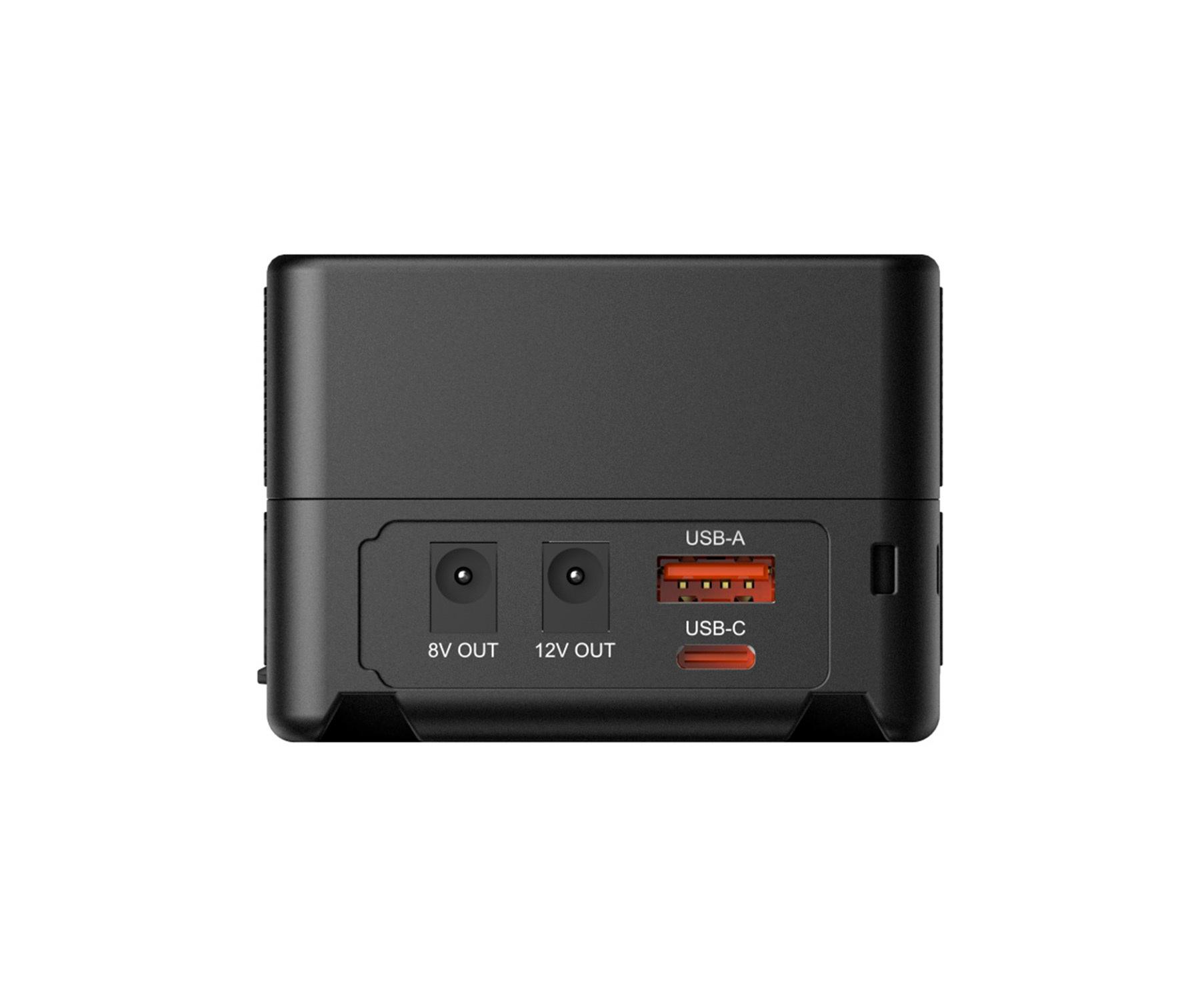

Multiple Interfaces for Wider Compatibility

*The battery comes with built-in USB-A / USB-C/ D-TAP / DC 8V / DC 12V / V Mount and other interfaces, which can be directly connected to camera/video camera/monitor/image transmitter/video light/mobile phone/laptop or other devices without the need for attaching V Mount battery adapter plate.

Lightweight and Portable

Compared with other batteries of the same capacity and power, the mini V Mount Battery System is about 30% smaller in size, lightweight and portable

OLED Digital Display

The BMS chip has a built-in 16-bit ADC/voltage monitoring system and is matched with the main control MCU and OLED digital display to accurately check the working status of the battery

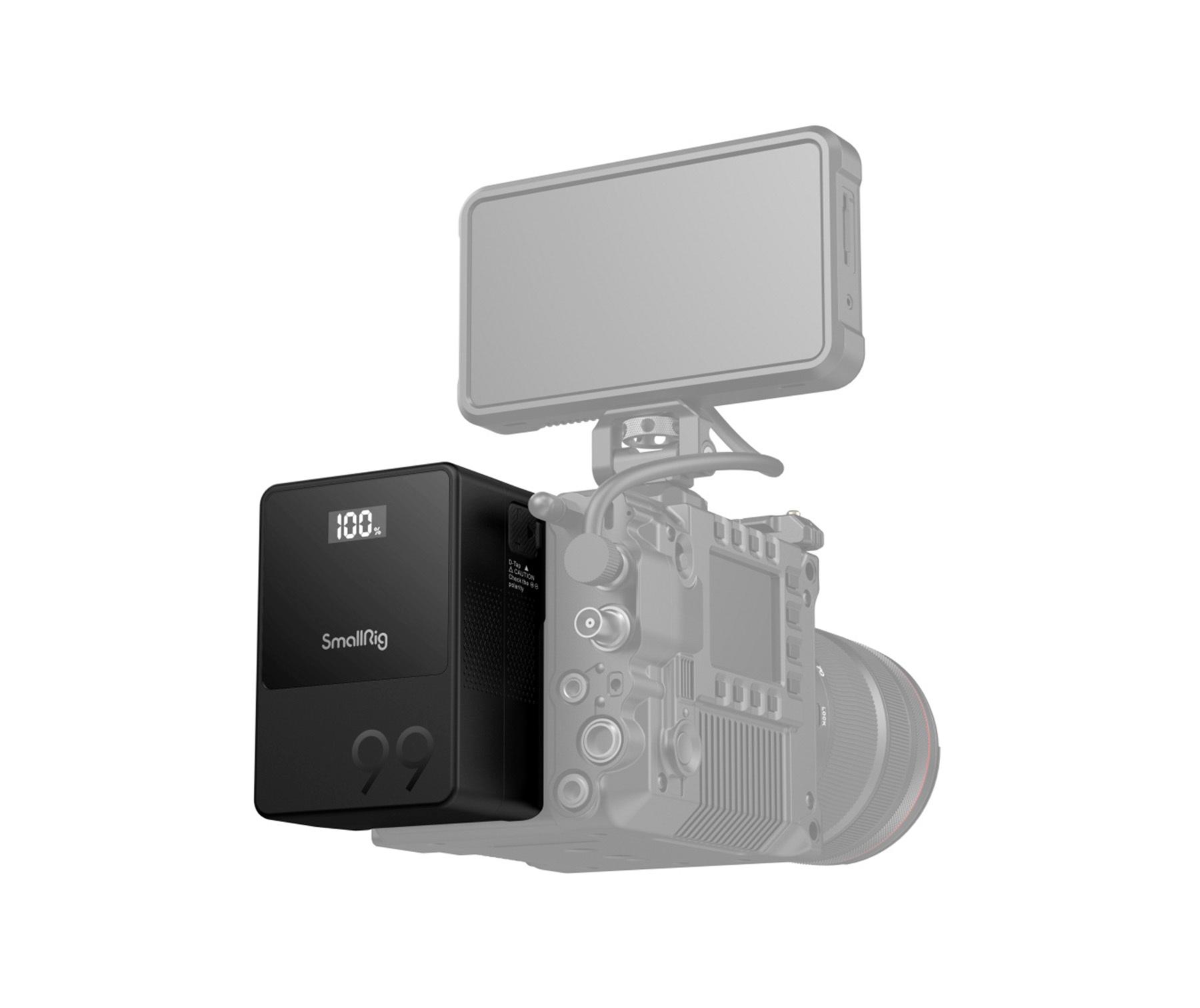

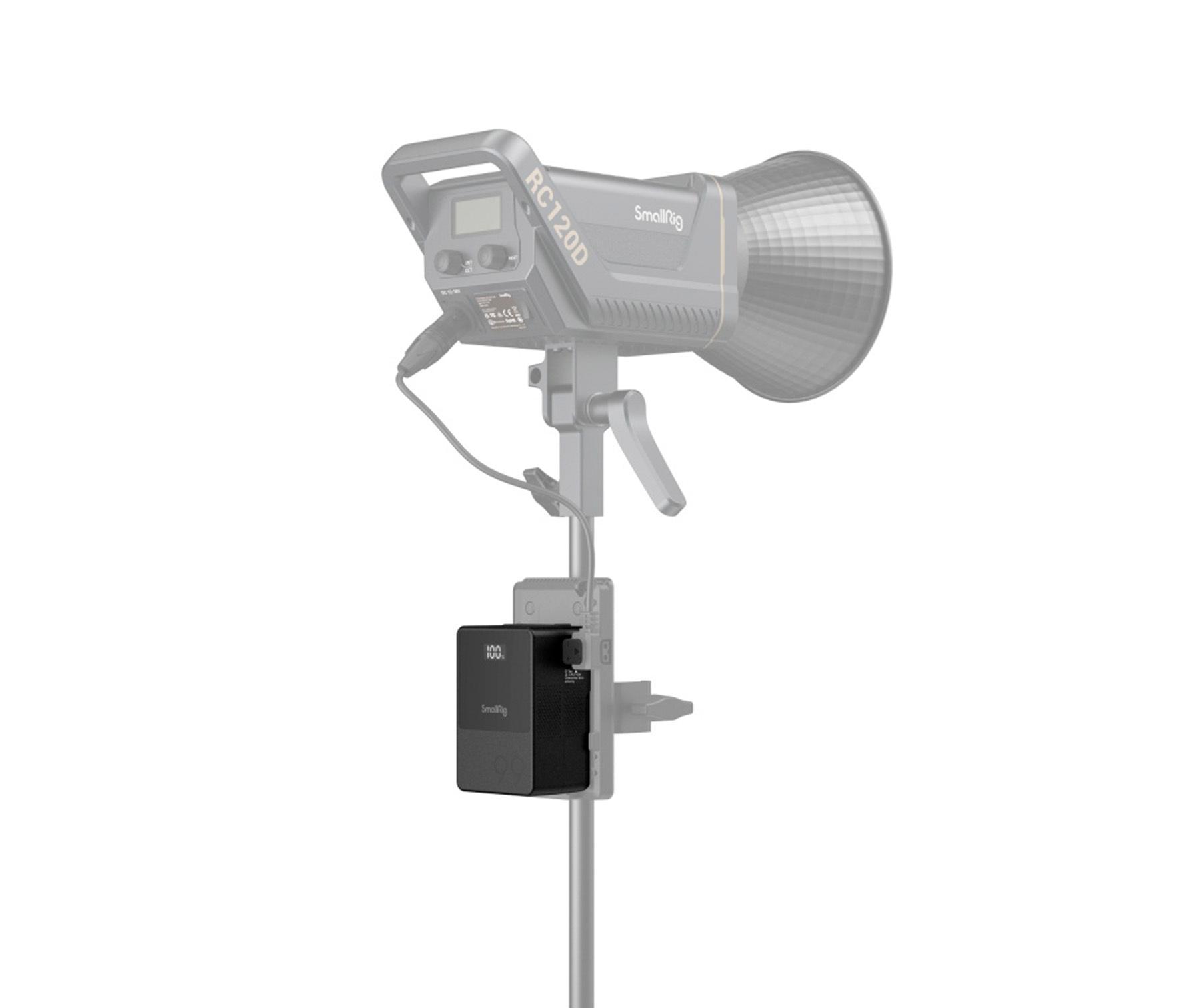

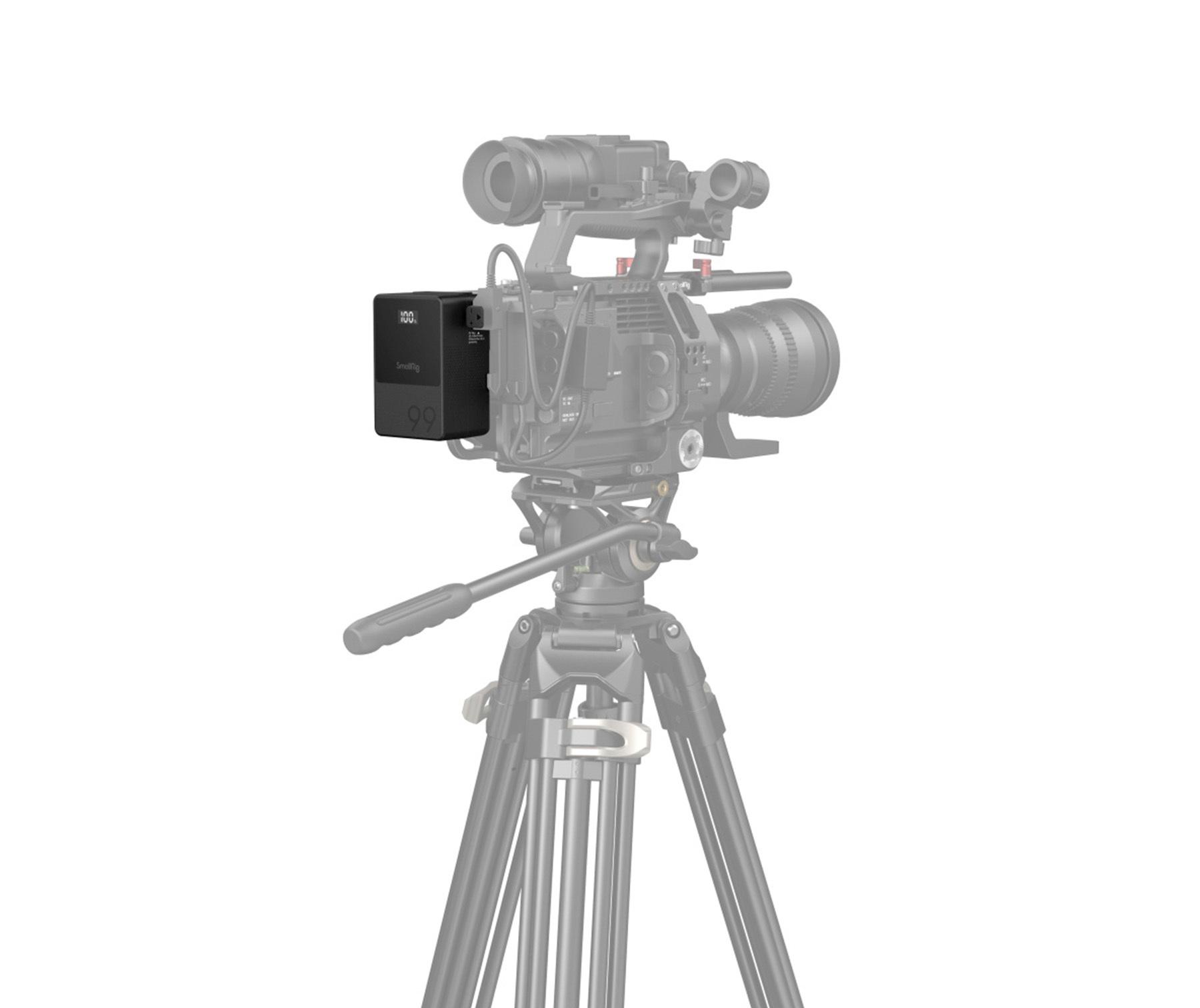

Application Scenes

Note:

• Please keep it in a clean, dry area and away from corrosive substances to reduce the risk of short circuits.
• Please check its battery life regularly in case you need it anytime, anywhere.
• If the battery is left unused for a long time, please charge it to about 70% every three months and put it in a dry and ventilated environment for a longer lifespan.
• Working temperature: -10℃ - 45℃ (14℉ - 113℉),
• Storage temperature:
  • One month: -20℃ - 60℃ (-4℉ - 140℉)
  • Three months: -20℃~45℃ (-4℉ - 113℉)
  • One year: -20℃~20℃ (-4℉ - 68℉)
• Reference storage temperature/humidity:
  • Temperature: 20℃±5℃
  • Humidity: 60±15%
• It is normal for the battery to heat up slightly during charging or use.

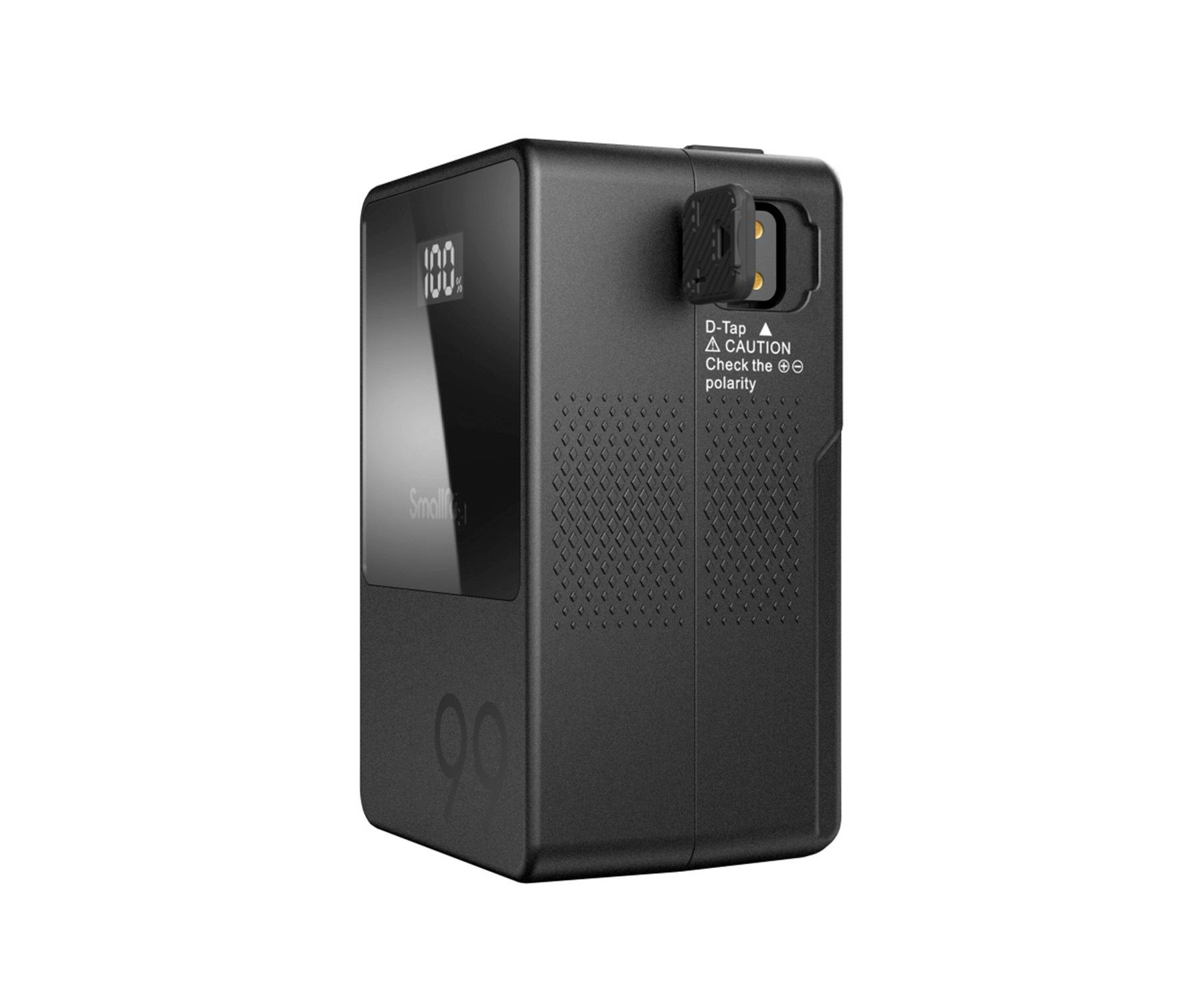

• When using the D-TAP connector, please distinguish the positive and negative terminals, and do not reverse the battery.
• It's normal that for long-time storage, the battery will lose some power cause it has self-consumption.
• Do not exceed its rated output when powering up other devices.
• Keep it away from water or fire when using.
• Please avoid dropping or crushing.
• Children can only use it under adult supervision.
