Manfrotto MVK504XTWINFA M504X Fluid Video Head with 645 Fast Twin Alu Tripod

SKU: MVK504XTWINFA

Product Highlights

  • Fluid video head with 4-step counterbalance system up to 6.5 kg
  • Maximum versatility thanks to flat base
  • FAST Lever Lock & 3-angle selection mechanism for easy set up
  • 100 mm half ball

$1,498.00 (inc GST)

This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.

This item may be available in our stores. Please contact our stores for availability.
Notify me when product is in stock

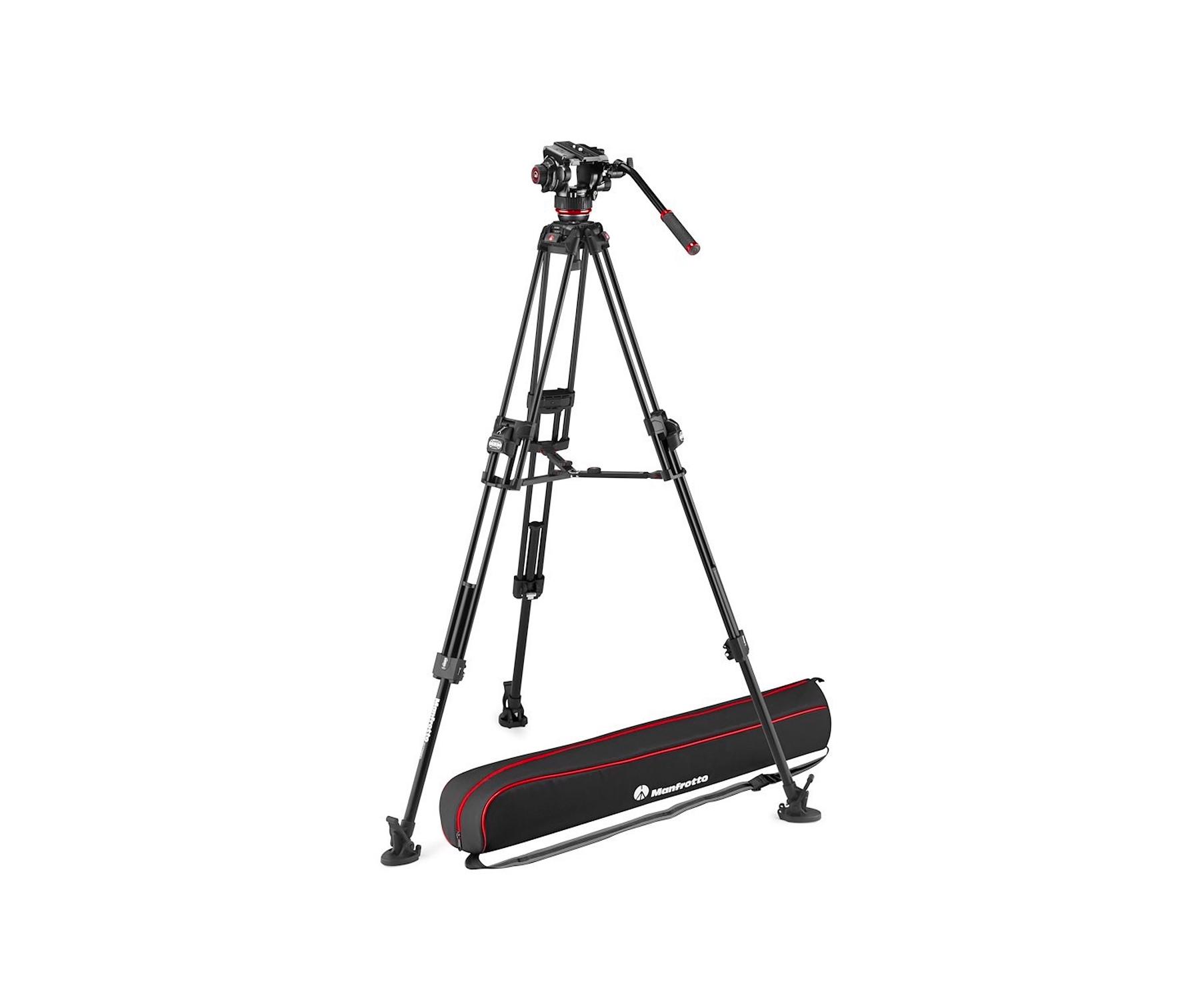

This video system includes the Manfrotto 504X Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

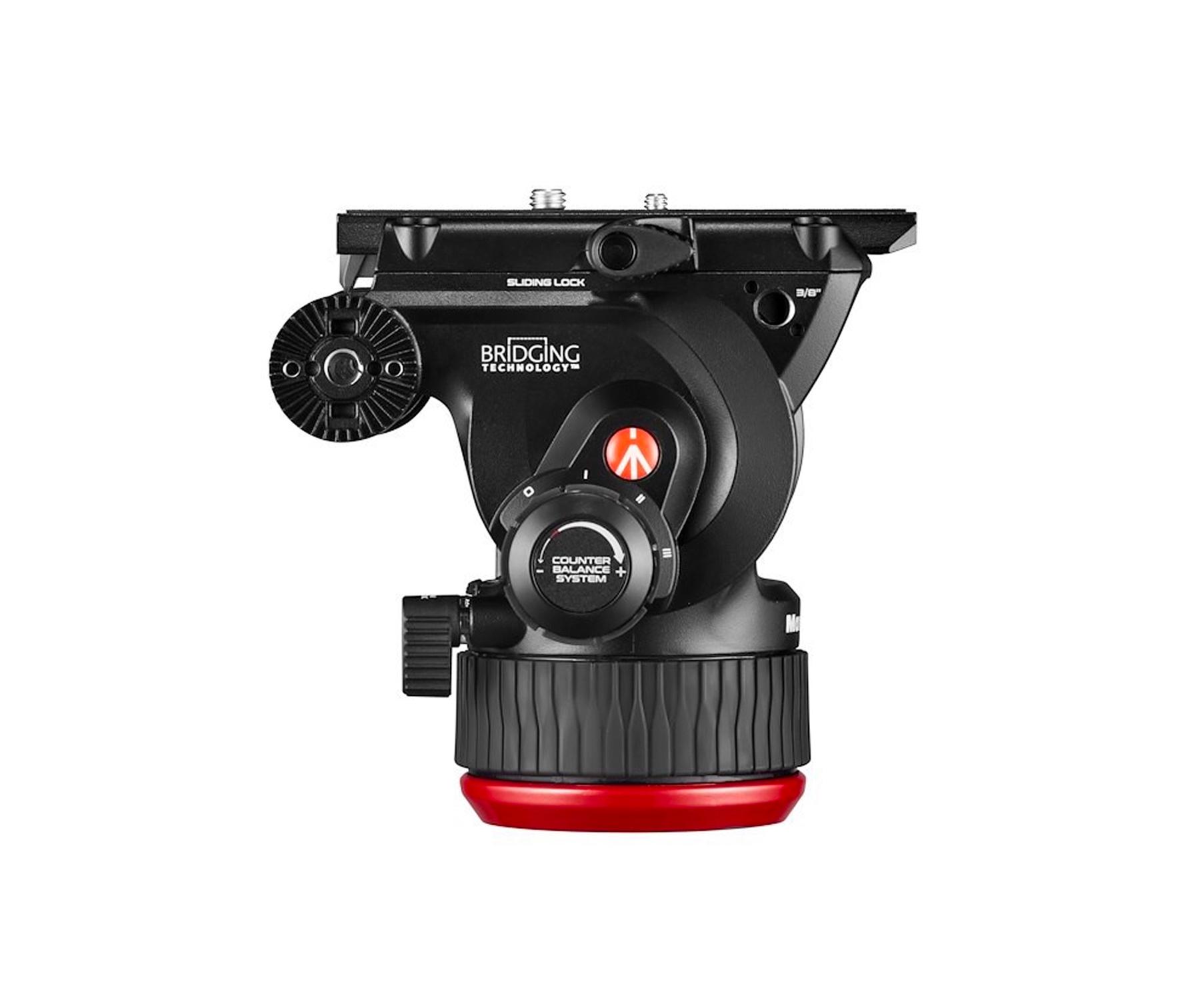

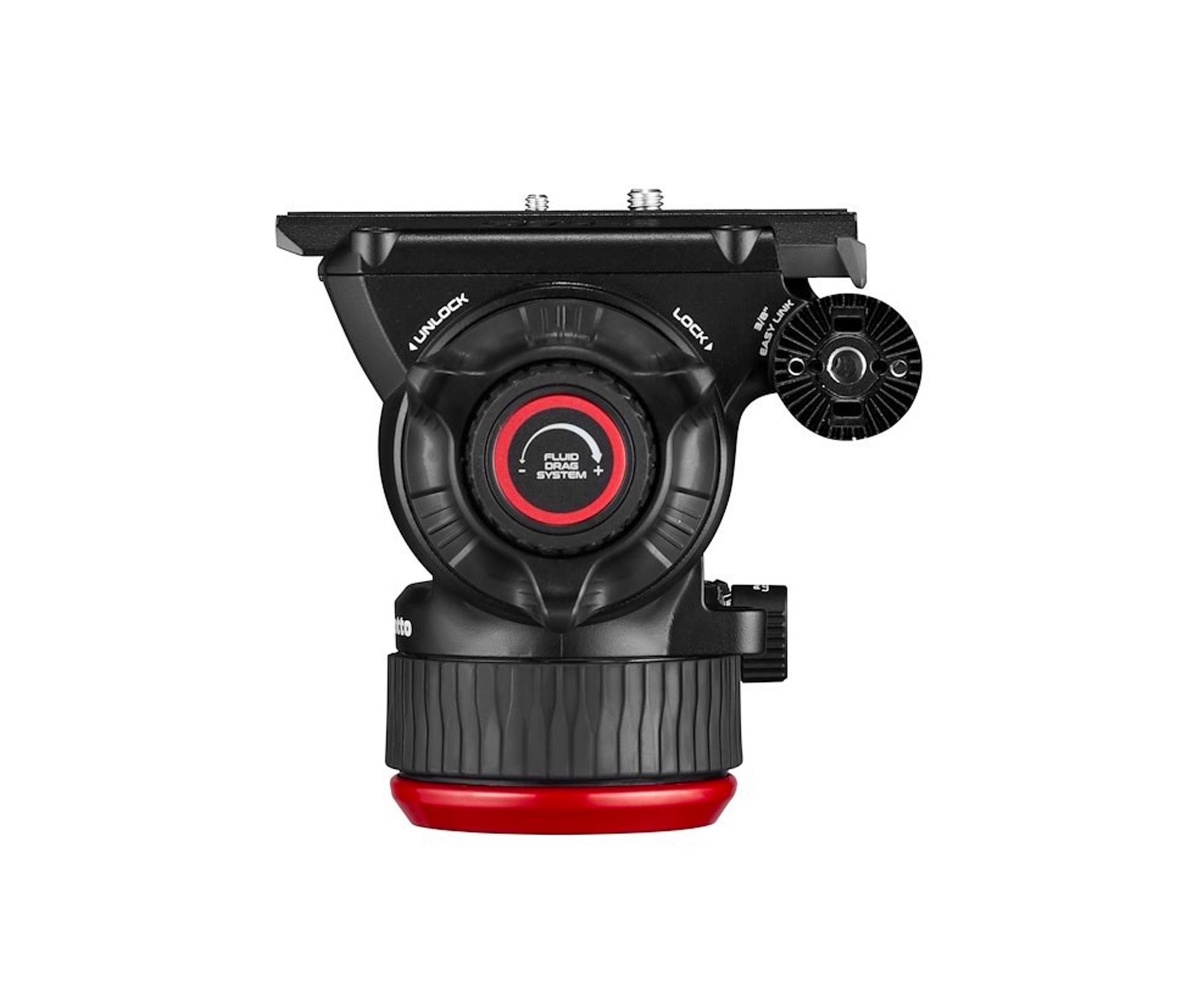

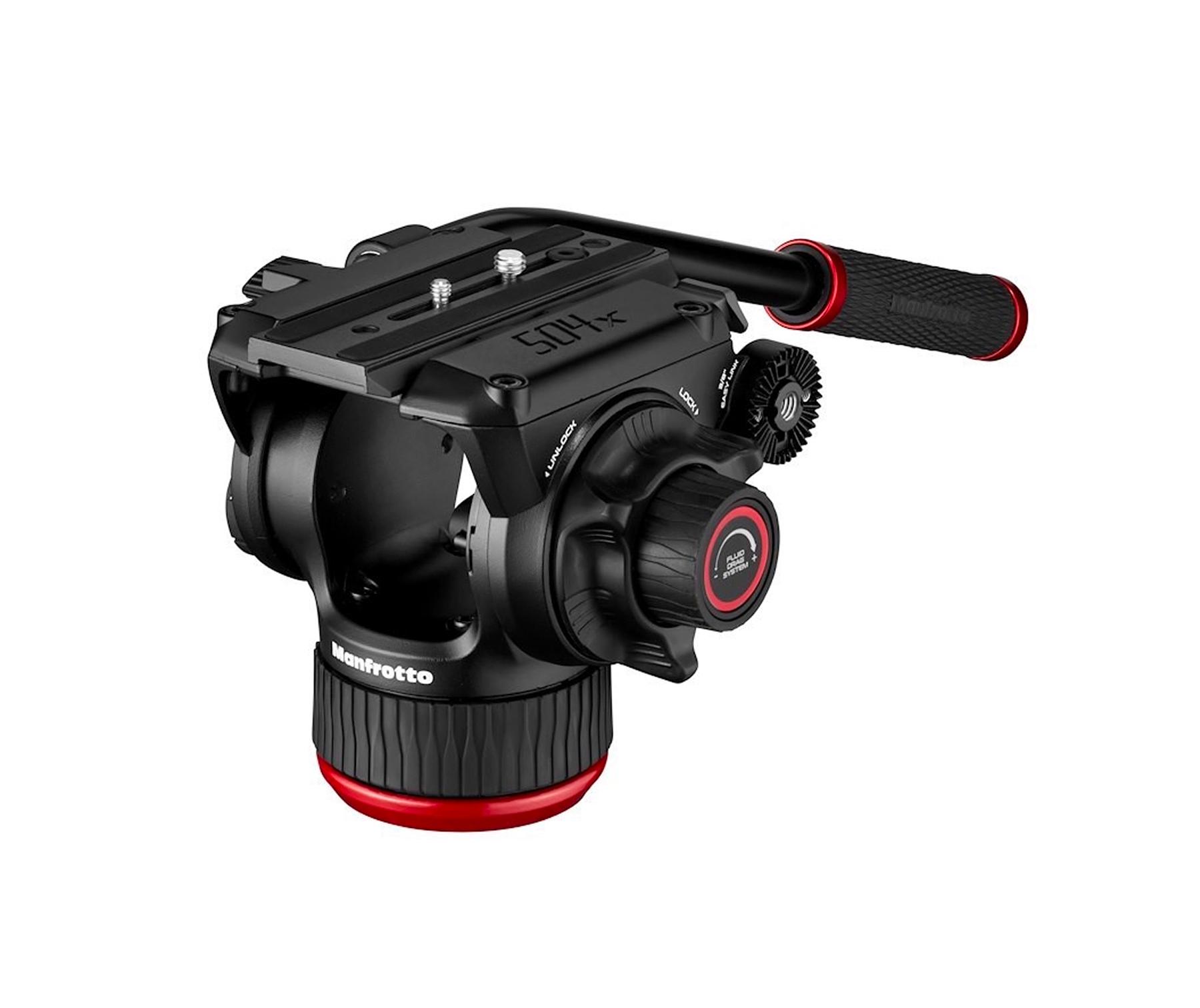

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

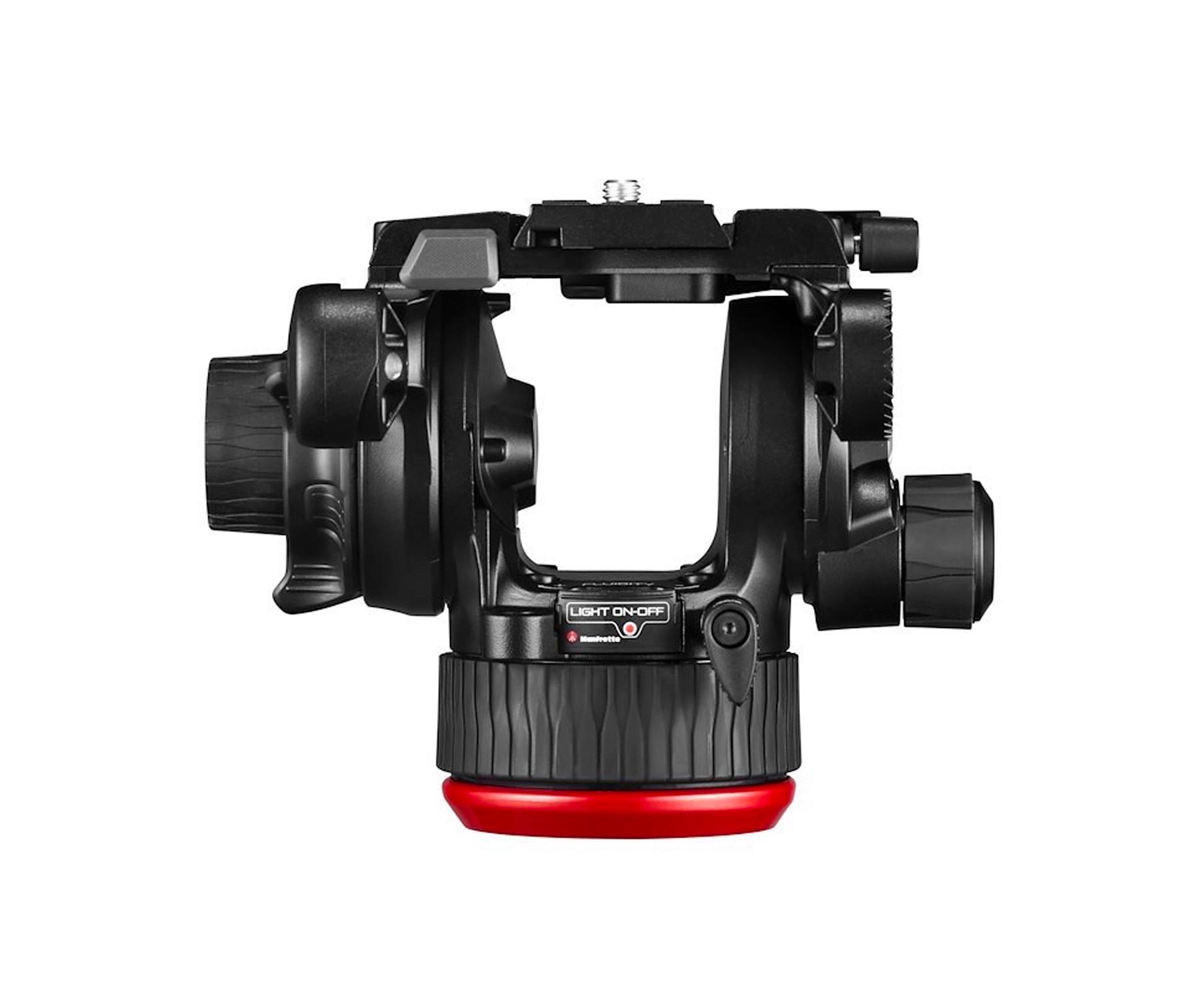

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

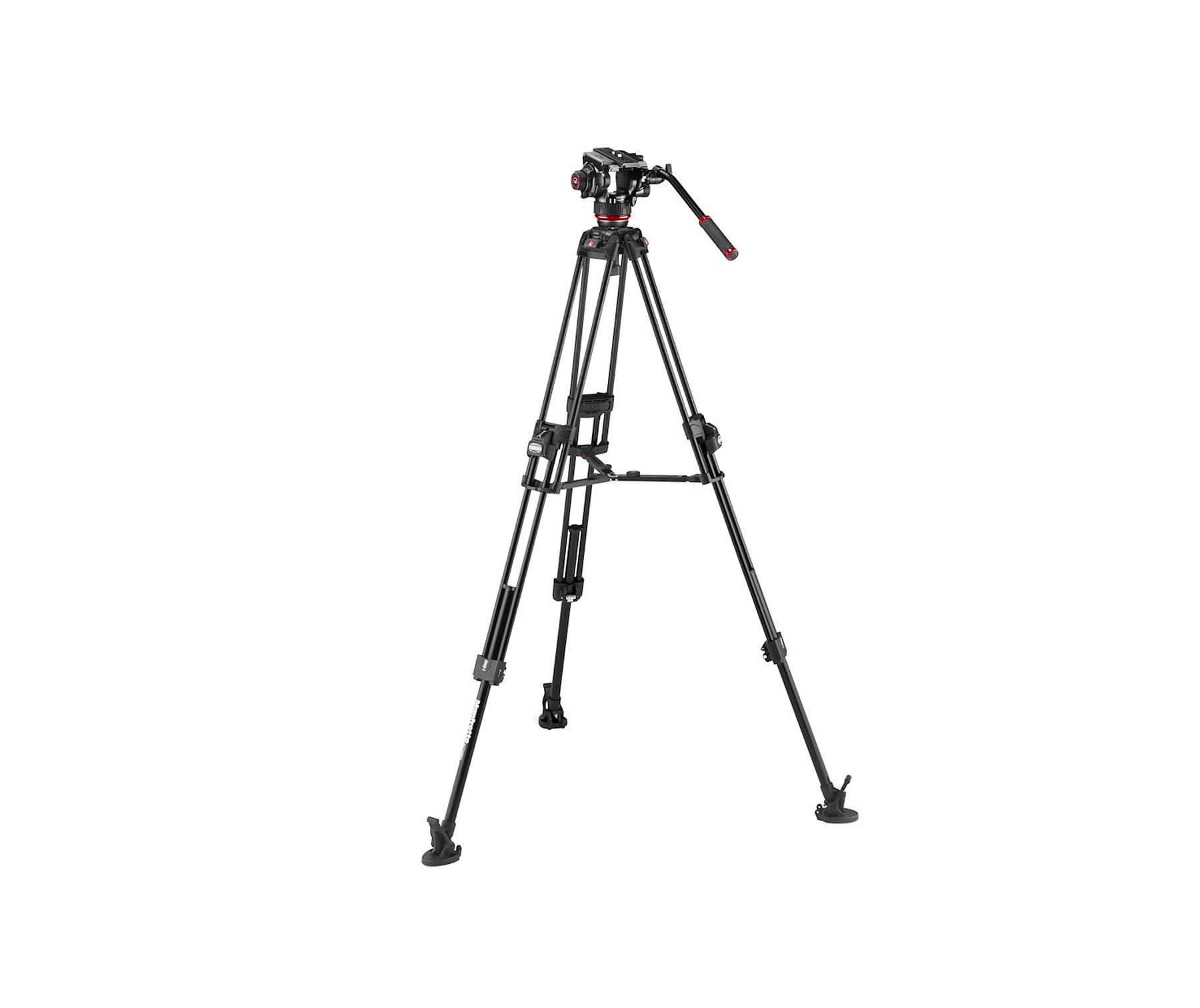

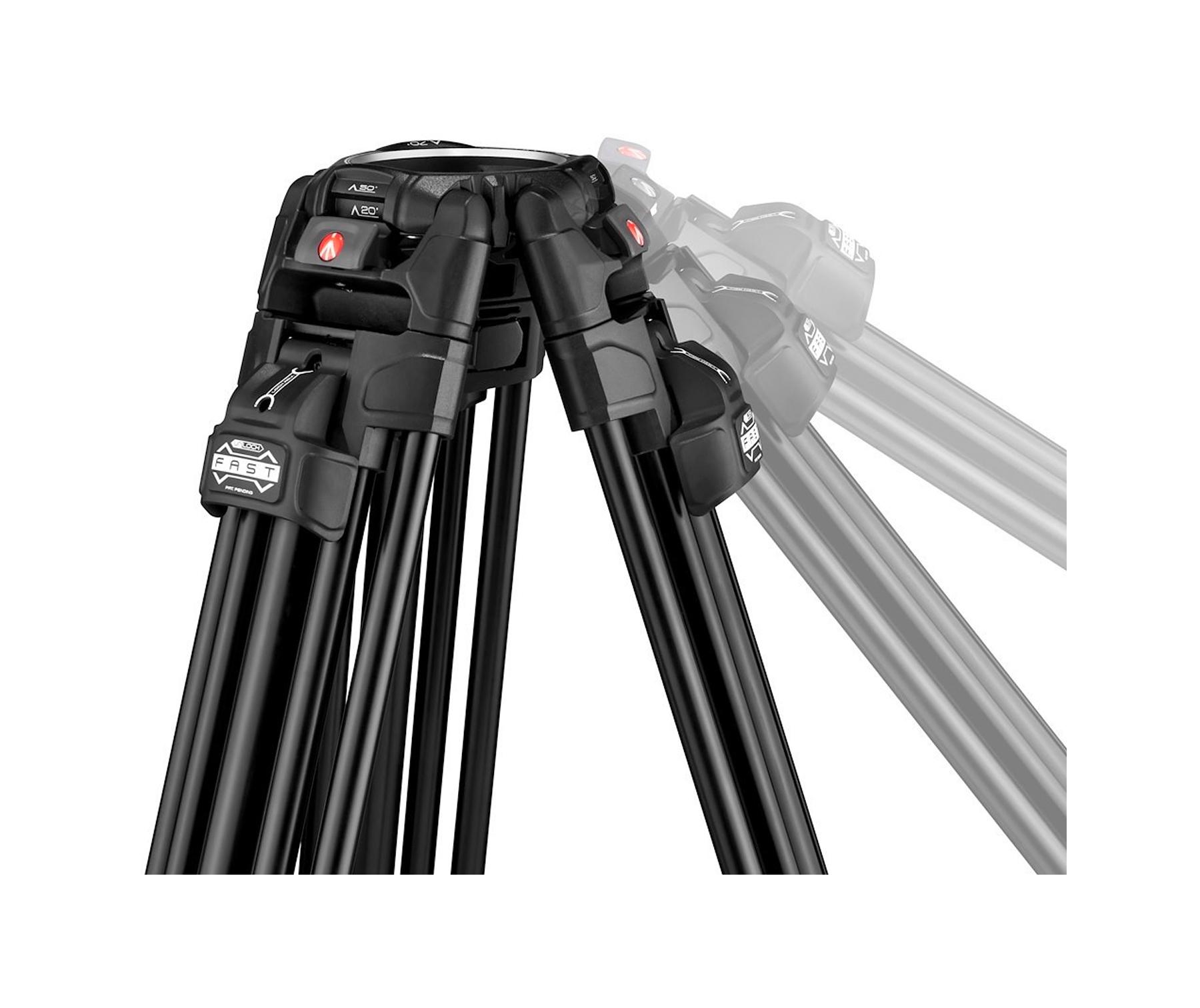

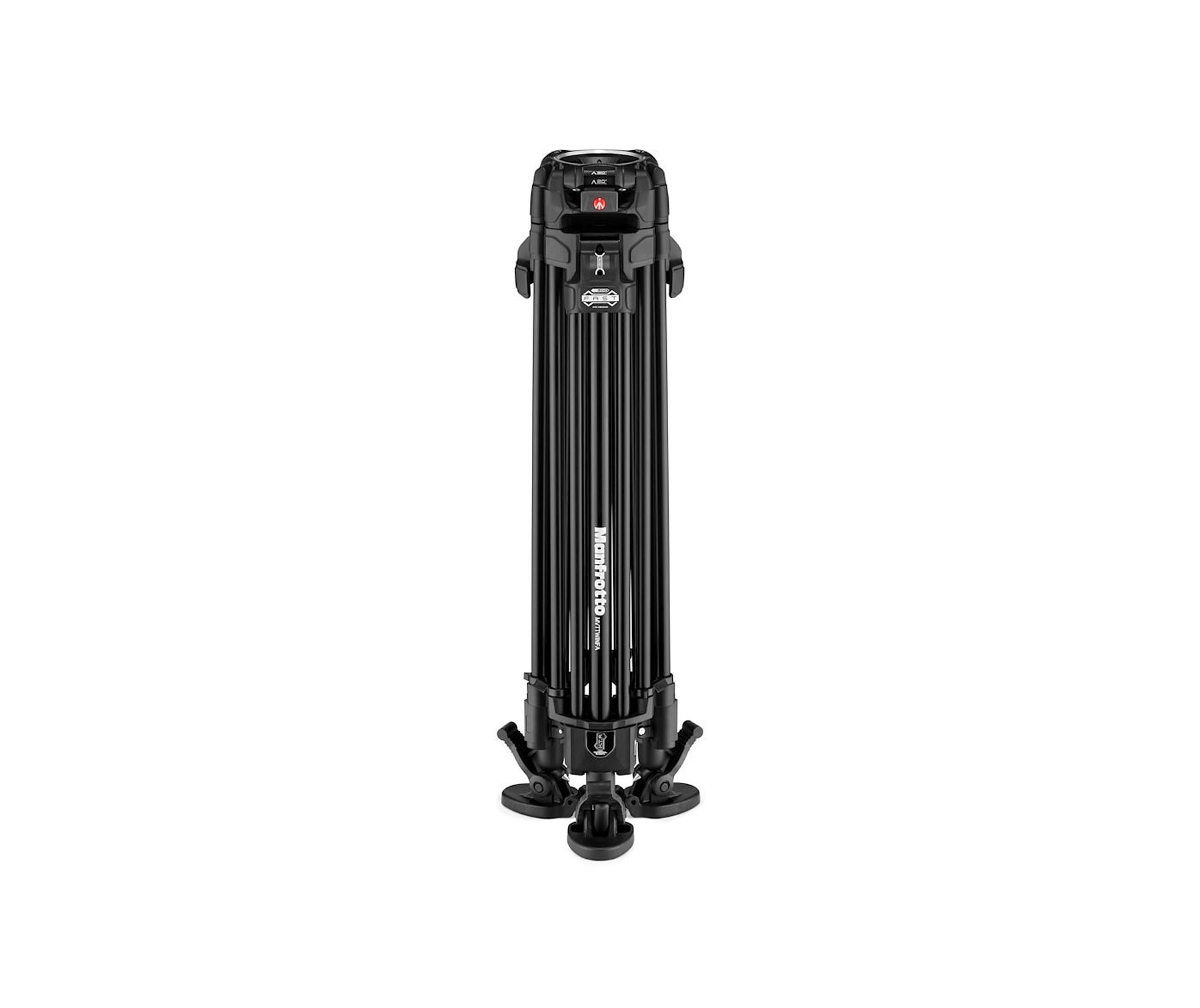

The 645 FTT Fast Twin Alu Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The synchronized closure mechanisms between the upper and lower locks enable videographers to control the entire leg with a single lock and get to work in record time.

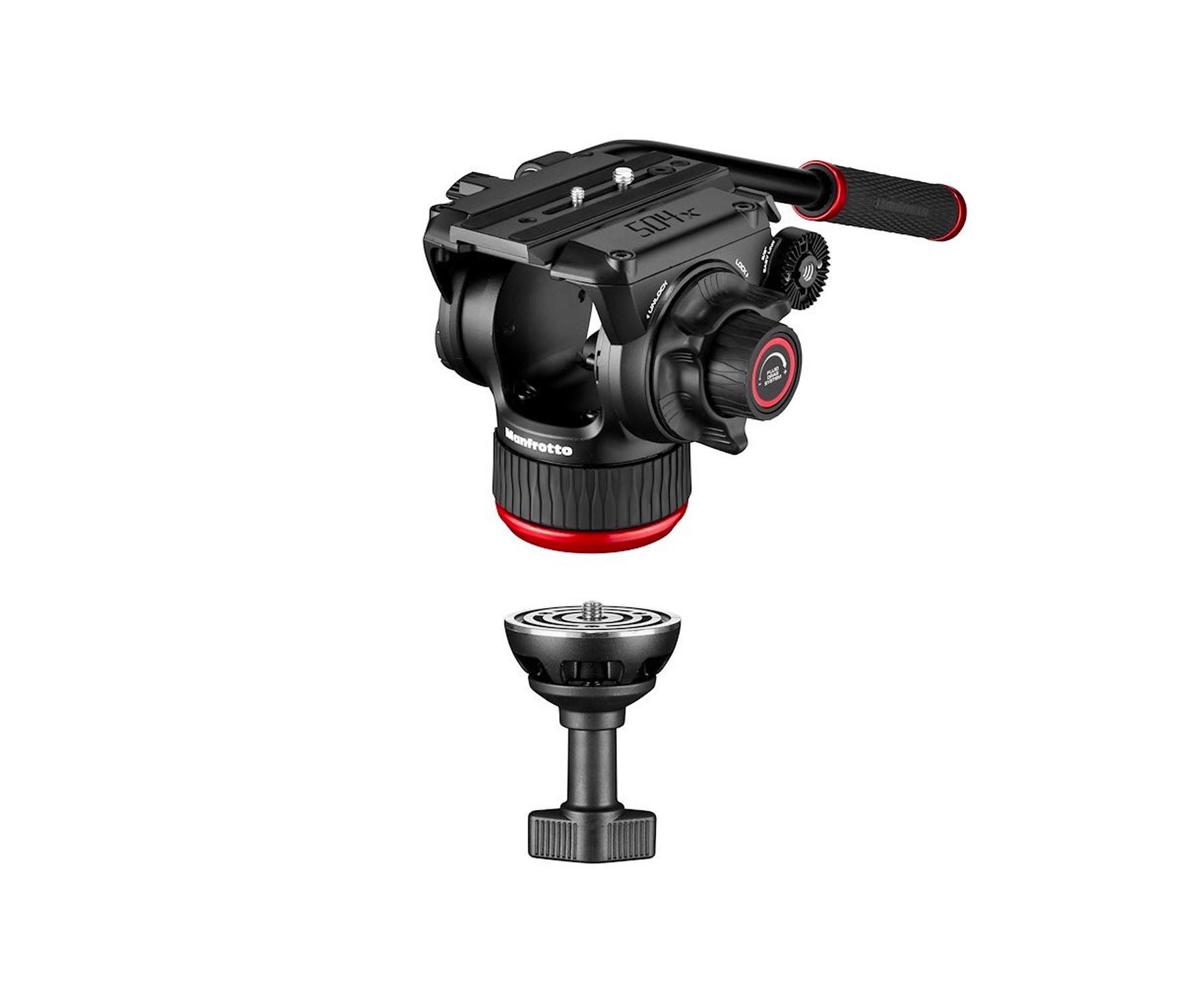

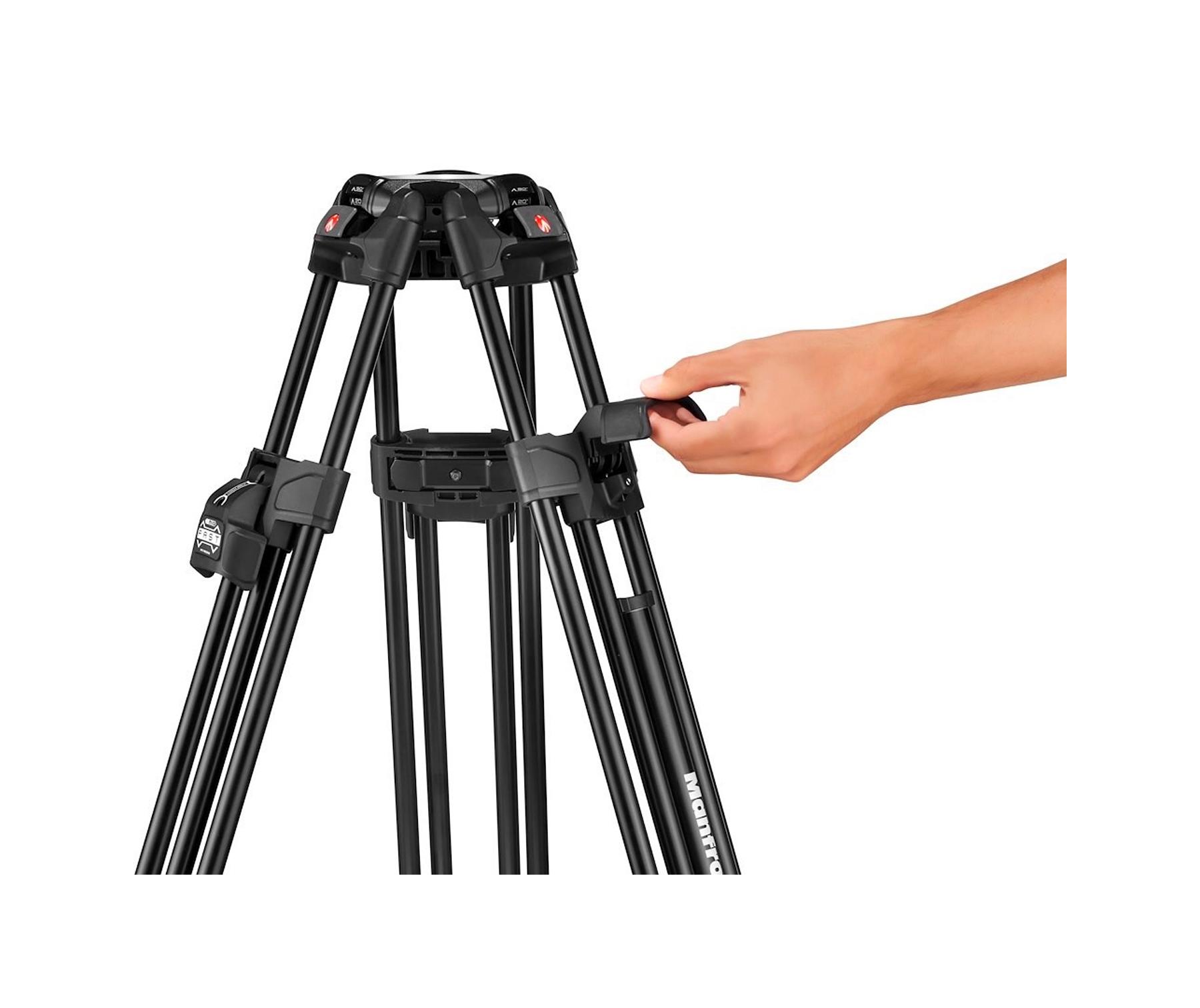

The tripod is provided with a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Supplied with its own padded carrying bag.

What's in the box?

  • 1 x Manfrotto MVK504XTWINFA M504X Fluid Video Head with 645 Fast Twin Alu Tripod
  • Brand
  • Manfrotto
  • Top Attachment
  • 1/4″ screw, 3/8″ screw
  • Base Diameter
  • 75 mm
  • Minimum Height
  • 43.5 cm
  • Maximum Height
  • 173 cm
  • Closed Length
  • 89.5 cm
  • Maximum Working Temperature
  • 60 °C
  • Minimum Working Temperature
  • -30 °C
  • Bubble Spirit Level (No.)
  • 1
  • Center of Gravity
  • 55 mm
  • Ball Flat
  • Flat
  • Safety Payload Weight (kg)
  • 12 kg
  • Carrying Bag Included
  • Yes
  • Center Column
  • no centre column
  • Color
  • Black
  • Front Tilt
  • -70° / +90°
  • Head Type
  • Video/Fluid Head
  • Easy Link
  • Yes (with antirotation)
  • Leg Type
  • Twin
  • Leg Angles
  • 20°, 50°, 70°
  • Leg Lock Type
  • Flip Lock
  • Materials
  • Aluminium
  • Powered By (Batteries)
  • Lithium
  • Counterbalance System
  • Variable Steps
  • Counterbalance Weight
  • 2.2, 4.4, 6.5 kg
  • Pan Drag
  • continuously adjustable from 0 to max level
  • Pan Bar Included
  • Yes
  • Tilt Drag
  • continuously adjustable from 0 to max level
  • Panoramic Rotation
  • 360 °
  • Plate Type
  • 504PLONGR-1
  • Quick Release
  • Yes
  • Spreader
  • mid level - variable arm length
  • Warranty
  • 2 Years + 3 Year Extension
