Arca-Swiss d4m Tripod Head with Classic Knob Quick Release (Manual)

SKU: 870203

Product Highlights

  • Leverage Weight Capacity: 30 kg
  • Arca & MonoballFix-Type Compatible
  • Manual & Gear-Driven Functionality
  • 360° Panning Devices at Top and Base
$800.00 (inc GST)
Regular price: $1,079.00

Clearance Stock. Non Returnable.

This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.

The d4 is a symbiosis of a spherical head and a 3D tilt head. It is built of high quality and exceptional strenght.
ARCA-SWISS has succeeded in combining the advantages of both systems in one head and even integrating significant improvements over a conventional 3D tilt.
The heads are small and compact, the usual annoying big levers are missing here completely.
You can use a d4 can like a normal ball head or like a 3D tilt head with geared movements.
When the X and Y axes are open, you can move the camera freely, but unlike a normal ball head, you can move them separately. This works even when both axes are open - even more accurately when one of the two is fixed.

The d4 has 2 panoramas: A rotating device is located at the base of the head.
With this the camera is aligned. The 2nd panorama is above the axes, so a perfect panoramic pan is made with the neatly adjusted camera.
The innovative design of the d4`s combines the pivot points of the X and Y movements into one point. This makes the panning radius of these movements very small. Found perspectives are preserved when readjusting.
The head's swiveling is equipped with a self-locking shock absorption feature, allowing for near total compensation of the camera's weight
Another notable feature is the positioning of the spirit levels. They are located below the upper panorama device and are arranged at a 90° angle. Both are visible so that the photographer can level his camera well even from a low position.

What does quick set device "classic" mean?
The classic lever clamps the camera plate or L-bracket by rotation.
All camera plates, L-brackets, monorails & optical benches from Arca Swiss fit into the classic quick release.
Also other manufacturers that are Arca Swiss compatible fit into the classic quick release.
An overview of all quick clamps can be found in our "Knowledge Base".

What does "GP" mean?
GP stands for geared panning and means that the upper panorama can optionally be freely panned or geared for a smooth continuous movement.

What's in the box?

  • 1 x Arca Swiss d4 quick set device Classic (manual)

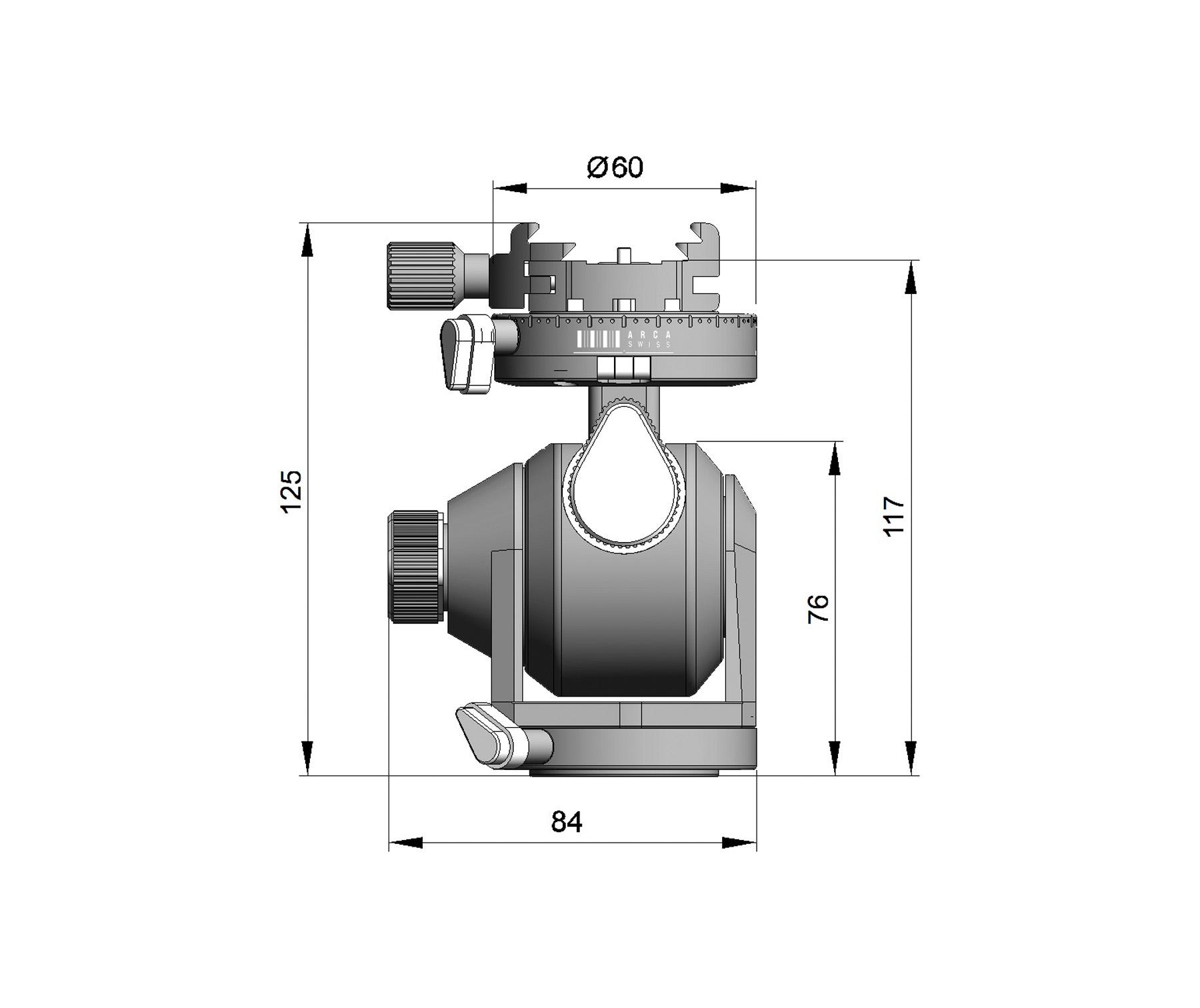

  • Dimensions
  • 84mm x 90mm x 135mm
