ATOMOS Ninja TX 5", 1500 NIT WI-FI Enabled, SDI/HDMI HDR Monitor-Recorder
Product Highlights
- Record in Apple ProRes, Avid DNx or H.265/H.264
- Quieter, cooler temperature while using
- Capture to CFexpress Type B or USB-C storage
- Super-bright, 1500nit 5-inch touchscreen display
- HDMI 2.0, 12G-SDI & Wi-Fi 6E input and output
- Direct upload to ATOMOSphere, Frame.io, Dropbox
- Streaming via NDI 6
- Timecode sync over RF or Bluetooth
- Powered by USB-C, NP-F battery or AC adaptor
- Get 20GB cloud storage FREE with ATOMOSphere
- Over the air (OTA) firmware updates
Regular price: $1,554.00
Related Products

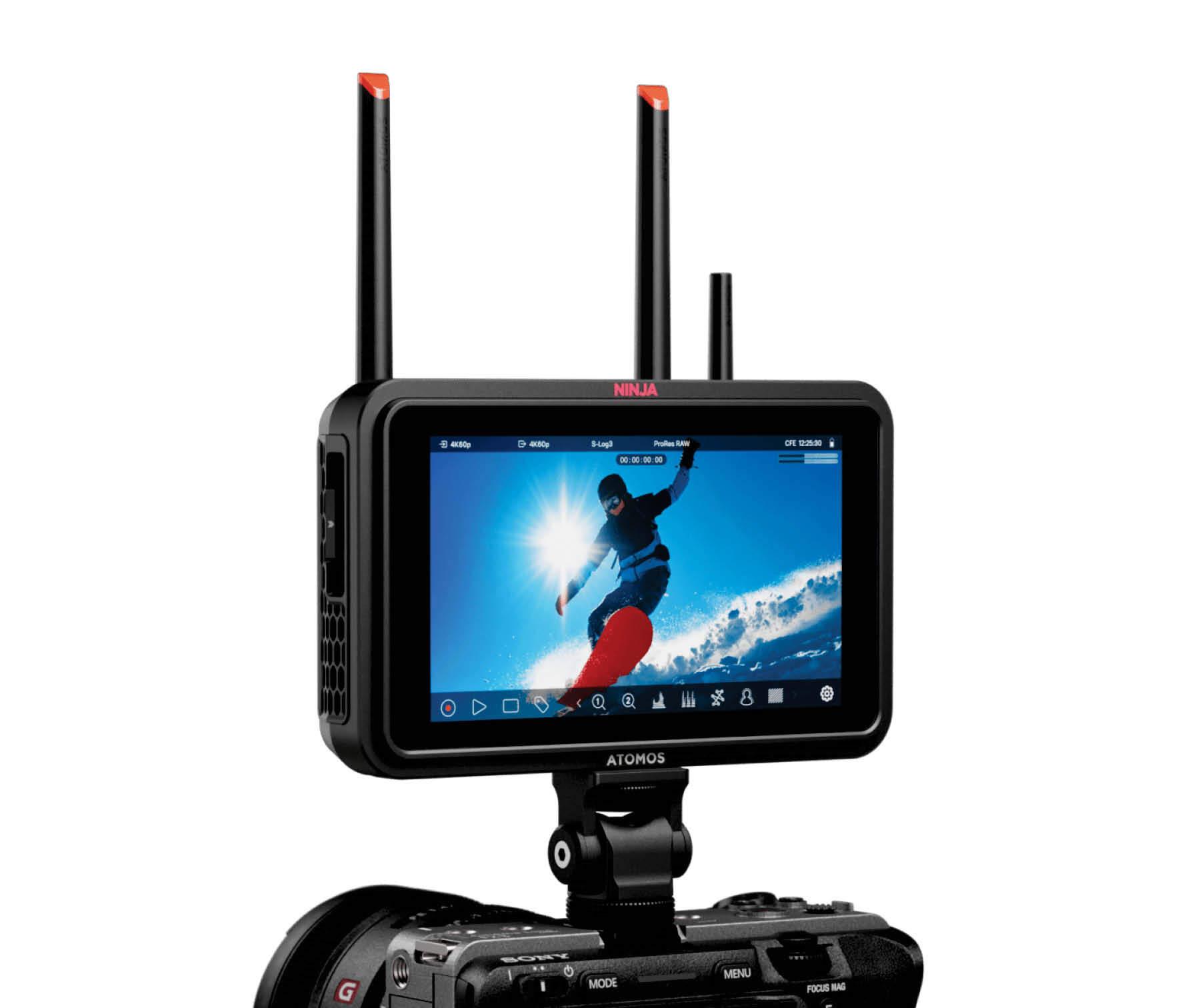

The latest addition to the famous Ninja range – the quietest, coolest operating temperature, most powerful, most connected and most advanced camera monitor & recorder yet.
* Camera Control & Touch to Focus is coming soon via an over the air firmware upgrade
Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools. It features built-in camera-to-cloud with free ATOMOSphere membership, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. No other monitor-recorder packs so much performance and compatibility into such a compact, connected device.
Preloaded Codecs
Ninja TX comes with preloaded codecs: Apple ProRes/RAW, Avid DNx, H.265/H.264 and NDI 6 HX3 TX & RX

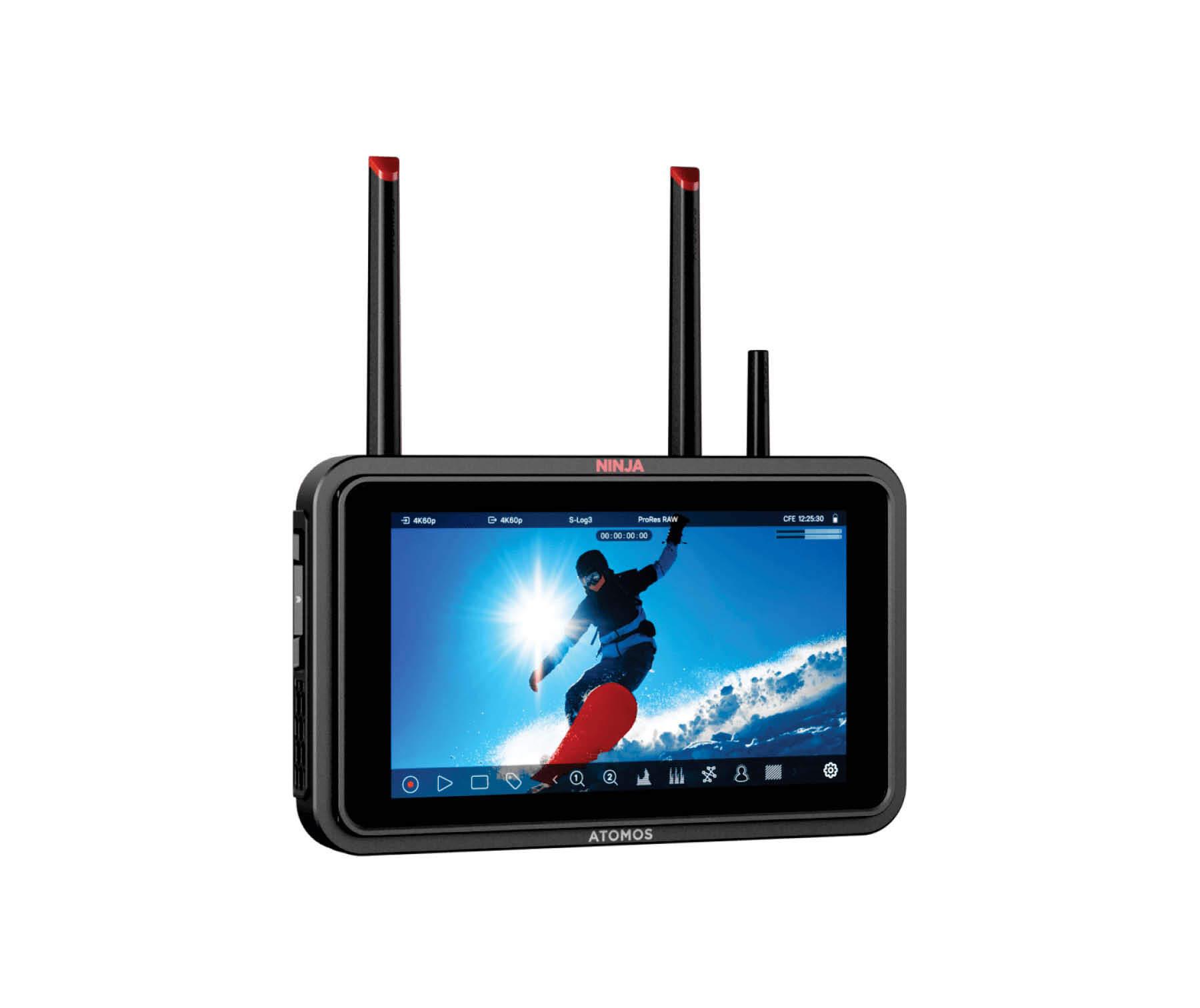

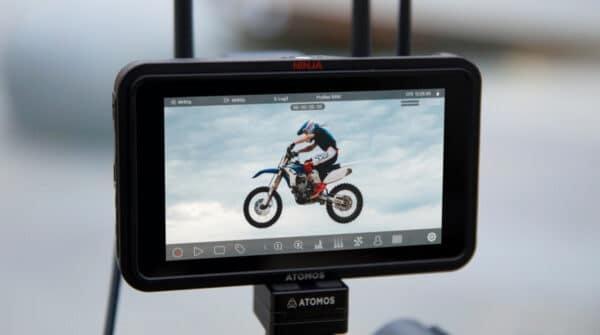

Display

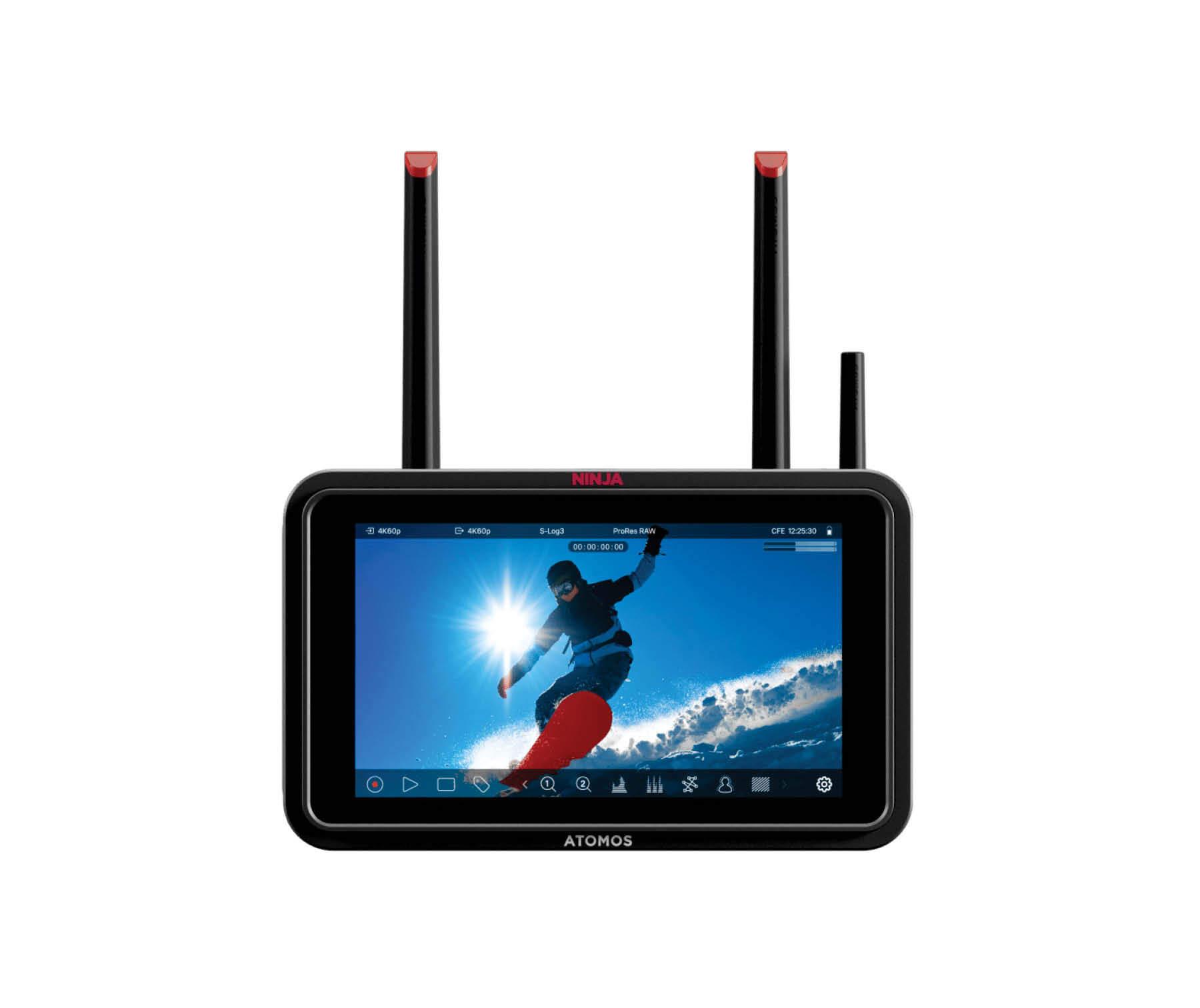

5.2″ IPS touchscreen, with increased brightness to 1500nits – perfect for clear, precise and vivid monitoring in any setting, from the outdoors in sunlight, to a studio. The 8/10-bit color processing, HDR support, Rec. 709 color gamut, and calibration support ensure accurate and defined color and high-quality monitoring.
New Operating System & Build
Powered by the lightning-fast AtomOS Linux operating with user-friendly UX and a full suite of professional monitoring tools, and a re-engineered build providing a quieter, cooler and more efficient operation.
Wireless Features and Camera to Cloud
Ninja TX camera monitor & recorder comes with connectivity built-in, including, camera-to-cloud with free ATOMOSphere membership, NDI 6 streaming and full integration into an NDI network, It also includes AirGlu timecode sync over RF or Bluetooth to sync all your cameras, audio recorders, and monitors, acting as a timecode sync solution.

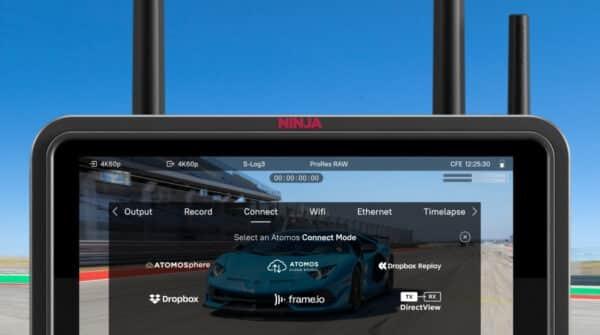

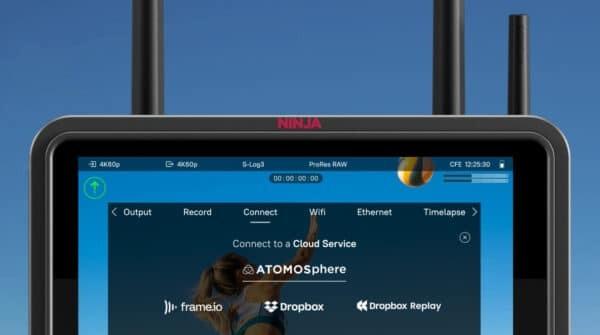

Ninja TX is also the leader in Camera to Cloud (C2C) workflows – allowing you to upload your video files directly from your Atomos monitor-recorder to the cloud. Atomos supports direct progressive upload to ATOMOSphere (with a free 20GB starter storage plan), as well as Adobe Frame.io and Dropbox.
The wireless capabilities also provide ‘over the air’ (OTA) firmware updates, for a quick and convenient way to keep the OS current.
Comprehensive Color and Metadata
The Ninja TX supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

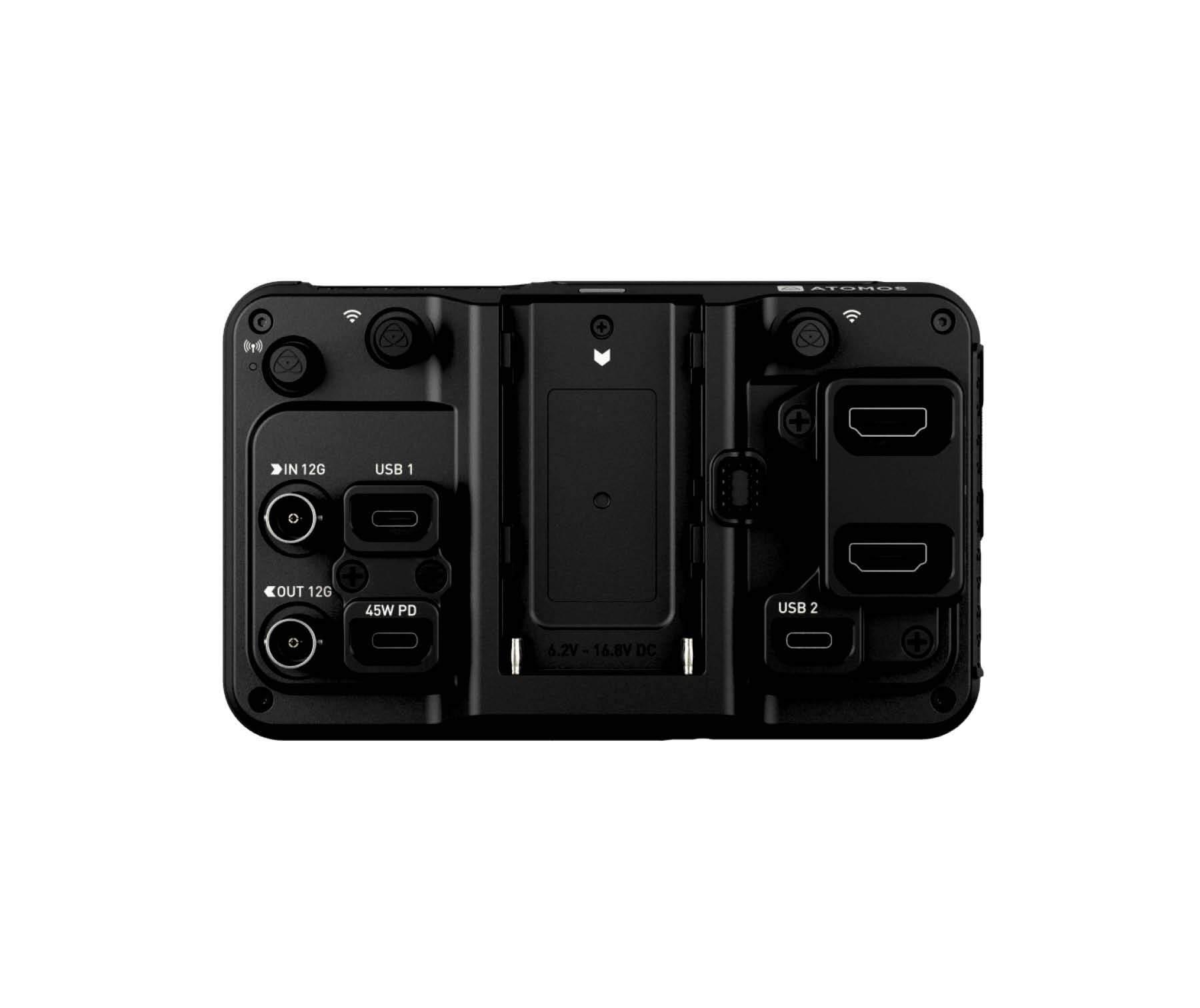

12G-SDI and HDMI Input/Output
HDMI input supports 8K video up to 30 fps, up to 4K60, and up to 1080p120. Loop-through passes the incoming HDMI signal from the camera to another device, for example, an external monitor, wireless transmitter, or live streaming encoder. The addition of 12G-SDI means a wider range of cameras and production workflows is supported, and the SDI ports also support loop-through. The monitor also supports cross conversion from HDMI to 12G-SDI and 12G-SDI to HDMI.
Via the HDMI input, you can record raw metadata such as white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, and gamut

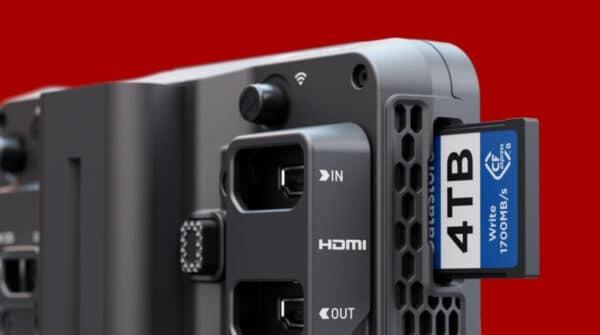

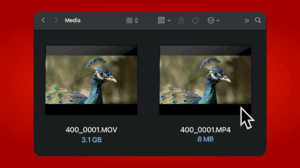

Recording & Media Options

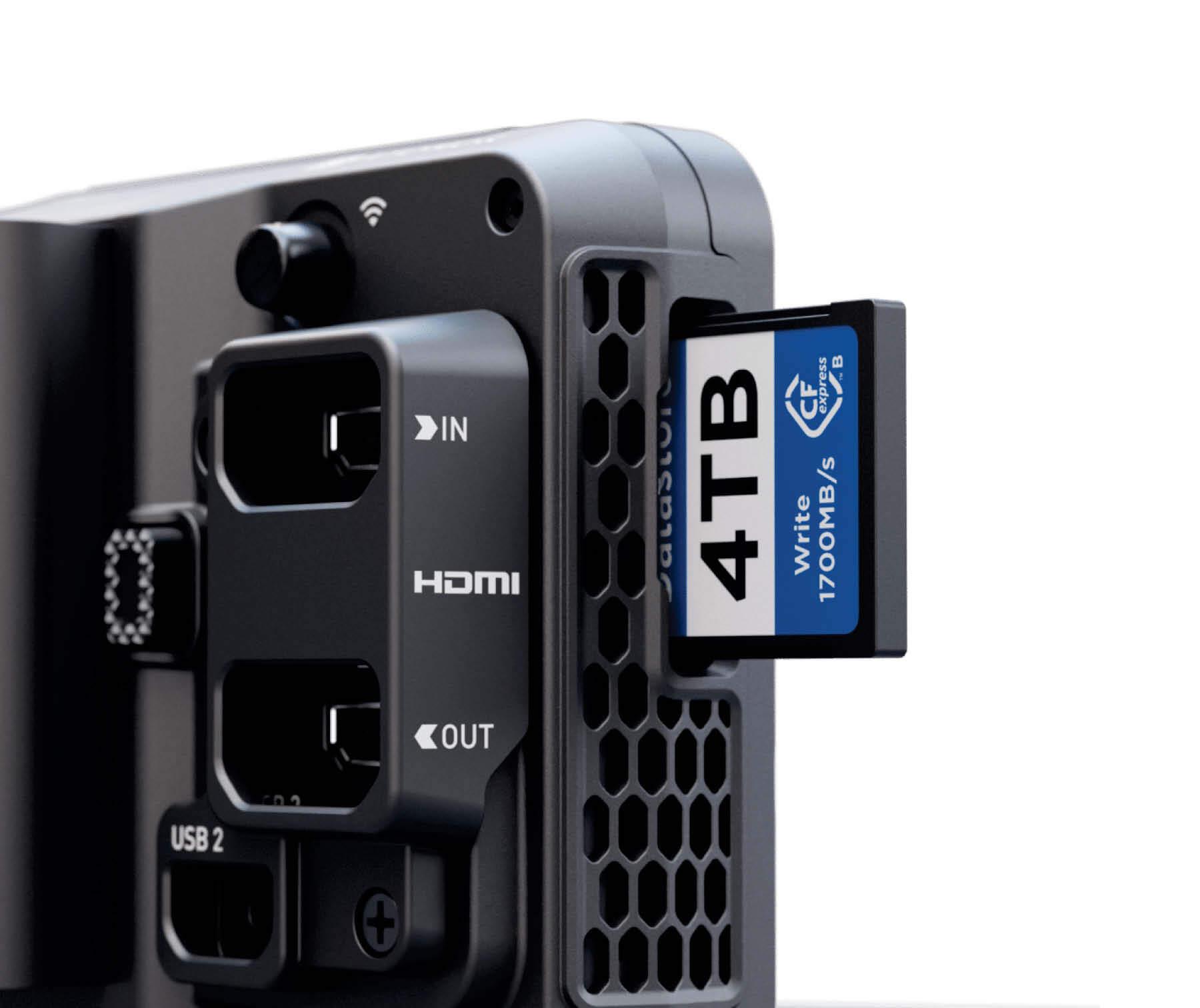

The Ninja TX now includes a CFexpress Type B slot and dual USB-C recording outputs supporting fast data transfer to external USB media. The optionality is designed for scalability and futureproofing. In addition to recording directly to storage, the USB-C ports can also be used for calibration, custom 3D LUT uploads, adding audio devices.

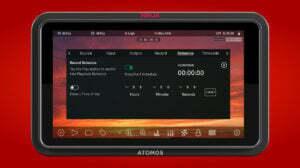

Professional Monitoring Tools

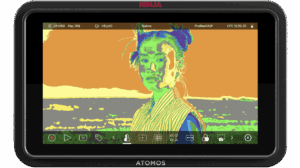

The Ninja TX offers a n expansive suite of easy to use, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false color (including ARRI and EL Zone), frame guides, SMPTE safe areas, grid markers, waveforms, RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). It also provides anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups.
Power Options

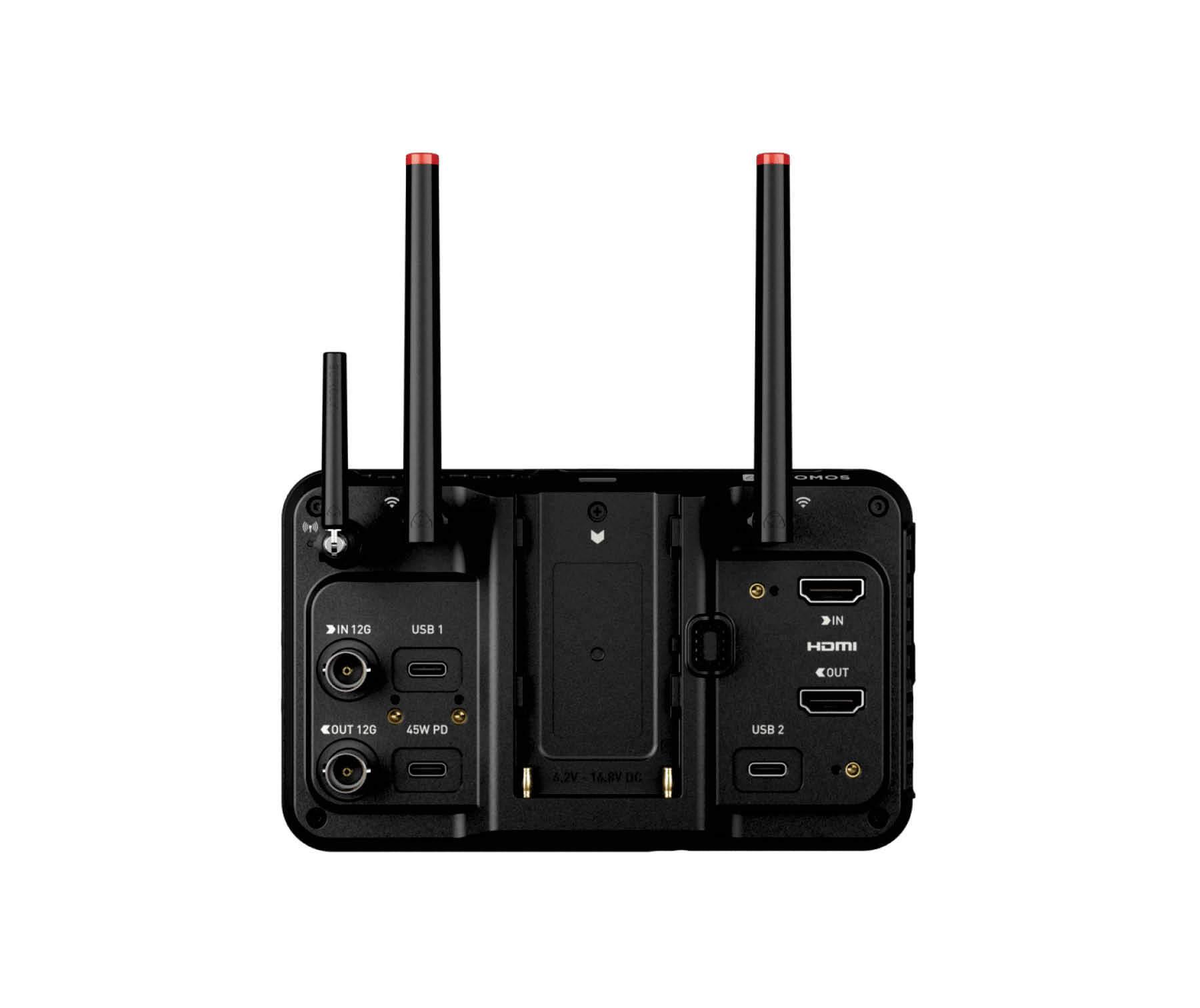

An L-series battery on the back of the Ninja TX supports NP-F L-series batteries. Alternatively, a battery eliminator can be used to provide DC power to the monitor, or a USB-C port supports 30W PD power delivery with the included cable.
What's in the box?
- Ninja TX unit
- USB-C locking cable adaptor/li>
- USB-C locking cable (45cm)
- HDMI locking cable adaptor
- Wi-Fi antenna + antenna caps
- AirGlu antenna + antenna caps
- Quick Start Guide
Physical
- Dimensions
- 151mm x 92mm x 36mm
- Weight
- 400gms
- Mount Points
- 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom
Environmental
- Ambient Operating Temperature
- Up to 40 degrees Celsius
Construction
- Body
- Aluminium with ABS plastic
- Cooling
- Actively controlled fan and heat sink
Power
- Input Voltage
- 6.2V to 16.8V DC
- Operating Voltage (Power Supply)
- Up to 30W
- Multi-Function Button
- Power / lock screen
- Continuous Power
- Via NP-F battery or USB-C PD Power
- DC-In Connector
- Via Battery Eliminator (optional)
- Dtap
- Up to 13W
- USB PD IN
- 45W capable, power supply required
- USB PD OUT
- Up to 13W
Display
- Size
- 5.2-inch
- Resolution
- 1920 x 1080
- Backlight Type
- Edge lit
- Brightness
- 1500 cdm2 / Nits
- Aspect Ratio
- 16:9
- Color Gamut
- Rec.709
- Calibration Support
- Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable
Color Pipeline
- Gamma
Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
- Gamut
BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
- 3D LUT Display
- .Cube format
- 3D LUT Down Stream
- Loop out
- 3DLUT 50/50
- Yes
- Monitoring Modes
- Native / HLG / PQ / 3D LUT
- HDR Output Conversion
- Log / HDR to HLG / PQ
Video Input
- HDMI
- 1 x HDMI 2.0
- Locking port
- Bracket provided; HDMI locking cable purchased separately
- SDI
- 12G
- Wi-Fi
- Wi-Fi 6E
- USB
- 2 x USB-C 2.0/3.0
- Bit Depth
- 8/10-bit video
- Video Chroma Subsampling
- 4:2:2
Video Output
- HDMI
- 1 x HDMI (2.0) up to 4K60P
- Locking port
- Optional
- SDI
- 12G
- Wi-Fi
- Wi-Fi 6E
- USB
- 2 x USB-C 2.0/3.0
- Bit Depth
- 8/10-bit video
- Video Chroma Subsampling
- 4:2:2
Metadata
- HDMI
- RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut
Network
- Wi-Fi
- Wi-Fi 6E
- USB
- 2 x USB-C 3.0
Connectivity
- Bluetooth
- Yes
- LANC
- Yes
Video Signal Conversion
- HDMI to SDI
- Yes
- SDI to HDMI
- Yes
Audio In/Out
- HDMI
- 8-channel, 24-bit
- SDI
- 12-channel, 24-bit
- Analogue Audio Line In
- 3.5mm headphone jack, 2-channel input
- Headphone Output
- 3.5mm headphone jack, 2-channel
Timecode
- Embedded
- HDMI & SDI
- Time of Day
- Yes
- Reference / Genlock input
- No
- LTC Timecode
- No
- Wireless AirGlu RF Server and Client
- Yes
- Wireless AirGlu BT Server
- Yes
Resolution & Frame Rates (Record, Monitor & Playback)
- RAW Output
- Up to 6Kp60/8Kp30
- 4K DCI
- 23.98/24/25/29.9/30/50/59.94/60p
- 4K UHD
- 23.98/24/25/29.9/30/50/59.94/60p
- 2K DCI 2048 x 1080
- Yes
- 1080p
- 23.98/24/25/29.9/30/50/59.94/60/100/120p
- 1080 PsF
- Converted to P and looped out PsF
- 1080i
- 50/59.94/60i
- 720p
- 50/59.94/60p
Supported Media
- CF Express
- Atomos certified CF Express type B media
- USB
- Atomos certified USB 3.0 media
- File System
- ExFAT
Codecs
- Apple ProRes RAW
- ProRes RAW, ProRes RAW HQ
- Apple ProRes
- LT, 422, 422 HQ
- Avid DNxHD
- DNxHD 220x, 220, 145, 36
- Avid DNxHR
- LB, SQ, HQ, HQX
- H.265
- LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0
Playback
- Playlist
- Yes, create customer playlists from full or sub-clips
- Loop
- Yes, with user-customizable in/out markers
- Apple ProRes RAW
- Yes, recorded clips
- Apple ProRes
- Yes, with linear PCM audio
- Avid DNx
- Yes, with linear PCM audio
- H.265
- Yes
Recording
- Pre-roll
- ProRes, DNxHD only
- Timelapse
- Yes
- Simultaneous Proxy Record
- Yes
On-screen Monitoring Tools
- Waveform
- 3 sizes – adjustable opacity & brightness
- RGB Parade
- 3 sizes – adjustable opacity & brightness
- Vectorscope
- 2 sizes – adjustable opacity & brightness
- 1 x Zoom
- Yes, 1:1 pixel mapping for 4K
- 2 x Zoom
- Yes
- Focus Peaking
- Colour selected / threshold setting / colour / mono / edges only
- Atomos False Color
- Yes, with scale
- ARRI False Color
- Yes
- EL ZONE
- Yes
- Zebra
- Yes, adjustable
- Isolate Color Channel
- Blue Only
- Cine Frame Guides
- Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
- Social Frame Guides
- Presets for 9:16, 1:1, 191:1, 4:5
- Safe Areas
- Action and graphic
- Grid Markers
- 9 grid
- Anamorphic Desqueeze
- 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
- Display Flip
- Vertical only
Onboard Signal Processing
- Pulldown removal
- 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
- 4K UHD downscale for HD
- Loop out - 4K UHD to FHD
- DCI Crop
- Loop out - 17:9 to 16:9 crop
Remote Control
- HDMI
- Auto HDMI trigger, supported protocols - Canon, Sony, Atomos
- SDI
- SDI trigger camera selectable
- Serial 2.5mm Jack
- Calibration via optional USB to serial cable
- AirGlu BT
- Yes
- AirGlu RF
- Yes
Camera to Cloud
- ATOMOSphere
- Direct progressive upload supported (20GB free storage)
- Adobe Frame.io
- Direct progressive upload supported (separate purchase)
- Dropbox
- Direct progressive upload supported (separate purchase)
What’s in the Box
- Accessories Included
Ninja TX monitor-recorder, USB-C locking cable adaptor, HDMI locking cable adaptor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), AirGlu antenna, antenna caps, USB-C locking cable (45cm), Quick Start Guide.
- Box dimensions (W x H x D mm)
- 190mm x 130mm x 75mm
- Box weight
- 665gms
Warranty
- Standard
- 1 year. Extended to 2 years on product registration.
