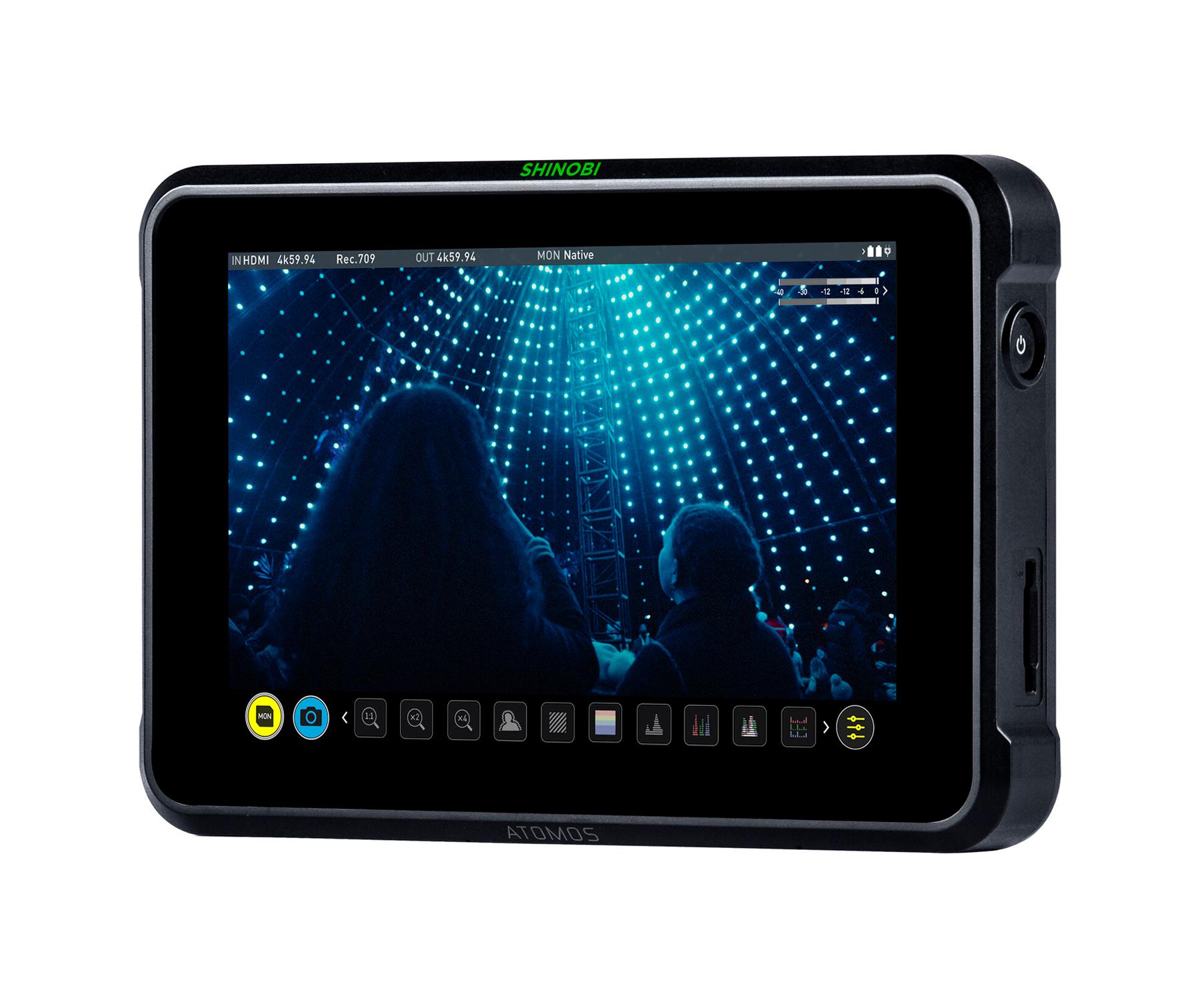

Atomos Shinobi 7" 4K HDMI/SDI Monitor

SKU: ATM SHB002

Product Highlights

  • 7" 1920 x 1080 Touchscreen Display
  • 4K60 HDMI 2.0 In/Out, 2K60 3G-SDI In/Out
  • 2200 cd/m² Brightness
  • HDMI/SDI Cross Conversion
  • 2.5mm Camera Control Port for Z CAM E2
  • Dual Sony L-Series Battery Slots
  • AtomOS; AtomHDR & 3D LUT Support
  • 10-Stop Dynamic Range
  • Supports a Variety of Log Formats
$749.00 (inc GST)
Regular price: $955.00
BFCM

Quantity

Shinobi 7
Big. Bright. Beautiful.

Shinobi 7 combines a large 7” HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of the original Shinobi. The Shinobi 7 can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or SDI. An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.

Camera controls
at your fingertips

Control your favorite cameras by using the intuitive touchscreen of the Shinobi 7, designed to give you fast access to the most crucial camera features. Focus on the beautiful image and make dynamic adjustments of iris, white balance, shutter angle and ND. With the optional Atomos USB-C to serial cable, support is available out the box for the Z Cam E2 series camera, providing direct control of all the menu configurations. The additional USB and RJ45 control ports on the Shinobi 7 also provide support for future developments, as more options are added for touch screen camera control.

HDR in the field

The Shinobi 7 screen displays a stunning 10+ stops of dynamic range in real time from Log/PQ/HLG signals. Combined with our unique HDR monitoring features, the Shinobi 7 simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most – while shooting. With Adaptive Cooling, you can also prioritize reduced fan noise or the peak brightness of the display. We look after the technology so you can focus on the storytelling.

Built-in 3D LUT box

In addition to Log to HDR conversions, you can also use your own custom 3D LUT to feed downstream to other devices or live feed. Load up to eight custom LUTs at any time via the SD Card Slot and instantly select between them, maintaining creative intent at all times. When using selfie mode, the large display acts as a perfect confidence monitor that allows you to ’bake-in’ a LUT to your camera input, to achieve your LOOK at capture for that perfect piece to camera.

The best of AtomOS 10

Shinobi 7 utilizes our AtomOS 10 platform, and is packed with an extensive suite of scopes and simple one-touch operations. Shinobi includes monitoring tools for focus, framing & exposure, including Focus Peaking, Focus Peaking, 4:1 / 2:1 / 1:1 Zoom, Zebra, False Color, Cine and Social Frame Guides, SMPTE Safe Areas, Waveform, RGB Parade, Vectorscopes, Anamorphic De-squeeze and 3D LUT support.

Atomos ‘Analysis’ mode

We understand how important it is to see what you’re shooting at all times. With the Shinobi’s Analysis feature you can simultaneously view what you are shooting, a waveform, histogram and vectorscope, ensuring complete control of your image. You can even switch between different waveform, histogram and vectorscope options on the fly with a single touch.

Continuous Power

With dual battery slots you can easily hot-swap batteries during your shoot and never be caught without power. The Shinobi was designed from the ground up to optimize battery usage while monitoring, as the dual slots combine to allow you to run all day. The dedicated locking DC jack input allows you to connect to mains power on-set, and can be used with the optional DC to DTAP cable with V-lock batteries to power the Shinobi 7 in the field.

Pro I/O and Cross conversion

With support for up to 4Kp60 via the HDMI inputs, the Shinobi 7 cements itself into any video workflow by enabling cross conversion between 4K HDMI and 3G-SDI signals. Output low-latency video signals, with the ability to bring HDMI cameras into SDI workflows or vice versa without the need for additional convertors.

Factory & User calibration

Factory calibrated for Rec.709, Shinobi 7 also supports user-calibration via the free Atomos Calibration software for ongoing calibration. Using the optional USB-A or USB-C to Serial cable and X-Rite’s i1DisplayPro/Plus, the calibration software easily automates the calibration of the screen to ensure accurate and reliable monitoring results.

What's in the box?

  • 1 x Atomos Shinobi 7" 4K HDMI/SDI Monitor
  • 1 x International DC power adaptor
  • 1 x Quickstart guide
  • Construction And Control
  • Body

    Polycarbonate ABS Plastic

    Cooling

    Actively controlled fan and heat sink

    Multi-function button

    Power / lock Screen

  • Display Size
  • 7"
  • Touch Screen
  • SuperAtom IPS panel (capacitive touch)
  • Video Signal Conversion
  • HDMI to SDI; SDI to HDMI
  • Supported Media
  • SD

    SD Card slot for LUTs / Firmware

    File System

    ExFAT

  • Video Input
  • HDMI

    1 x HDMI (2.0) 4Kp60

    SDI

    1 x 3G SDI - 2k p60

    Bit Depth

    8/10-bit Video

    Video Chroma Subsampling

    YCbCr 420 & 422

  • Video Output Play Out
  • HDMI

    1 x HDMI (2.0) 4Kp60

    SDI Play out

    1 x 3G SDI - 2Kp60

  • Remote Control
  • External Device Control

    Serial 2.5mm Jack

    USB-C to Serial (ATOMCAB018)

    USB

    Camera control for supported cameras in future firmware release

    RJ45

    Camera control for supported cameras in future firmware release

  • Audio In/Out
  • HDMI

    2ch 24-bit, input dependent

    SDI

    8ch 24-bit, input dependent

    Headphone out

    3.5mm 2ch.

  • Timecode Sync
  • Embedded

    HDMI and SDI

  • Resolution And Frame Rates
  • 4k DCI

    Monitor Only: DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

    4k UHD

    Monitor Only: UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

    2K DCI 2046 x 1080

    Monitor Only: DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p

    FHD 1920 x 1080 Progressive

    Monitor Only: HDMI and SDI : 23.98/24/25/29.9/30/50/59.94/60p

    FHD 1920 x 1080 Interlaced

    Monitor Only: 50/59.94/60i 1280 x 720p: 50/59.94/60p

  • Color Pipeline
  • Gamma

    Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log

    Gamut

    Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut

    3D LUT Display

    .Cube Format

    3D LUT Down Stream

    Loop out

    3DLUT 50/50

    Yes

    Monitoring Modes

    Native / HLG / PQ / 3D LUT

    HDR output Conversion

    HLG / PQ

  • On Screen Tools
  • MultiScope Analysis View

    Image, selectable Waveform, Histogram, Vectorscopes and Audio bars

    Waveform

    Yes, 3 size / Position

    Histogram

    Luma and RGB

    RGB parade

    Yes, 3 size / position

    Vector scope

    Yes, 2 size / position and zoom

    1 x Zoom

    Yes. 1:1 Pixel mapping for 4K

    2 x Zoom

    Yes

    4 x Zoom

    Yes

    Focus peaking

    Color selected / focus assist sharpening / threshold setting / color / mono / edges only

    False colour

    Yes

    Zebra

    Yes, adjustable

    Isolate color channel

    Blue only

    Cine Frame Guides

    2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3

    Social Frame guides

    9:16, 1:1, 191:1, 4:5

    Safe areas

    Action and Graphic

    Grid markers

    9 Grid

    Anamorphic desqueeze

    1.25x, 1.33x, 1.5x, 1.8x, 2x

    Display Flip

    Vertical and Horizontal selfie mode

  • Dimensions
  • 198 x 133 x 39 mm
  • Display
  • Resolution

    1920 x 1200

    PPI

    325

    Bit depth

    10-bit (8+2 FRC)

    Backlight Type

    Edge lit

    Brightness (cdm2 / nits)

    2200 +/- 10%

    Aspect ratio

    16:9 Image Display

    Color Gamut R

    ec.709

    Calibration support

    Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)

  • Weight
  • 577g / 1.04lb

  • Warranty
  • 1 year. Extended to 3 years on product registration
