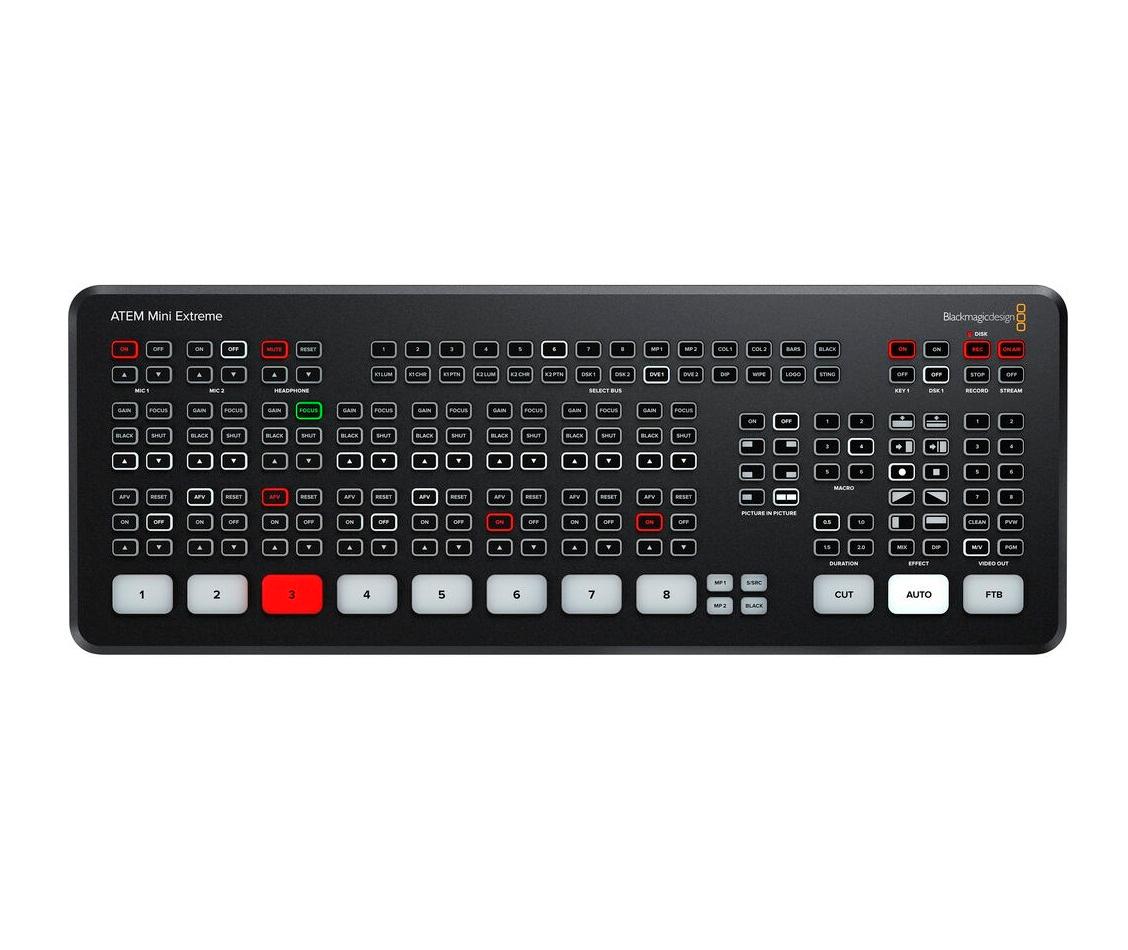

Product Highlights

  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out
  • 11-Input
$1,499.00 (inc GST)
Pre-order

PRE-ORDER

Once we receive your order, our friendly sales representative will be in touch with you as soon as we can to advise on the order status.

Quantity

Introducing lowcost, multi camera, live production with advanced broadcast features

ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ATEM Mini and you can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro model adds live streaming and recording to USB disks. ATEM Mini even has secret broadcast features built in so it can do high end work!

Basically the BlackMagic Design ATEM Mini Pro includes all the features found in ATEM Mini, plus more! You get recording direct to USB flash disks in H.264 plus direct streaming via the Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.

BD SWATEMMINIBPR DSN

Faster Video Production Plus Live Streaming

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!

BD SWATEMMINICEXT DSC 11

Self Contained Broadcast Quality Switcher

BD SWATEMMINIBPR DSN 6

ATEM Mini’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! On the ATEM Mini Pro and Extreme models you also get buttons for record and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.

BD SWATEMMINICEXT DSC 12

Five Great ATEM Mini Models!

BD SWATEMMINICEXT DSC 2

ATEM Mini

ATEM Mini is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

ATEM Mini Pro

This model includes all the features found in ATEM Mini, plus more! You get recording direct to USB flash disks in H.264 plus direct streaming via the Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.

ATEM Mini Extreme

This model is an advanced switcher for true professionals! You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players, and a multiview with up to 16 views!

Easy to Use and Fast to Learn!

There's never been a switcher that’s easier to use, as you simply press any of the input buttons labelled by number on the front panel to cut between video sources. You can choose between cut or effects transitions by selecting the cut or auto buttons. Unlike cut, the auto button tells ATEM Mini to use a video effect when switching inputs. You can select from exciting transitions such as dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. Add a DVE effect for picture in picture effects with customized picture positions and background. There are even "media players" which are a still store for titles and graphics that you can load via external software control.

Stream Live Interviews

BD SWATEMMINICEXT DSC 3

ATEM Mini is perfect for interviews as you can connect multiple cameras for close ups of the host, or interviewee, as well as wide shots plus ATEM Mini is so small the host can even switch in small studios. Plus ATEM Mini Pro and Extreme models support live streaming to YouTube, Facebook and more!

Business Presentations via Skype

Get dramatically better business presentations on Skype because ATEM Mini makes Skype see it as a webcam, so you can select it in the Skype settings! One camera can be a close up, another for a wide shot and a computer for PowerPoint presentations. The presenter can even use picture in picture!

Live Stream eSport Competitions

Live stream eSport competitions to Twitch by simply connecting multiple gaming consoles and a camera for a presenter. ATEM Mini operates up to 60 frames per second for fast gameplay and you can use picture in picture for commentary! You can even download titles direct from Photoshop!

Kickstarter and Investor Updates

Raise the professionalism of Kickstarter or investor presentations to fund your new product idea! Connect a camera for the presenter, a camera for a product close up and a computer for business plan slides. Then present live via Skype or Zoom and even post recordings for investors to view later!

Education and Training

ATEM Mini is perfect for educational videos! Setup is fast and easy, so you can travel to locations and record live multi camera video productions on a wide range of educational topics! Connect computers and cameras and use the ATEM Software Panel to load titles and perform video effects.

Connect up to 8 Independent Cameras

BD SWATEMMINICEXT DSC 8

With 4 or 8 HDMI inputs depending on the model, you can connect multiple cameras for different views. Video cameras with HDMI outputs are better quality than simple webcams as they use higher quality lenses and have better low light sensitivity. All video sources will re-sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work! Cameras with HDMI often support interchangeable lenses so you can change to wide angle lenses for wide shots and zoom lenses for close ups. Imagine taking advantage of the low light capability of better cameras for theater production, weddings, school concerts and music videos!

Outputs toHDMI Videoand USB Webcam!

To ensure maximum compatibility, all ATEM Mini models feature USB that operates as a simple webcam source. That means you can plug into a computer and get working with any video software! The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher. That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as Zoom, Microsoft Teams or Skype for a new way to do presentations with a professional multi camera broadcast quality style! The ATEM Mini webcam output also works with streaming software such as Open Broadcaster, XSplit Broadcaster and more!

Live Stream viaEthernet on ATEM Mini Pro and ATEM Mini Extreme models

ATEM Mini Pro and ATEM Mini Extreme models have a built in hardware streaming engine for live streaming via their ethernet connections. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with simpler settings. Just select the streaming service and enter the streaming key! There are palettes in ATEM Software Control for streaming setup, plus streaming status is also displayed in the multiview. Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can update the streaming profiles in an XML settings file to load new services.

Connect 5G or 4G Phones for Mobile Data

If you’re doing live production on location then the ATEM Mini Pro and Extreme models support connecting an Apple or Android phone to the USB port to use mobile data! It's also a great backup for the main Ethernet connection. Phone tethering works with the latest high speed 5G phones plus the more common 4G phones! The ATEM switcher will automatically detect when a phone is connected and switch its internet connection to use it, eliminating the need for changing settings. When connected, the phone will power from the USB port so it remains charged from the switcher. By using phone tethering and mobile data, ATEM Mini Pro and ATEM Mini Extreme become the perfect mobile production solutions!

Record Direct to USB Flash Disks with ATEM Mini Pro and Extreme models

The ATEM Mini Pro and Extreme models also support direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube or Vimeo. Recording to multiple disks is also supported via a USB hub or Blackmagic MultiDock, so when a disk fills recording can continue to a second disk for non-stop recording. Record settings and disk selection are set up in ATEM Software Control and there's a record status view in the built-in multiview. You can even trigger recording on connected Blackmagic Pocket Cinema Cameras!

What's in the box?

  • 1 x Blackmagic Design ATEM Mini Extreme
  • 1 x External 12V DC power supply with international socket adapters
  • Connection
  • Total Video Inputs
    8

    Total Outputs
    2

    Total Aux Outputs
    2

    Total Audio Inputs
    2 x 3.5mm stereo mini jack.

    Total Audio Outputs
    1 x 3.5mm stereo mini jack.

    Timecode Connection
    None

    HDMI Video Inputs
    8 x HDMI type A, 10-bit HD switchable.
    2 channel embedded audio.

    Video Input Re-Sync
    On all 8 HDMI inputs.

    Frame Rate and Format Converters
    On all 8 HDMI inputs.

    HDMI Program Outputs
    2

    Ethernet
    Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

    Computer Interface
    2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

  • Standard
  • HD Video Input Standards
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

    HD Video Output Standards
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

    Video Streaming Standards
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

    Ultra HD Video Standards
    None

    Video Sampling
    4:2:2 YUV

    Color Precision
    10-bit

    Color Space
    Rec 709

    HDMI Input Resolutions from Computers
    1280 x 720p 50Hz, 59.94Hz and 60Hz
    1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
    1920 x1080i 50 and 59.94Hz 60Hz

    Colorspace Conversion
    Hardware based real time.

  • Product Specifics
  • Upstream Keyers
    4

    Downstream Keyers
    2

    Advanced Chroma Keyers
    Up to 4

    Linear/Luma Keyers
    Up to 4

    Transition Keyer
    DVE only.

    Total Number of Layers
    9

    Pattern Generators
    5

    Color Generators
    2

    DVE with Borders and Drop Shadow

    2

    Interface
    Minimum monitor resolution of 1366 x 768.

  • Audio
  • Audio Mixer
    11 input x 2 channel mixer.
    Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
    Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

    Analog Input
    Unbalanced stereo

    Analog Input Delay
    Up to 8 frames

    Input Impedance
    1.8k

    Max Input Level
    +6dBV

    Mic Plug In Power
    Available on both 3.5mm mini jack connections.

  • Streaming
  • Direct Streaming
    ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

  • Recording
  • Direct Recording Video and Audio
    USB-C 3.1 Gen 1 expansion port can record directly to external media.

    Media Format
    Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

    Video Recording
    1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

  • Multi View Monitoring
  • Multi View Monitoring
    Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

    Multi View Video Standard
    HD

  • Media Player
  • Media Players
    2

    Channels
    Fill and key for each Media Player

    Media Pool Still Image Capacity
    20 with fill and key

    Media Pool Still Image Format
    PNG, TGA, BMP, GIF, JPEG and TIFF

  • Control
  • Control Panel
    Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

    Control Panel Connection
    Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

    Control Panel Compatibility
    Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

    Control Panel Included
    ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only.

  • Software
  • Software Updates
    Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

    Configuration
    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

  • Operating Systems
  • Mac 10.15 Catalina,Mac 11.1 Big Sur or later.Windows 10, 64-bit.
  • Power Requirements
  • Power Supply 1 x External 12V power supply / Power Usage: 36W
  • Environmental Specifications
  • Operating Temperature
    5° C to 40° C (41° - 104° F)

    Storage Temperature
    -10° to 60° C (14° to 140° F)

    Relative Humidity
    0% to 90% non-condensing

  • Warranty
  • 12 Month Limited Manufacturer's Warranty
