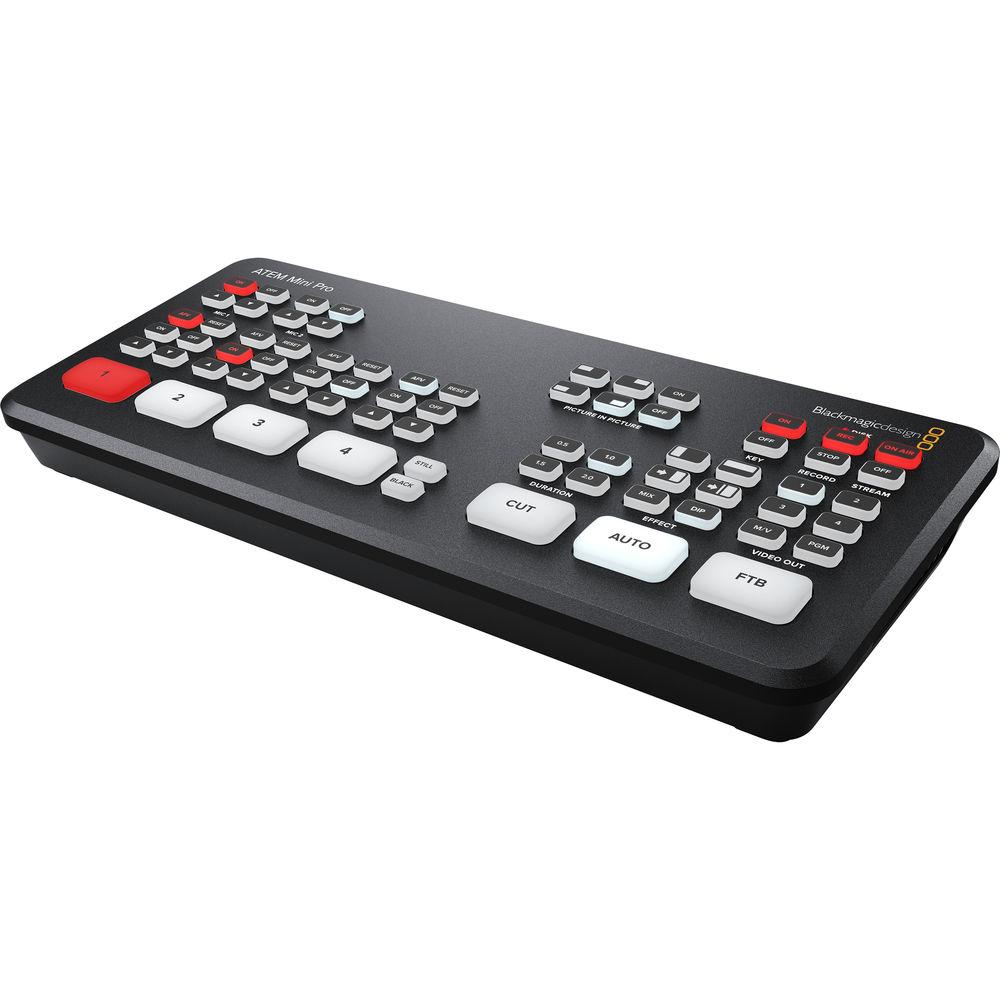

Blackmagic Design ATEM Mini Pro
Product Highlights
- 4-Channel Live Stream HDMI Switcher
- Control up to four BMPCC 6K/4K Cameras
- Live Tally
Introducing lowcost, multi camera, live production with advanced broadcast features
ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ATEM Mini and you can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro model adds live streaming and recording to USB disks. ATEM Mini even has secret broadcast features built in so it can do high end work!
Basically the BlackMagic Design ATEM Mini Pro includes all the features found in ATEM Mini, plus more! You get recording direct to USB flash disks in H.264 plus direct streaming via the Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
Faster Video Production Plus Live Streaming

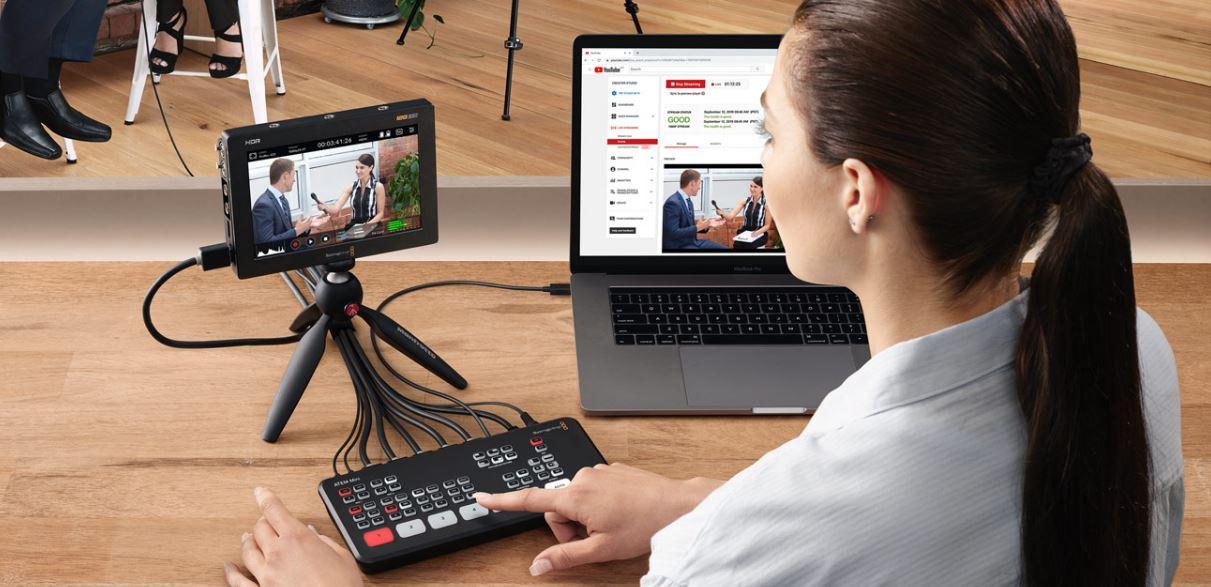

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!
Self Contained Broadcast Quality Switcher

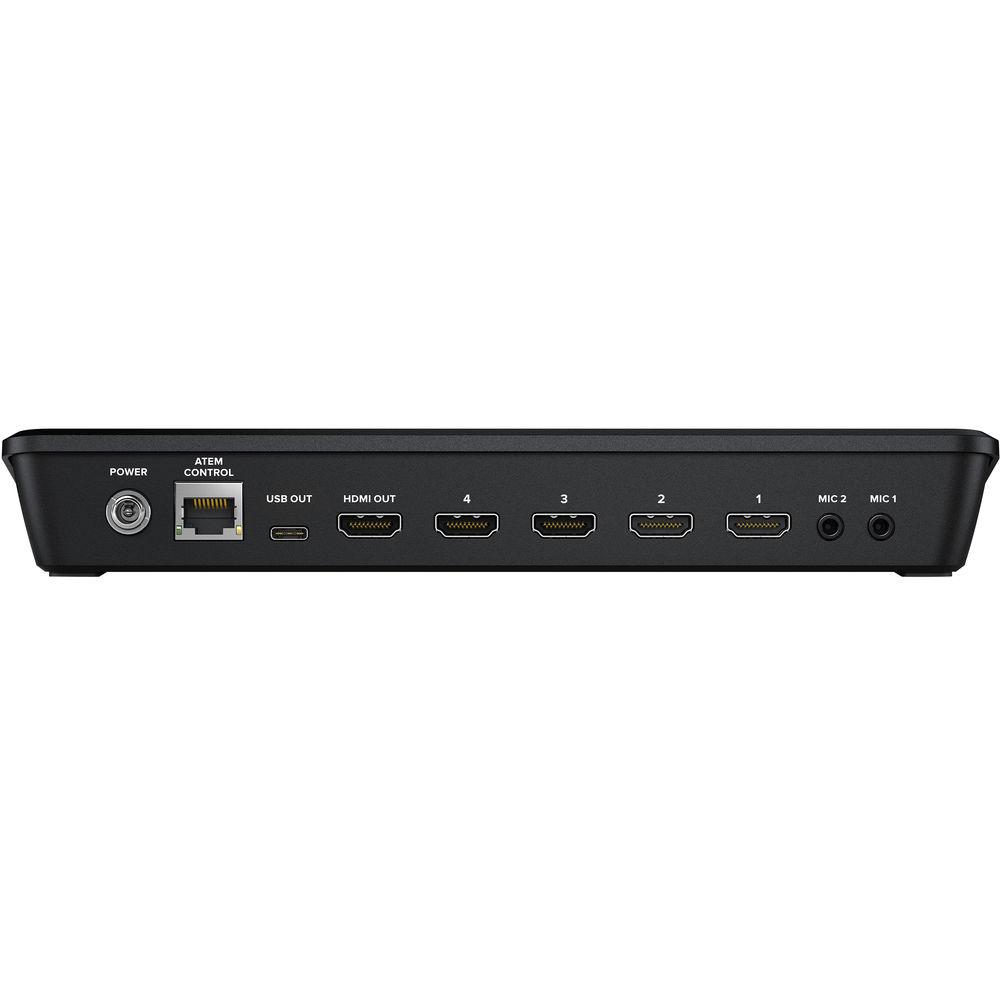

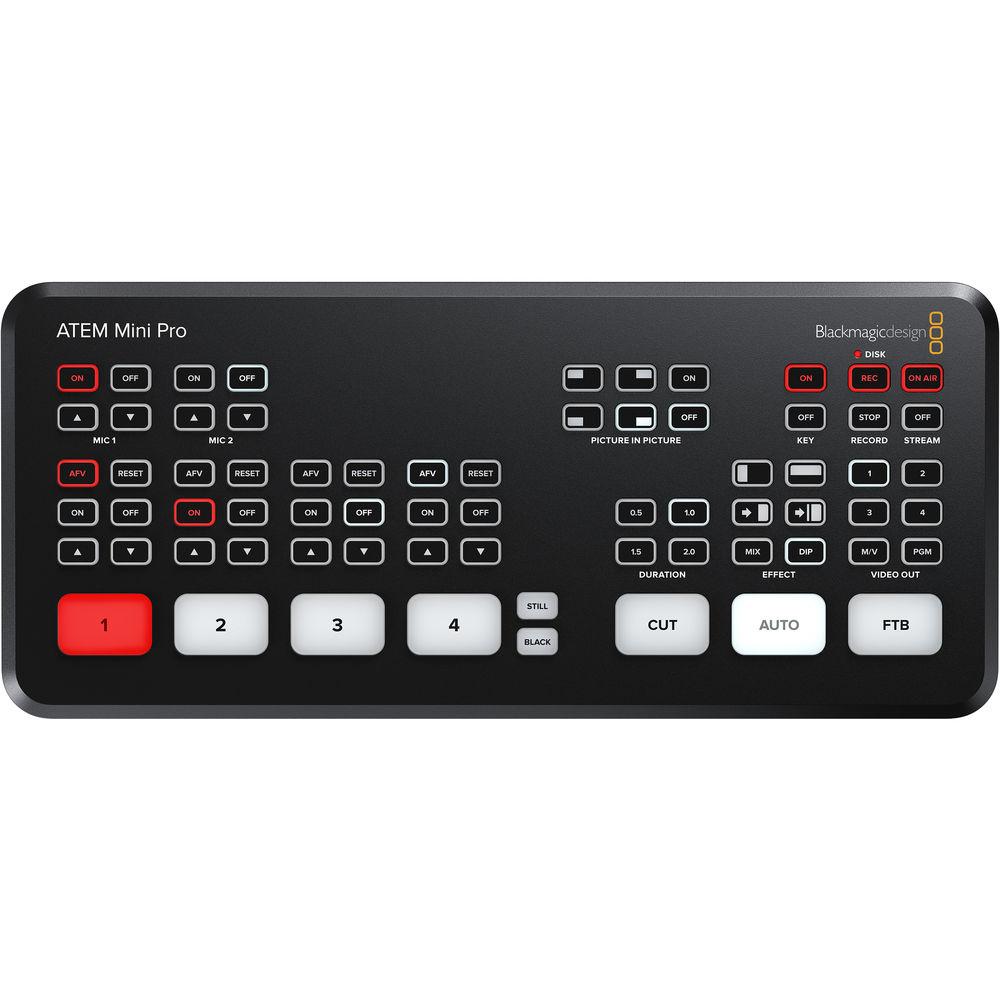

ATEM Mini Pro model you also get buttons for record and streaming control as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.
What's in the box?
- 1 x Blackmagic Design ATEM Mini Pro
- 1 x External 12V DC power supply with international socket adapters
- Connection
Total Video Inputs
4Total Outputs
2Total Aux Outputs
1Total Audio Inputs
2 x 3.5mm stereo mini jackTotal Audio Outputs
None, embedded audio onlyTimecode Connection
NoneHDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable
2 channel embedded audioVideo Input Re-Sync
On all 4 HDMI inputsFrame Rate and Format Converters
On all 4 HDMI inputsHDMI Program Outputs
1Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connectionComputer Interface
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection
- Standard
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Ultra HD Video Standards
NoneVideo Sampling
4:2:2 YUVColor Precision
10-bitColor Space
Rec 709HDMI Input Resolutions from Computers
1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
1920 x1080i 50 and 59.94Hz 60HzColorspace Conversion
Hardware based real time.Audio Mixer
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control
- Product Specifics
Upstream Keyers
1Downstream Keyers
1Advanced Chroma Keyers
1Linear/Luma Keyers
2Transition Keyer
DVE only.Total Number of Layers
5Pattern Generators
1Color Generators
2DVE with Borders and Drop Shadow
1Interface
Minimum monitor resolution of 1366 x 768.
- Streaming
Direct Streaming
ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP)
- Recording
Direct Recording
1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standardMedia Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
- Multi View Monitoring
Multi View Monitoring
1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status
- Media Player
Media Players
1
Channels
Fill and key for each Media PlayerMedia Pool Still Image Capacity
20 with fill and key
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF
- Control
Control Panel
Built in control panel. Software control panel with camera control included. Supports optional hardware panel.Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.Control Panel Compatibility
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.Control Panel Included
ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.
- Software
Software Updates
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
- Operating Systems
- Mac 10.14 MojaveMac 10.15 Catalina or laterWindows 10, 64-bit
- Power Requirements
- Power Supply 1 x External 12V power supply / Power Usage 36W
- Environmental Specifications
Operating Temperature
5° C to 40° C (41° - 104° F)Storage Temperature
-10° to 60° C (14° to 140° F)Relative Humidity
0% to 90% non-condensing
- Warranty
- 12 Month Limited Manufacturer's Warranty
