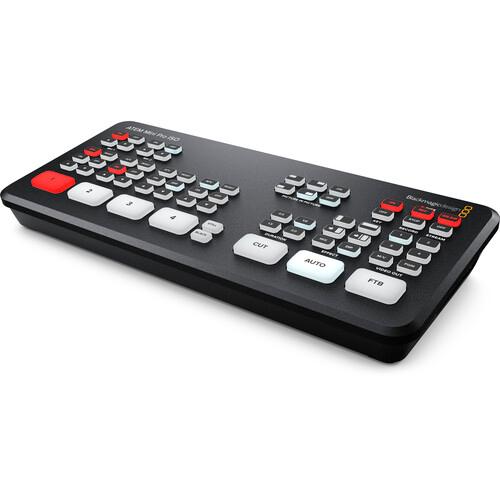

Blackmagic Design ATEM Mini Pro ISO
Introducing lowcost, multi camera, live production with advanced broadcast features
ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ATEM Mini and you can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro model adds live streaming and recording to USB disks. ATEM Mini even has secret broadcast features built in so it can do high end work!
Basically the BlackMagic Design ATEM Mini Pro includes all the features found in ATEM Mini, plus more! You get recording direct to USB flash disks in H.264 plus direct streaming via the Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.

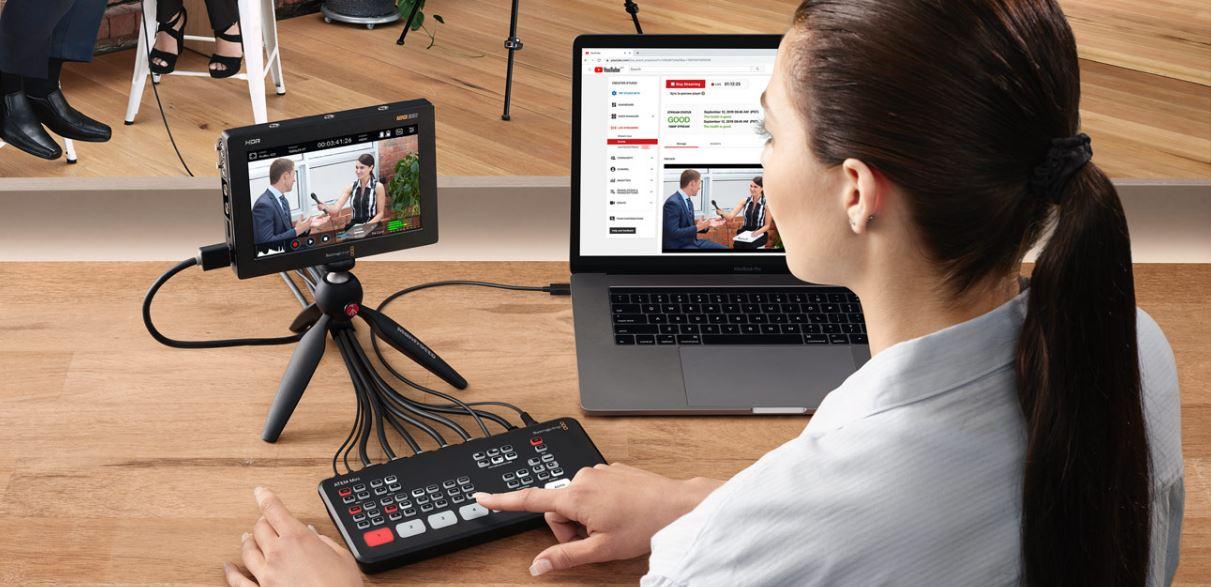

Faster Video ProductionPlus Live Streaming
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!

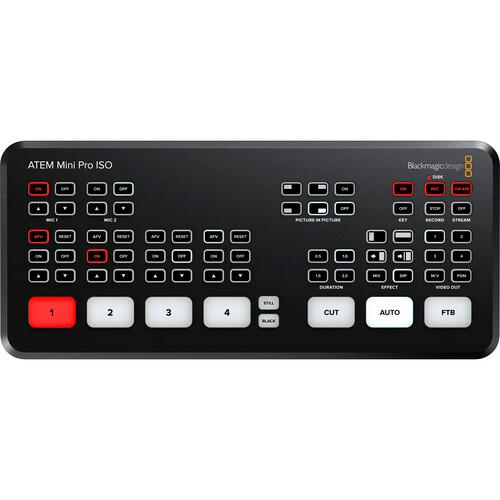

Self ContainedBroadcast Quality Switcher

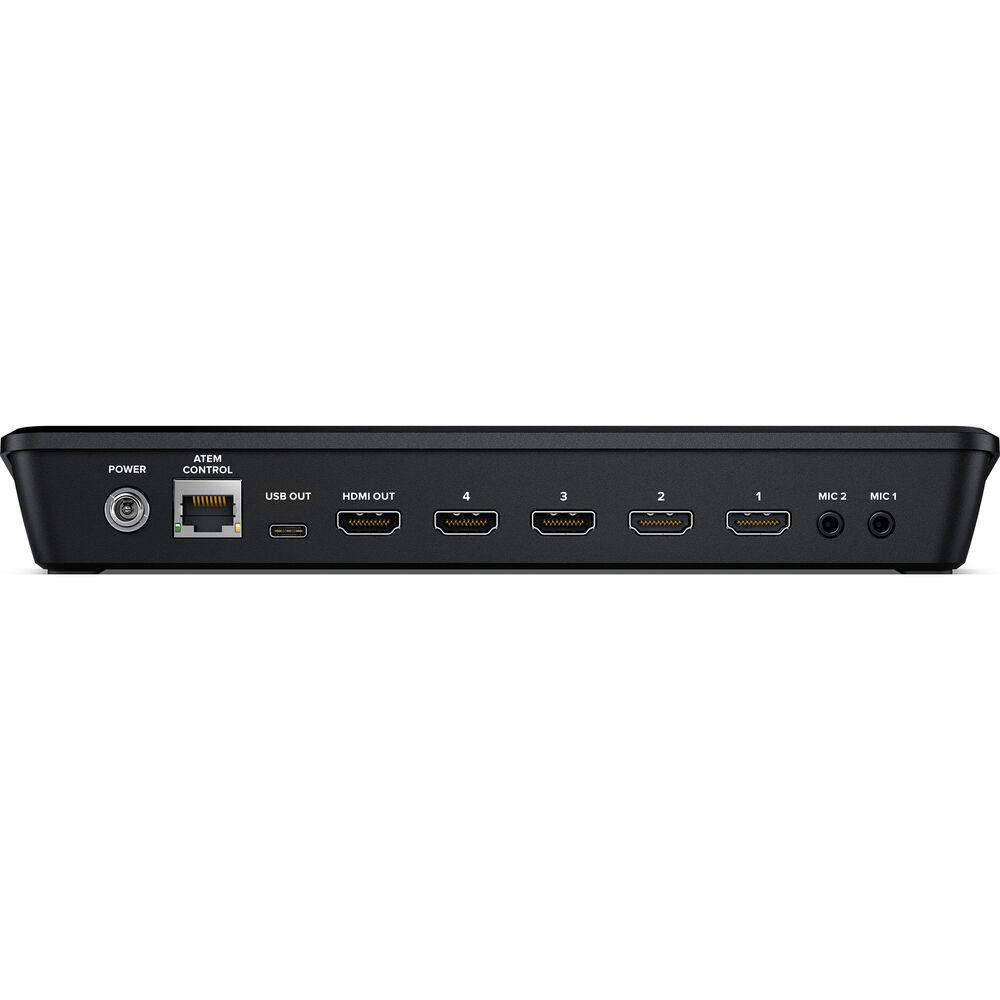

ATEM Mini Pro model you also get buttons for record and streaming control as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.
Three Great ATEM Mini Models!
What's in the box?
- 1 x Blackmagic Design ATEM Mini Pro ISO
- 1 x External 12V DC power supply with international socket adapters
Total Video Inputs
Total Aux Outputs
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
None, embedded audio only.
HDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 4 HDMI inputs.
Frame Rate and Format Converters
On all 4 HDMI inputs.
HDMI Program Outputs
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Product Specifics
Advanced Chroma Keyers
Total Number of Layers
DVE with Borders and Drop Shadow
Minimum monitor resolution of 1366 x 768.
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter
Direct Recording Video and Audio
USB-C 3.1 Gen 1 expansion port can record directly to external media.
4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files.
Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.
Program switching recorded as a DaVinci Resolve project .drp file.
Media FormatSupports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
- Multi View Monitoring
Multi View Monitoring
1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status
- Media Player
Fill and key for each Media Player.
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Control Panel Compatibilty
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Set via ATEM Software Control Panel
- Operating Systems
- Mac 10.14 MojaveMac 10.15 Catalina or laterWindows 10, 64-bit
- Power Requirements
- Power Supply 1 x External 12V power supply / Power Usage 36W
- Environmental Specifications
5° C to 40° C (41° - 104° F)
-10° to 60° C (14° to 140° F)
0% to 90% non-condensing
- 12 Month Limited Manufacturer's Warranty
