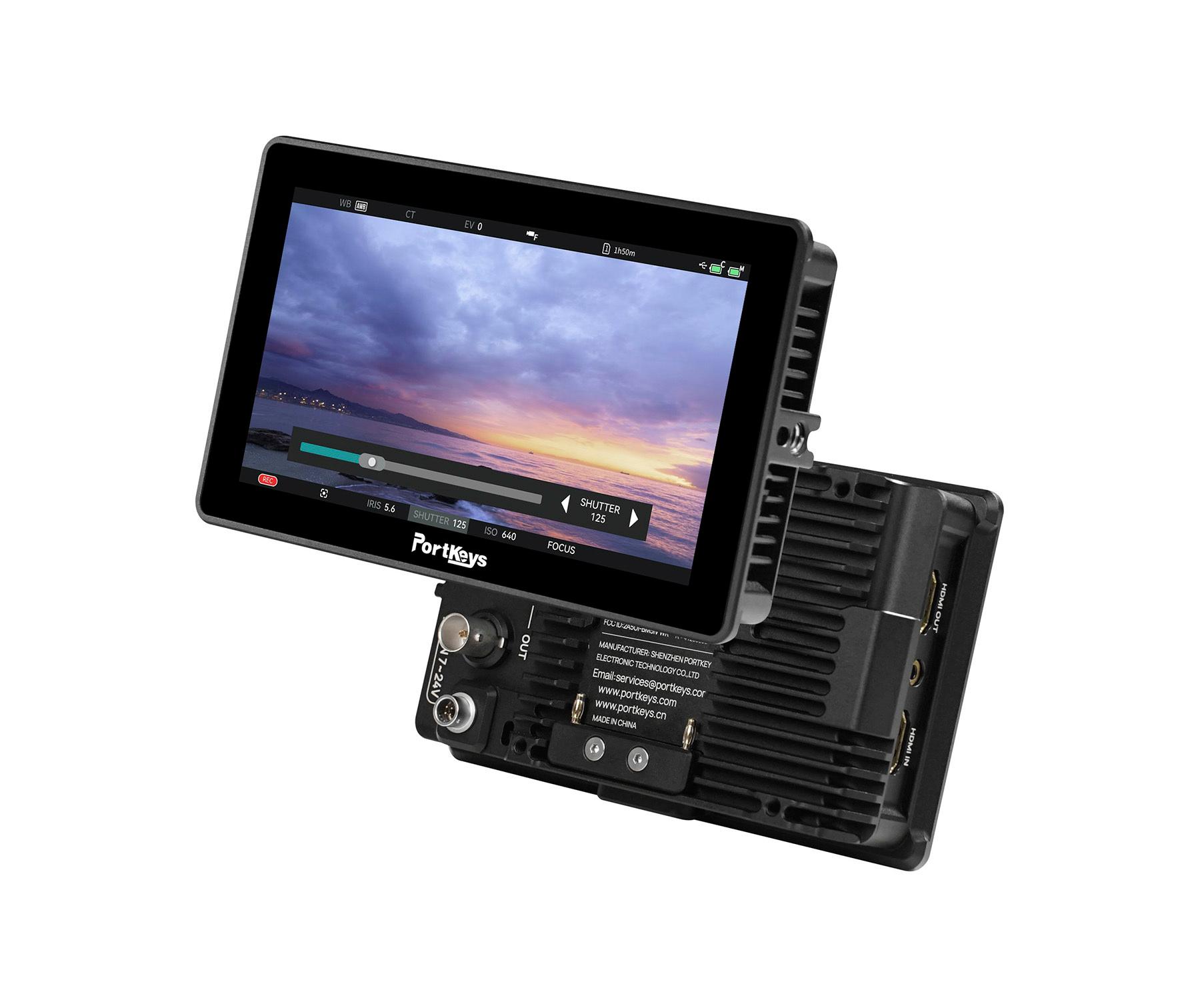

Portkeys BM5IV 5.5" HDMI/SDI Touchscreen Monitor
SKU: BM5 IV
Product Highlights
- 5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio
- Daylight-viewable with a maximum brightness of 2,000 nits
- 1 x 4K60P HDMI input, 1 x 3G-SDI input, 1 x 4K60P HDMI output, 1 x 3G-SDI output with cross-conversion
- Powered by CINENORM OS, which supports up to 7 custom pages
- Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color
- 3D LUT monitoring and 3D LUT SDI output capabilities
- Split-screen monitoring capabilities with multiple viewing modes, including PBP, PIP, and H2V
- Factory color-calibrated, and the possibility for users to create a 3D calibration LUT with an X-Rite color probe
- Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2
- TILTA Nucleus N/M wireless follow focus wired control
- Built-in Sony NP-F style battery plate
- 4-pin 7.4V-24V power inputs for external power (D-Tap cable included)
- Lightweight and rugged aluminum housing: only 358g/12.62oz
$689.00 (inc GST)
Regular price: $712.00
Regular price: $712.00
PwP
Purchase the following items and get LITH LT-F970 LI-ION DV (LT-F970) at $59 (UP$75)
- Atomos Ninja Phone
- Atomos Shinobi II 5.2" 4K HDMI Monitor
- Atomos Shogun 7" Monitor-Recorder
- Atomos Shogun Ultra 7" Monitor-Recorder
- Portkeys BM5IV 5.5" HDMI/SDI Touchscreen Monitor
- Portkeys BM5IV WR 5.5" HDMI/SDI Touchscreen Monitor with Camera Control
- Portkeys LH5P II 5.5" Touchscreen Monitor with Camera Control
- Portkeys LH7P 7" 1000nit HDMI Touchscreen Monitor with Wireless Control
- Portkeys PT6 5.2" 4K HDMI Touchscreen Monitor
- Atomos Shinobi GO
Related Products
What's in the box?
- 1 x Portkeys BM5IV Monitor
- 1 x Safety Box
- 1 x D-Tap to 4-pin Aviation Connector Power Cable
- 1 x Micro USB Flash Stick
- Technical Data
Screen size
5.5″
Material
Aluminum alloy
Brightness
2000 nits
Dimensions
145.4×91.4×39.6mm
Input voltage
7~24V
Resolution
1920×1080
Color depth
10bit (8+2FRC)
Audio output
3.5mm Headphone jack
Viewing angle
178°H/178°V
Weight
350g
Maximum power
16W
Contrast ratio
1000:1
Fan
Yes
Compatible battery model
NP-F970/F960/F750/F550
Camera control interface
Remote
Power input
4-pin aviation connector
Signal output
3G SDI, HDMI
Signal input
3G SDI, HDMI
Operating system
CINENORM OS
OSD Languages
English / Français / Español
TILTA nucleus control interface
UART
Signal conversion
HDMI/SDI Conversion
USB-A
Upgrade firmware / Load LUT
