SmallHD Cine 7 Sony VENICE and VENICE 2 Kit
Product Highlights
- 7" 1920 x 1200 Touchscreen Display
- Sony VENICE Camera Control Kit
- 1800 cd/m², 10-bit IPS LCD Panel
- 8GB SD Card, Sun Hood, Ethernet Cable
- L-Series Battery Plate, PageOS 4
- Supports up to 1920 x 1080p60 Input
- 1 x HDMI Input, 1 x HDMI Output
- 1 x 3G-SDI Input, 1 x 3G-SDI Output
- Waveform / RGB Parade / Vectorscope
- Card Slot for Image Capture/LUTs/Upgrade
This kit comes with a Cine 7 Monitor, Sony VENICE and VENICE 2 Camera Control Software License, and Control Cable (Ethernet). Unlock access to Sony VENICE and VENICE 2 with this software license for Cine 7 monitors. Tap into the internal camera settings with intuitive touchscreen configuration tools.

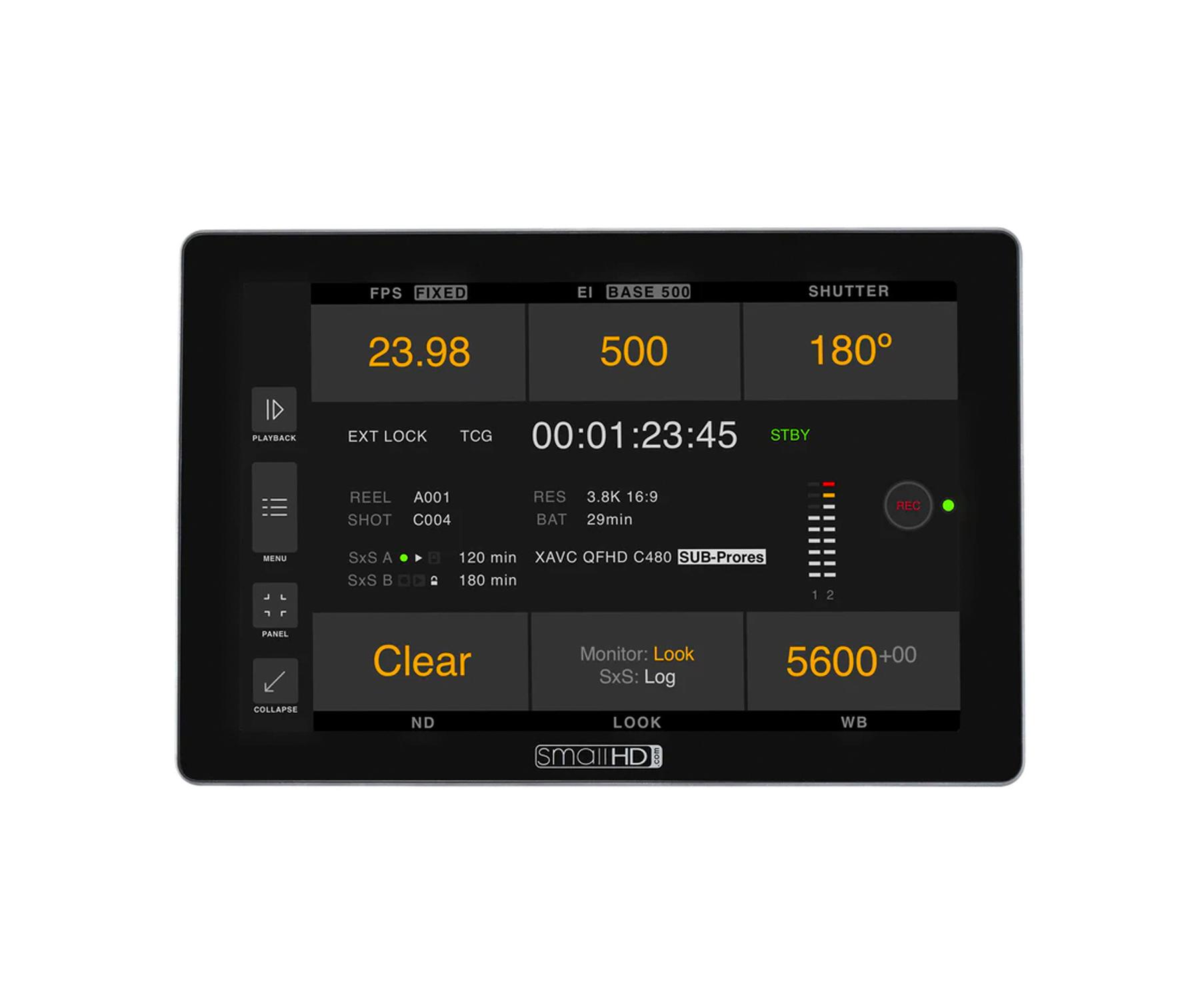

Camera Control Access
Start/Stop Record, ND Filter Selection, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Partial LUT Configuration, Clip Playback
Non-Interactive Camera Information
Timecode, Media Status, FPS, Resolution, Battery Info, Recording Format
The Industry Standard 7”
Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color-accurate wide-gamut display, cinema camera control, as well as Teradek RT and Bolt integration.
Disclaimer: Once any camera control is registered in your SmallHD monitor, it can not be removed or transferred to a different monitor

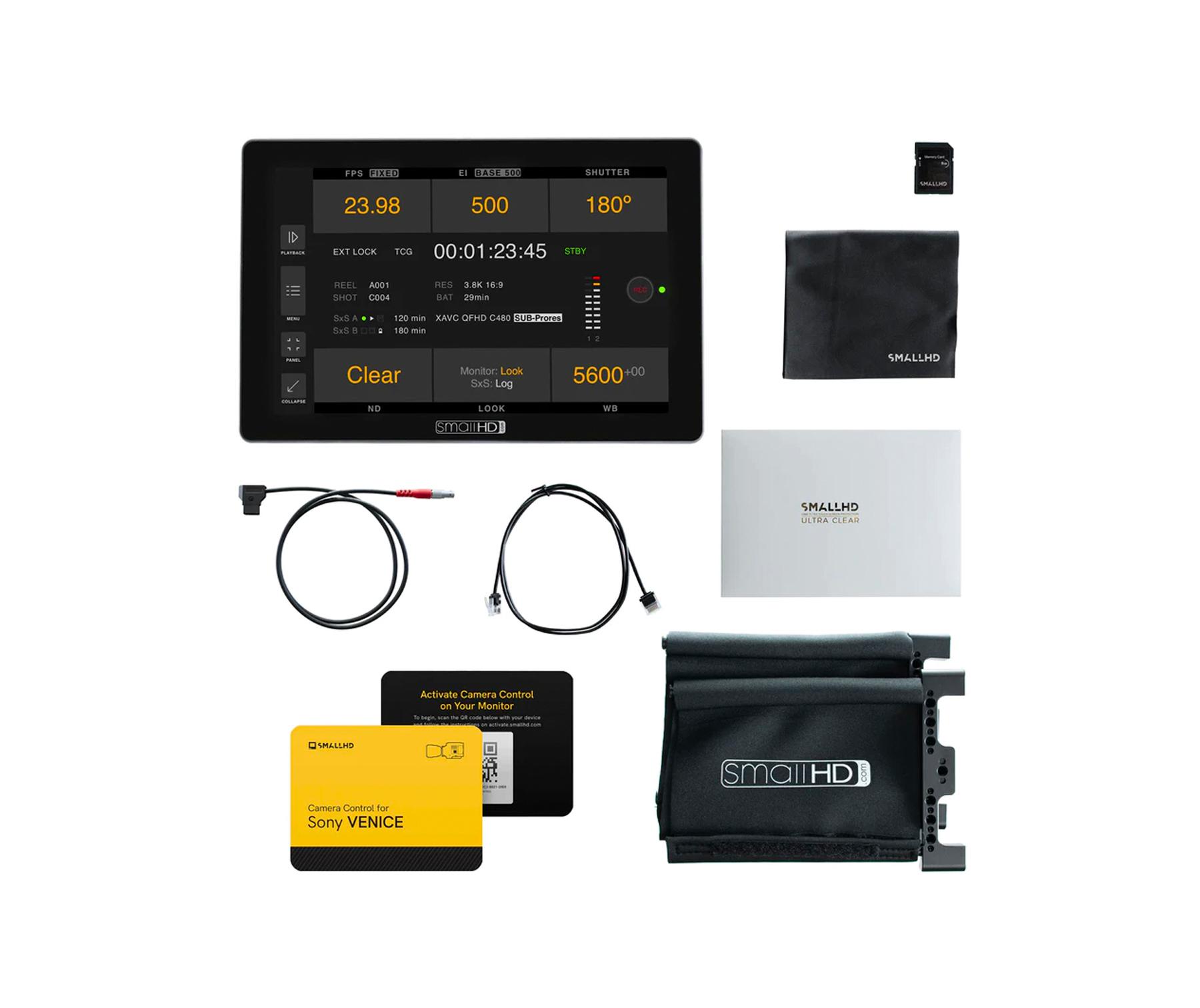

What's in the box?
- 1 x Cine 7

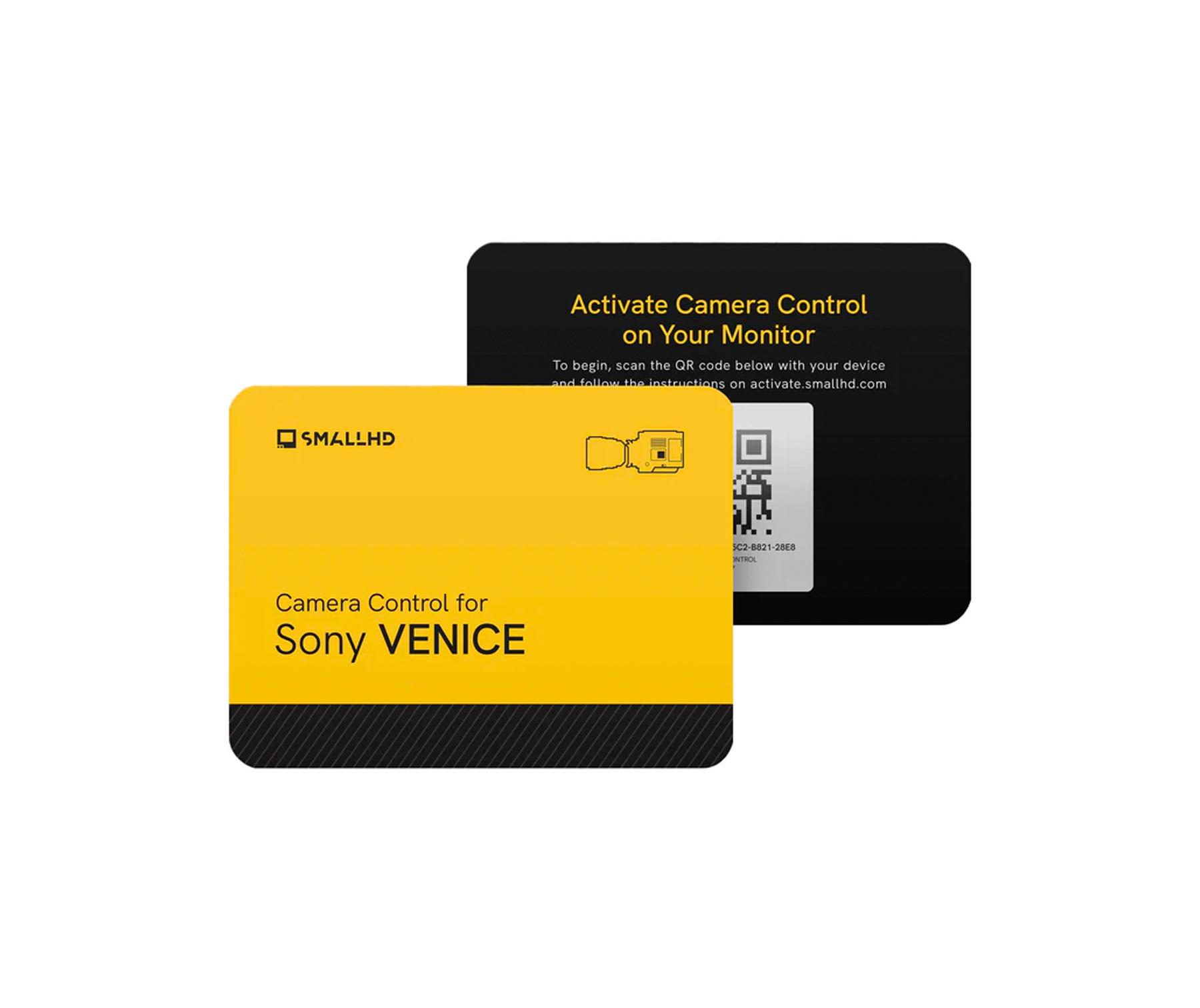

- 1 x Camera Control for Sony VENICE, VENICE 2 (Software Only)
- 1 x Sony L Series Battery Bracket (Smart 7 Monitor Series)
- 1 x UltraClear Screen Protector (Smart 7 Monitor Series)
- 1 x 8GB SD Card (ACC-SD-CARD-8GB-C10)
- 1 x SmallHD Cleaning Cloth
- 1 x Smart 7 Sunhood
- 1 x D-Tap to 2pin Power Cable 36in

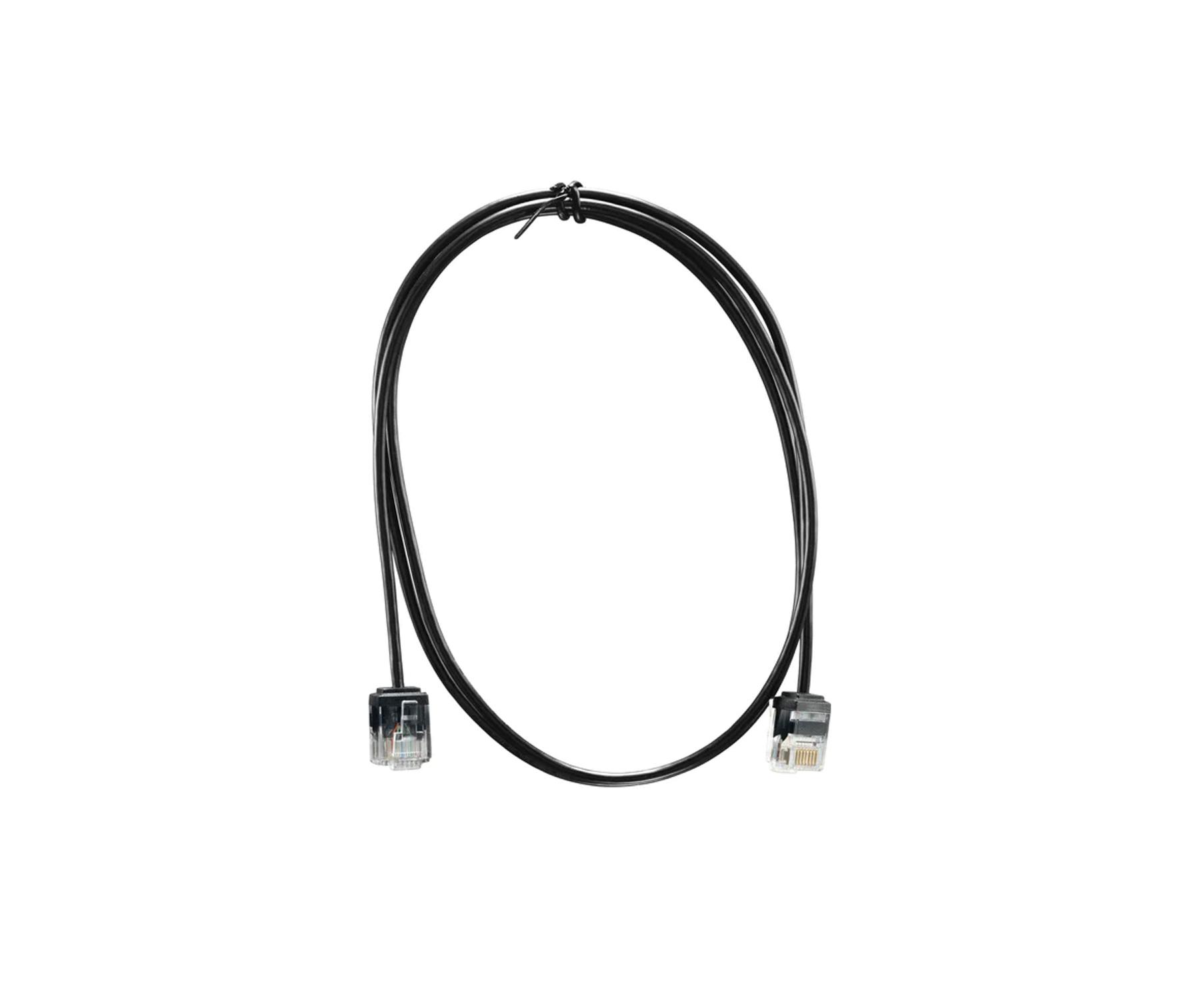

- 1 x Slim Ethernet Cable - 36in
- Environmental
Item Weight (oz)
20
Package Weight (oz)
32
Height (in)
4.67
Width (in)
1.32
Length/Depth (in)
7.09
Compliance
FCC, IC, CE, RoHS
Operating Temperature
30F to 100F
Storage Temperature
0F to 120F
Mount Points
Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction
Anodized aluminum chassis
- Display
Panel Type
IPS LCD
Diagonal Size
7.02
Resolution
1920x1200
Pixel Density
322 ppi
Aspect Ratio
16:9
Active Area
5.95 x 3.72
Max Brightness
1800 NITs
Contrast
1000:1
Gamut
100% DCI-P3 Coverage
Color Depth
10-bit Processing (8-bit panel)
Viewing Angle
160
Backlight Type
LED
Adjustable Backlight
Yes
- Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
- Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
- Connector Type
SDI
1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI
1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio
1x 3.5mm 3-pin Stereo Headphone Jack
Power In
2-pin Locking
USB
1x USB 2.0 Micro-B receptacle
- Controls
Primary
Touch Screen
Record Capture
Image Capture Tool
- Power
Connector
LEMO
Voltage
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply
Recommend DC 12~15V at ~2.5 amp or greater
Battery Types
L-Series (included), V Mount, Gold Mount
Overload Protection
DC input: Reverse polarity
Battery Chemistry
Li-ion
Battery Charging Time
Monitor does not support the charging of batteries
- Software
Pixel Zoom
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides
Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate
Automatic or Manual Control
Image Flip
Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
User Adjustable Color Style and Intensity
Peaking
User Adjustable Intensity
False Color
Rainbow, Arri Style, Custom with up to 10 nodes
Zebra
Dual-User Configurable
Waveform
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Fully User Customizable
Histogram
Luma & RGB Style
Image Capture
Yes
Custom LUTS
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
With Opacity Slider and Blink Setting
Audio Meters
HDMI & SDI up to 8 channel
