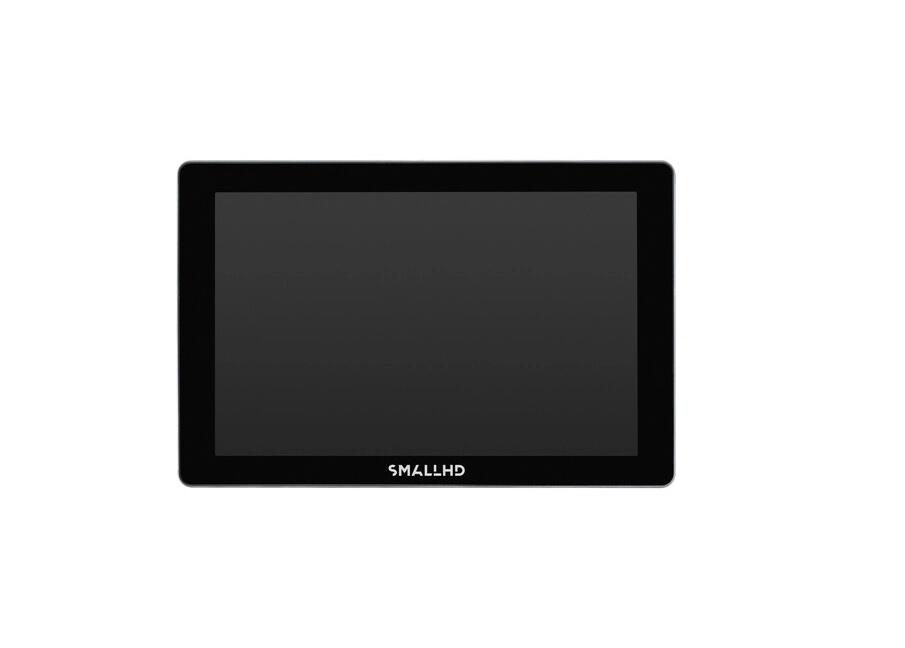

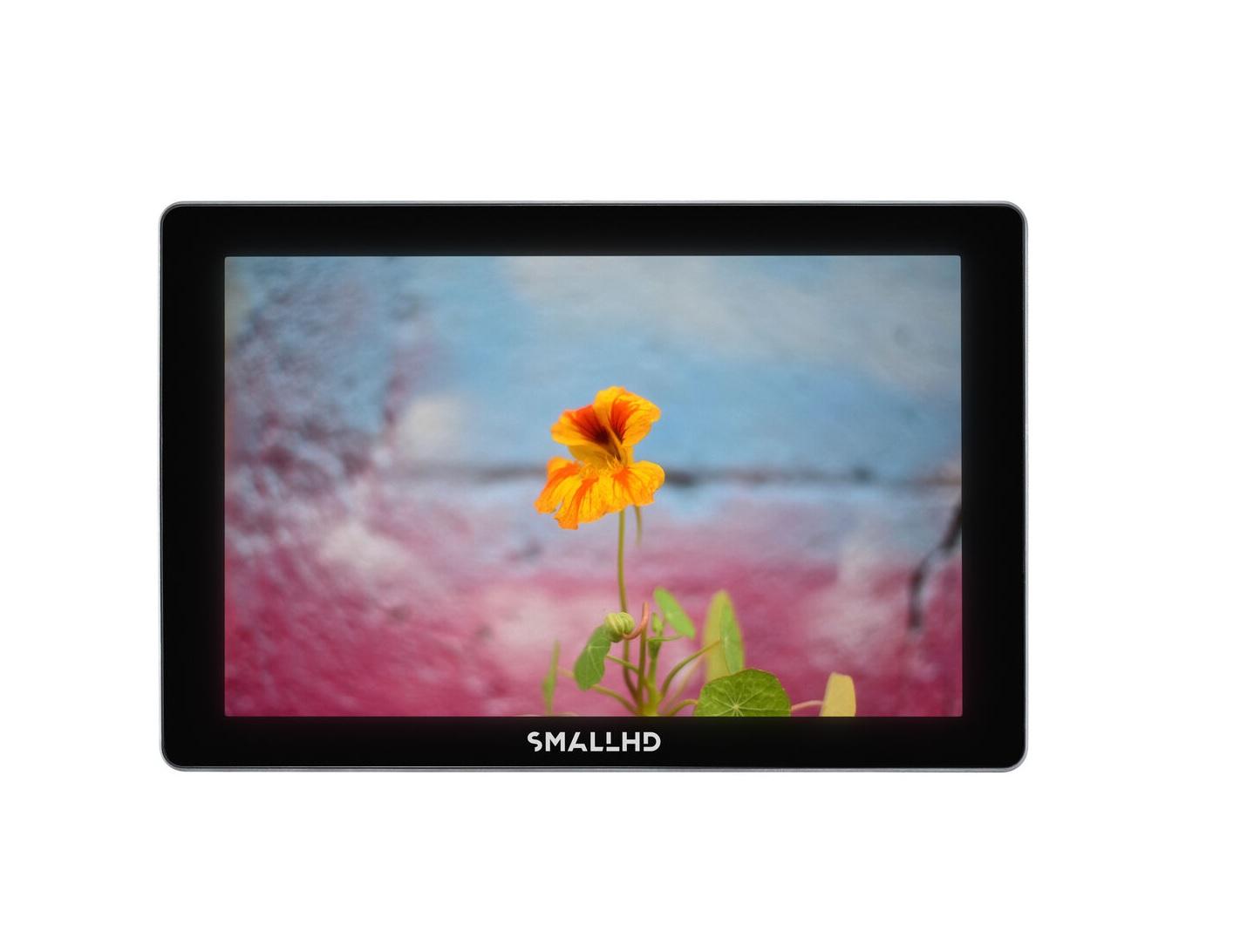

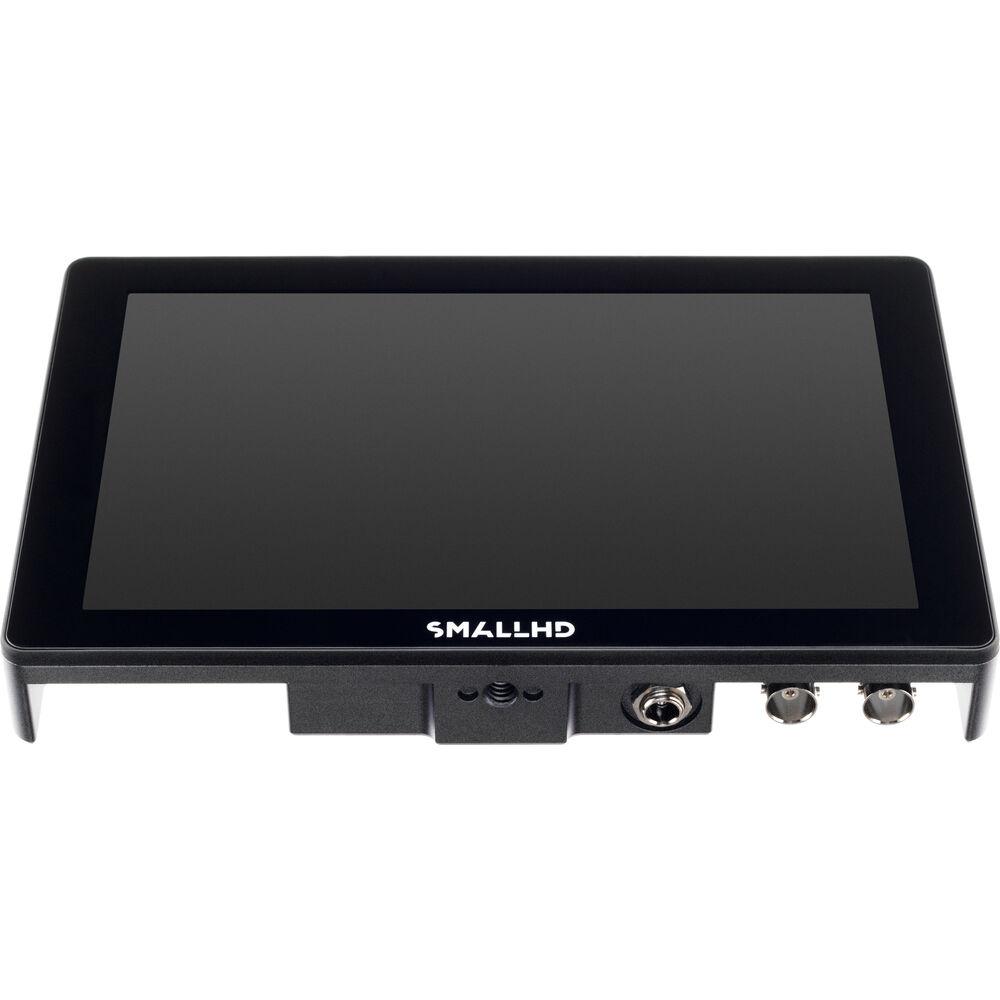

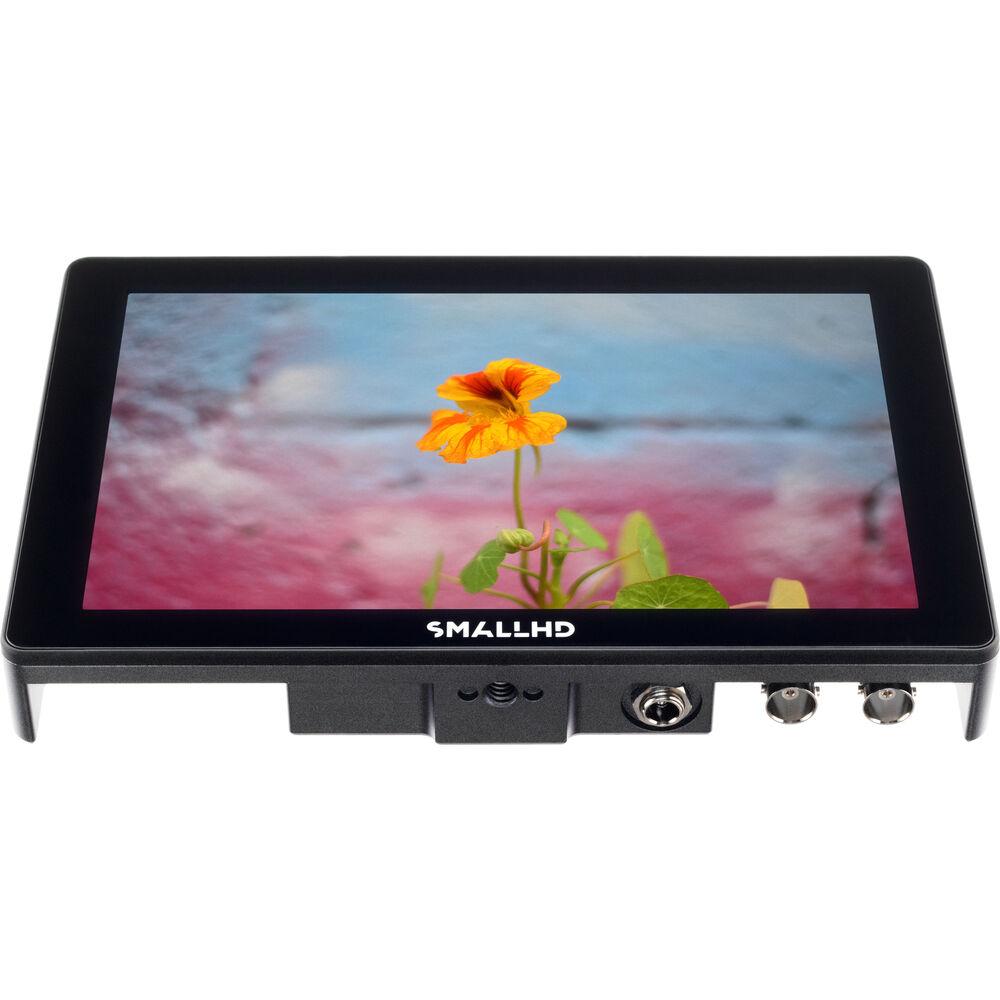

SmallHD Indie 7 Touchscreen On-Camera Monitor

SKU: SHD MON-INDIE-7

Product Highlights

  • 7-inch Smart Monitor with daylight visibility
  • A user-customizable touchscreen UI powered by PageOS 4 software
  • Compatible with optional Camera Control for RED® DSMC2® & KOMODO™

$1,710.00 (inc GST)

Quantity

Indie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. This hyperresponsive touchscreen monitor is powered by the user-customizable PageOS 4 software, with a host of internal imaging assistance tools such as Focus Assist, Exposure Assist, and more. Indie 7 provides a personalized viewing experience designed to improve your workflow. Backed by 1000nits of brightness for daylight visibility. Housed in a lightweight, rugged, and thin aluminum chassis designed for heavy production use.

Upgrade to Camera Control for RED® DSMC2® & KOMODO™*
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED® DSMC2® & KOMODO™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

PageOS 4 Software Toolset
With the power of PageOS 4 software, utilize all of the dependable SmallHD internal toolset features such as customizable frame guides, Focus Assist, Exposure Assist, high-resolution 3D LUT overlays (via Full SD Card slot), histogram, vectorscope, waveform, and Teradek RT Overlays. Learn more about PagesOS 4

Responsive Touchscreen with Daylight Visibility

  • Full HD 7-inch IPS LCD with 1920x1200 resolution
  • 10-bit color processing in 100% Rec 709
  • 1000nits of brightness
  • 4K & HDR compatible
  • 160-degree viewing angle

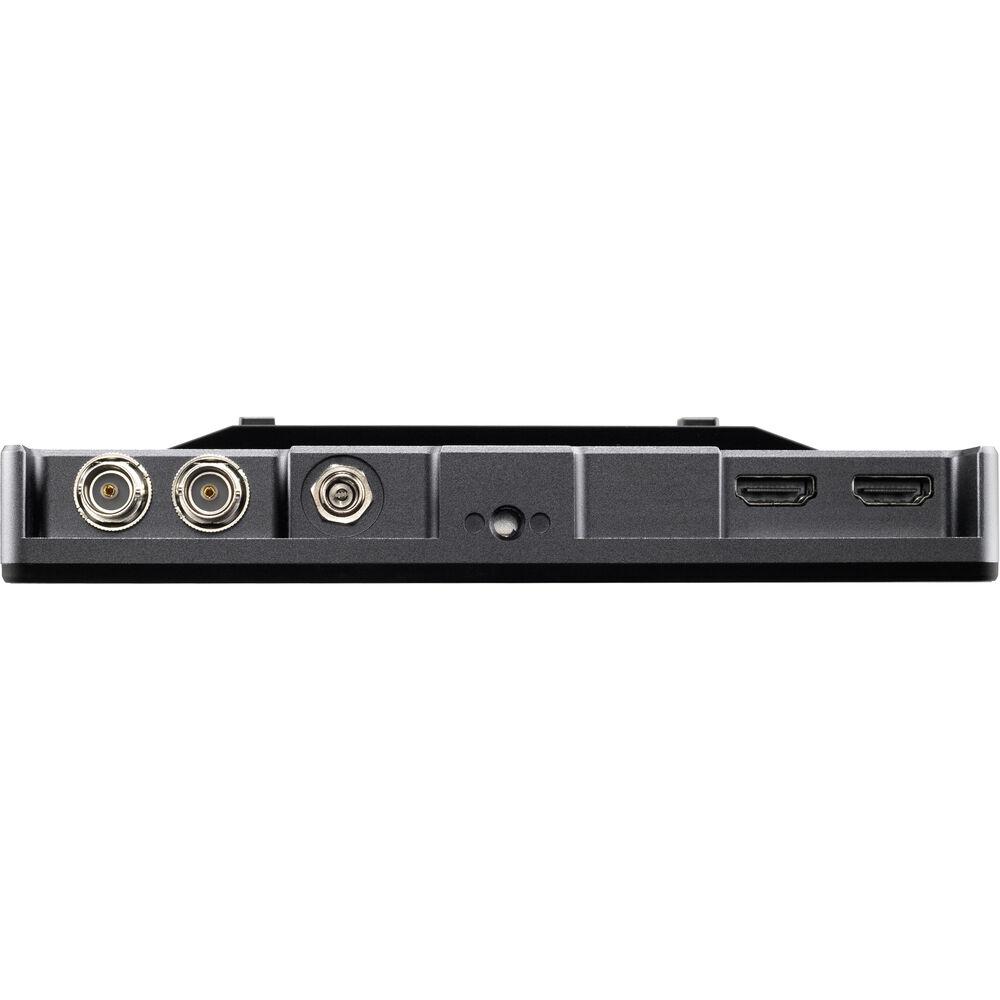

Versatile I/O

  • Input:     1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, 1x Micro USB
  • Output:  1x 3G-SDI, 1x HDMI 2.0

Power Input Options

  • 2mm barrel connector port

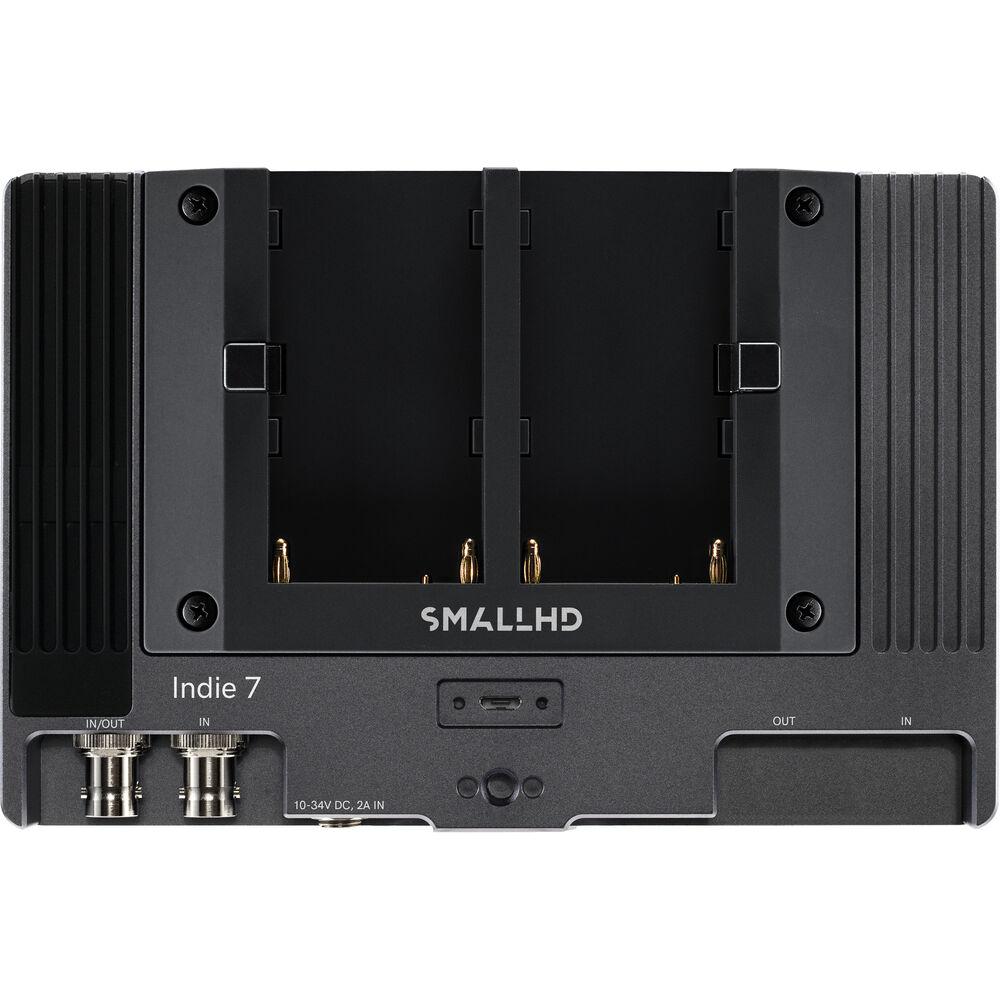

  • Included Sony L-Series dual battery bracket
  • Optional Gold Mount & V-Mount battery plate attachments (sold separately)

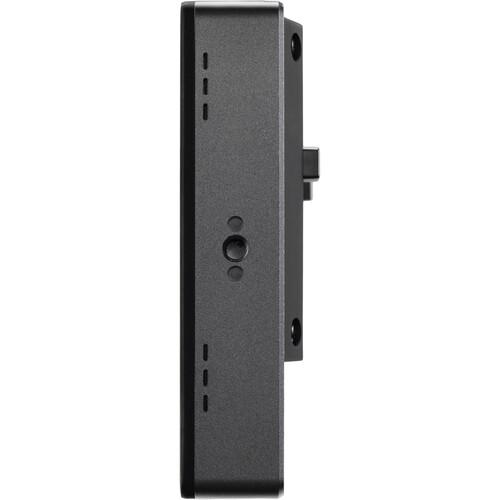

Rugged Lightweight Housing

  • Anodized aluminum chassis
  • Featherlight weight: 1.1lbs (.53kg)
  • Ultrathin body width: 1.2in (3.35cm)

What's in the box?

  • 1 x SmallHD Indie 7 Touchscreen On-Camera Monitor
  • Environmental
  • Item Weight (oz)
    18.9

    Package Weight (oz)
    26

    Height (in)
    4.67

    Width (in)
    1.32

    Length/Depth (in)
    7.09

    Compliance
    FCC, IC, CE

  • Display
  • Panel Type
    IPS LCD Touchscreen

    Diagonal Size
    7.02

    Resolution
    1920x1200

    Pixel Density
    323

    Aspect Ratio
    0.6736111111111112

    Active Area
    5.95 x 3.72

    Brightness
    1000 Nits

    Contrast
    1000:1

    Gamut
    100% rec709

    Color Depth
    10-bit Processing (8-bit panel)

    Viewing Angle
    160

    Backlight Type
    LED

    Adjustable Backlight
    Yes

    Brightness
    1000 Nits

    Color
    100% rec709

  • Signals Editors
  • Input Signal

    3G-SDI Input Types
    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88

  • Connector Type Editors
  • SDI
    1x BNC 3G input and 1x BNC 3G selectable input/output

    HDMI
    1 input and 1 output: HDMI Type-D Receptacles (full size)

    Audio
    1x 3.5mm 3-pin Stereo Headphone Jack

    Power In
    Barrel, 2.0mm ID

  • Controls
  • Primary
    Touch Screen

    Record Capture
    Image Capture Tool

  • Power
  • Connector
    Barrel, 2.0mm ID

  • Software
  • Pixel Zoom
    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

    Frame Guides
    Preset Aspect Ratios & Customizable

    DSLR Scale
    Canon 5DMkii & Canon 7D

    Custom Scale
    Yes (Underscan Only)

    Anamorphic De-Squeeze
    0.75x, 1.33x, 1.5x, 1.66x, 2.0x

  • Camera Control
  • Camera Control Compatibility
    RED KOMODO RED DSMC2

  • Warranty
  • 1 Year
