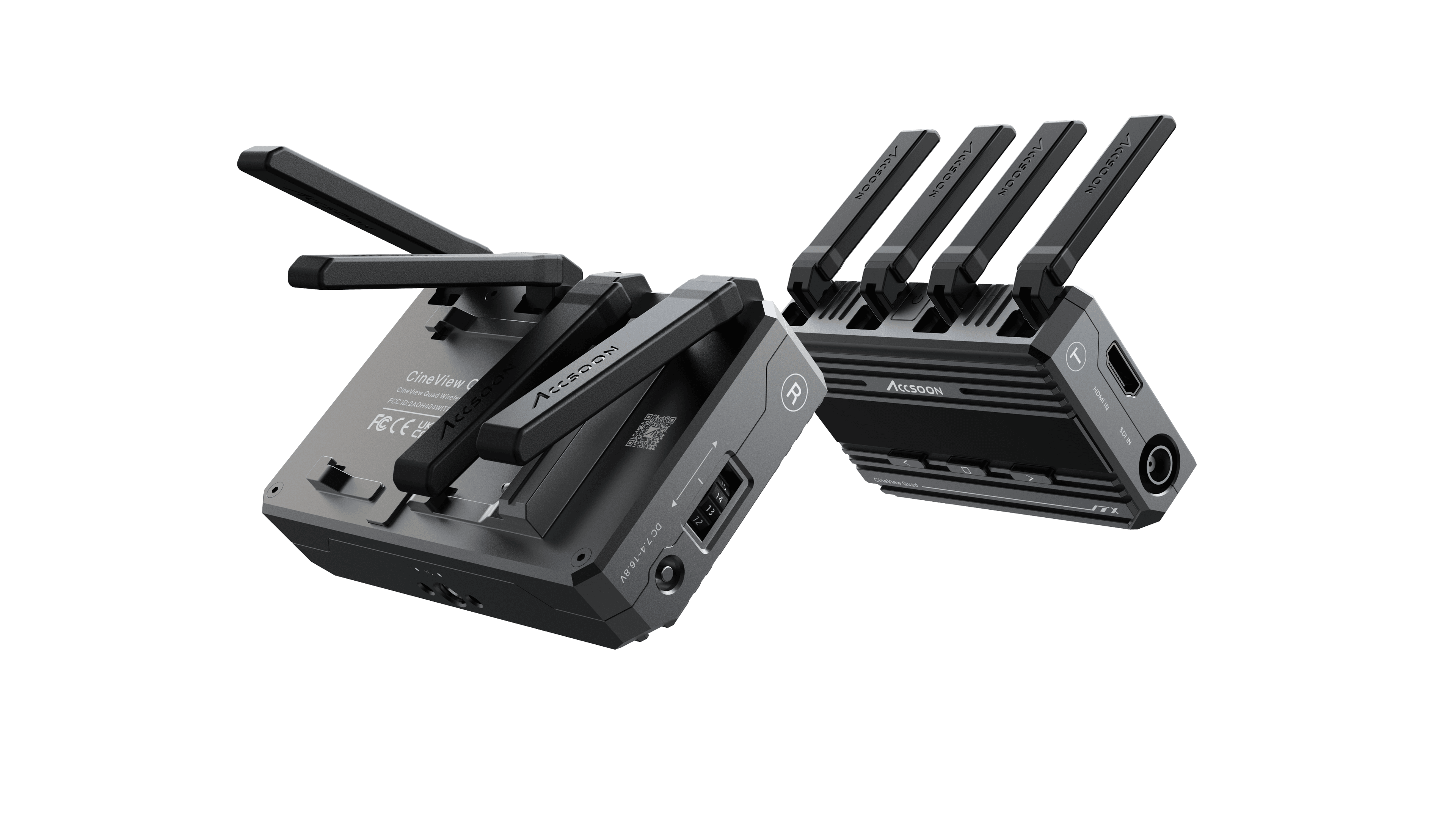

Accsoon CineView Quad Wireless Video Transmission System

SKU: ACS WIT04-QS

Product Highlights

  • Receiver for CineView Quad
  • SDI and HDMI Outputs
  • Power Supply with NP-F Series Battery and DC Input
  • Noise-Free Fanless Design
  • Aerospace GRade Aluminium Alloy
  • 1.3 inch OLED Display
$567.00 (inc GST)
Regular price: $711.00

Quantity

Quad EN

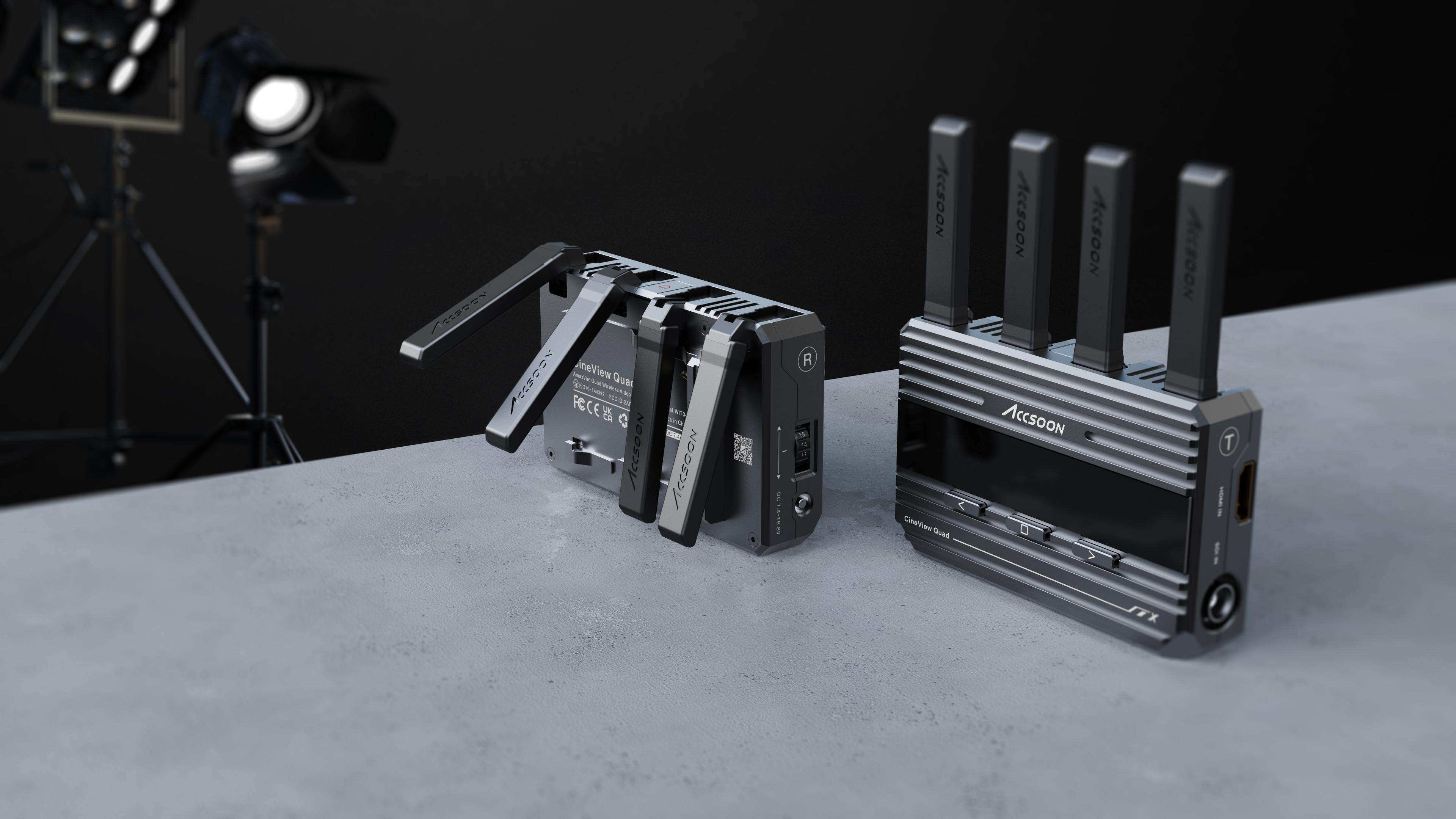

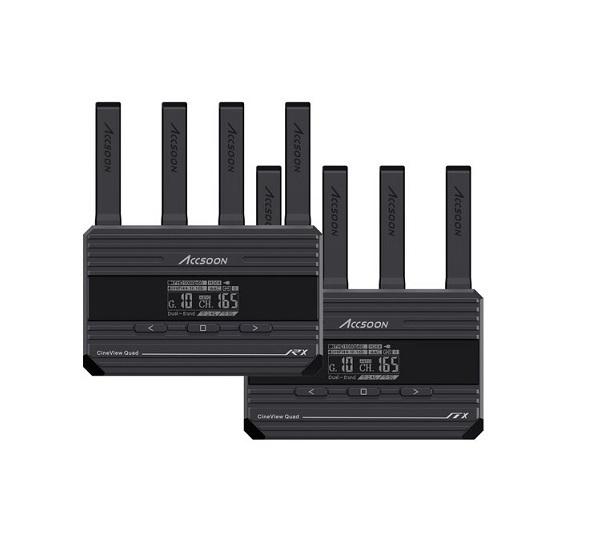

What's in the box?

  • 1 x CineView Quad TX
  • 1 x CineView Quad RX

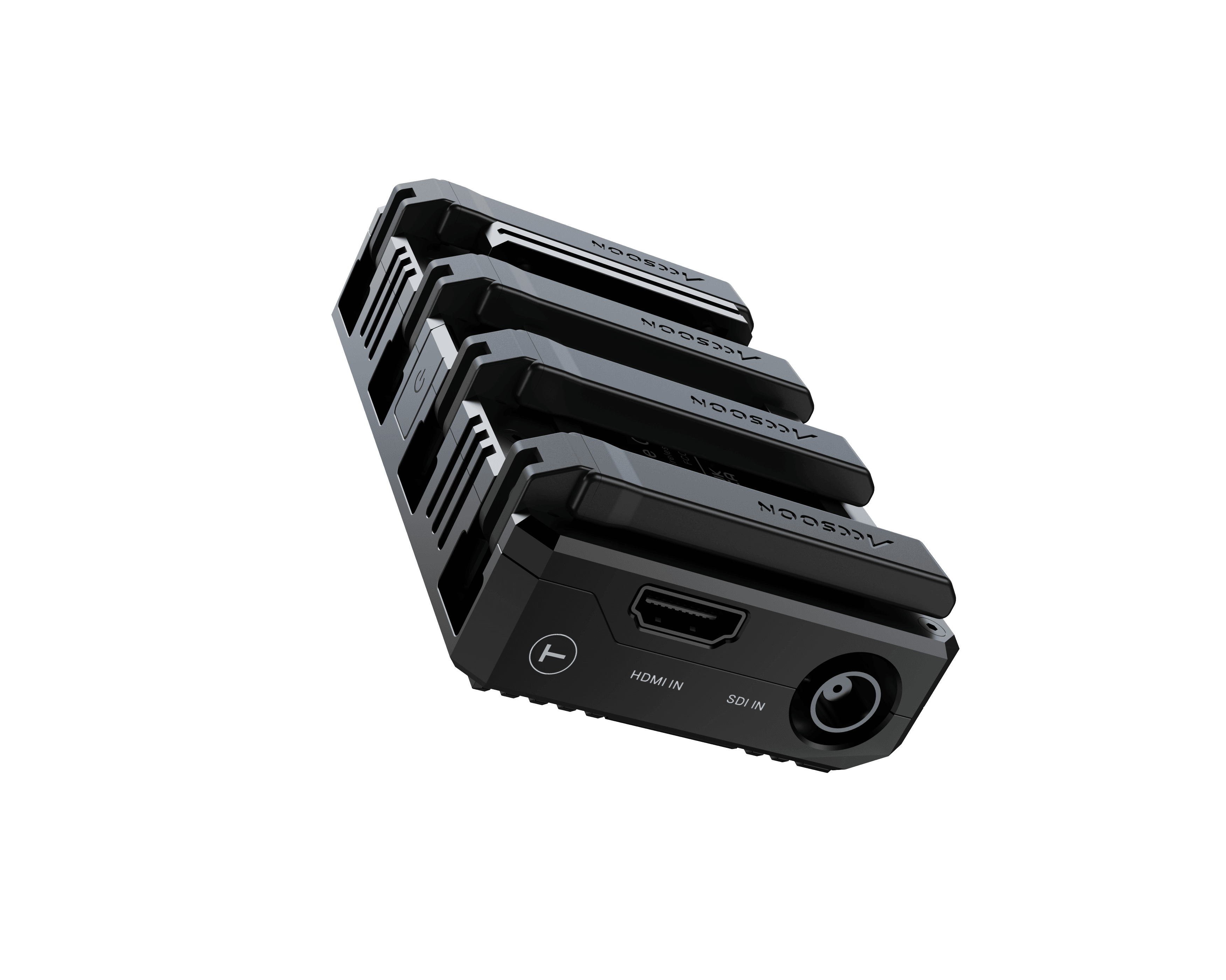

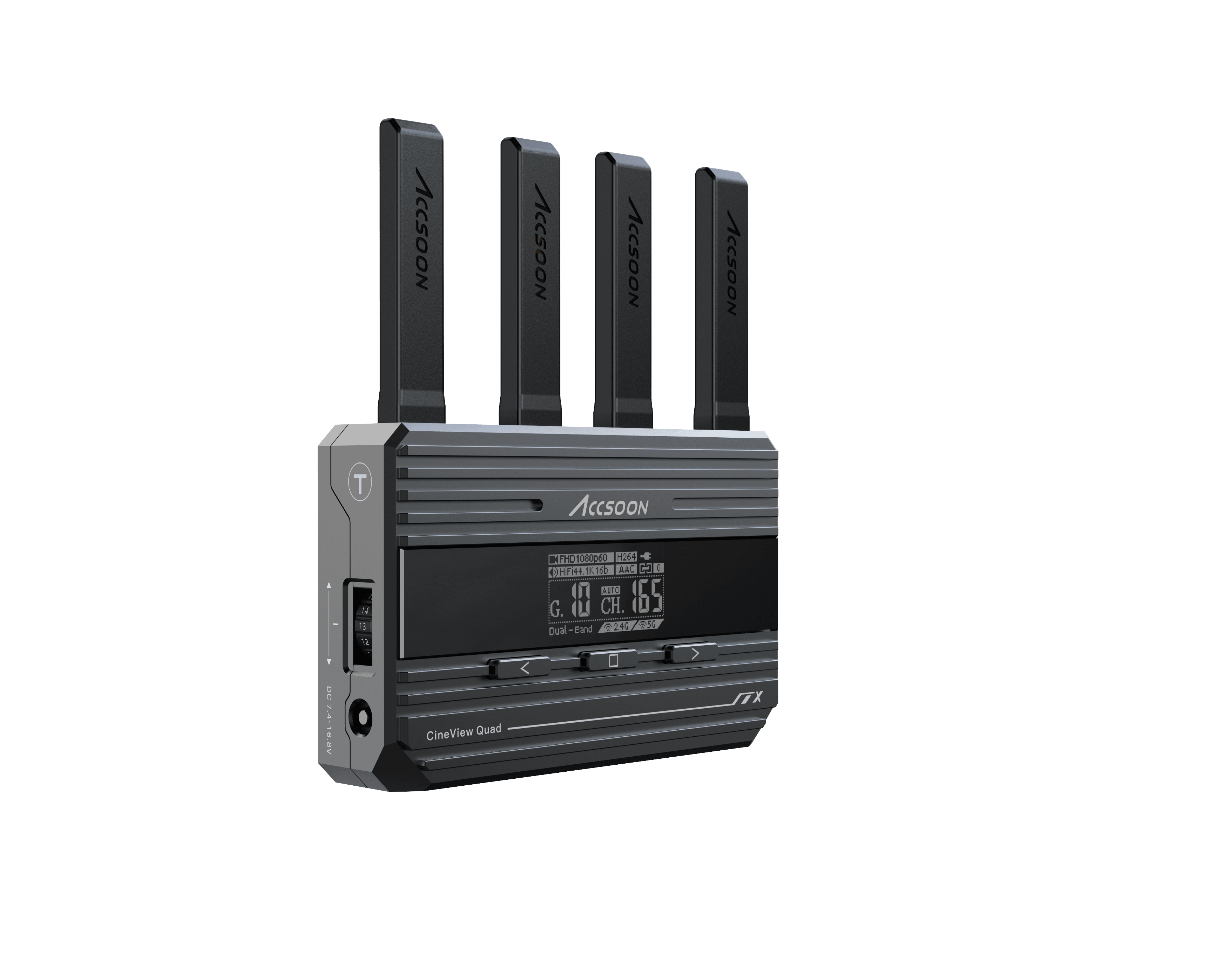

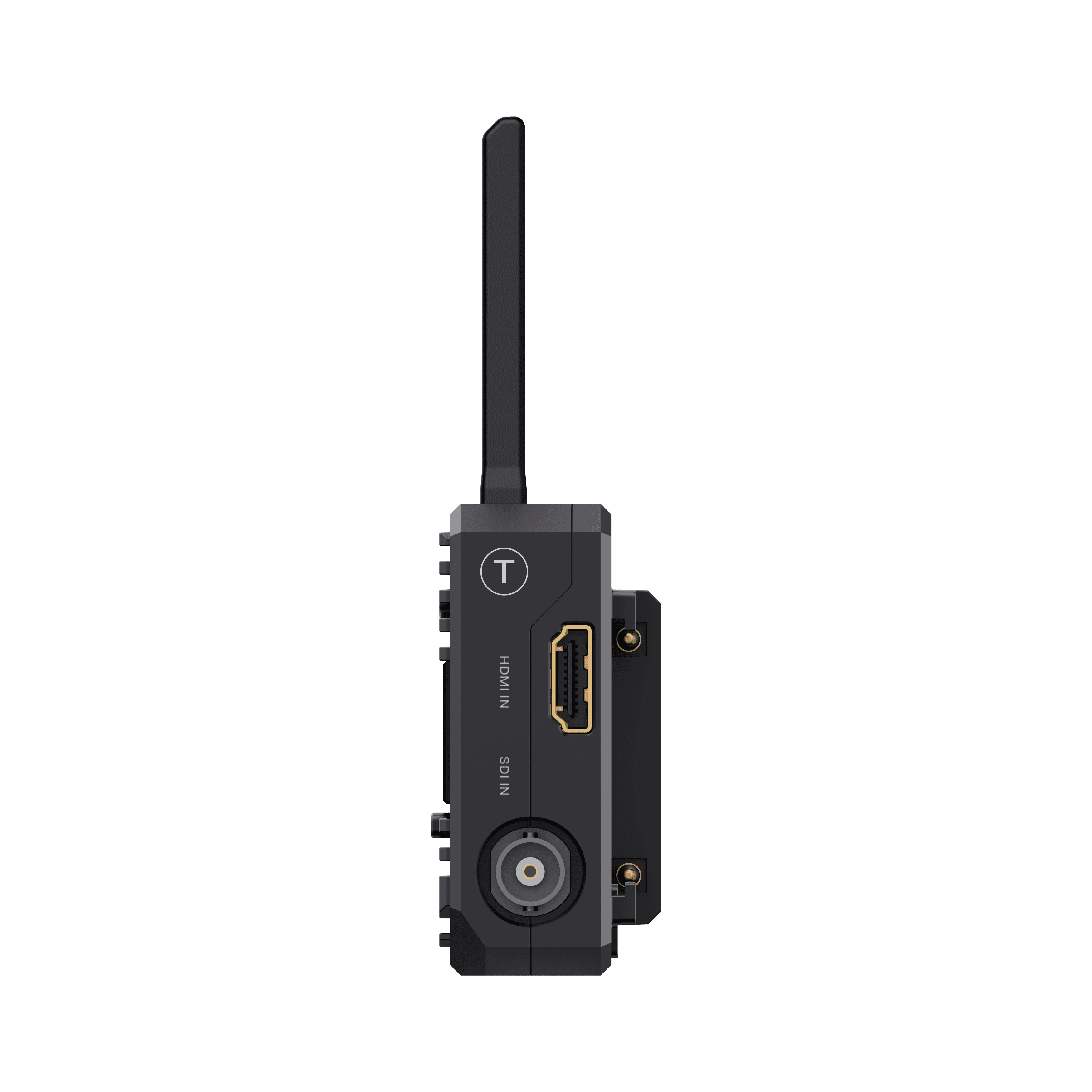

  • Transmitter
  • Video Input
    SDI/HDMI

    SDI Input Format
    1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B

    HDMI Input Format
    1080p 23.98/24/25/29.97/30/50/59.94/60fps

    DC Port
    5.5mmx2.1mm center positive

    DC Voltage
    7.4~16.8V

    Audio
    44.1KHz/48KHz 16bit/24bit PCM

    Latency
    <0.06s (Camera latency not included)

    OLED Display
    1.3inch

    Transmission Power
    17~20dBm

    Transmission Range
    500ft (No obstacles, no interference)

    Power Consumption
    4.5Watt (Typical)

    Operating Environment Temperature
    -10~40℃

    Dimensions
    105mmx66mmx31mm (Antennas not included)

    Weight
    225g (Antennas included)

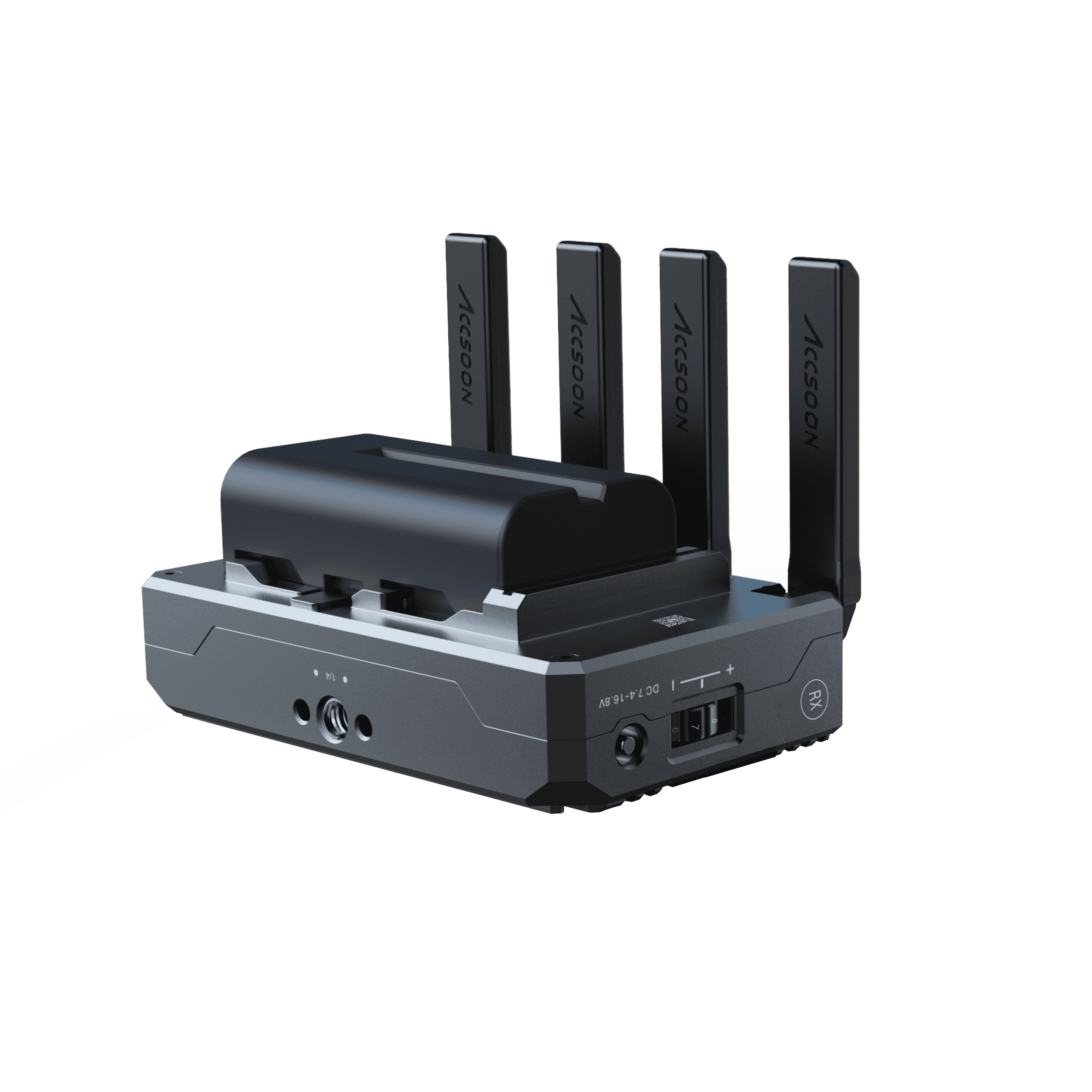

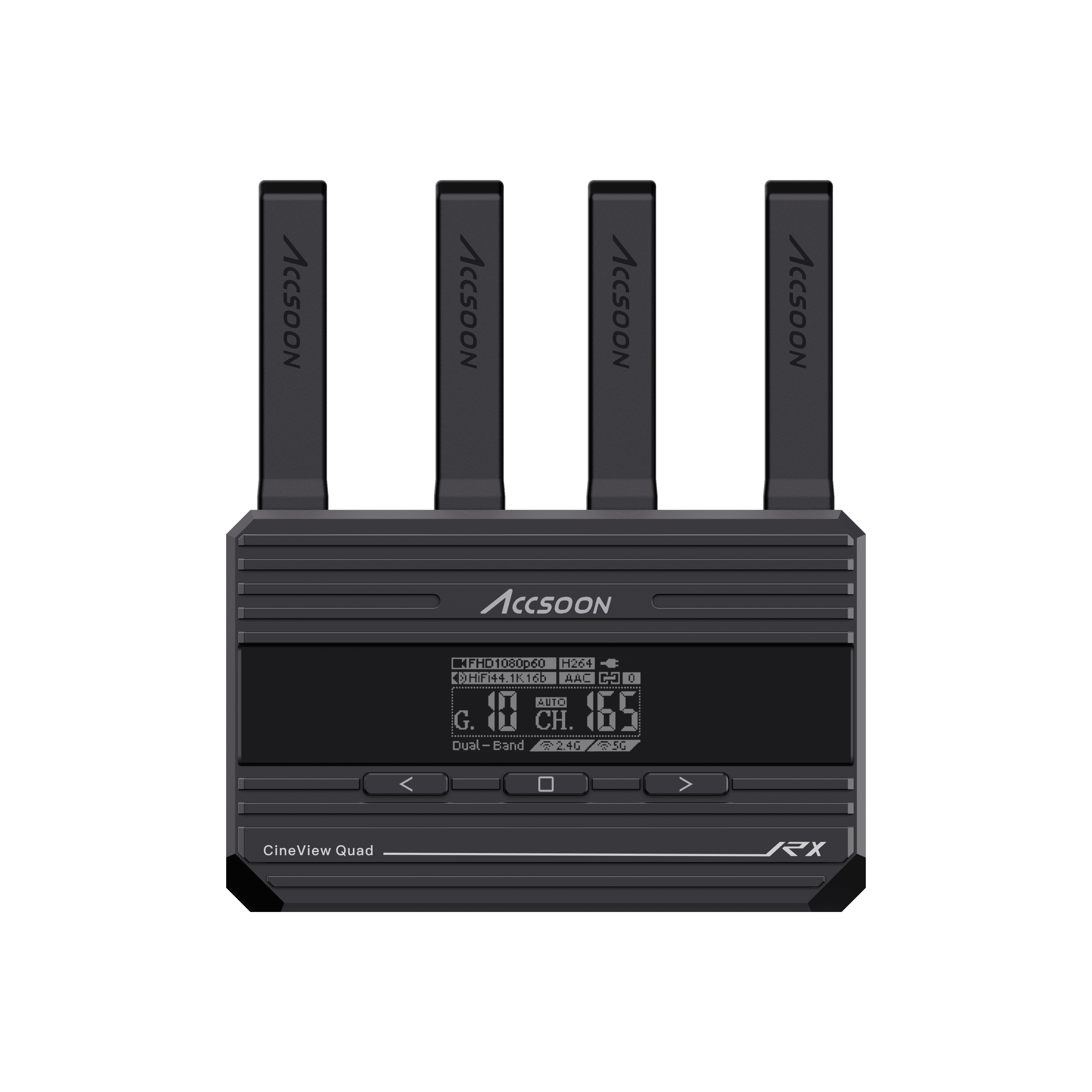

  • Receiver
  • Video Output
    SDI/HDMI

    SDI Output Format
    1080p 24/25/30/50/60fps Level A

    HDMI Output Format
    1080p 24/25/30/50/60fps

    DC Port
    5.5mmx2.1mm center positive

    DC Voltage
    7.4~16.8V

    OLED Display
    1.3inch

    Power Consumption
    5Watt (Typical)

    Operating Environment Temperature
    -10~40℃

    Dimensions
    105mmx66mmx31mm (Antennas not included)

    Weight
    225g (Antennas included)
