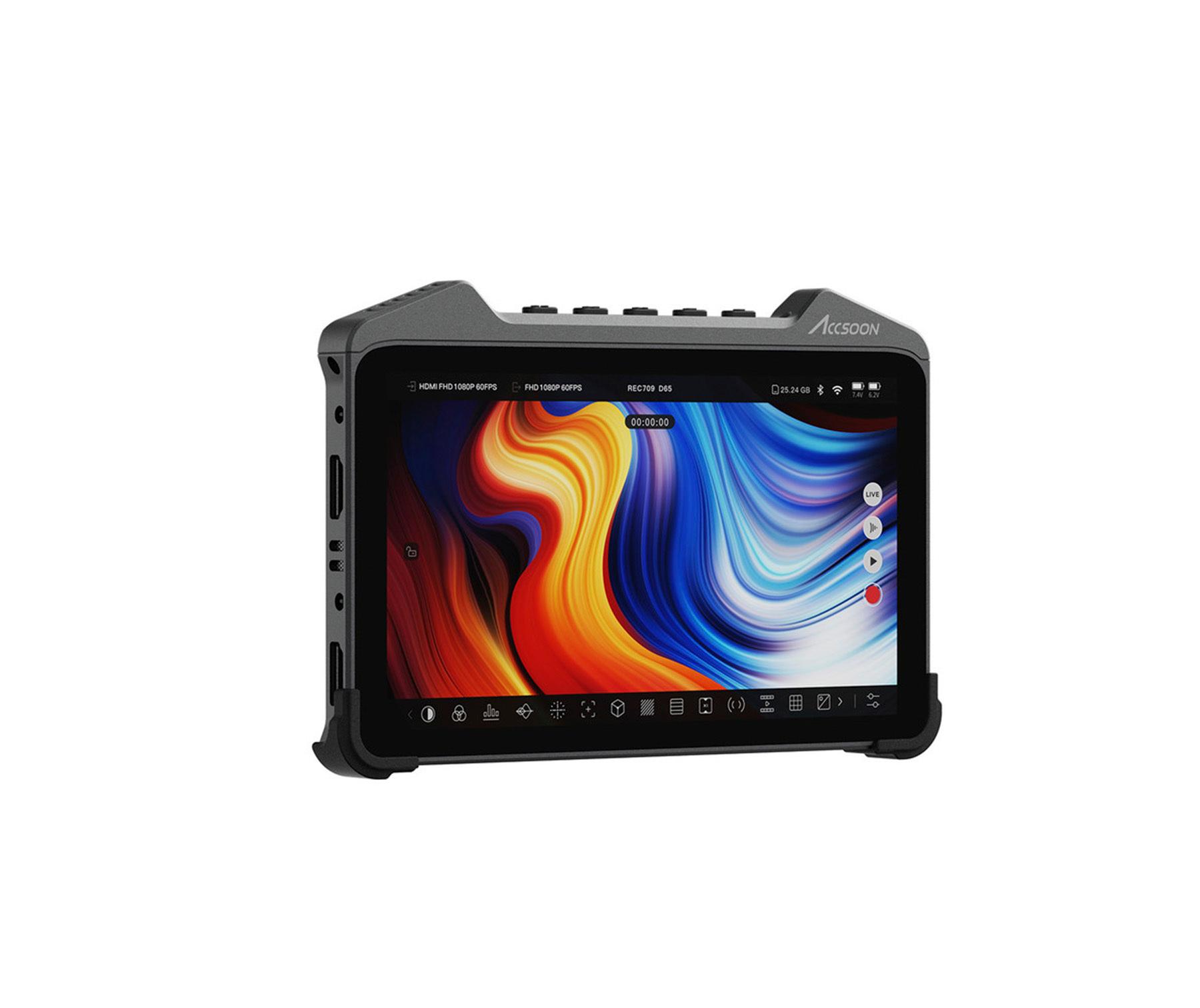

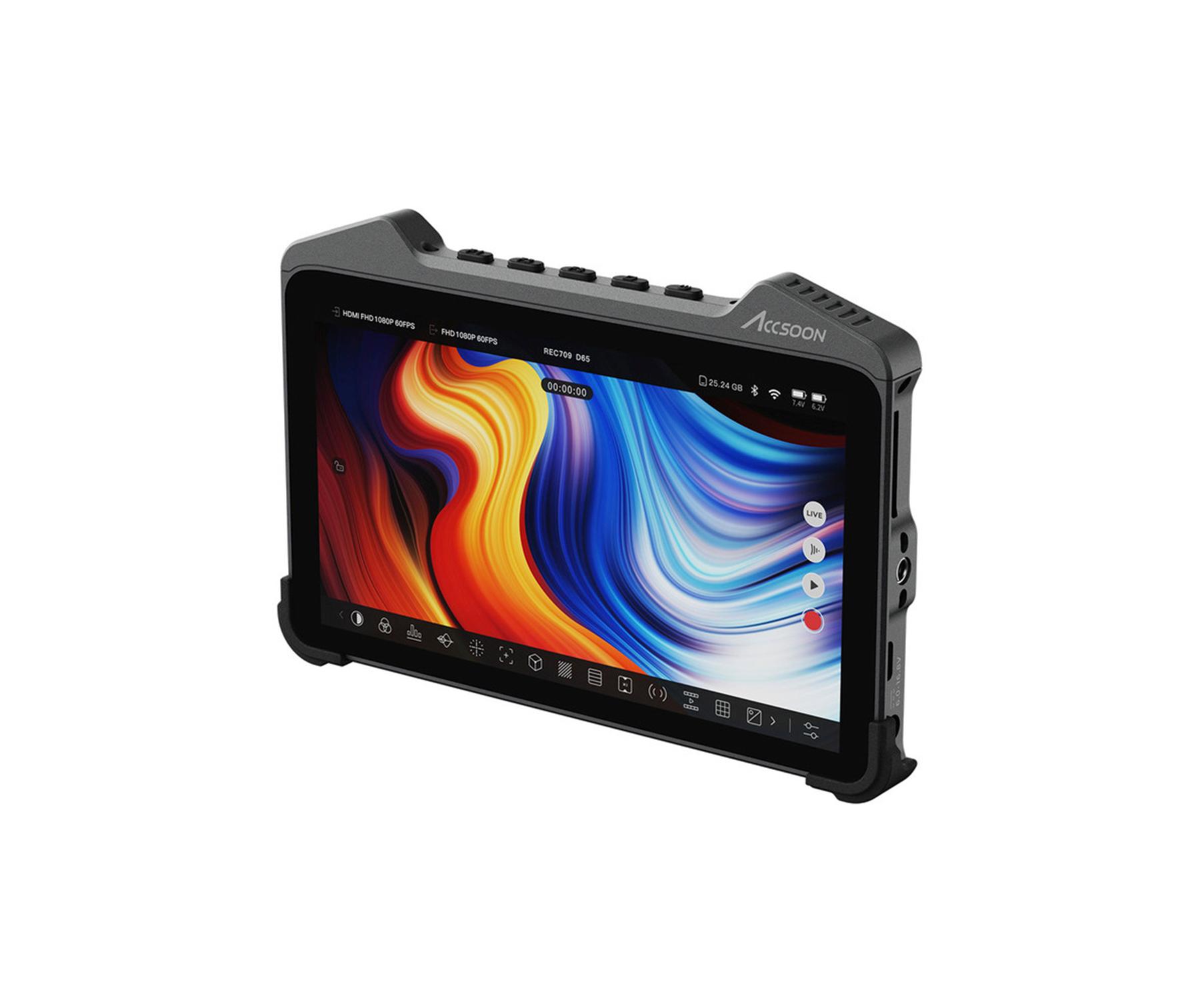

Accsoon CineView M7 - 4K60P Smart Monitor
Product Highlights

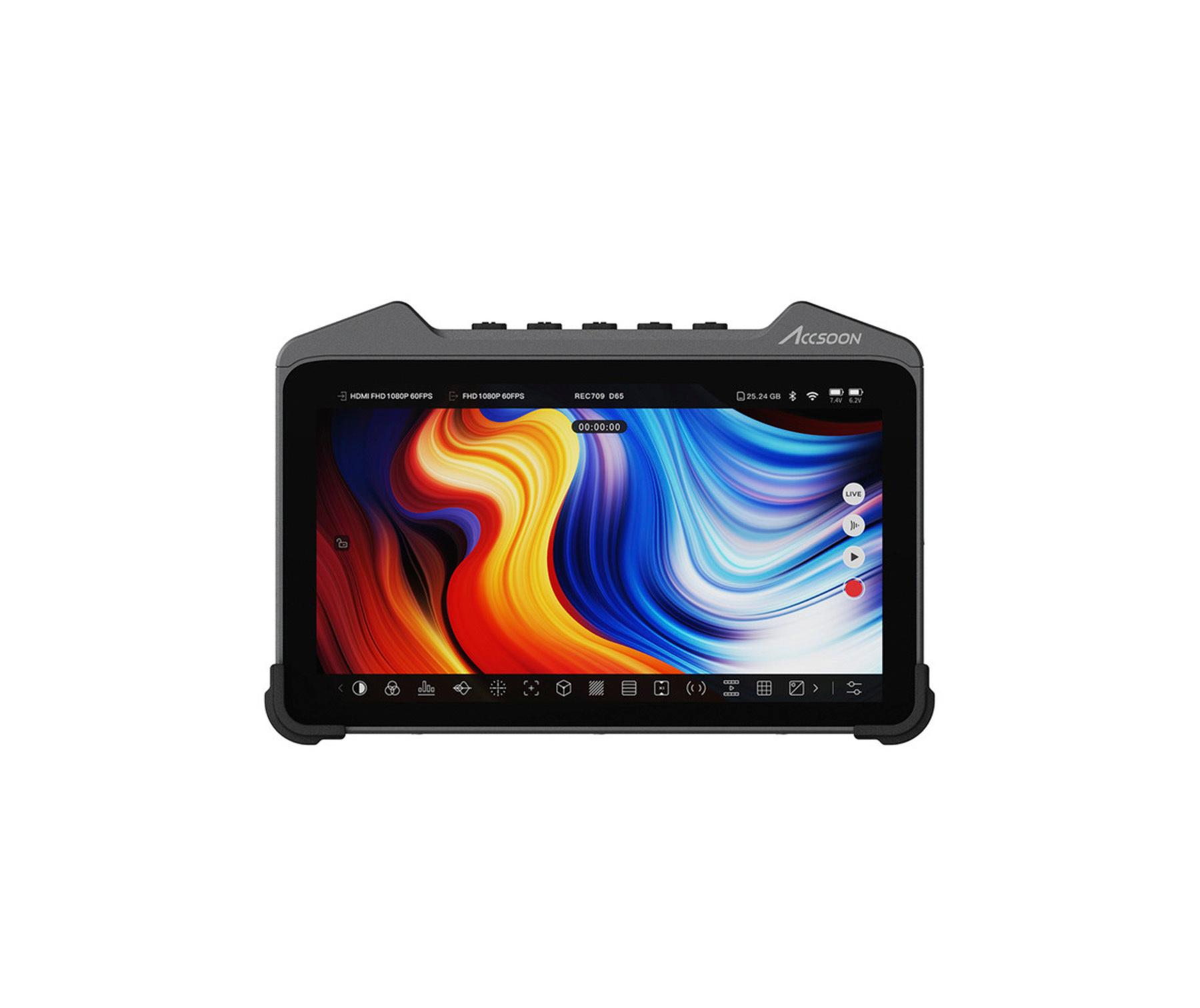

- Edge-Lit 7" Multi-Touch Display
- 1920 x 1080 Resolution
- 1000 cd/m² Brightness
- 3G-SDI & HDMI I/O up to DCI 4K60
- Up/Down & SDI to HDMI Cross Conversion
- 3D LUTs, Color Grading, Image Management
- SD Card, USB Flash, SSD Storage Options

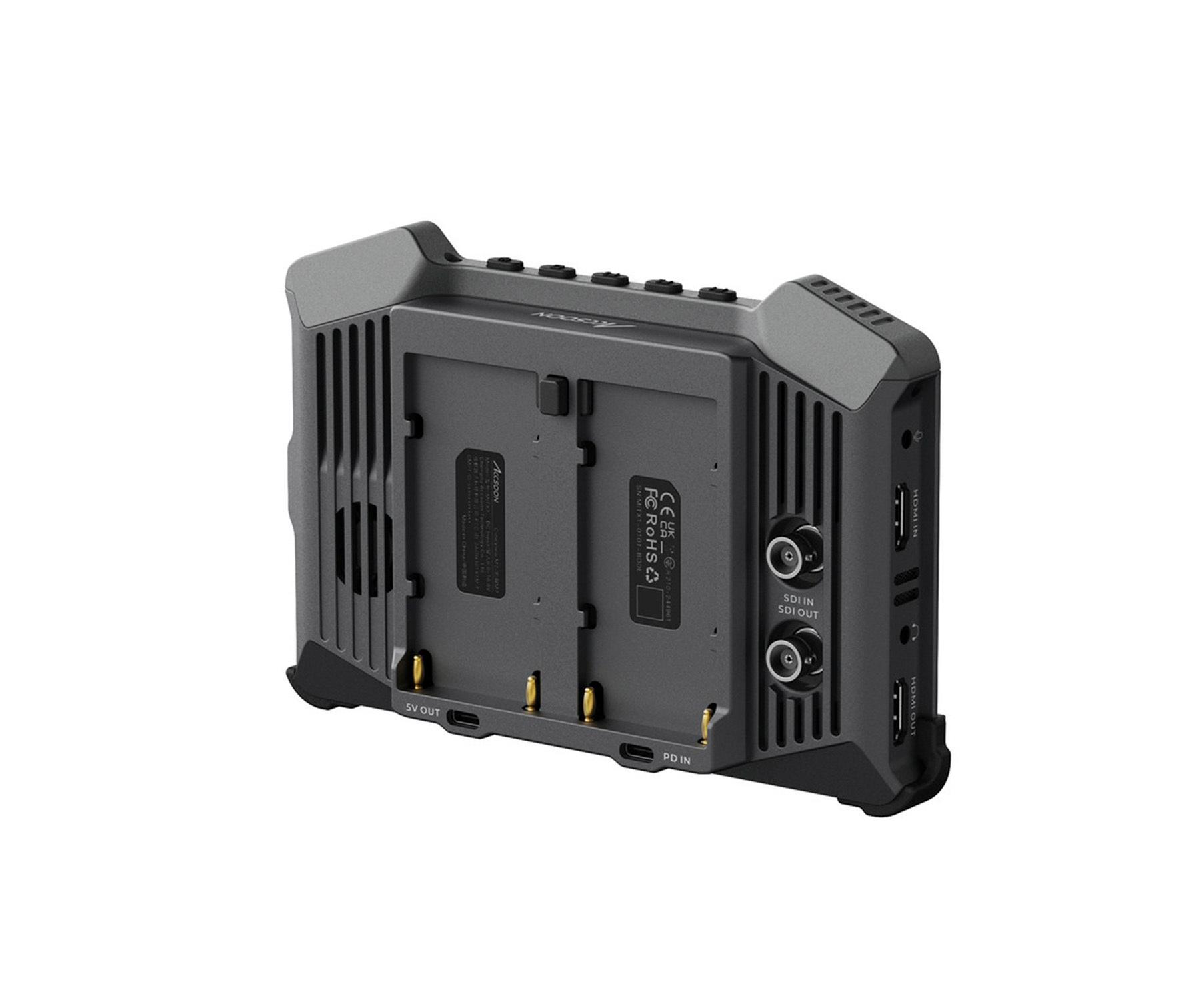

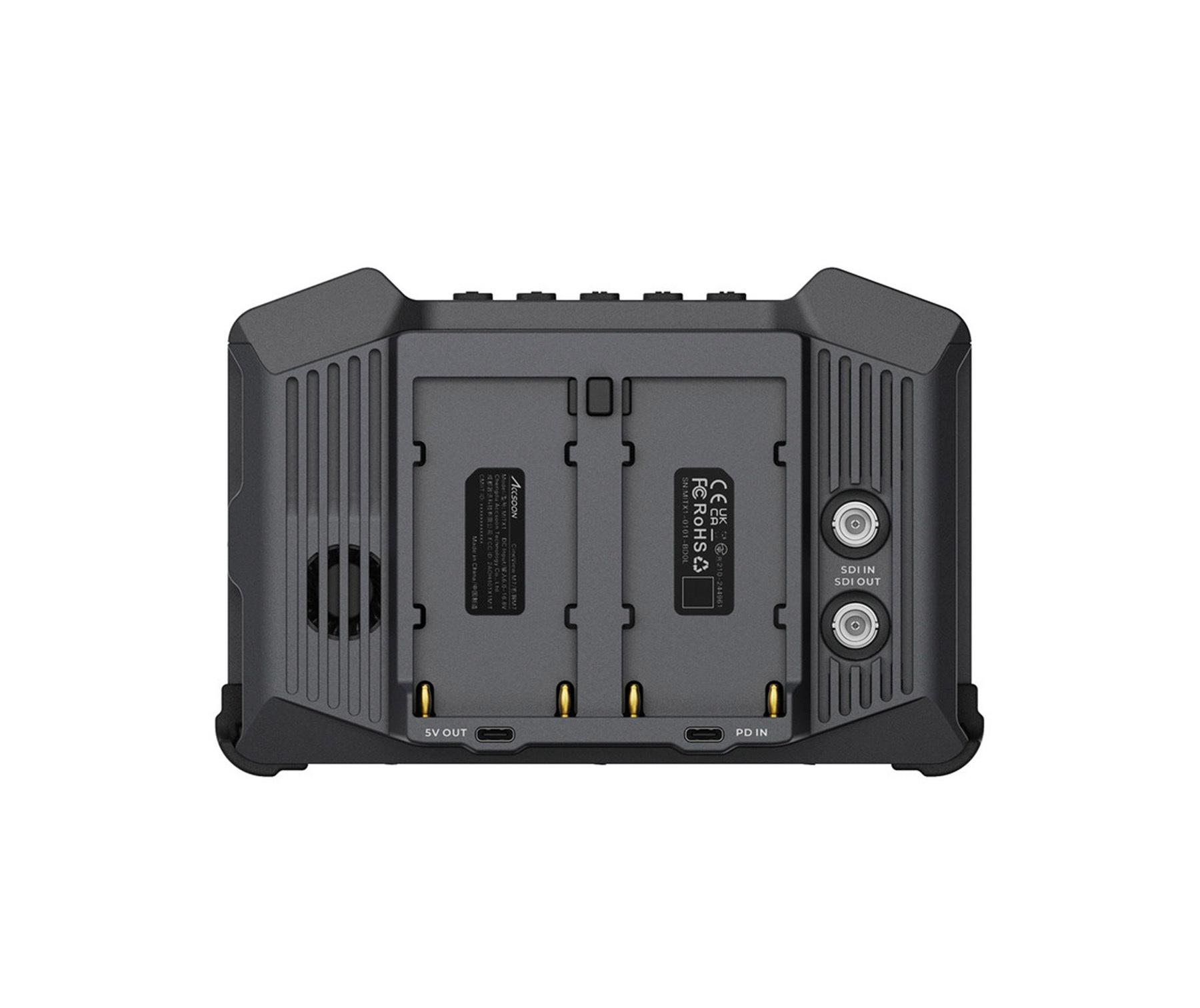

- Power via Dual L-Series Plates, USB-C
- 5V USB-C Power Output
- SmartOS with File Management
EARLY BIRD PROMOTION
FREE with Purchase:

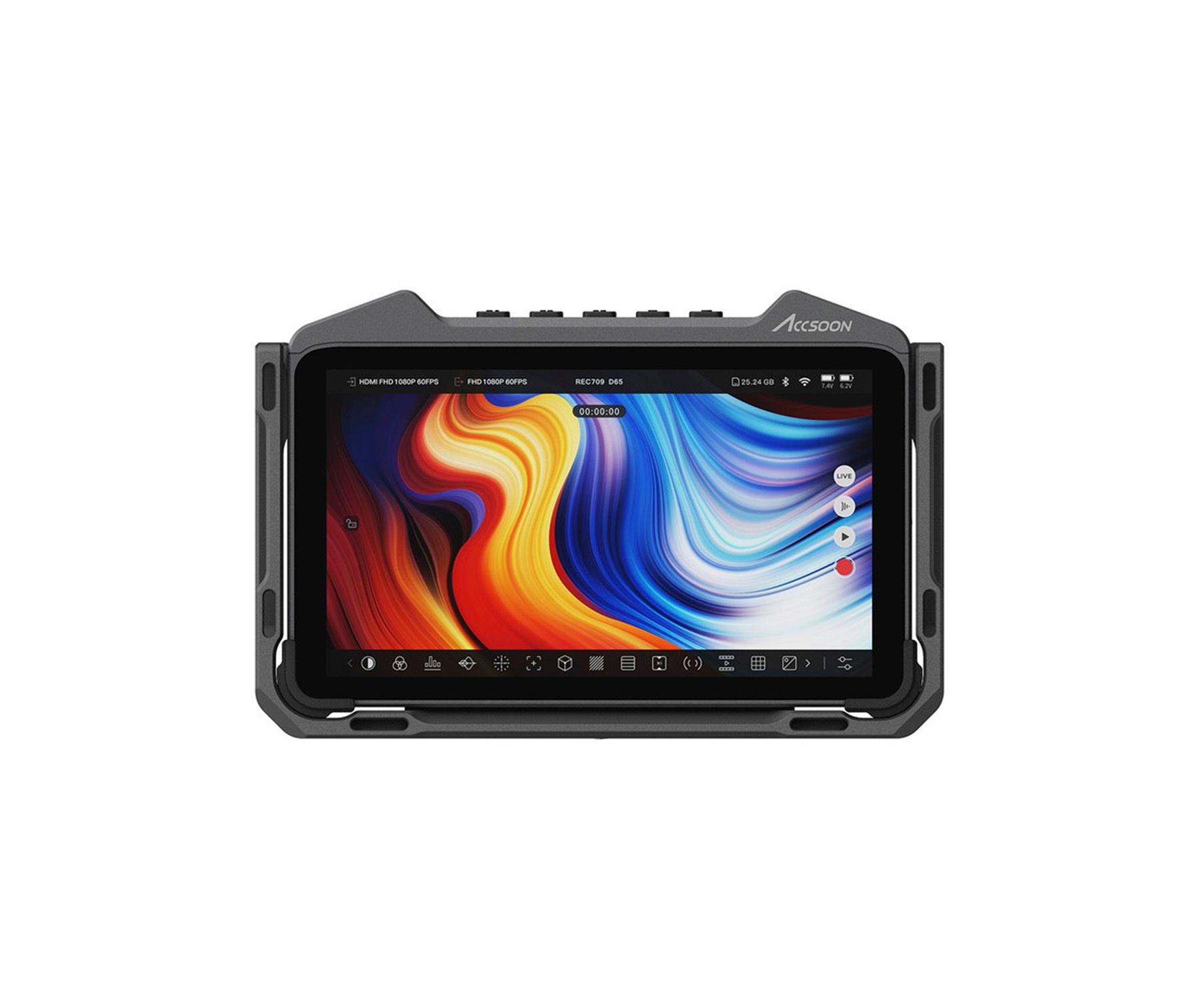

- 1 x Monitor Cage #ACC33
- 1 x SDI Cable #XC-BNC-SDI-80Y
Purchase the Accsoon CineView M7 Pro or M7, and enjoy a Purchase-With-Purchase (PWP) offer: 2x Dynacore DV-H6CS High Capacity NP-F970 Battery at $135 (UP$170).
CineView M7
Smart Production Center
[*] Supports certain Sony camera models, compatibility with other models will be expanded in future updates
Master Color Accuracy
Stunning, color-accurate professional 7-inch monitors crafted for professional uses.
Unrivaled Display Precision
Each unit is factory-calibrated to achieve near-perfect color accuracy.
Support Custom Screen Calibration
Precise Color Mapping Workflow
Edge-Lit Backlight System, for Precise Bright & Dark Control

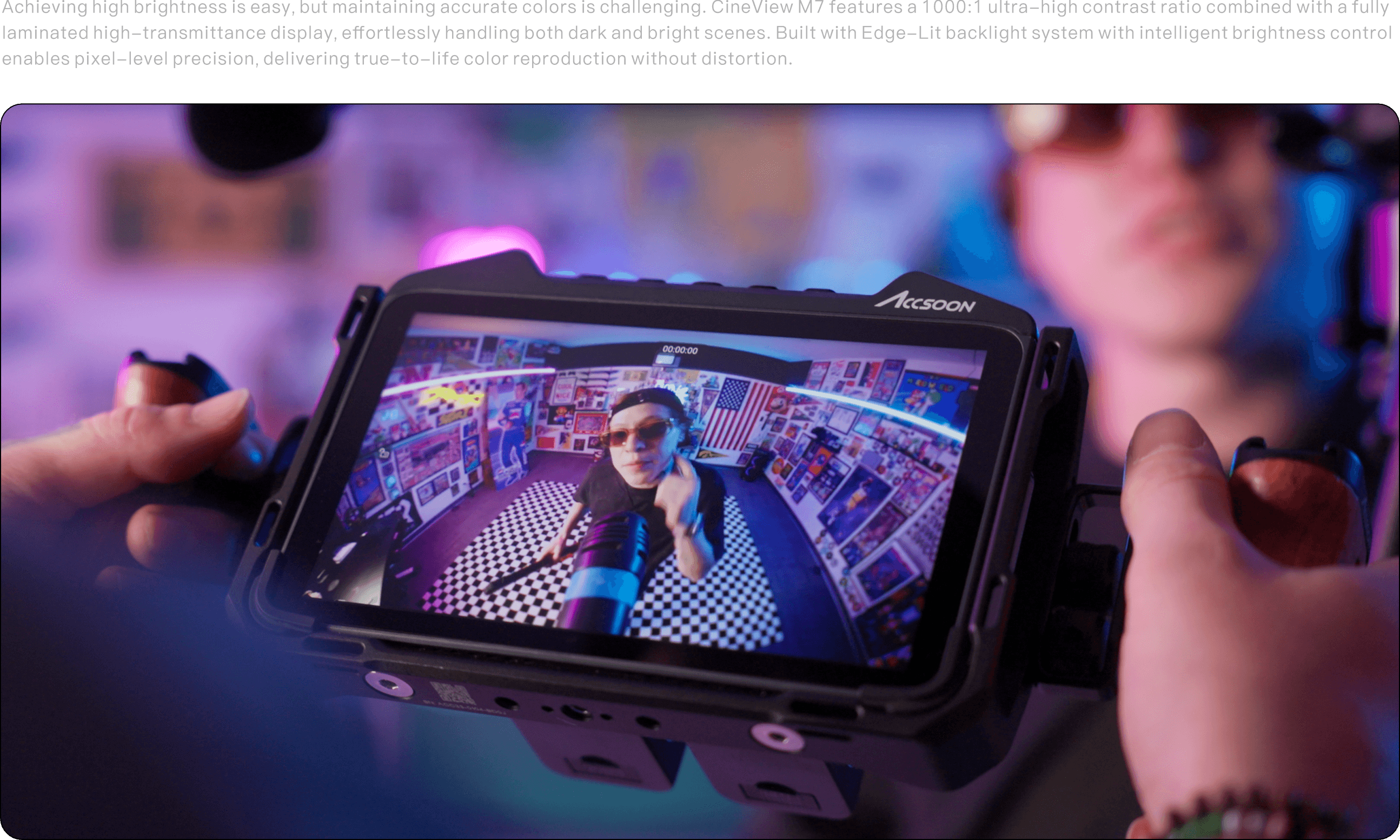

Achieving high brightness is easy, but maintaining accurate colors is challenging. CineView M7 Pro features a 1000:1 ultra-high contrast ratio combined with
a fully laminated high-transmittance display,effortlessly handling both dark and bright scenes. Built with Edge-Lit backlight system with intelligent brightness
control, enabling pixel-level precision, delivering true-to-life color reproduction without distortion.
High Bright Fully Laminated Display – True Colors Under Direct Sunlight
CineView M7 Pro is equipped with high high-transparency screen, enhanced by exclusive DXC coating, increasing light transmittance to99%while significantly
reducing reflectivity. Even in bright outdoor environments ,the screen maintains exceptional clarity and color accuracy.
The Tools Professionals Expect
One Step Ahead
Redefining Smart Monitoring
CineView M7 Pro powered by 8K high-performance processors and a smart operating system, is designed to adapt to the evolving needs of modern production.
Smart Evolution: Your Portable Production Workstation
Seamless Interaction, everything under your control
On-set Monitoring, Reimagined
CineView M7 Pro delivers cinematic standard calibrated color with 127-point 3D LUT precision.
Its LUT Box function enables multi-screen color consistency via SDI/HDMI outputs, revolutionizing on-set color workflow.
Unrivaled Display Color Precision
DCI 4K60 Image Processing
[*] 4K60 supported via HDMI only; SDI limited to 1080p60. Certain color spaces unavailable at specific resolutions
Record Playback Share
Flexible Storage Solutions for Diverse Workflow
Customize Your Recording
7″ Cinema Display 5″ Portability
Aerospace-Grade Aluminum Body
Quad-Antenna Dual-Band Architecture
Smart Cooling with Speed Control
Professional Accessories
*sold separately
What's in the box?
- 1 x Accsoon CineView M7
- Technical Data
Displayscreen
7” LCD
Resolution
1920 × 1080 pixels
PPI
323
Aspect ratio
16:9
Brightness
1000 nits
Contrast ratio
1000:1
Viewing angle
176°/176°
Backlight type
Edge-Lit Ultra-transparent LED Backlight
Screen color calibration
Supported
LUT
1D and 3D Cube LUTs Supported
1D: up to 4096 points
3D: up to 127 points

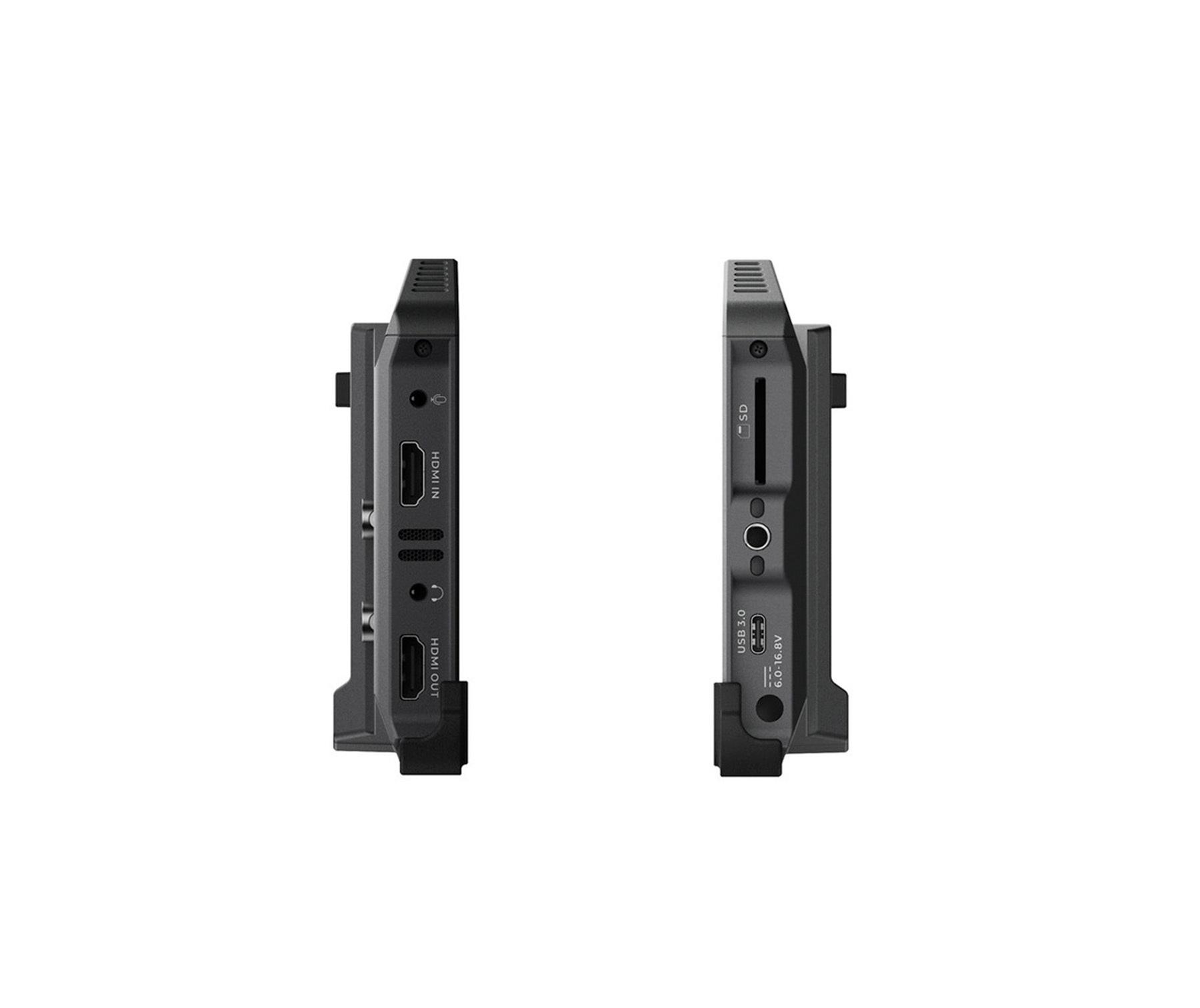

Video input port
HDMI 2.0/3G-SDI
Video output port
HDMI 2.0/3G-SDI
HDMI videoinput format
4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60
4K UHD(3840*2160): 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
SDI video input format
1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A/B
1080i: 50/59.94/60
HDMI video output format
4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60
4K UHD (3840*2160): 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
SDI video output format
1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A
1080i: 50/59.94/60
DC port
6.0~16.8V 5.5mm*2.1mm Center Positive
Compatible battery
Compatible with NP-F550, NP-F750, NP-F970 Batteries
USB-C power input port
PD3.0 9V/3A, 12V/3A, 15V/3A
USB-C power output port
Maximum: 5V/2A
Microphone jack
3.5mm TRS
Headphone jack
3.5mm CTIA
Microphone input audio sampling
16-bit, 48KHz
Power consumption
12W~28W（Varies according to actual usage）
Housing
Aircraft-grade Aluminium Alloy
Heat dissipation
Active + Passive Cooling
Work environment temperature
-10- 40℃
Weight
476g
Dimensions
182.2*120.7*31.5mm
