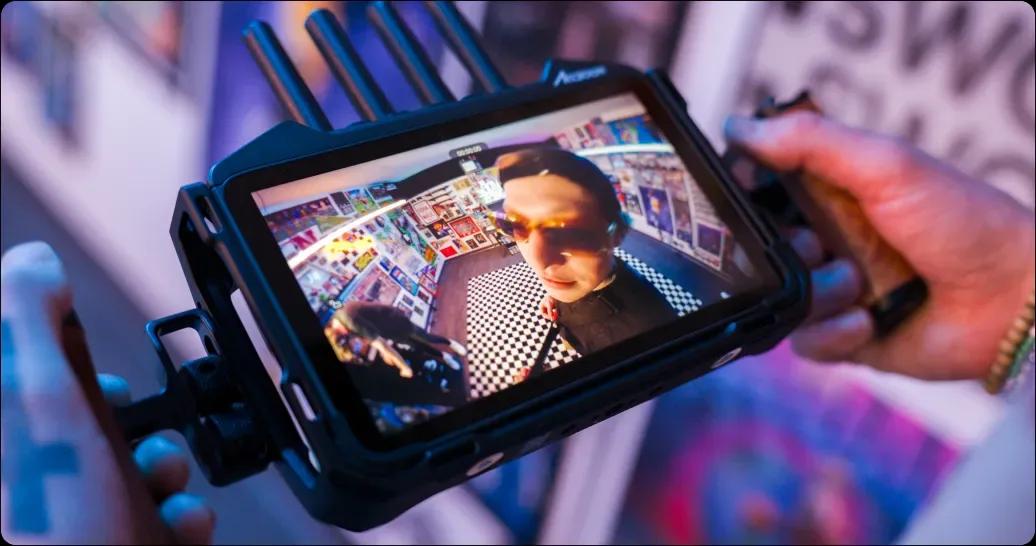

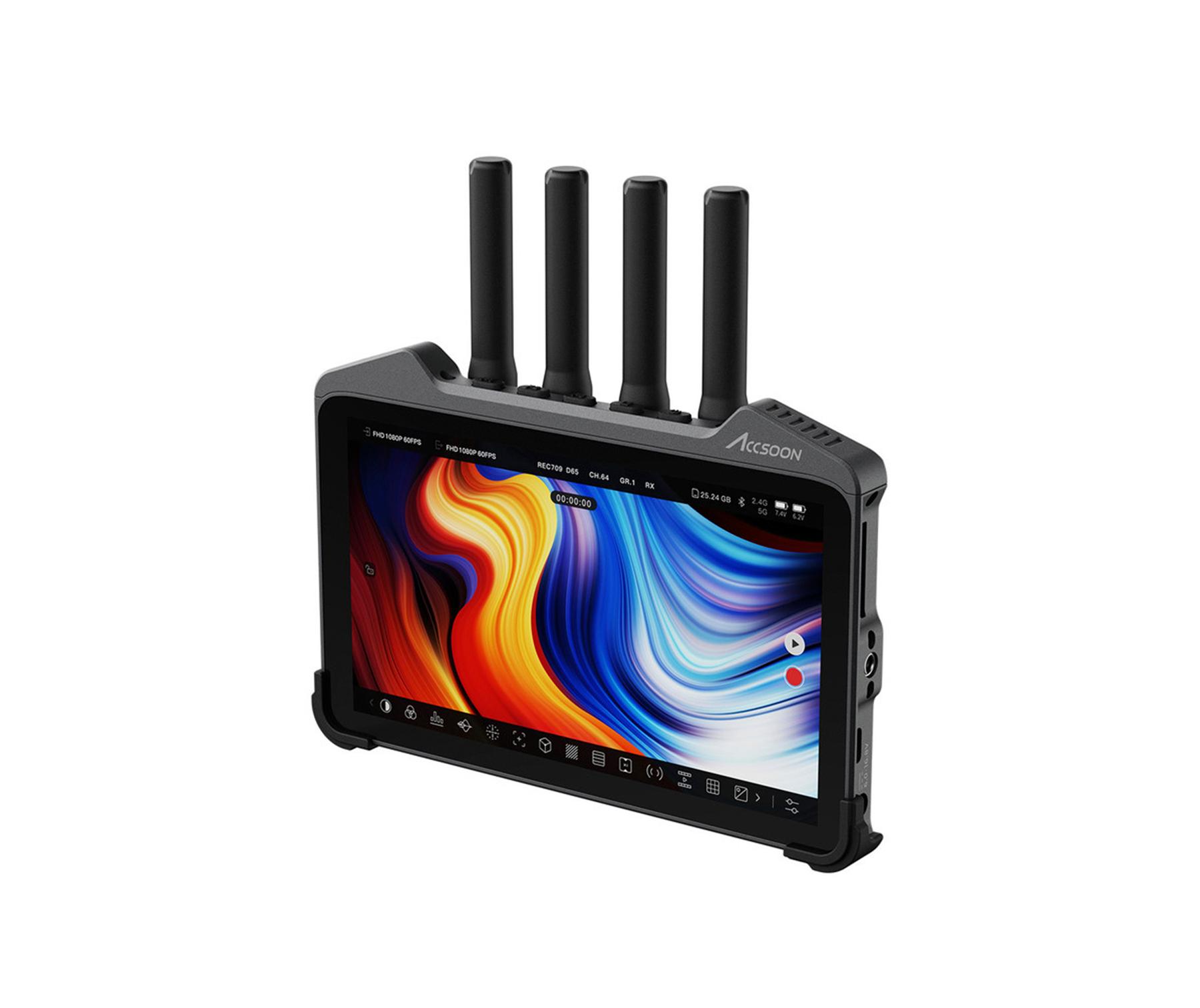

Accsoon CineView M7 Pro - 4K60P Smart Monitor
Product Highlights
- Edge-Lit 7" Multi-Touch Display
- Integrated Dual-Band Wi-Fi RX/TX
- 1920 x 1080 Resolution
- 1000 cd/m² Brightness

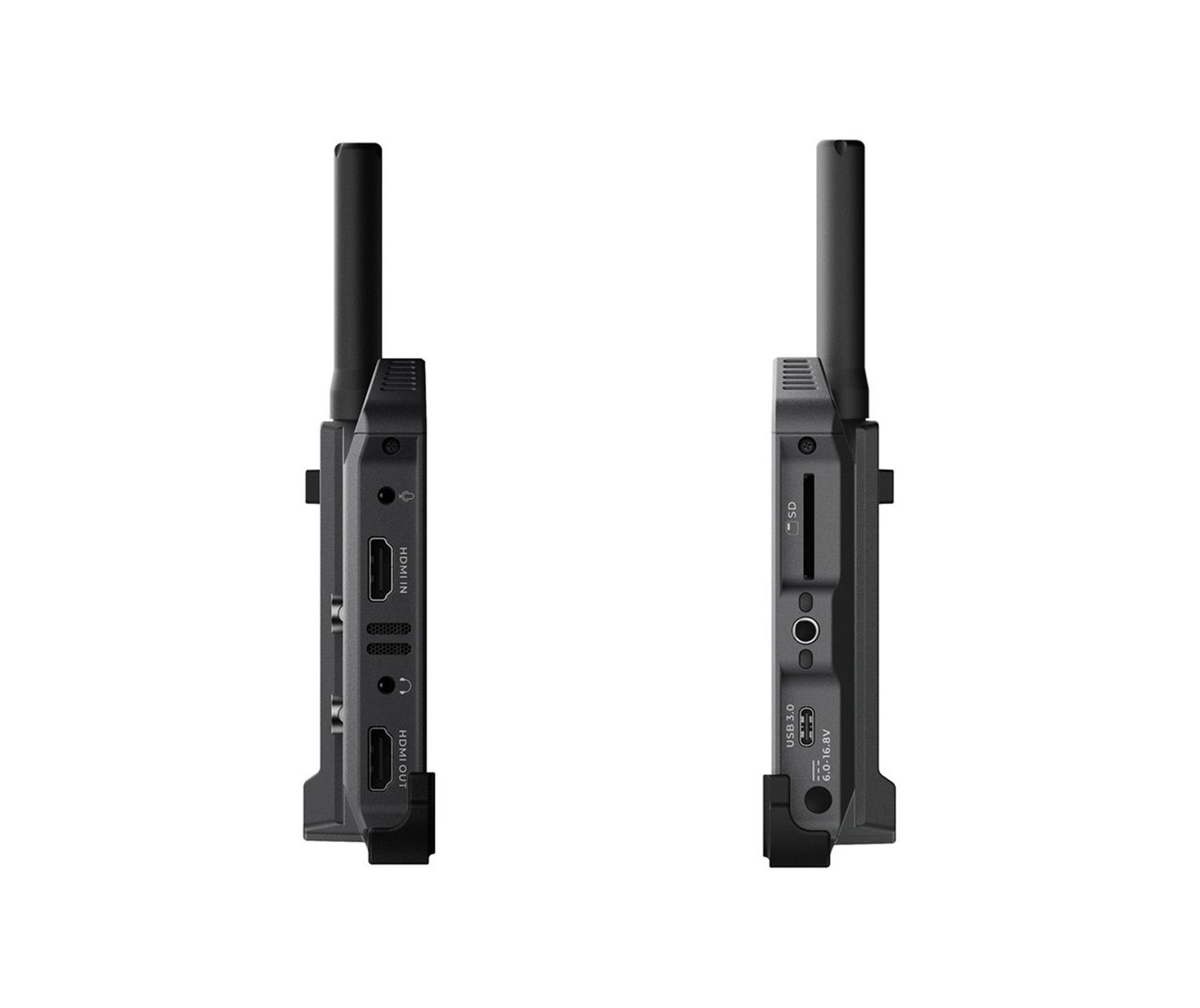

- 3G-SDI & HDMI I/O up to DCI 4K60
- Up/Down & SDI to HDMI Cross Conversion
- 3D LUTs, Color Grading, Image Management
- SD Card, USB Flash, SSD Storage Options

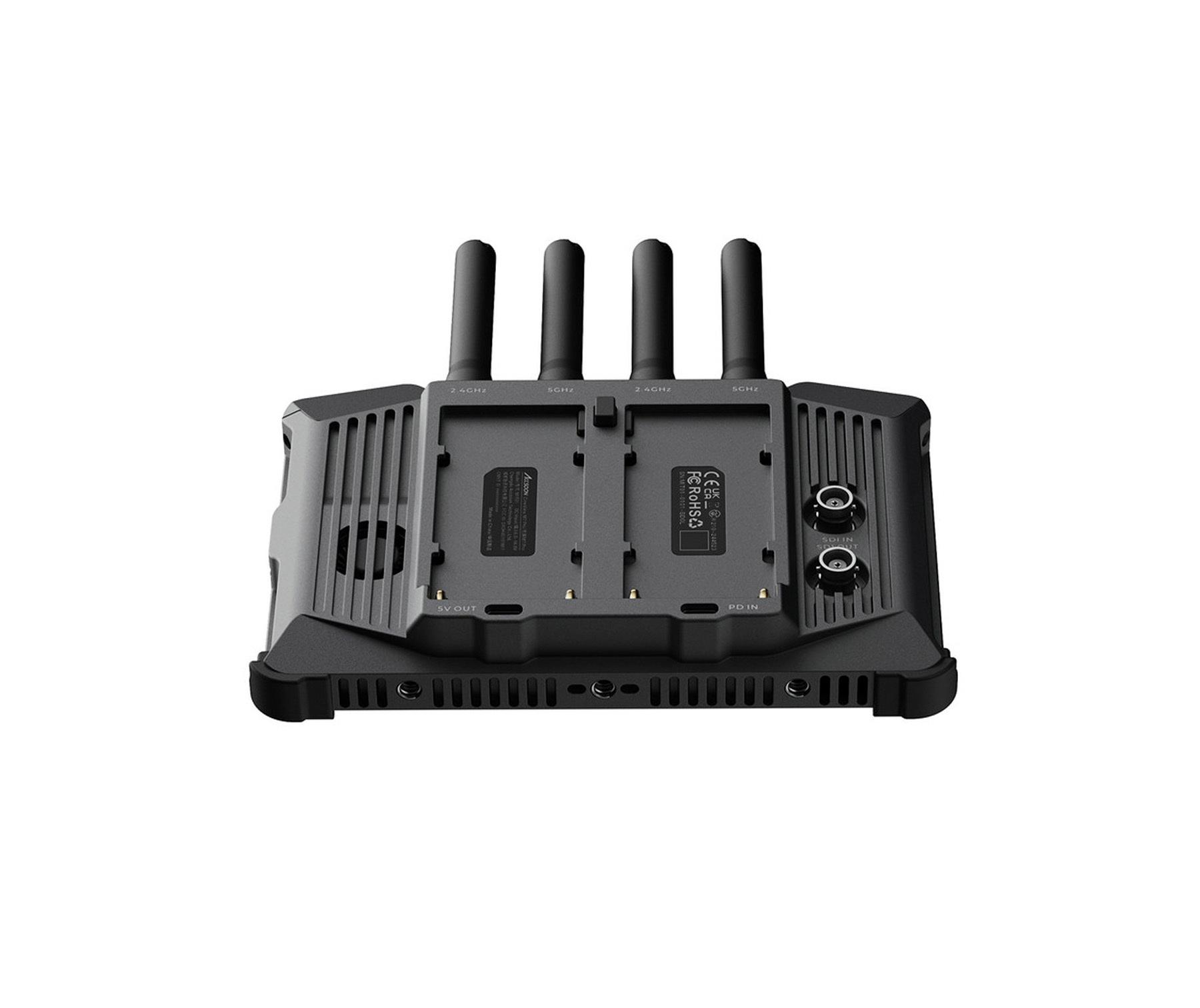

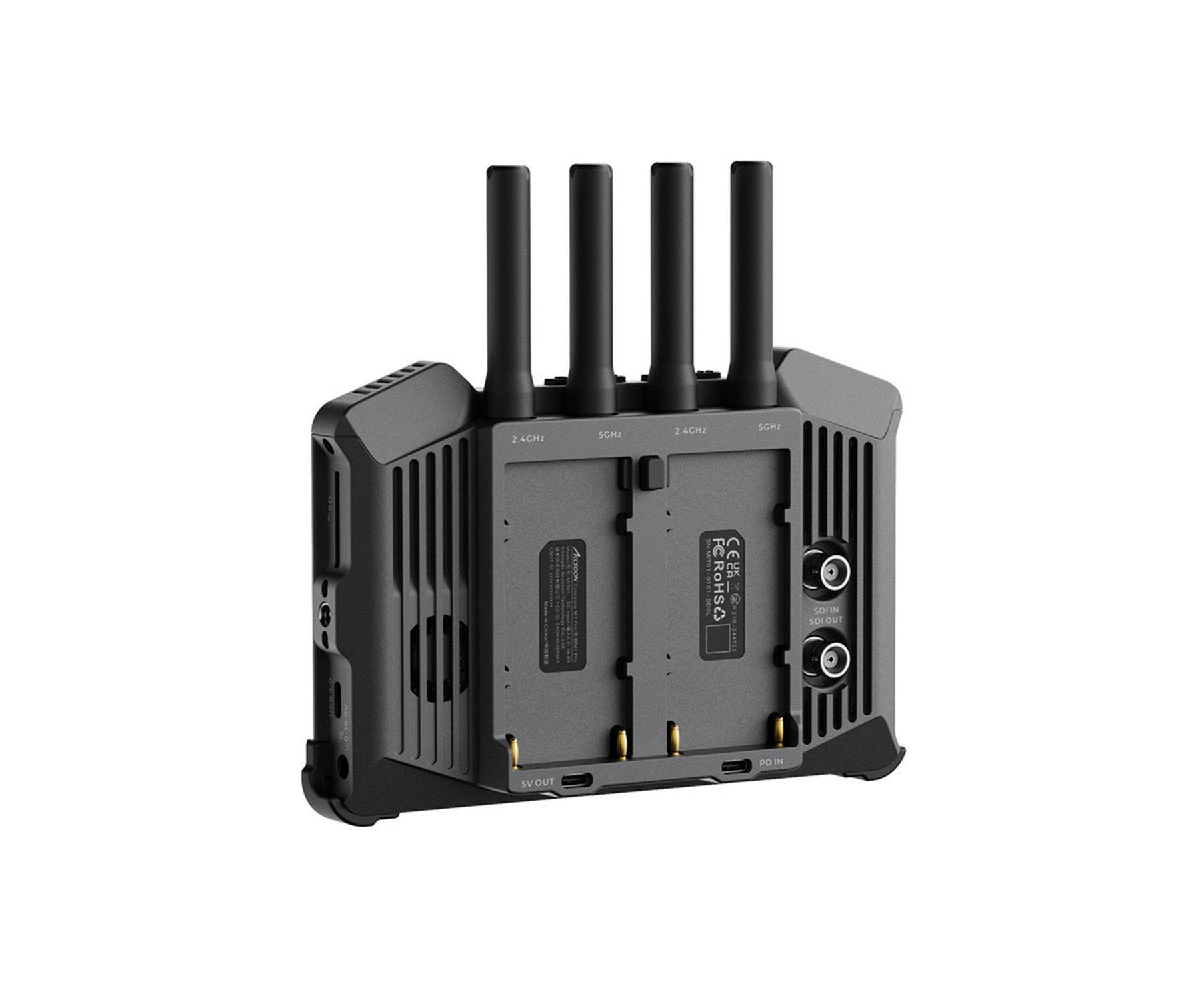

- Power via Dual L-Series Plates, USB-C
- SmartOS with File Management
EARLY BIRD PROMOTION
FREE with Purchase:
- 1 x Monitor Cage #ACC33
- 1 x SDI Cable #XC-BNC-SDI-80Y
Purchase the Accsoon CineView M7 Pro or M7, and enjoy a Purchase-With-Purchase (PWP) offer: 2x Dynacore DV-H6CS High Capacity NP-F970 Battery at $135 (UP$170).
Related Products
CineView M7 Pro
All-In-One Wireless Smart Monitoring Ecosystem


[*] Supports certain Sony camera models, compatibility with other models will be expanded in future updates
Master Color Accuracy
Stunning, color-accurate professional 7-inch monitors crafted for professional uses.
Unrivaled Display Precision
Each unit is factory-calibrated to achieve near-perfect color accuracy.

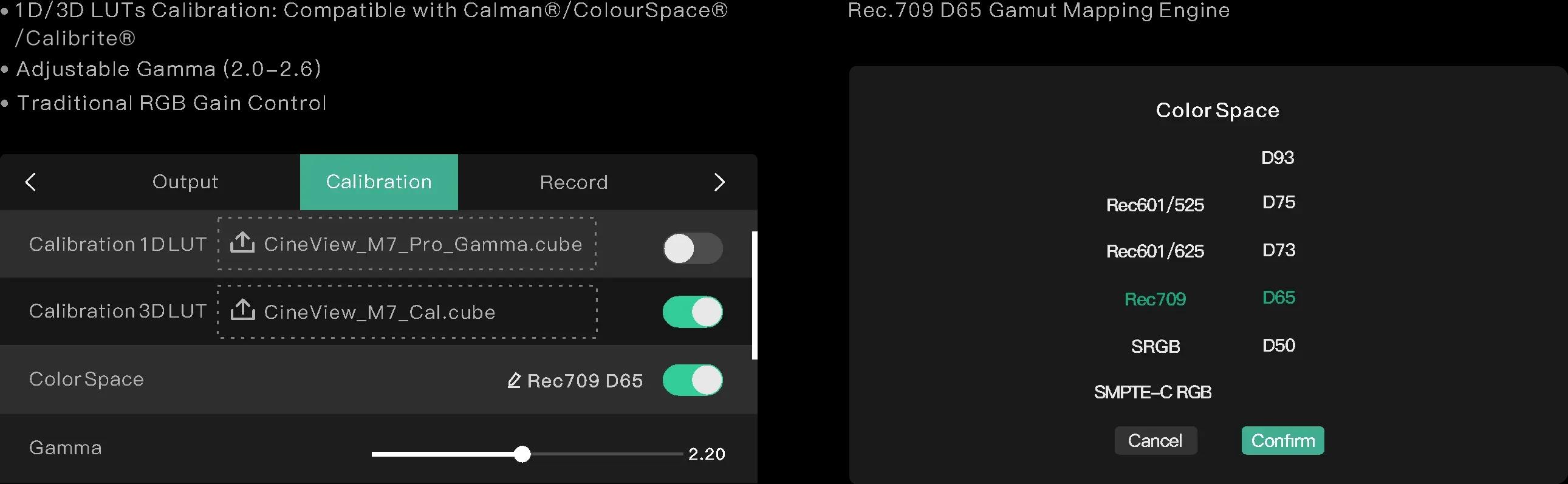

Support Custom Screen Calibration
Precise Color Mapping Workflow
Edge-Lit Backlight System, for Precise Bright & Dark Control
Achieving high brightness is easy, but maintaining accurate colors is challenging. CineView M7 Pro features a 1000:1 ultra-high contrast ratio combined with
a fully laminated high-transmittance display,effortlessly handling both dark and bright scenes. Built with Edge-Lit backlight system with intelligent brightness
control, enabling pixel-level precision, delivering true-to-life color reproduction without distortion.
High Bright Fully Laminated Display – True Colors Under Direct Sunlight
CineView M7 Pro is equipped with high high-transparency screen, enhanced by exclusive DXC coating, increasing light transmittance to99%while significantly
reducing reflectivity. Even in bright outdoor environments ,the screen maintains exceptional clarity and color accuracy.
All in One Wireless Workstation
CineView M7 Pro features integrated long-range wireless video transmitter and receiver capabilities, seamlessly connecting to any Accsoon CineView transmitter. It leverages Accsoon’s patented Dual-Band transmission technology for ultra-low latency wireless monitoring. Nail every shot with cinematic grade tools like LUT box, false color and waveforms-all controlled through customizable buttons.
Compatibility with CineView TX/RX system* up to DCI 4K60 wireless monitoring

Transmitter. Receiver. Monitor
All in One

The Tools Professionals Expect
One Step Ahead
Redefining Smart Monitoring
CineView M7 Pro powered by 8K high-performance processors and a smart operating system, is designed to adapt to the evolving needs of modern production.
Smart Evolution: Your Portable Production Workstation
Seamless Interaction, everything under your control

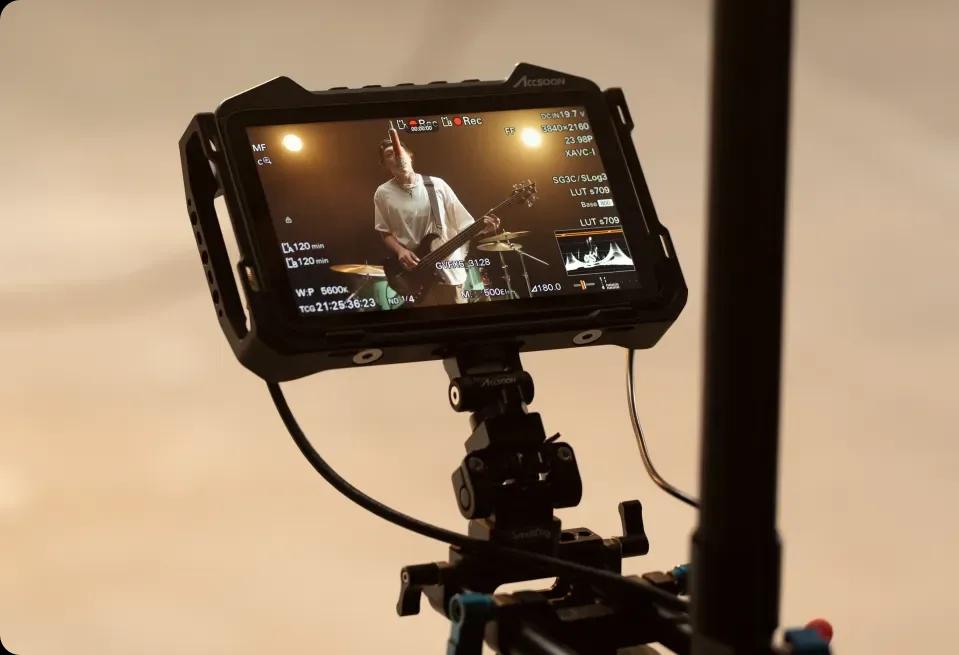

On-set Monitoring, Reimagined
CineView M7 Pro delivers cinematic standard calibrated color with 127-point 3D LUT precision.
Its LUT Box function enables multi-screen color consistency via SDI/HDMI outputs, revolutionizing on-set color workflow.
Unrivaled Display Color Precision
DCI 4K60 Image Processing


[*] 4K60 supported via HDMI only; SDI limited to 1080p60. Certain color spaces unavailable at specific resolutions
Record Playback Share
Flexible Storage Solutions for Diverse Workflow
Customize Your Recording

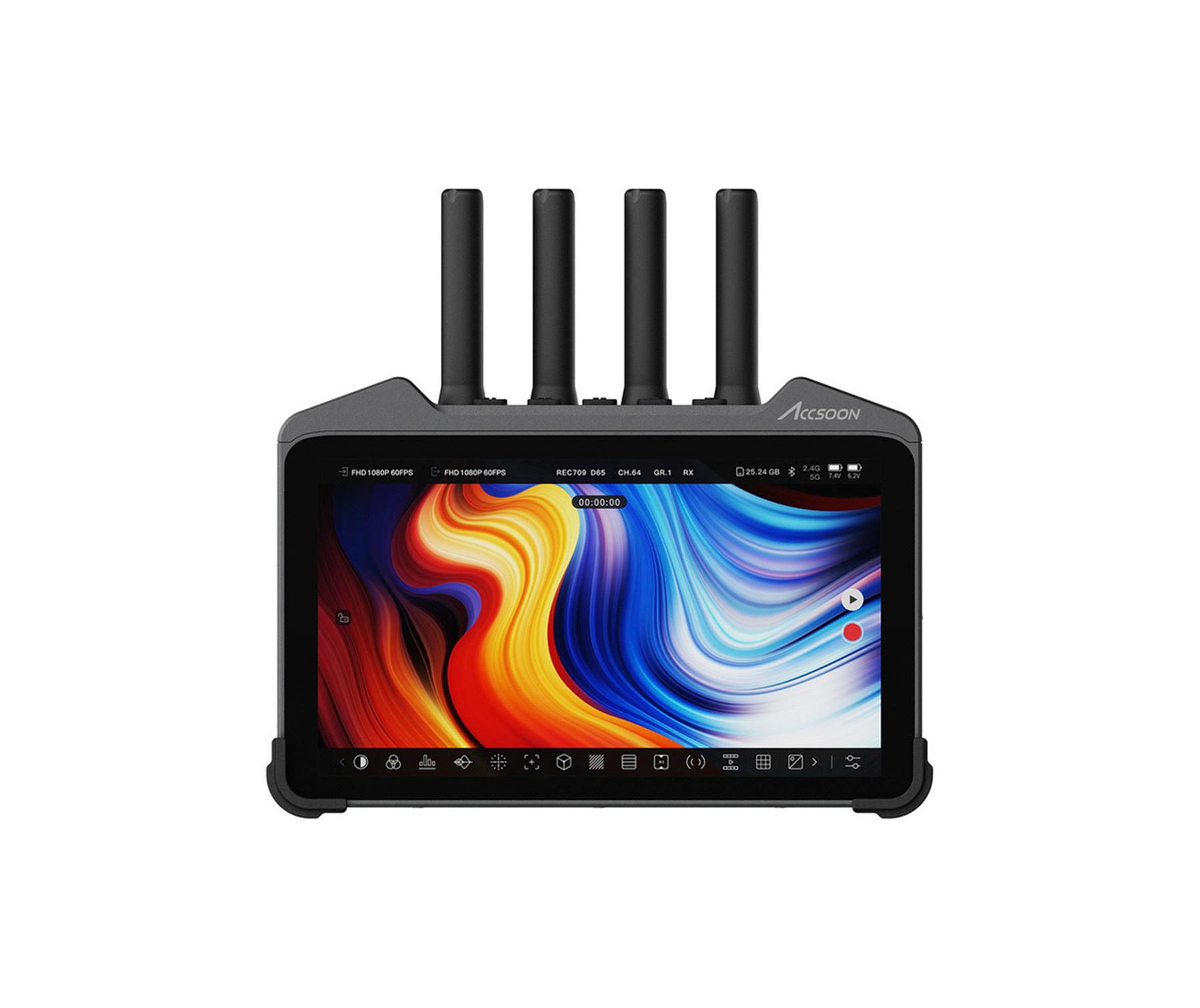

7″ Cinema Display 5″ Portability

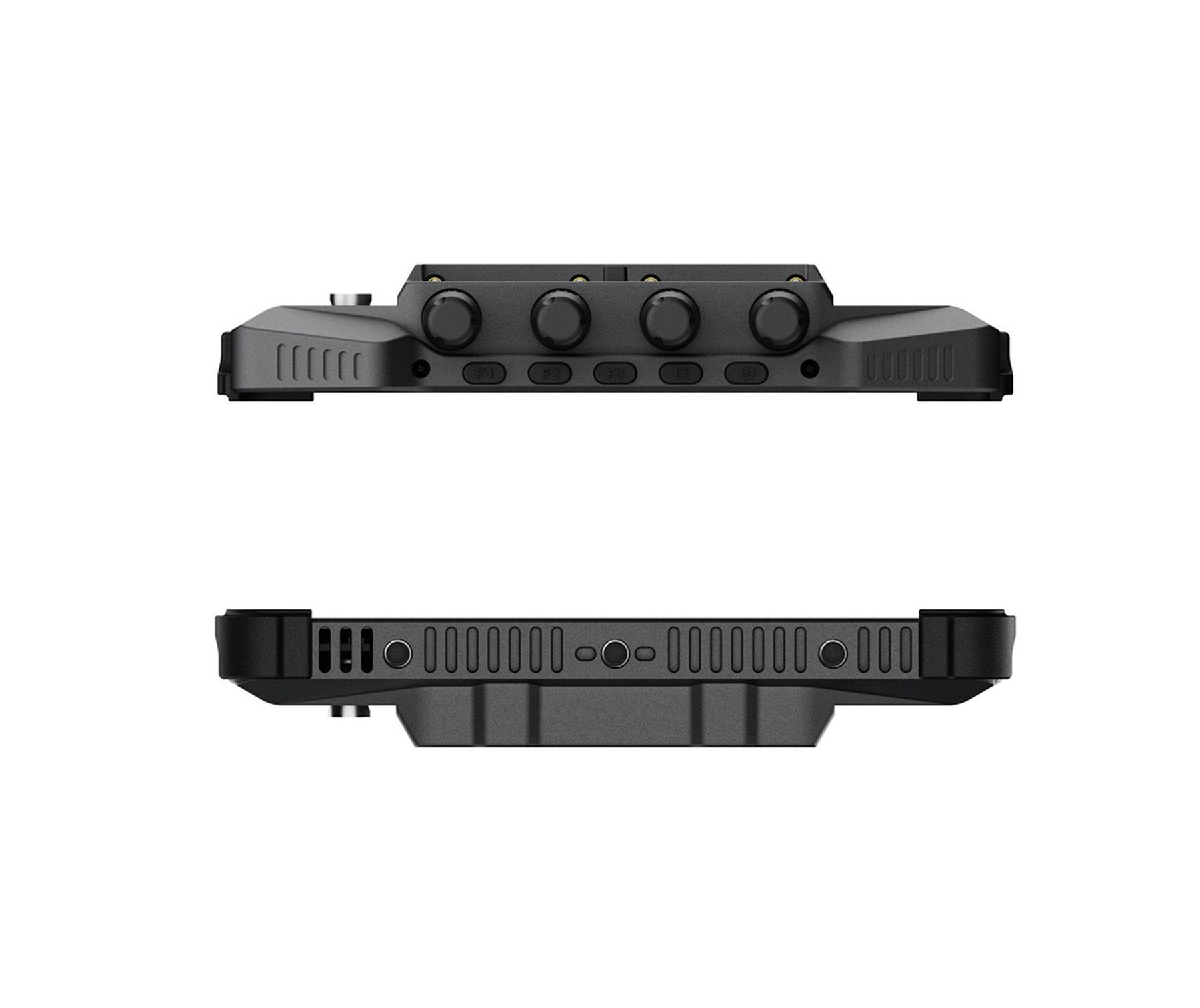

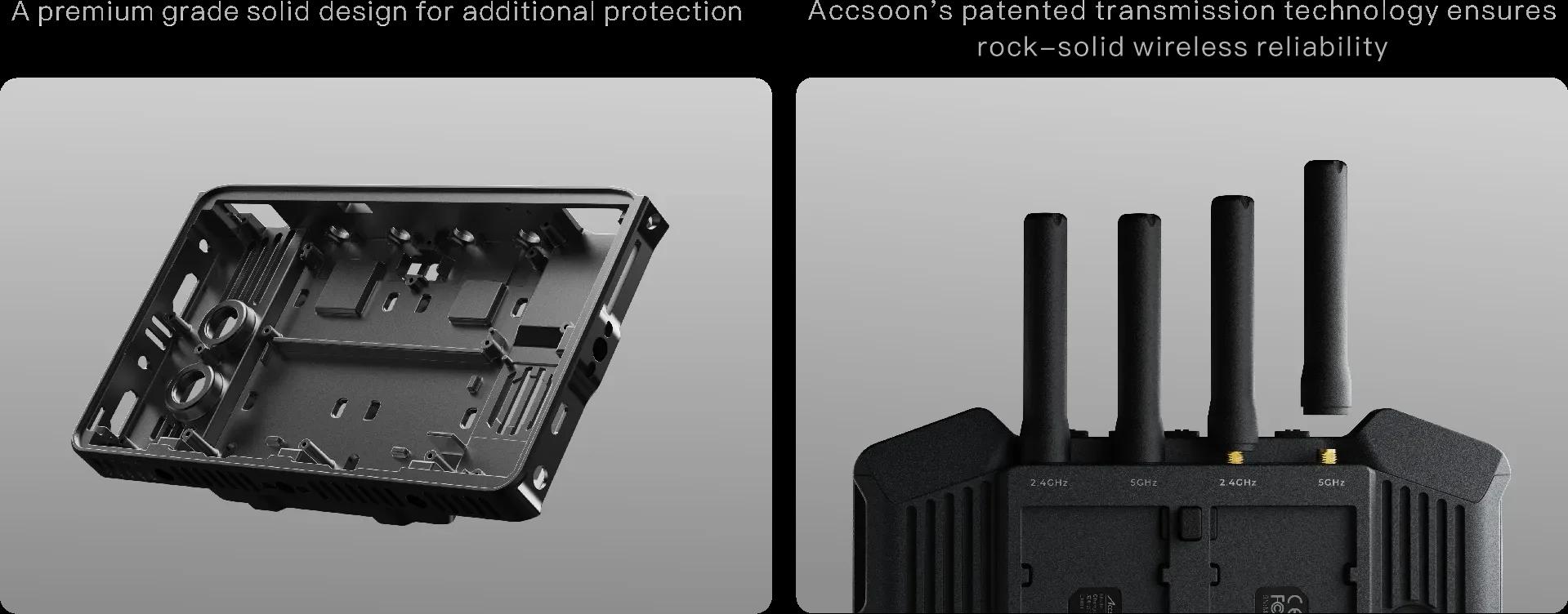

Aerospace-Grade Aluminum Body

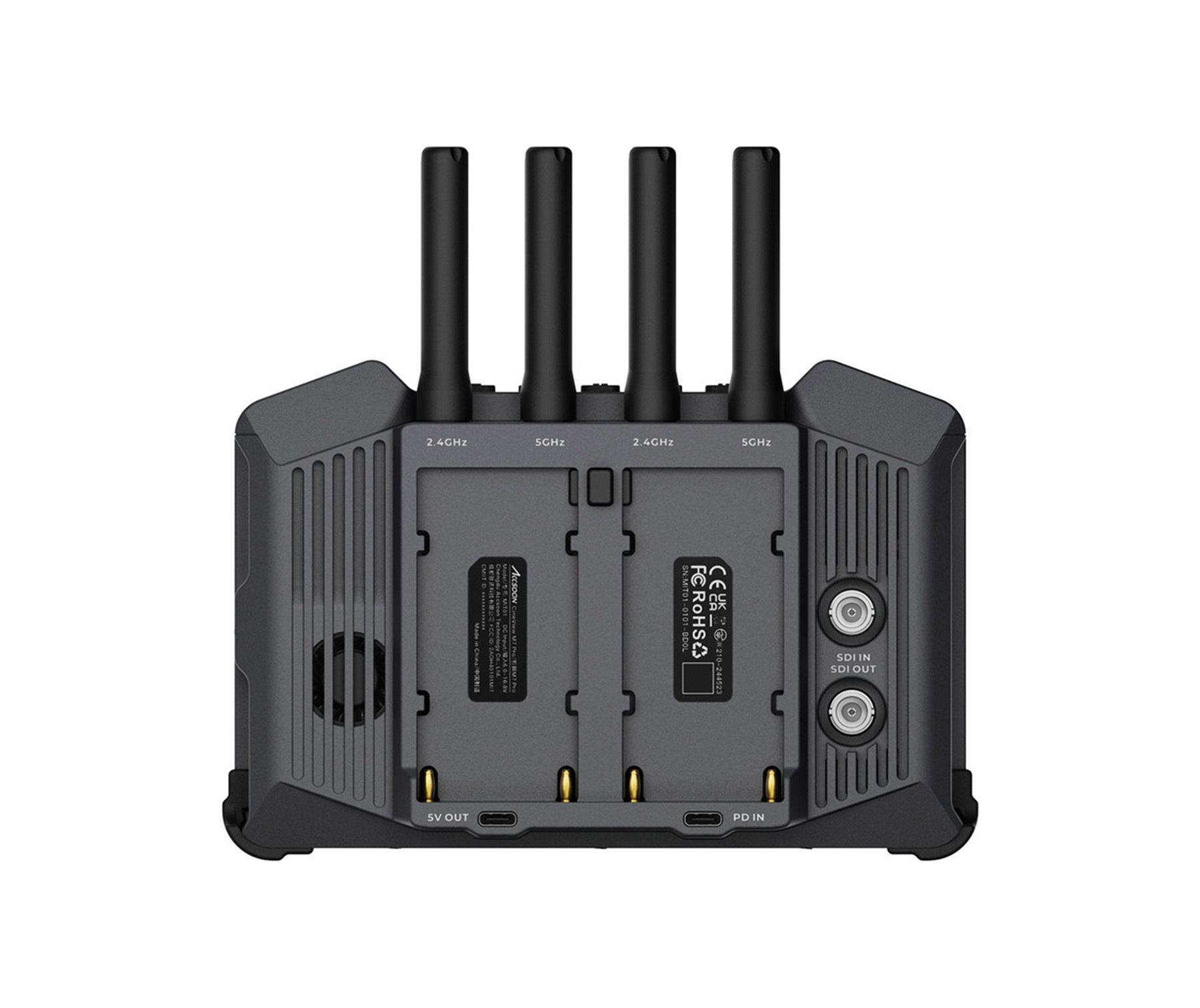

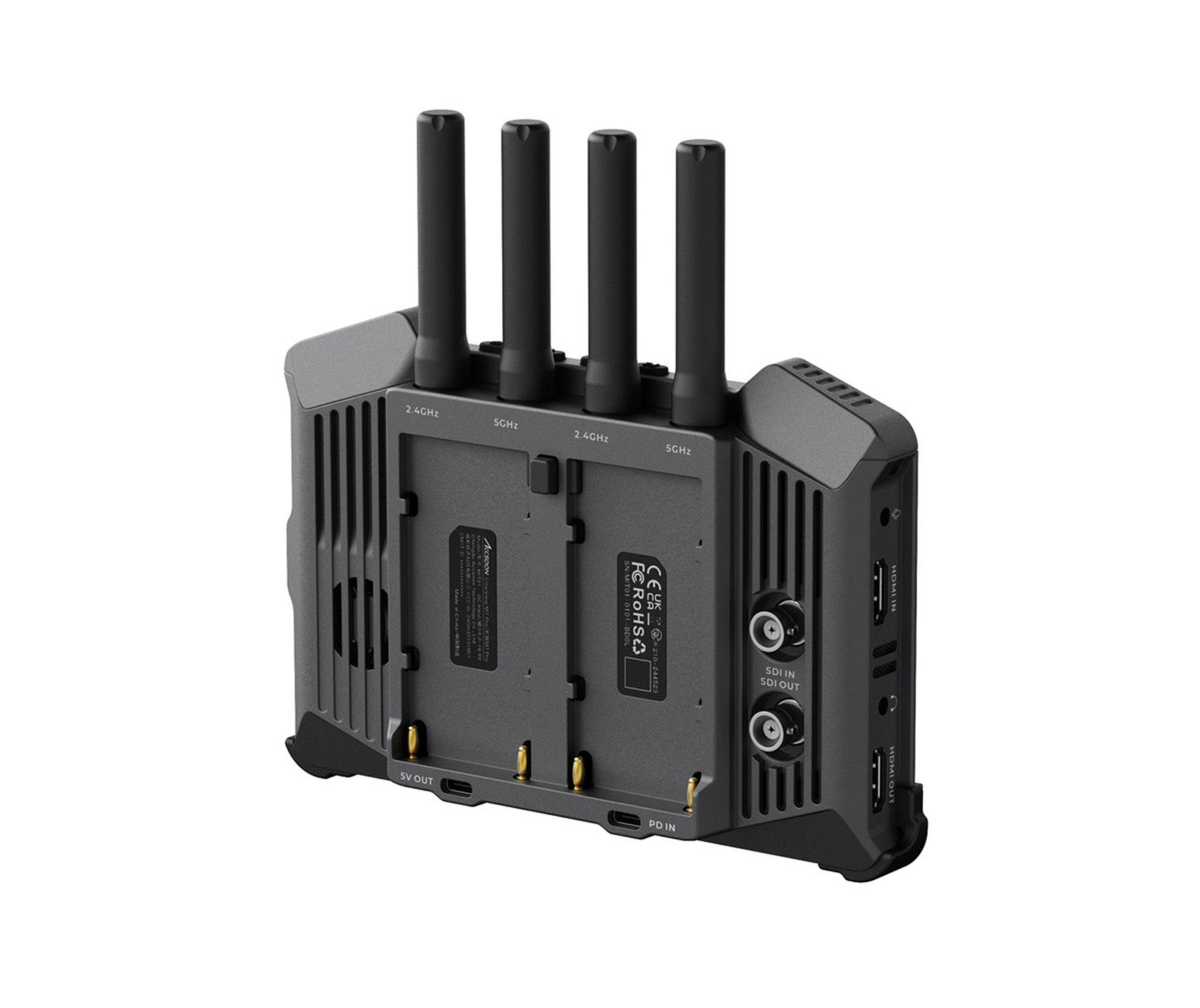

Quad-Antenna Dual-Band Architecture
Smart Cooling with Speed Control
Professional Accessories
*sold separately
What's in the box?
- 1 x Accsoon CineView M7 Pro
- 4 x Antenna
- Technical Data
Displayscreen
7” LCD
Resolution
1920 × 1080 pixels
PPI
323
Aspectratio
16:9
Brightness
1000 nits
Contrast ratio
1000:1
Viewing angle
176°/176°
Backlight type
Edge-Lit Ultra-transparent LED Backlight
Screen color calibration
Supported
LUT
1D and 3D Cube LUTs Supported
1D: up to 4096 points
3D: up to 127 points
Video input port
HDMI 2.0/3G-SDI
Video output port
HDMI 2.0/3G-SDI
HDMI videoinput format
4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60
4K UHD(3840*2160): 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
SDI video input format
1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A/B
1080i: 50/59.94/60
HDMI video output format
4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60
4K UHD (3840*2160): 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
SDI video output format
1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A
1080i: 50/59.94/60
DC port
6.0~16.8V 5.5mm*2.1mm Center Positive
Compatible battery
Compatible with NP-F550, NP-F750, NP-F970 Batteries
USB-C power input port
PD3.0 9V/3A, 12V/3A, 15V/3A
USB-C power output port
Maximum: 5V/2A
Microphone jack
3.5mm TRS
Headphone jack
3.5mm CTIA
Microphone input audio sampling
16bit, 48KHz
Power consumption
12W~28W(Varies according to actual usage)
Housing
Aircraft-grade Aluminium Alloy
Heat Dissipation
Active + Passive Cooling
Wireless transmission latency
60ms
Wireless transmission distance
Dual-Band Connection: 350 meters
Work environment temperature
-10- 40℃
Weight (antennas excluded)
494.3g
Dimensions (antennas excluded)
182.2*120.7*31.5mm
