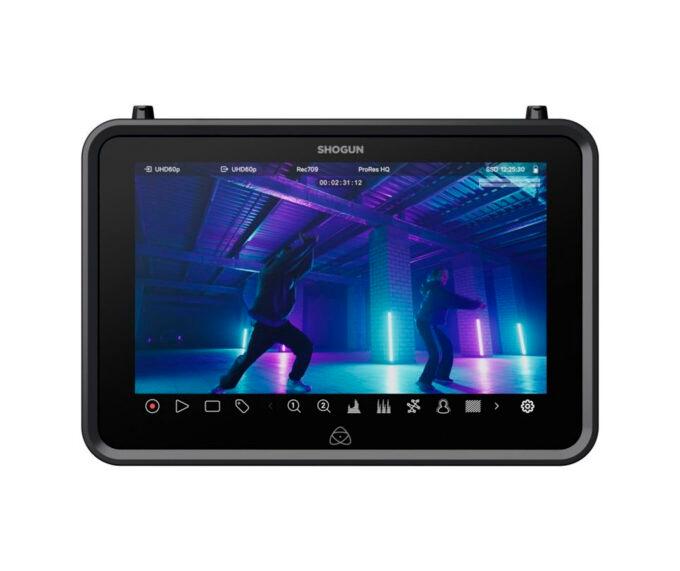

Atomos Shogun Ultra 7" Monitor-Recorder
Product Highlights
- AtomOS 11, 12G-SDI/HDMI Conversion
- 7" 1920 x 1080 Touchscreen
- Records up to 8K Apple ProRes Raw
- ProRes Raw + H.265 Dual Recording
- AirGlu RF Wireless Sync, GigE, 6E Wi-Fi
- 2000 cd/m² Brightness
- ARRI/Canon/RED/Sony Camera SDI Support
- AVID DNX QuickTime
- Atomos RemoteView via Subscription
- NDI 4K TX Pro Mode 1-Off Activation
SHOGUN ULTRA
Complete connectivity
THE NEW SHOGUN ULTRA
Showtime
Shogun Ultra is your gateway to amazingly fast and productive cloud workflows. So much more than a super-bright monitor recorder, it takes you to new heights of productivity and collaborative creativity. Work faster, work better.
HDR MONITORING AND RAW RECORDING
Capture
Every Nuance
FULLY INTEGRATED NETWORK CLOUD CONNECTIVITY
All the connectivity you’ll ever need
Solid Internet
Network connectivity with Wi-Fi 6E and GigE.
Wireless Sync
Long-range robust wireless sync and control with AirGlu RF.
Third-party Sync
Third-party sync and app control with Bluetooth AirGlu BT.
USB-C Port
For future updates.
More Power Options
Multiple power options with NP battery slot and separate 2.1mm locking jack DC input.
SDI Out
Separate SDI Out for comprehensive SDI<>HDMI cross-conversion.
HIGHLY-RESPONSIVE TOUCHSCREEN
Super bright
screen
Shogun Ultra’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even upload to the cloud.
KEY FEATURES
What’s new, at a glance.
Brand New OS
New AtomOS 11 - faster, cleaner, with more features
More Codecs Included
6K ProRes RAW, ProRes, DNxHD & H.265 - all for free
Dual Record
Dual 4Kp60 ProRes RAW & proxy recording for Cloud
4K H.265 Recording*
Record & upload high bitrate 4K files to the Cloud
*Available when subscribing to Classic and Premium Atomos Cloud Services
SDI Cine
Auto-matched filenames from ARRI, Canon, RED & Sony cameras.
Wi-Fi 6
Fast, stable connection to the internet
RemoteView
Share live camera views from your Shogun’s screen over the public internet
Improved Monitoring
With EL ZONE System™ exposure and ARRI false color
Premium Options
NDI 4K TX
Atomos Care360
Premium extended warranty that covers unforeseen damage
LOCAL AND CLOUD
Choose your workflow
Shogun Ultra has two faces: Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G-SDI. Turn on its wireless and network capabilities, and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish it directly to social media within minutes of shooting the action.
RAW CAPTURE
Enhance your camera
Shogun Ultra can capture RAW inputs up to 8K at 30fps, 6K at 60fps and 4K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats. With a super bright 2000nit 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun Ultra has a new operating system and user interface.
NEW FEATURES
The Ultimate
Shogun
In addition to network and SDI connectivity, you get access to super-efficient cloud workflows, and you can cross-convert between HDMI and SDI. Take advantage of the new, ultra-fast and reliable WiFI 6E for more stable connections. Shogun Ultra, which can be remote-controlled over Bluetooth with AtomRemote App, is the most practical and affordable way to stream, transfer and edit in the cloud.
2000
nits of brilliance
12G-SDI
input/output
SDI RAW
up to 4Kp120
CUSTOM FILE SIZE
SegmentPro
SegmentPro is another powerful new tool exclusive to our completely redesigned AtomOS 11 operating system. It allows you to segment/split long recordings into user-defined chunks, adding even more flexibility to the production workflow. The segmenting can be defined by setting a custom file size limit, in GB or TB, or by time, all without dropping a frame.
With SegmentPro you can fit your files into any workflow – even those that require smaller media (for example, if you are going to edit on an iPad). It’s easier to share smaller files, and safer too: if you lose a big file, you’ve lost everything. Working with smaller files minimizes this risk.
DUAL RECORD
Capture simultaneously up to 4K 60p ProRes RAW and HD 60p H.265
Record full-quality files in ProRes RAW up to 4K 60p while at the same time recording HD 60p to H.265. It’s the best of both worlds. Boost your productivity by storing your definitive copy in ProRes RAW ready for your post-production workflow, and use your H.265 copy for your camera to cloud activities.
CAMERA-TO-CLOUD
Publish from the cloud
Record higher-quality media for instant publishing. The new 4K camera to cloud mode lets you record and upload much higher quality H.265 video with higher framerates.* H.265 files are half the size of H.264 media. They’re small enough for camera-to-cloud workflows but more than good enough for immediate use on social media, sports reporting or news gathering. It’s the fastest way to get your video in front of your viewers (requires Atomos Cloud Studio (ACS) subscription). It also a super useful mode to record proxies at up to 4K 60p to match an original in-camera (OCF) file.
*Classic or Premium Atomos Cloud Studio subscription required.
CODEC CHOICE
Multiple Codecs
The new Shogun line includes these codecs free of charge, so you can choose the ideal codec for your projects.
- Apple ProRes
- Apple ProRes RAW
- H.265
- DNx (QuickTime)
Apple ProRes is pre-activated to use out of the box, so you can start shooting immediately. To activate H.265 and DNx, visit my.atomos.com to register your Shogun and follow the simple online instructions.
To activate Apple ProRes RAW, you need to go to my.atomos.com. There is a small additional step to get an activation token to access the codec for free. Simply plug in your compatible RAW camera to complete the process. You only need to do it once to unlock this super-flexible and unique codec without time restrictions.
VIDEO OVER IP
NDI HD and 4K TX
4k TX is a paid option.
NDI is a way to send video over ordinary networks (including Wi-Fi and mobile) in high quality but with remarkably low bandwidth requirements. It’s increasingly used in live production, and now your Shogun Ultra can take part in an NDI environment. The NDI TX option turns your Shogun Ultra into an NDI source, visible to all other authorized devices on the network.
SDI CINE
Original camera filenames
over SDI
Automatically match filenames, timecode and record triggers from ARRI, Canon, RED and Sony cameras. Previously, camera to cloud relied on matching filenames with hero and proxy files made by AtomOS. Now, thanks to cooperation with ARRI, Canon, RED and Sony, Atomos C2C files are matched back to the original in-camera (OCF) filenames. This gives a joined-up process when conforming C2C or SSD proxy files in the edit with camera files. On camera or Atomos: it’s your choice.
VERSATILITY
Any camera,
any format.
Anywhere.
Pair Shogun Ultra equally well using SDI or HDMI with smaller cameras as part of a minimal setup or with full-size camera rigs on large-scale productions. Shogun Ultra is made from precision materials with a solid aluminium frame, crafted for maximum durability. Weighing only 730g (1.6lbs), you can use it comfortably with a handheld camera. Shogun Ultra includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.

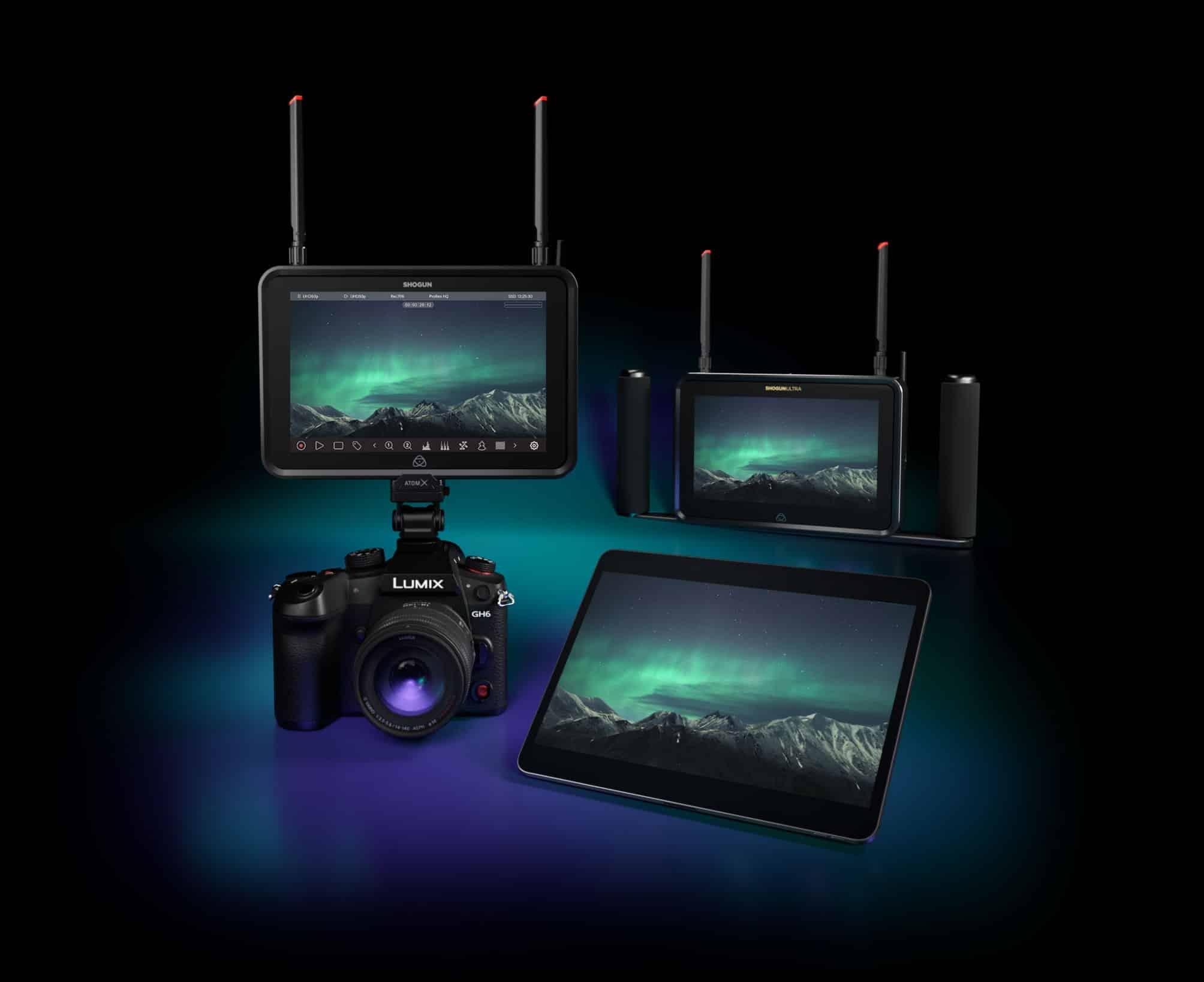

SHARE FROM ANYWHERE
Introducing
RemoteView
Atomos RemoteView lets you share incoming video on your Atomos screen with other Atomos monitors, as well as with iPads, Macs and Apple TVs wirelessly. You can monitor what’s happening on-set and look through any connected camera taking the shot from anywhere in the world.
ATOMOS TECHNOLOGY
Global, low
latency video
Remote view doesn’t need expensive hardware and uses the public internet, so it’s global. But Atomos technology ensures there are no delays. You can receive up to four RemoveView feeds on a single screen. It’s all configurable from a simple web interface. Atomos RemoteView needs an Atomos Connect but no additional hardware.
Powered by a unique combination of AtomOS 11 and Atomos Cloud Studio, you can share with the person standing next to you or someone across the globe just as easily.
SECURITY
Secure and personalized
For absolute security, you can burn a watermark into each remote video feed, so there’s no risk of copying. You can also brand your footage with your own or your customer’s logo. Or put the movie name, date, type of camera – any information you think will be helpful, burnt into your remote feeds.
Atomos RemoteView requires a subscription to Atomos Cloud Services. It uses Atomos Credits for a simple “pay as you go” service.
VERSATILITY
Stream from Anywhere
Shogun Ultra supports live streaming to a range of online services including Acebook Live, Twitch, YouTube, and custom RTMP/S. With Wi-Fi 6E, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, Shogun CONNECT helps filmmakers, streamers, and video content producers reach their audience from anywhere.
Key Features
- Support for more camera models with 12G-SDI
- SDI input to HDMI output conversion
- Wi-Fi 6E and 1GbE Ethernet
- Stream to Facebook, Twitch, YouTube, and custom RTMP/S services
- Share media with the camera to cloud (C2C) and Atomos Edit
- Live stream an HDMI or SDI source into Atomos Live Production or RemoteView
- Synchronize cameras, audio recorders, and applications with AirGlu™
- Support for AtomRemote app
- Add major features without adding significantly to the overall footprint
SUPERIOR MONITORING
A complete monitoring toolbox
Shogun Ultra includes comprehensive monitoring tools to help you get the perfect composition and exposure in every shot. Easy-to-use but powerful tools include waveform, focus peaking, multiple false color tools, zoom controls, custom LUTs, and frame guides. Shogun’s new AtomOS 11 software is simple to update with new features and releases – as well as support for new cameras.
Waveform
Evaluate the brightness of your image, regardless of the color
Aspect Ratios
Easily switch between aspect ratio guides for instant and accurate framing
Anamorphic De-squeeze
Compensate for non-spherical anamorphic lenses to show a visually corrected wide-screen image
False Color
New with AtomOS 11: ARRI False Color and EL ZONE System
Custom Frame Guides
Frame shots with confidence, for social media or cinematic productions
What's in the box?
- 1 x Shogun Ultra
- 1 x USB-C PD to DC Adapter Cable
- 1 x Master Caddy III, 1 x RF Antenna
- 2 x Wi-Fi Antenna with Black Caps
- 5 x Colored Antenna Cap
- 3 x Antenna Mount Covers
- 1 x 3.5mm Audio Jack-to-Jack Cable
- 1 x Quick Start Guide
- Physical
Dimensions (W x H x D mm)
198mm x 133mm x 40mm / 7.8″ x 5.2″ x 1.57″
Weight
730g / 1.6 lbs
Mounting Points
Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points
- Environmental
Ambient operating temperature
Up to 40 Degrees Celsius
- Construction
Body
Aluminium Alloy Chassis with ABS Polycarbonate Rear Enclosure
Cooling
Heat Sink + Actively controlled Fan
Tally light
LED on the Rear of the Device
Multi-Function Button
Power / Lock Screen
Touch Screen
Capacitive Touch
- Power
Input Voltage
6.2V to 16.8V
Compatible Batteries
1 x NP-F / L-Series
DC in Connector
Locking DC Jack (5.5mm OD & 2.1mm ID)
D-Tap
Via optional D-Tap to DC-Barrel cable
Fan Control
Low, Medium, Auto / Turbo Cool / Dim Display
- Display
Display Panel
SuperAtom IPS Panel (Capacitive Touch)
Size
7"
Resolution
1920 x 1200 (1920 x 1080 Image Display)
Viewing Angle
178 + H & V
PPI
325
Bit-Depth
10-bit (8+2 FRC)
Backlight Type
Edge-Lit
Brightness (cd/m²/ nits)
2000nit +/- 10%
Aspect Ratio
16:10 (16:9 Image Display)
Color Gamut
Rec.709
Calibration Support
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
- Color Pipeline
Gamma
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Arri LogC4, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
Gamut
BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display
.Cube Format (17 & 33 points supported)
3D LUT Output
Loop out
3DLUT 50/50
Via Compare Option in LUTs Menu
Monitoring Modes
Native / 709 / HLG / PQ / 3D LUT
HDR Output Conversion
HLG / PQ
- Color Management
Calibration
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Display Controls
Backlight, Lift, Gamma, Gain
AtomHDR
Built-in Technical Log to HDR EOTF
3D LUTs
Load .Cube files from SSD into 8 LUT Slots On-Device – Use for Monitoring, bake into Recordings (optional), or apply to HDMI / SDI Output Signals
Legalize
Full to Legal Range Conversion available via Input Menu
- Video Input
HDMI
1 x HDMI 2.0
SDI
1 x 12G SDI
Bit Depth
8/10-Bit for Video / up to 12-Bit for RAW
Video Chroma Subsampling
YCbCr 4:2:0 & 4:2:2
HDR
HDMI Auto Detection
- Metadata
HDMI
RAW – White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut
SDI
File Name – Arri, Canon, RED, Sony. RAW – White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut
- File Naming
Standard
Scene/Shot/Take & Rolling Scene/Shot/Take
Via SDI
Auto-matched filenames from supported Arri, Canon, RED & Sony Cameras
- Video Output
HDMI
1 x HDMI 2.0
SDI Loop / Play Out
1 x 12G SDI
Video Chroma Subsampling
4:2:2
Bit Depth
10-Bit
HDR
Yes with auto-detection
- Network
Ethernet
1GbE via RJ45
Wi-Fi
Wi-Fi 6E
Wireless RF
AirGlu™ SYNC Timecode Network
Atomos Cloud
Capture to Cloud (AtomosEdit, Frame.io, Sony CI Media), Live Stream (Facebook, Twitch, YouTube, Custom RTMP), Atomos Live Production
Cellular
Connect to Hotspot via Wi-Fi
- Web Streaming
RTMP / S
Destination configured via Atomos Cloud Studio
- Video Signal Conversion
HDMI to SDI
Supported
SDI to HDMI
Supported
- Audio In/Out
Audio Quality
24-Bit / 48kHz
Audio Codec
PCM
HDMI
8ch 24-Bit, Input dependent
SDI
12ch 24-Bit, Input dependent
Analog Audio In
3.5mm Jack
Analog Audio Out / Headphone Jack
3.5mm Jack
Audio Input Delay
Frame Delay on Analog Input + Automatic Offset Calibration via AtomOS
- Timecode Sync
HDMI Embedded
Supported
SDI Embedded
Supported
Time of Day
Supported
Wireless SYNC
AirGlu™ SYNC timecode network
RF Network Range
300m
RF Frequency
Region dependent
Number of Channels
12 RF channels per Region
Number of RF Clients
Region dependant
Bluetooth Network Range
10-15m (Line of Sight)
Number of BT Clients
2 Clients
- Resolution And Frame Rates
8K RAW
up to 8Kp30 via HDMI
6K RAW
up to 6Kp60 via HDMI & 6Kp30 via SDI
4K RAW
up to 4Kp120 via HDMI / SDI
3.5K Anamorphic RAW
up to 3.5Kp60 via HDMI
2K RAW
up to 2Kp240 via SDI
4K DCI
up to 4Kp60
4K UHD
up to UHDp60
2K DCI 2048 x 1080
up to 2Kp60 via SDI
FHD 1920 x 1080 Progressive
up to 1080p120
FHD 1920 x 1080 PsF
Only via Pulldown to Progressive
FHD 1920 x 1080 Interlaced
1080i50 / 1080i60
1280 x 720p
up to 720p60
- Recording Codecs
Apple ProRes RAW
ProRes RAW & RAW HQ
Apple ProRes
HQ, 422, LT
Avid DNxHD
220x, 220, 145, 36 (.MOV Wrapper – .MXF Support coming soon)
Avid DNxHR
HQX, HQ, SQ, LB (.MOV Wrapper – .MXF Support coming soon)
H.265
XQ, HQ, MQ, LQ (.MOV Wrapper)
- Recording Functions
Camera to Cloud
H.265 uploaded to Atomos Edit, Adobe Frame.io, Sony CI Media
Simultaneous Proxy Recording
ProRes RAW / ProRes / DNx + H.265 Proxy in C2C Mode
Pre-roll Recording
8s HD / 4s 4K – ProRes & DNx only
Timelapse
Supported
Gang Control
Via AirGlu™ SYNC Timecode Network
Scheduled Recording
At a specified Time of Day or after a specified Time has elapsed
- Playback
Playlist
Selected Clips, Favorites, or Combined
Loop
Supported, with user-customizable In / Out Markers
Apple ProRes RAW
Recorded clips only
Apple ProRes
HQ, 422, LT (Linear PCM Audio only)
Avid DNx
DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only)
H.265
Recorded clips only
Scheduled Playback
At a specified Time of Day or after a specified Time has elapsed
- Supported Media
Master Caddy I
Not Supported
Master Caddy II
Supported
Master Caddy III
Supported
SSDmini
Supported
CFast 2.0
Supported via optional AtomX CFast 2.0 Adapter
Network
Capture to Cloud via Atomos Cloud Studio
File System
exFAT
Interface
SATA 3.0
- On Screen Tools
Waveform
3 Sizes – Adjustable Opacity & Brightness
RGB Parade
3 Sizes – Adjustable Opacity & Brightness
Vector Scope
2 Sizes – Adjustable Opacity & Brightness
1 x Zoom
Tap to Zoom
2 x Zoom
Tap to Zoom
Focus Peaking
3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity
Zebra
Adjustable Threshold (50% to 105%)
Isolate Color Channel
Blue Only
Cine Frame Guides
6 Presets & Custom Frame Guide Calculator
Social Frame Guides
4 Presets & Custom Frame Guide Calculator
Safe Areas
SMPTE Safe Title Area – 93% & 90%
Grid Markers
9 Grid
Anamorphic Desqueeze
2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip
Vertical
Colorized Exposure
Atomos False Color, EL Zone System, Arri False Color
Frame Grab + Onion Skin Overlay
Capture lossless 1920 x 1080 Pixel Frame Grab & Overlay with various Position + Transparency Options
- Onboard Signal Processing
4K UHD Downscale for HD
Available on loop-out
DCI Crop
Available on loop-out
8K RAW to 4K Video Loop Out
Available on loop-out
Interlaced to Progressive
2:2 & 3:2 Pulldown
PsF to Progressive
2:2 & 3:2 Pulldown
NDI HX2 TX (HD)
$99 optional Activation available via my.atomos.com
NDI HX2 TX (4K)
$199 optional Activation available via my.atomos.com
- Remote Control
HDMI
Trigger Recording via Camera Record Button – Supported Protocols: Canon, Sony, Atomos Open Standard, Timecode (Rec Run)
SDI
Trigger Recording via Camera Record Button – Supported Protocols: Arri, Canon, Ikegami, JVC, Panasonic, RED, Sony, Timecode (Rec Run) (optional Atomos Connect Accessory required)
Serial 2.5mm Jack
Start & Stop Recording via compatible LANC Remotes – Calibration via optional USB to Serial Cable
Bluetooth LE
via AtomRemote App
Wireless RF
AirGlu™ Gang Control
- External Device Control
Serial 2.5mm Jack
Z CAM Camera Control via Remote to USB-C Cable
- Cut & Tag
FCP XML
Up to 10 Tags supported for each Clip
- Supported Applications
XML
Apple Final Cut Pro (.fcpxml)
Apple ProRes RAW
Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH, FilmLight Baselight
Video Codecs
All NLE applications that support Apple ProRes, Avid DNx and H.265 in .MOV Wrapper
