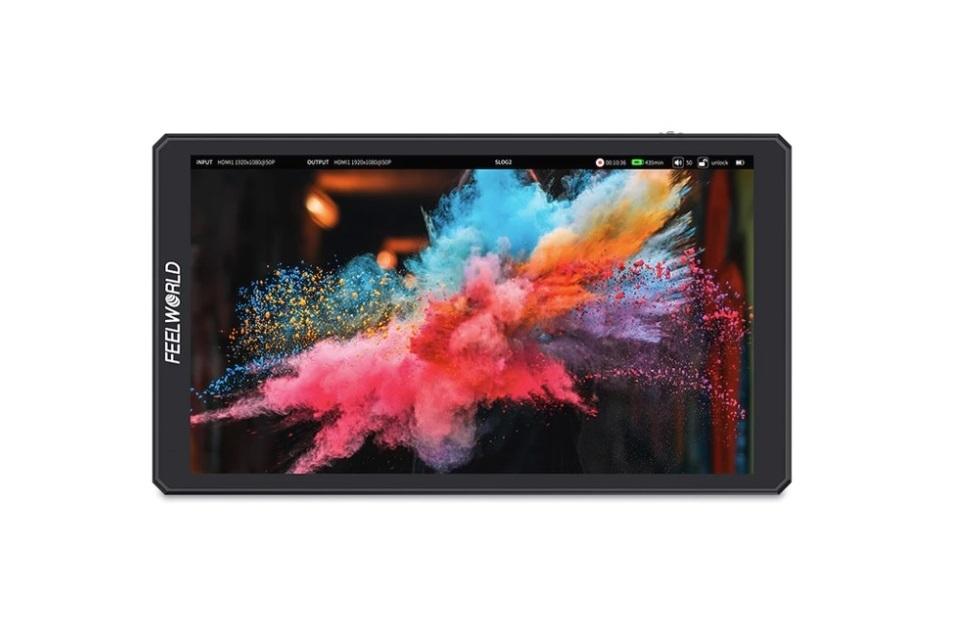

Feelworld CUT6S 6" 4K HDMI and 3G-SDI Touchscreen Recorder/Monitor

SKU: XX FW/CUT6S

Product Highlights

  • 1920 x 1080 Touchscreen Display
  • Up to 1080p60 3G-SDI Input & Output
  • Up to UHD 4K60 HDMI In/1080p60 HDMI Out
  • Records 1080p30 with LUT to USB 2.0
  • 8.4VDC, 5.5/2.1mm Barrel Out to Camera
  • 450 cd/m² Brightness
  • HDR/HLG Support, 8-Bit Color
  • Upload Maximum of 50 LUTs
  • 1 x Sony L-Series Battery Slot
  • Waveform, Vectorscope, Focus Peaking
$508.00 (inc GST)

This product is currently out of stock. If you wish to be informed when it is back in stock, please click on the link below.

XX FWCUT6 S DSC 1

6-inchSDI/HDMI Portable Video Recording Monitor

CUT6S is the first monitor released by FEELWORLD that integrates monitoring and recording, it can record 1080P30 HD video with LUT via USB2.0. Ideal for photographers of simple daily tidbits or creators of relaxing and entertaining content sharing on social media,it can help them finish the production and improve work efficiency. 6-inch full HD touch screen, equipped with 4K HMDI input, HDMI loop-out LUT function, 3G-SDI input and output, and provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, easier setting.

XX FWCUT6 S DSC 2

1920x1080 Full HD Screen

Viewing clearly and capture every detail with confidence

CUT6S is equipped with 6-inch 1920x1080 high resolution touch screen, 8bit color depth, provides excellent details, make you enjoy clearer, richer color image and video.

XX FWCUT6 S DSC 3

Compact and Portable, Easy to Handle Every Scenes

The body is as thin as 2.3cm and weighs only 230g, which can be easily mounted on various camera racks. And perfect for using with a gimbal for on-site shooting and recording on the go.

XX FWCUT6 S DSC 4

USB2.0 Real-time Recording

The difference of CUT6S with common monitors is its USB2.0 recording function, it record the video image up to 1080p30 from compatible cameras, in MP4 format over HDMI. Only need to plug USB flash disk (supports FAT32 format ) and click the red recording key to start record. Recording time depends on the capacity of external storage media, for example 1-hour live broadcast recording takes up about 1860M of memory.

XX FWCUT6 S DSC 5

Recording with LUT Effect, Produce the Video Fast

When the LUT function is turned on, CUT6S can record video with LUT effect. For the simple contents such as tidbits of behind the scenes, can finish the video production fast, save the time cost.

XX FWCUT6 S DSC 2

Secondary Editing for The Live Streaming Material

When you use the PTZ camera for live streaming, it can’t record. Use the camera to record will easy too hot. That means you can only get the contents of live streaming from the highlights playback of the platform or local recording by OBS. However, OBS records the images of the final platform, and the recording from the platform needs to be uploaded, downloaded before editing. Using CUT6S is not only a pure shooting picture, but also can be used for secondary editing, and it can also be recorded with LUT, which saves the work of importing LUT in the later stage and quickly improves work efficiency.

XX FWCUT6 S DSC 7

New UI Interface + Touch Screen, Easier Operation

The CUT6S adopts full touchscreen user interface provides incredible control, you can use simple tap and swipe gestures for the important monitoring functions without buttons. New UI menu, take the software functions are iconized, and the values at a glance. It is more convenient and quickly to operate the function. You also can operate via wheel button on the top of the monitor.

On the top of the screen with red recording key and display the recording time . When the recording is about 1 minute, the information displayed on the top of the screen will be hidden automatically. You can click anywhere on the screen to view the recording time or click the recording key again to end the recording.

XX FWCUT6 S DSC 8

Touch Screen Operating Instruction

1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside the menu to exit.

XX FWCUT6 S DSC 9

Built-in Cooling Fan

Built-in cooling fan, and can be adjust low, middle, high speed, escort for shooting.

XX FWCUT6 S DSC 10

3G-SDI/HDMI Input and Output

Make for different needs

CUT6S comes with 3G-SDI input and output; HDMI 2.0 input that supports 4K 60Hz signal, HDMI output supports up to 1080p60. Compatible with film camera, DSLR camera, mirrorless camera, realize simultaneous monitoring by directors, photographers. For audio, CUT6S can record the follow audio of HDMI, and provides 3.5mm headphone jack to monitor audio.

Note: Under the 1080i signal, there will be a missing pixel at the edge of the image. For example, the frame will missing when inputting a panorama with frame, but it does not affect the using almost.

XX FWCUT6 S DSC 11

DC Power Supply

Power your DSLR or mirrorless camera

Provides auxiliary power out (DC OUT 8.4V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the CUT6S extends camera run-time, while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adapter (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.

XX FWCUT6 S DSC 12

Flexible Power Supply

In addition to the DC 12V power input (can be using 12V/1.5A adapter), on the rear of CUT6S also has a F970 battery plate, which compatible with Sony F970, F960, F950, F930, F770, F750, F730, F570, F550, F530 battery to power.
Note: the battery not including, please purchase separately

XX FWCUT6 S DSC 13
XX FWCUT6 S DSC 14

Smarter Tools for Absolute Precision

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vector, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files).

XX FWCUT6 S DSC 15

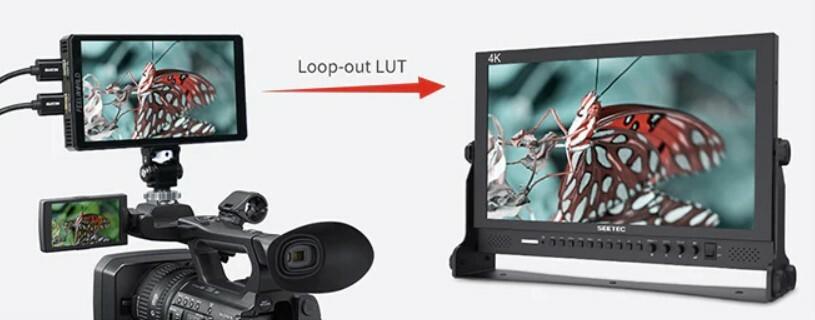

HDMI Loop-out LUT Function

After the LUT switch is turning on, HDMI output default to with LUT, which can output custom LUT image to other displays. When you are live streaming, you can connect the CUT6S output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.

XX FWCUT6 S DSC 16

Signal Seamless Switching

When you need to switch between HDMI and SDI signal, the latency of switching for CUT6S only about 3 frames, it is almost do seamless switching, the image smooth and clear.

XX FWCUT6 S DSC 17

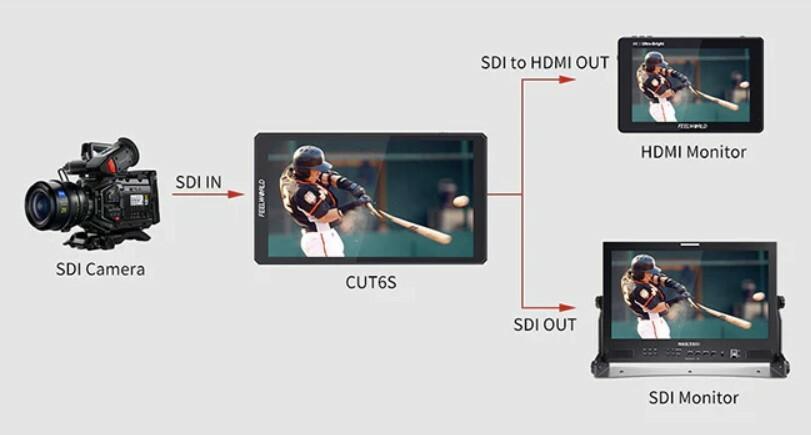

SDI to HDMI, More Flexible for Application

CUT6S supports SDI to HDMI, you can input SDI signal then HDMI and SDI outputs at the same time, realizing multi-person monitoring.

XX FWCUT6 S DSC 18

Load Custom 3D LUTs,Preview Filming Look in Field Shooting

Supports to load 50 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. CUT6S allows you to load internally up to custom LUTs (Up to 50 user files can be imported), looks or profiles at any time via micro SD card . Slot and instantly select between them, maintaining creative intent, always.

XX FWCUT6 S DSC 19

HDR Monitoring

What you see is what you get

HDR could bring bigger dynamic range and more image details, for incredible clarity , which could restore the true color. There are HLG2020, HLG709, HLG P3 modes for optional

XX FWCUT6 S DSC 20

Professional Scopes

Accurate All Waves Monitoring

When you need to analyze image quality more accurately than simply looking at the picture then use CUT6S’s built in all wave monitoring! Under all wave mode, you can choose from waveform (RGB/YUV), vector, histogram (Y, RGB, Y+RGB), audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. CUT6S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

XX FWCUT6 S DSC 21

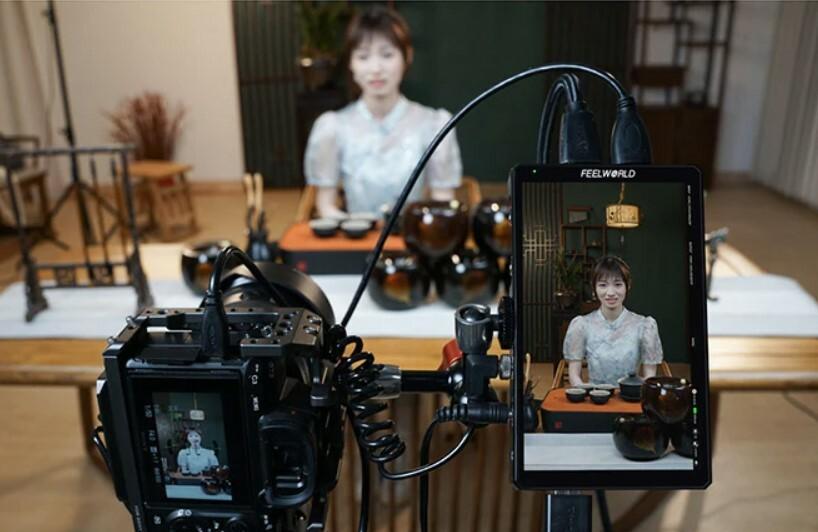

Multiple Installation Methods

Meet your diverse need of monitoring

The monitor is equipped with 3 standard 1/4”mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

XX FWCUT6 S DSC 22
XX FWCUT6 S DSC 23
  • Display Specifications
  • Model
    CUT6S

    Screen Size
    6" IPS

    Resolution
    1920x1080 pixels

    Pixel Pitch
    0.069 (H) × 0.069 (V) (mm)

    Aspect Ratio
    16:9

    Brightness
    450cd/m²

    Contrast Ratio
    1000:1

    Backlight
    LED
    Viewing Angle
    80°/80°(L/R) 80°/80°(U/D)

  • Input
  • 1 X SDI
    3G-SDI

    1 X HDMI
    HDMI 2.0

    1 X Micro SD Card
    SD Card Slot (LUT files and firmware update file import)

  • Output
  • 1 X SDI
    3G-SDI

    1 X HDMI
    HDMI 1.4

    1 X USB
    USB 2.0 Recording (supports the USB flash disk of FAT32 format)

    1 X DC
    Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

  • Audio
  • 3.5mm Stereo Headphone
  • USB Recording Support Format
  • MP4 (1080P30)
  • Sdi Support Format
  • 480i | 576i | 1080i@59.94/60
    720p@23.98/24/25/29.97/30/50/59.94/60
    1080p@23.98/24/25/29.97/30/50/59.94/60
    1080psf@23.8/24/25/29.7/30

  • HDMI Input Support Format
  • SMPTE
    720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60

    VESA
    1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 |1360×768@60 |1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 |3840×2160@60 | 4096×2160@60

  • HDMI Output Support Format
  • SMPTE:
    720p@50/60 | 1080p@24/25/30/50/60

    VESA:
    1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 |1360×768@60 | 1920×1080@24/25/30/50/60

  • General
  • Input Voltage
    DC7~14V

    Power Consumption
    ≤11W

    Working Temperature
    -20°C~50°C

    Storage Temperature
    -30°C~60°C

    Install Way
    1/4"-20 Thread Socket ( Right, Top, Bottom)

    Unit Size
    152Lx86Hx23D(mm)

    Unit Weight
    230g

    Color Box Size
    186L*124W*84H(mm)

    Outer Carton Qty
    10

    Outer Carton Size
    465*200*326 (mm)
