Feelworld F7 PLUS 7" 1200nit 4K HDMI Touch Screen Monitor

4K HDMI ON-SITE MONITOR
FEELWORLD F7 PLUS is a 7-inch high-brightness touch screen camera monitor. HDMI supports up to 4K60Hz, allowing you to experience the smoothness of high-speed transmission. There is an NP-F external install and power kit on the rear of F7 PLUS, which can be installed such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, which is perfect for director monitoring, 1st AC to focus pulling in the film crew.

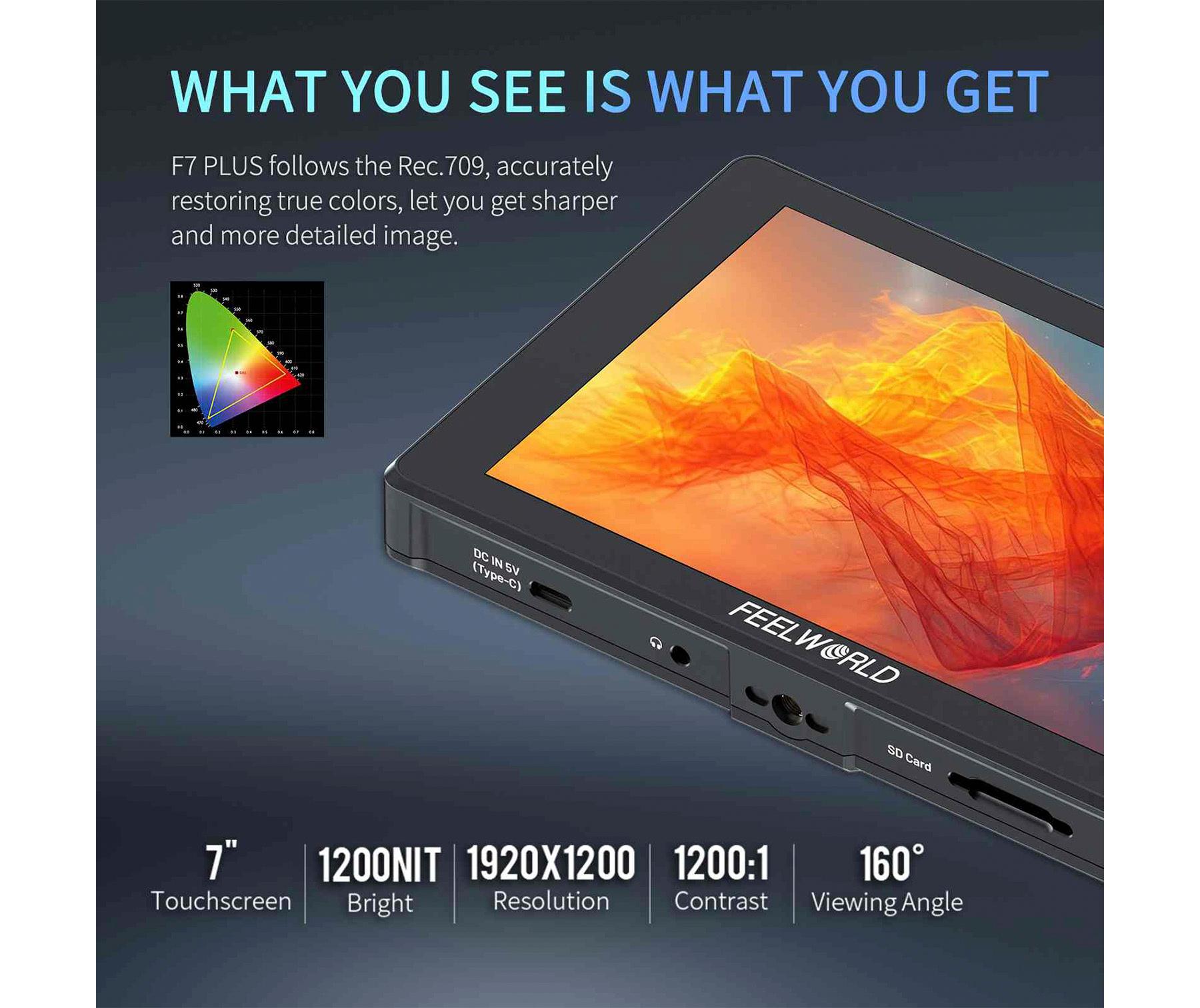

7-inch Full HD Screen
Clearly checking and capturing every nuance
With an extremely high-resolution 7-inch IPS panel, it provides excellent details and accurately reflects the original colors. Wide viewing clearly presents a more detailed image.

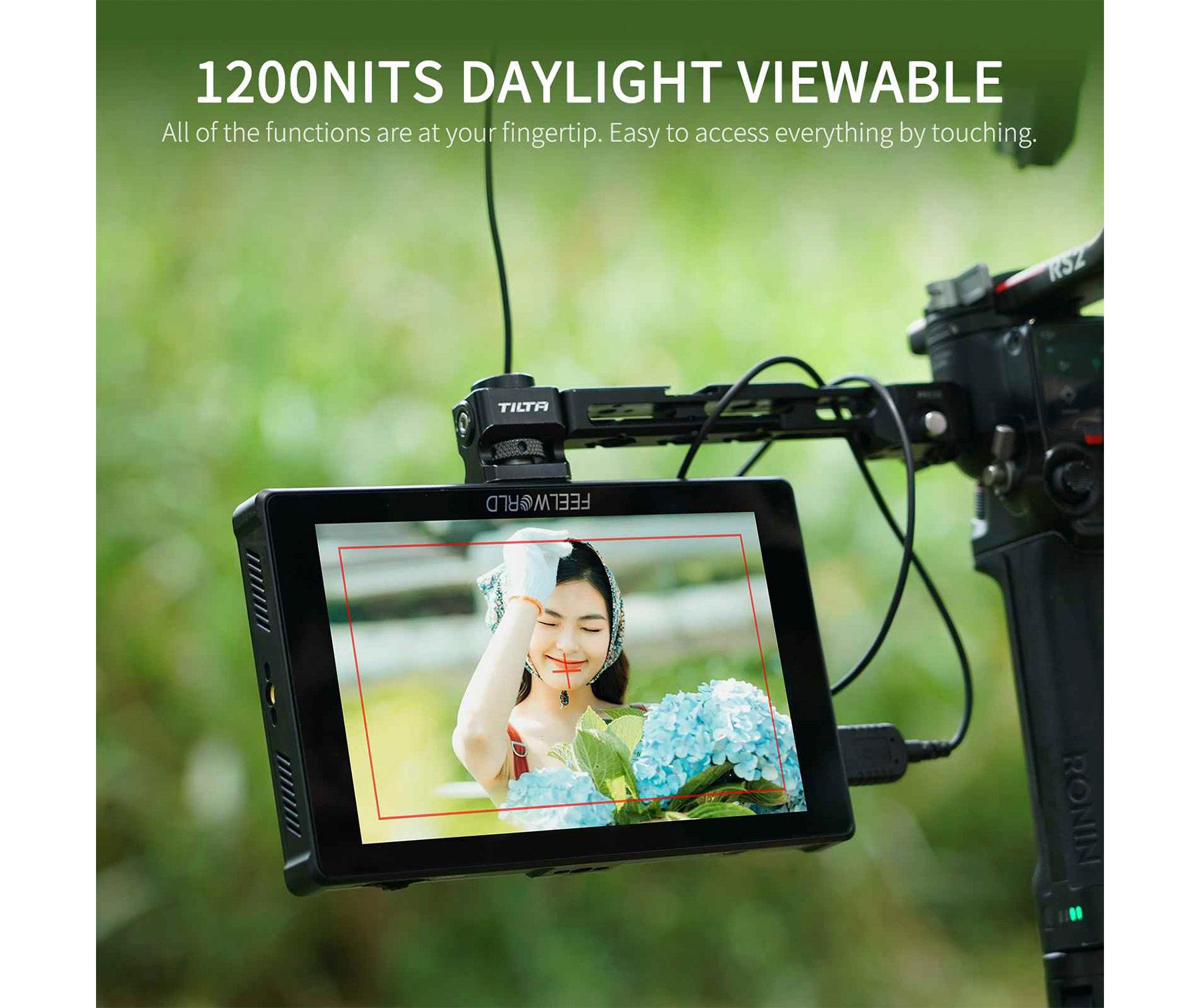

1200nit, Daylight Viewable
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

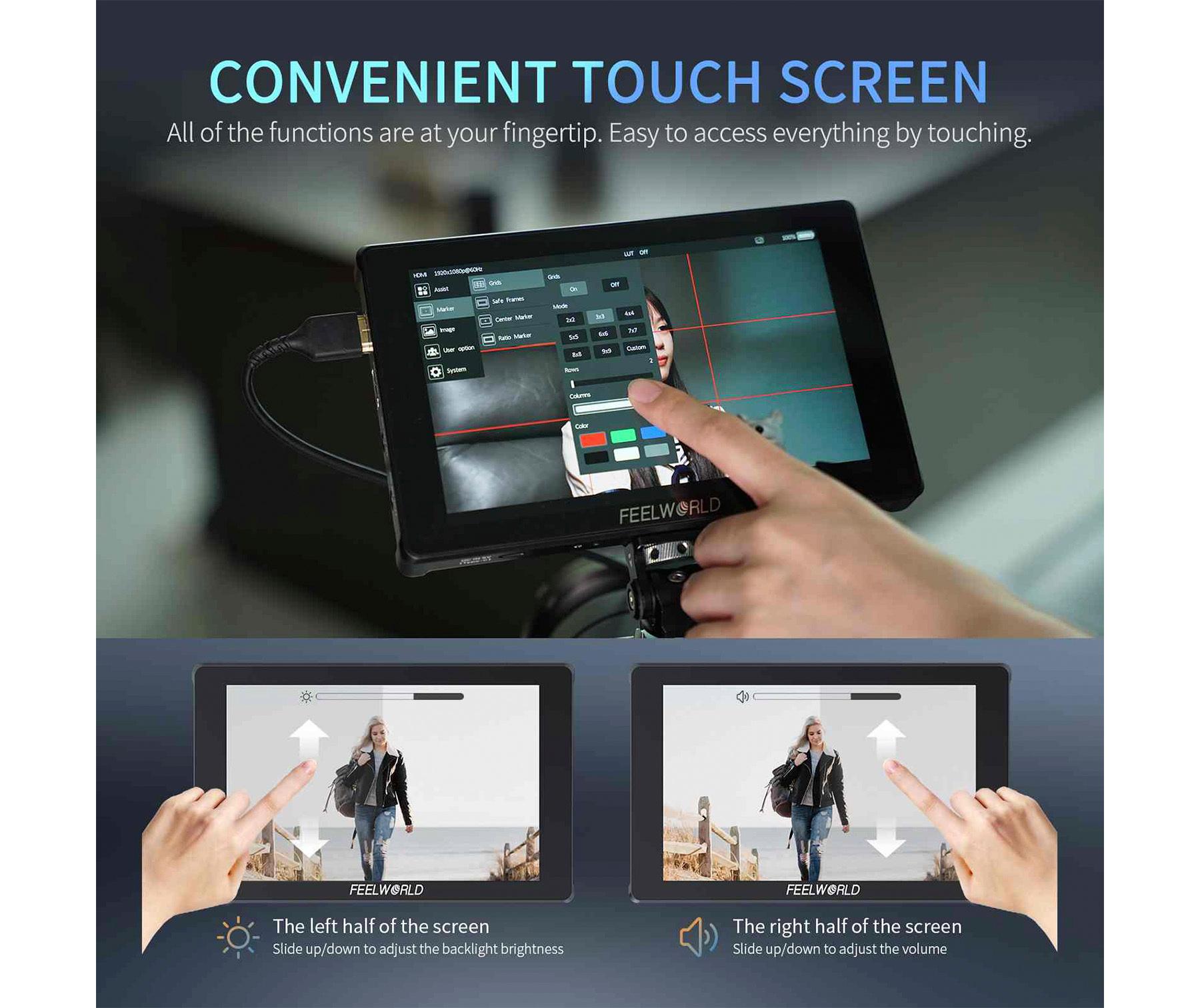

Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Menu User Switch
F7 PLUS provides 4 4-group menu setting saving. You can select 1~4 groups after setting the menu; it will save automatically, and can be called directly or switched next time.

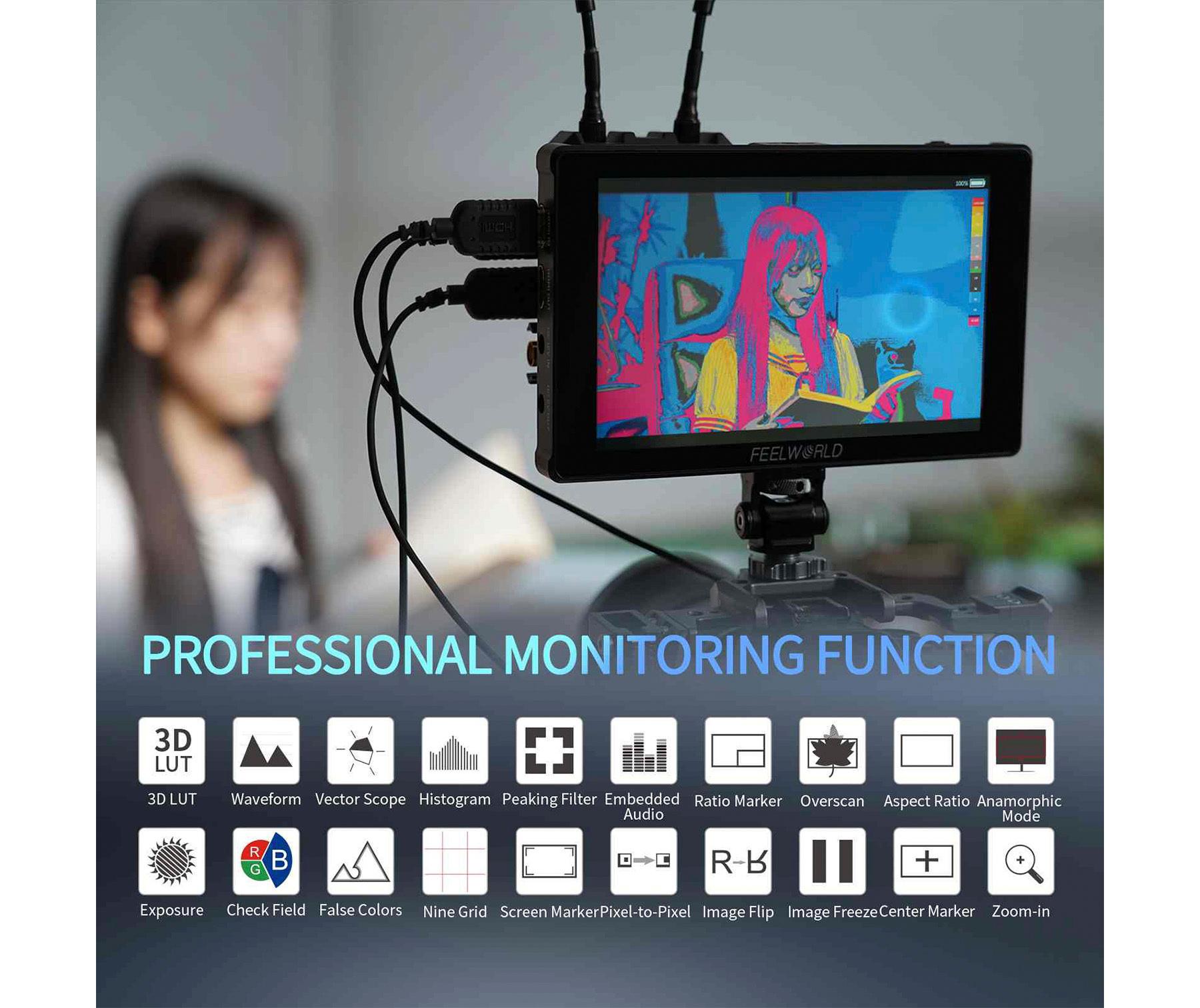

Full Range of Auxiliary Functions

Load Custom 3D LUTs¡ê?Preview Filming Look in Field Shooting
Supports uploading 32 custom LUTs
3D-LUT is a table for quickly looking up and outputting specific color data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. Built-in 4 DE-log LUT, you can also load the custom .cube file via SD card (up to 32). Insert the SD card slot of the monitor.

HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly and better reflects the visual effects in the real environment. Built-in HLG1, HLG2, and HLG3 three types.

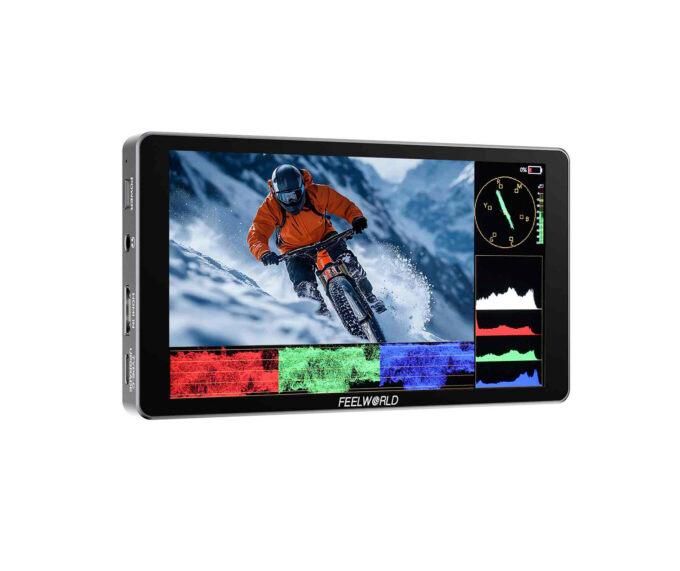

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support a single key to open all scope modes. When the function is turned on separately, you can also move its horizontal or vertical position in the Menu. F7 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

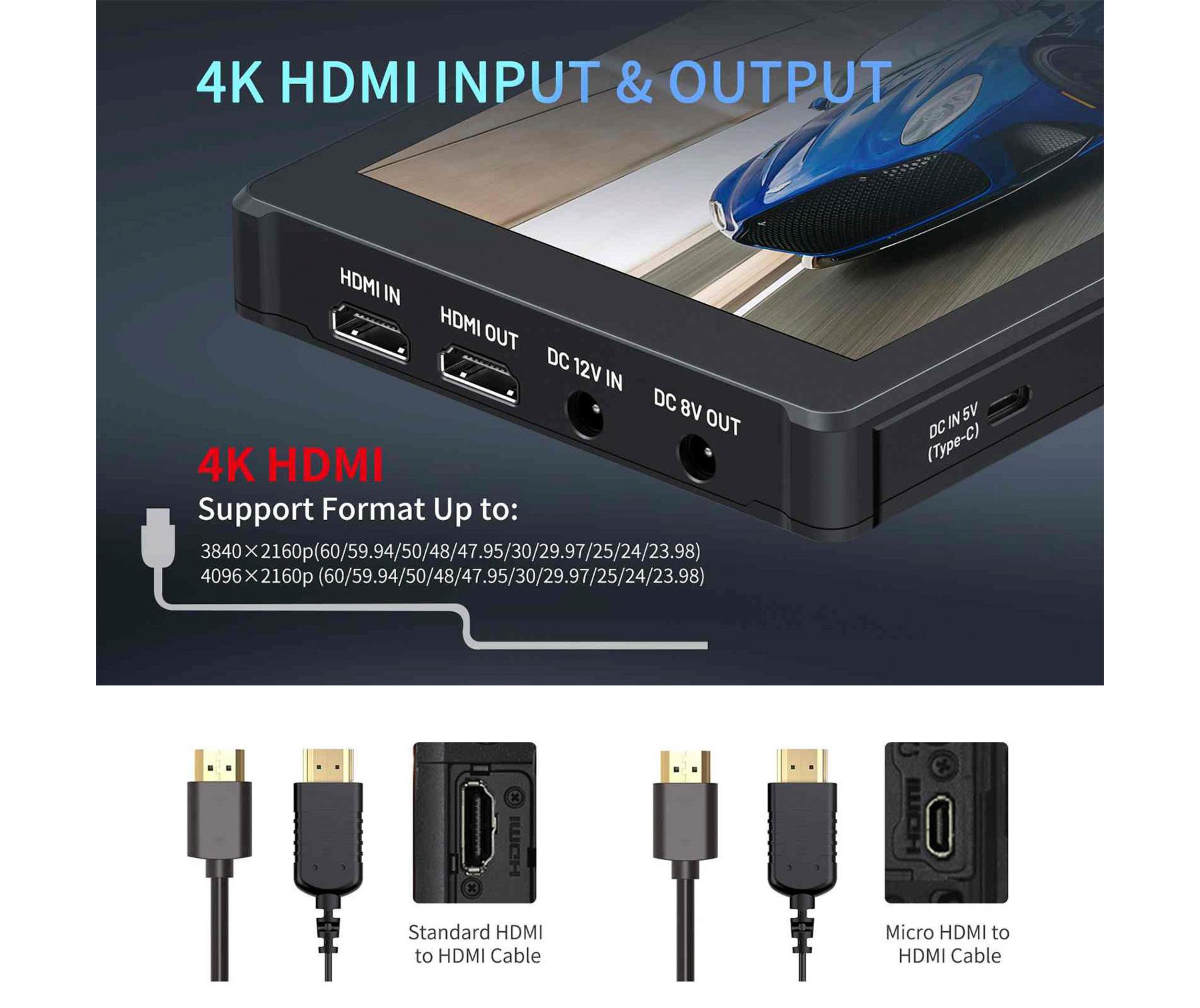

4K HDMI Input and Output¡ê?High Speed Transmission
Equipped with 4K HDMI input and output, supports up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

NP-F External Install and Power Design, Simplify Your Filming Equipment
A Sony NP-F external install and power kit design is added to the back of the monitor. The external kit can be used to install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony NP-F battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of filming equipment.

DC 8V OUT, Power Your DSLR or Mirrorless Camera
F7 PLUS provides auxiliary DC 8V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (optional), the F7 PLUS extends camera run-time, while providing a more usable display.

Multiple Power Supply, Long-lasting Power for Shooting
You can connect to DC power input to get continuous power; suitable for use with a  1.5A or 2A power adapter (DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install an NP-F series battery for mobile application. One F750 battery (4400mAh) lasts for about 2 hours. The monitor also provides a 5V Type-C input, which can be powered by a mobile phone charger or power bank. (At least 5V/2A).
Note: the battery is excluded; please purchase separately.

NP-F Battery Optional Recommendation
The power consumption of F7 PLUS is 15W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

11 Languages Supporting
F7 PLUS is built up to 11 languages, which means F7 PLUS is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Needs of Monitoring
The monitor is equipped with 3 standard 1/4?¡Àmounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring fora  photographer or a director.

Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quickly release and attach to a camera monitor, LED light, flash, microphone, etc. Upper with 180?? viewing angle and base with 360 degree rotation.

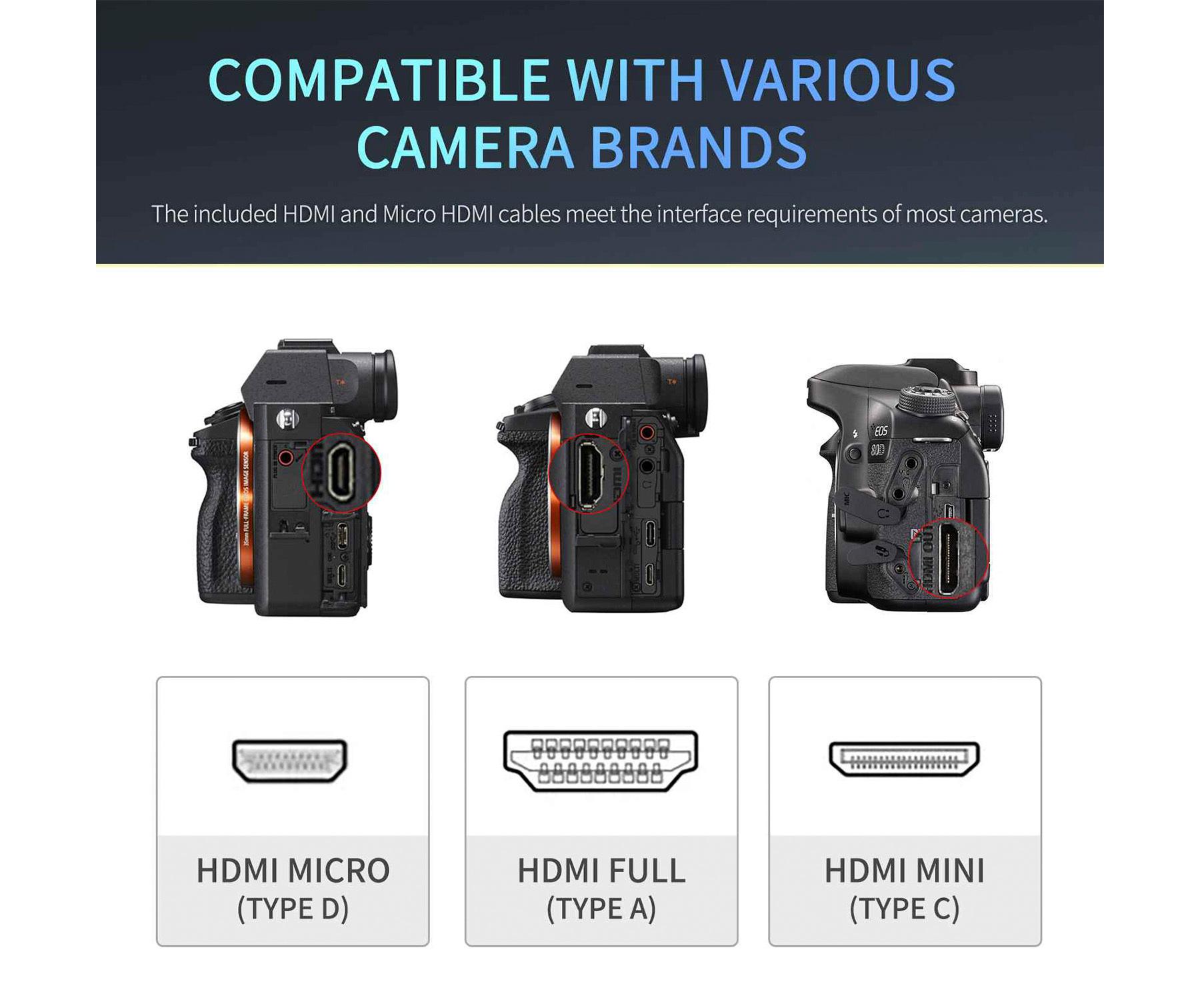

HDMI Cable type reference for matching different camera models
