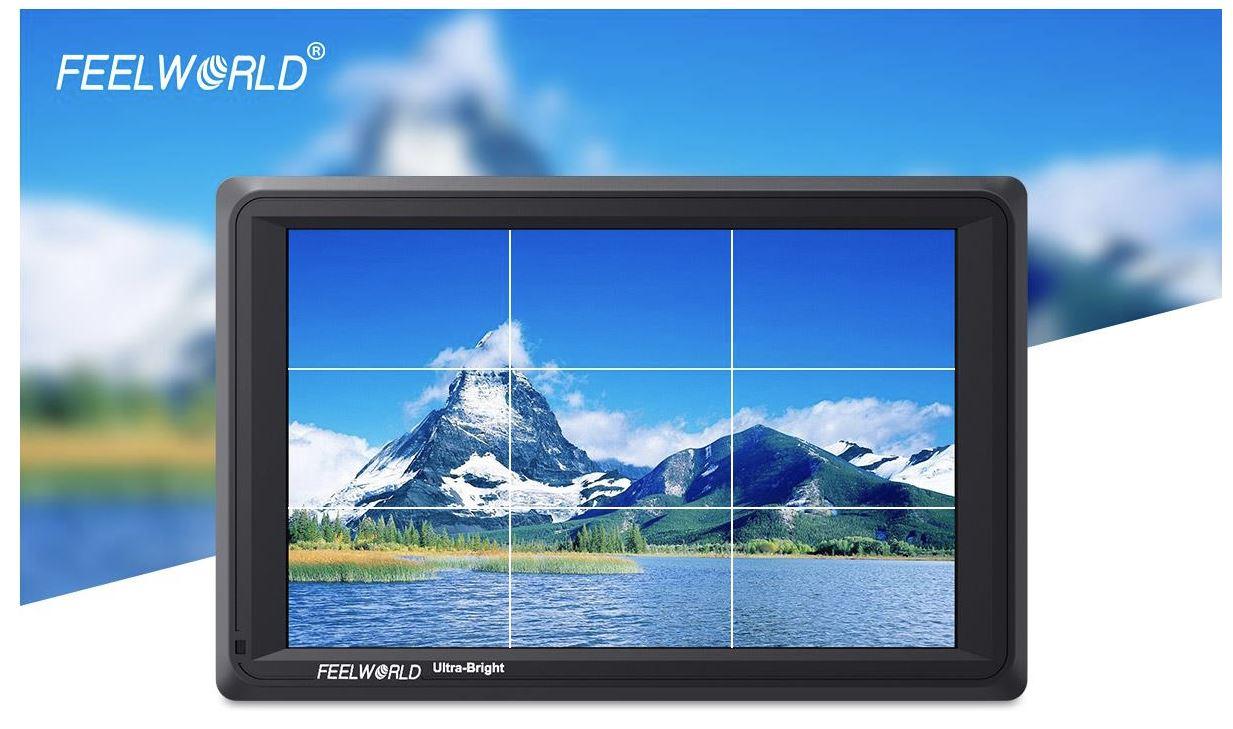

Feelworld FW279S 7" 4K HDMI and 3G-SDI Monitor
FW279S 7" 2200nit Daylight Viewable SDI Field Monitor
Making it ideal for shooting outside and viewable even in direct sunlight
Professional Monitoring Tool
The FW279S has extensive monitoring tools, including histogram, focus assist, embedded audio, false colors, zebra exposure, ratio marker, anamorphic mode, zoom etc. It could help you create the wonderful shots.
Image Quality to Fuel Your Creative Flow
FEELWORLD FW279S provides 7" an 8-bit IPS screen with 1920x1200 resolution, 323ppi pixel density, professional color calibration to overcome natural LCD color drift. The FW279S displays sharper images, better text clarity and color reproductions regardless of your shooting conditions. The FW279S has a wide viewing angle so that everyone on set can review the action.
High Bright 2200nit for Outdoor Shooting
FEELWORLD FW279S ultra-high brightness monitor uses the "golden size" 7-inch panel. The FW279S monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 5 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it a great choice for gimbals, Steadicam and director's monitors, delivering a crisp image without the bulk and viewing angle restrictions of a sun hood.
Simple, Practical Design
It's no surprise the FW279S's simple, practical design makes it the ideal choice for the filmmakers, cinematographers, photographers, and videographers prefer due to its size and weight for field production. It's easy to add professional monitoring to any SDI or HDMI camera with FEELWORLD FW279S! And also it's easy to connect, easy to mount, with a slim and simple design.
True Color · Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Intuitive Controls and Menus
The menu controls are intuitive and easy to use. On the top of the monitor, you'll get the full button layout. Two different feature buttons which are programmable to the various features that you use the most. Maybe you could set one of the shortcut keys to the image flip function so that the screen can be flipped over quickly when shooting upside down.
The monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.
Wide Camera Compatibility
Connect to professional cameras, camcorders and DSLR's
The compact design of the FW279S includes 4K HDMI and 3G-SDI so you can connect them to virtually any DSLR, prosumer or professional camera! The HDMI connection is compatible up to 4Kp30 and the SDI connection has compatibility up to 3G, support for almost all signal. You can also monitor audio using the 3.5mm stereo headphone jack or, the built in speaker.
The FW279S has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
FEELWORLD FW279S features standard 1/4” mount points on the bottom for attaching it to cameras and rigs. When you are using the upside down installation, you can turn on the image flip function to maintain the correct orientation.
75mm VESA Mounting Holes
Alternatively, you can use the VESA 75 mounting holes set in the back to attach the monitor to a sturdier mount if needed
Continuous Power - Plug it in or go mobile
For power, there's a 12V DC input and a F970 battery plate (standard). You could connect the 12V DC input you get continuous power or you can run it off of Sony compatible F970 rechargeable batteries. You can also choose D28S/D54, LP-E6 or U60 battery plate to install other different types of batteries for power supply.
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Since the FW279S is a high-brightness monitor, use a DC7-24V output with a power supply greater than 18W, such as a 12V/2A power adapter.
What's in the box?
- 1 x Feelworld FW279S
- 1× Mini HDMI Cable
- 1× Hot Shoe Mount
- 1× F970 Battery Plate
- 1× Operation Manual
- Display Specifications
Model FW279S Screen Size 7" IPS Resolution 1920x1200 pixels Pixel Pitch 0.07875 (H) x 0.07875 (W) (mm) Aspect Ratio 16:10 Brightness 2200cd/m² Contrast Ratio 1200:1 Backlight LED Viewing Angle 80°/80°(L/R) 80°/80°(U/D)
Input Voltage DC7～24V Power Consumption ≤18W Working Temperature -20°C~55°C Storage Temperature -30°C~65°C Install Way 1/4"-20 Thread Socket (bottom) Battery Plate F970 (Standard); D28S/D54, LP-E6
1 X BNC 3G-SDI 1 X HDMI HDMI
1 X BNC 3G-SDI 1 X HDMI HDMI
- Stereo Headphone, Speaker
- Sdi Support Format
480i/576i 720p(60/59.94/50/30/29/25/24/23.98) 1080i(60/59.94/50) 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- Hdmi Input Output Support Form
480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
- Advanced Features
* Brightness Histogram * Embedded Audio * Peaking Focus Assist (Red, Green
